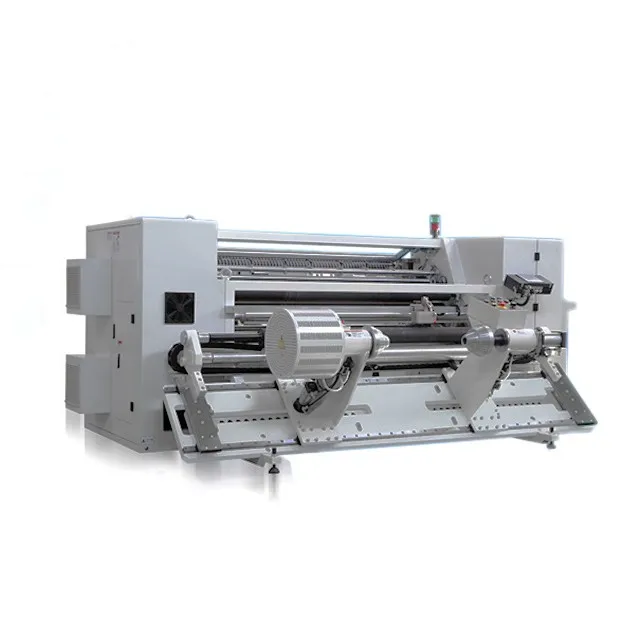

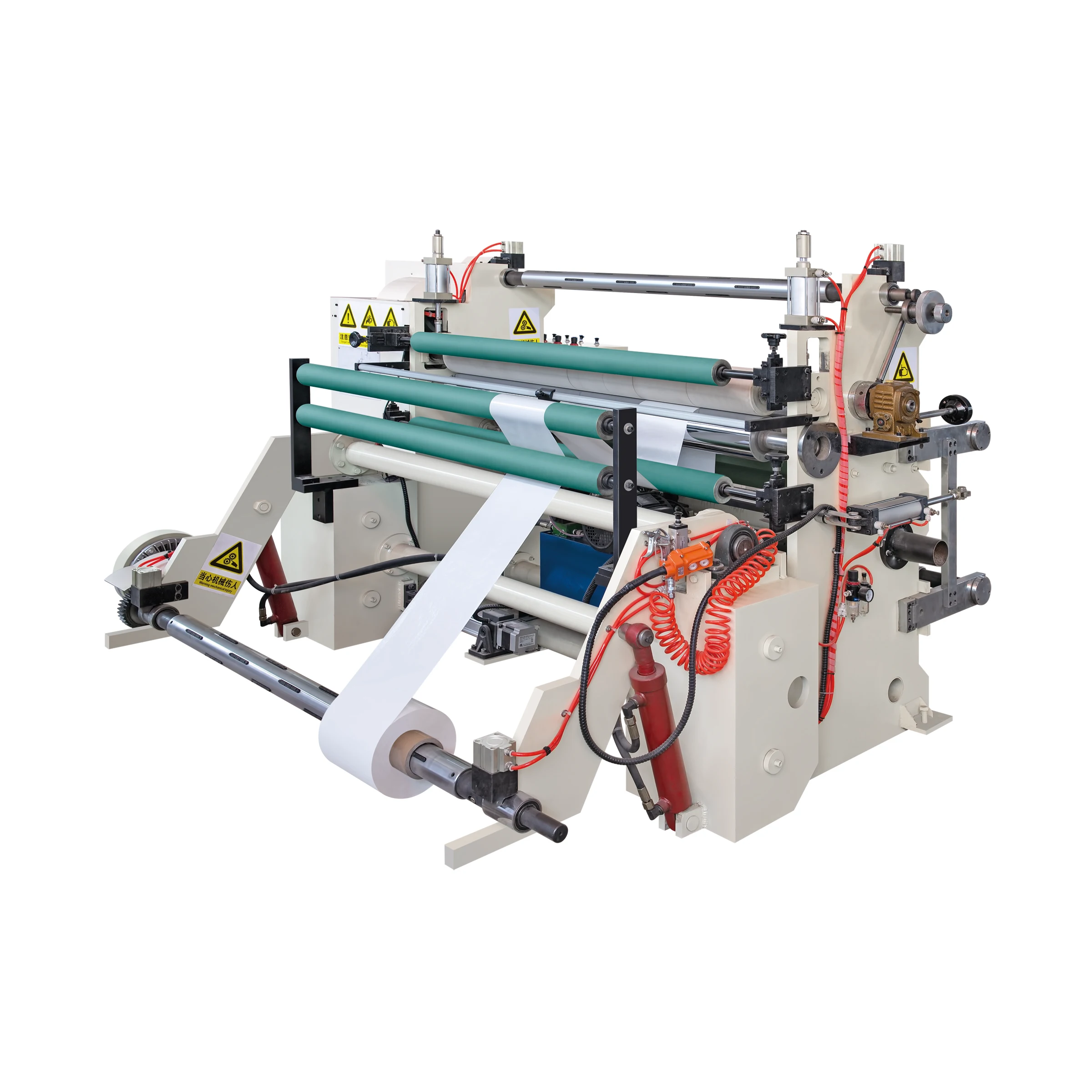

High speed fabric paper film nonwoven slitting machine
High speed fabric paper film nonwoven slitting machine
High speed fabric paper film nonwoven slitting machine
High speed fabric paper film nonwoven slitting machine

High speed fabric paper film nonwoven slitting machine

Share on (60384409454):


Price:

Quantity:


Product Overview

Description


Product Description

Product Application

FWQ series slitting machine mainly use for slitting with Polyester film,Cellophane,paper and Aluminum foil and other packing materials.

\t
SPECIFICATIONS FOR FWQ-1300 SLITTING MACHINE
\t

Unwinding unit
\t
Max.unwinding width
\t
1300mm
\t
Max.unwinding diameter
\t
600mm(Or customized)
\t
Unwinding shaft diameter
\t
3inches(Or customized)
\t
Rewinding unit
\t
Max.rewinding width
\t
1300mm
\t
Max.rewinding diameter
\t
500mm(Or customized)
\t
Rewinding shaft diameter
\t
3 Inch
\t

Main componenets
\t
10KG magnetic powder brake
\t
1 PCS
\t
3KW Motor
\t
1 PCS
\t
2.2KW converter
\t
1 PCS

Main Features

1) Air shaft central unwinding ,tension control is good.
2) photoelectric auto-web guide,high slitting precision,lower waste
3) Unwing tension controlled by per independent magnetic powder brake

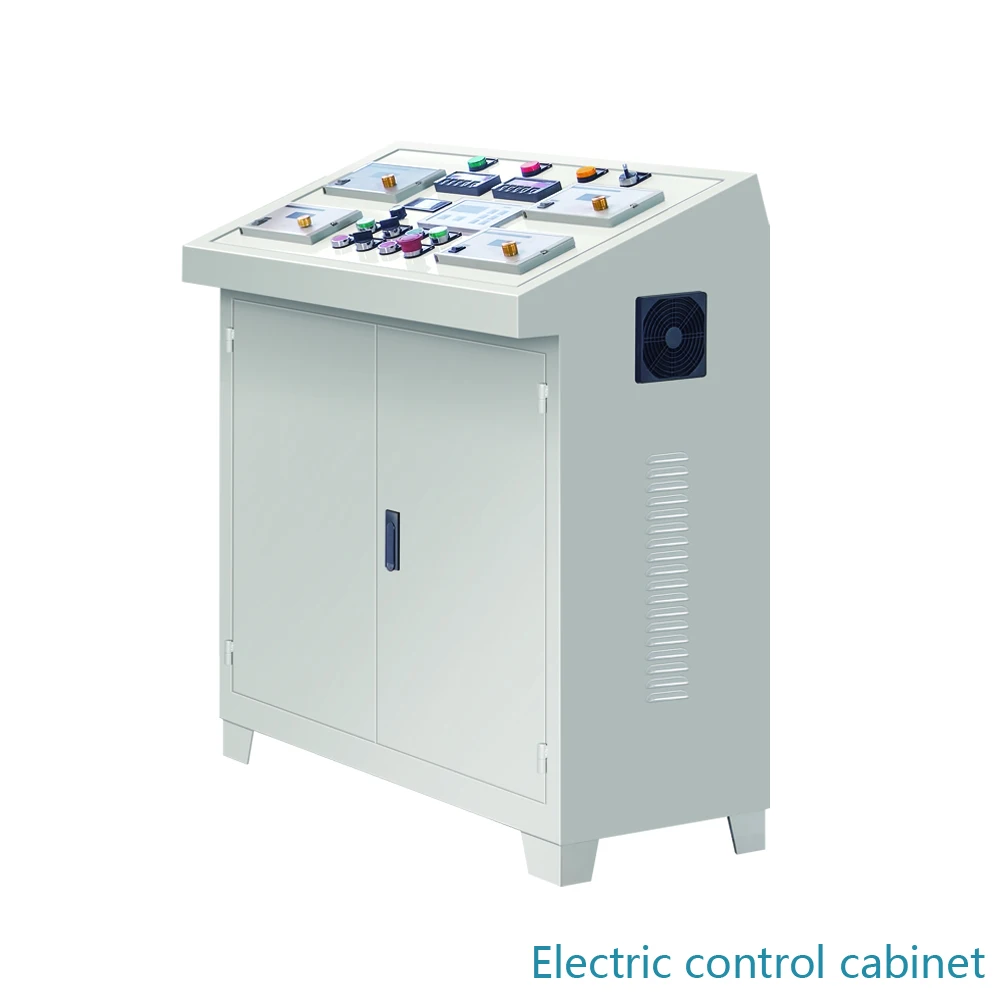

4) Independent eletric cabinet ,micro-computer centralized control,rewinding length counting, and auto-stop.

Certifications
Detailed Images

Machine Parts

Name:Unwinding shaft
Max.unwinding diameter:600mm
Max.unwinding width:1300mm
Air shaft for central unwinding

Main Features

Name:Slitting knife
Type: Circular knife
Mini slitting width:35mm
Devide upper and lower group air pressure knife.

Machine Parts

Name:Rewinding shaft
Max.rewinding diameter:500mm
Max.rewinding width:1300mm
Double air shaft for rewinding position with press roller

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
\t
Packaging
\t
Size
\t
4000m (L) * 2800 (W) * 1450mm
\t
Weight
\t
1.9 T
\t



Packaging Details
\t
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
