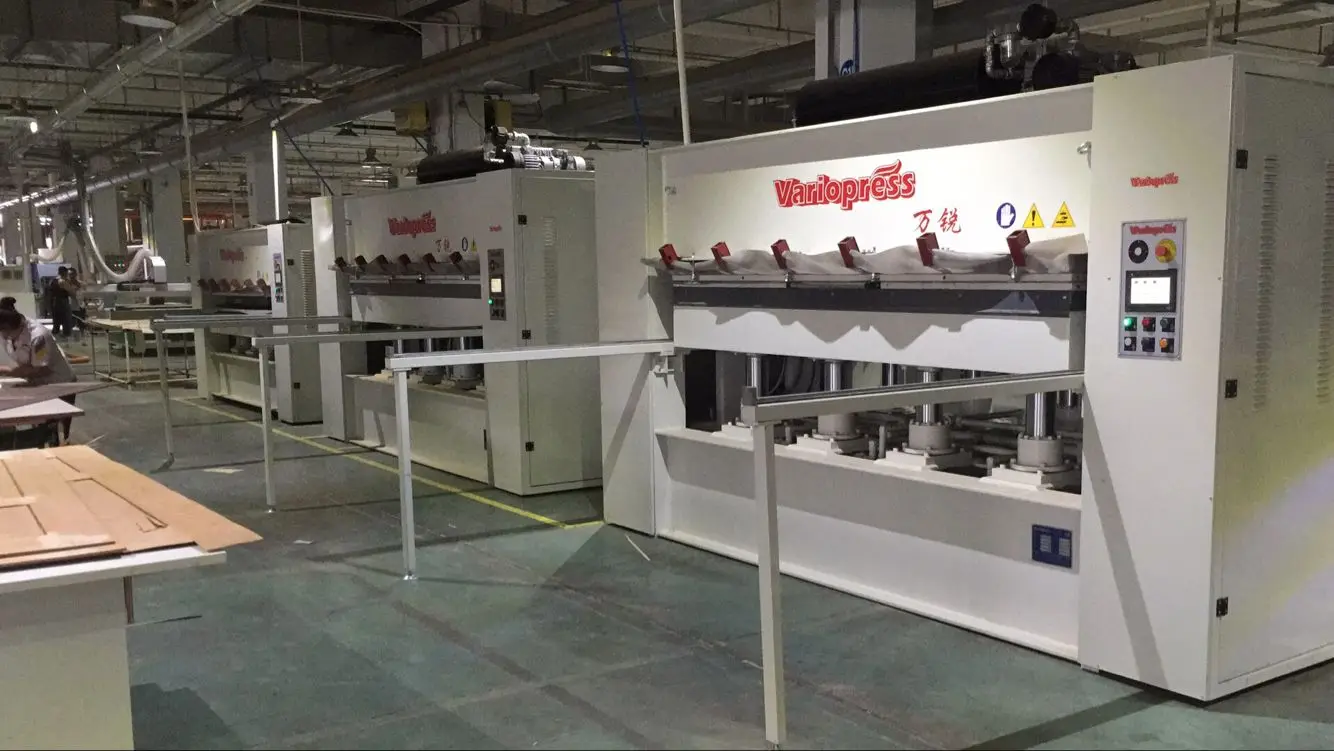

This series of equipment is an international advanced top grade machine for curved and plane surface coating, which is developed by latest technology introduced from Europe. It acts positive and negative pressure on the workpiece at the same time, so that it has better than the ordinary vacuum machine.Especially for the surface coating of top grade workpiece.
The temperature uniformity of heated surface and the heating efficiency are highly improved by using the heating oil as the medium.
It is highly automated and every parameter can be read through touching screen by using PLC system.You can control it automatically and also can control it step by step during the whole process.
Technical parameter
Model
BY994X8/5C
Max.workpiece size
2300x1100x50mm
Oil cylinder No.& specification
8-Φ125mm
Total pressure
5kgf/cm2
Hot platen size
1300x2500x42mm
Air pressure working pressure(inner chamber)
positive pressure less than 0.5MPa
Negative pressure more than -0.095MPa
Total power
41.85kw
Overall size
3880x2400x2530mm
Weight
about 8500kg
Company Information
Honor exhibition
Packaging & Shipping
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory
2.Q:Where is your factory located? How can I visit there?
A:We have two factories. One is in Shunde District, Foshan City, Guangdong Province,China. The other is in Jinzhong City, Shanxi Province. about 15 minutes to Wusu airport. All our clients, from home or abroad, are warmly welcome to visit us.
3.Q:What is the material of your products?
A:The main material are steels, oil cylinder and other. We can also choose material as customers’ requirement.
4.Q:How can I know more about the press machine?
A: We are honored to send you some pictures and video about our machine. And we welcome every customer visit our factory.
5.Q:How does your factory do regarding quality control?
A:Quality is priority. Factory director always attach great importance to quality controlling from the very beginning to the very end.
