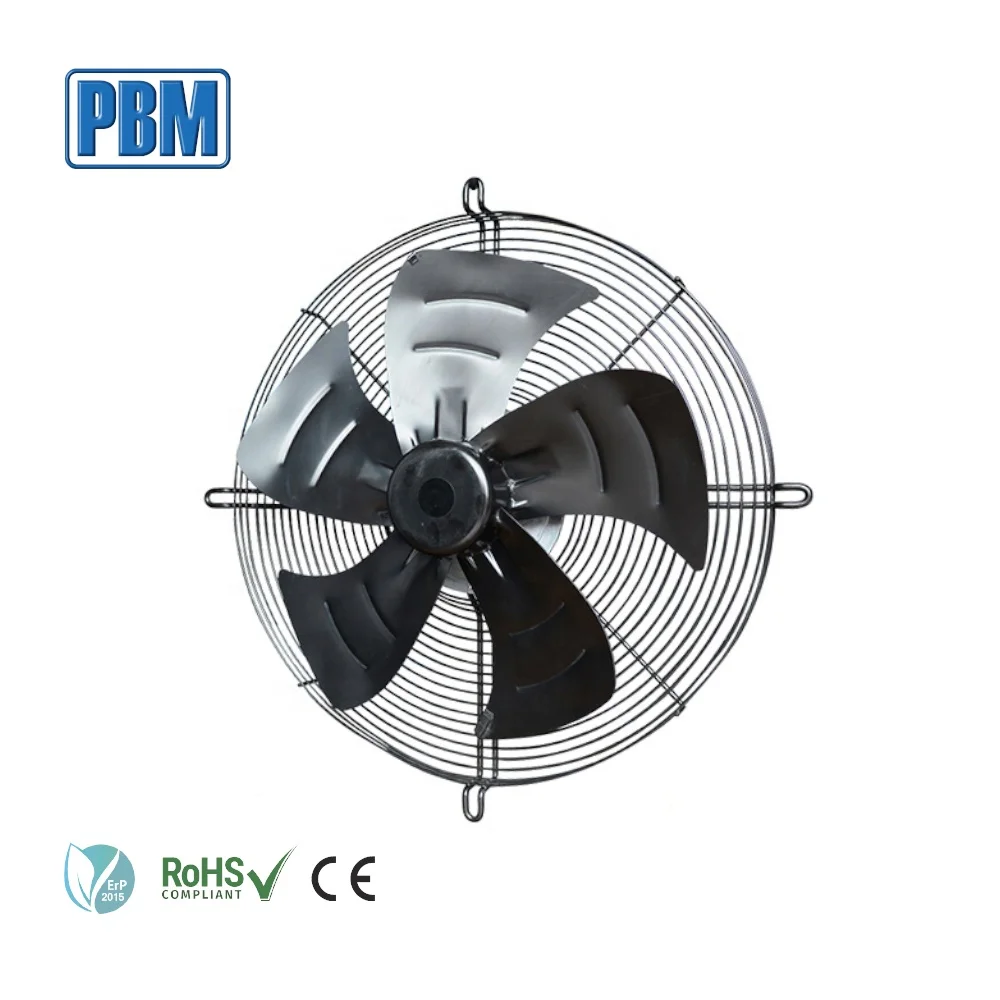

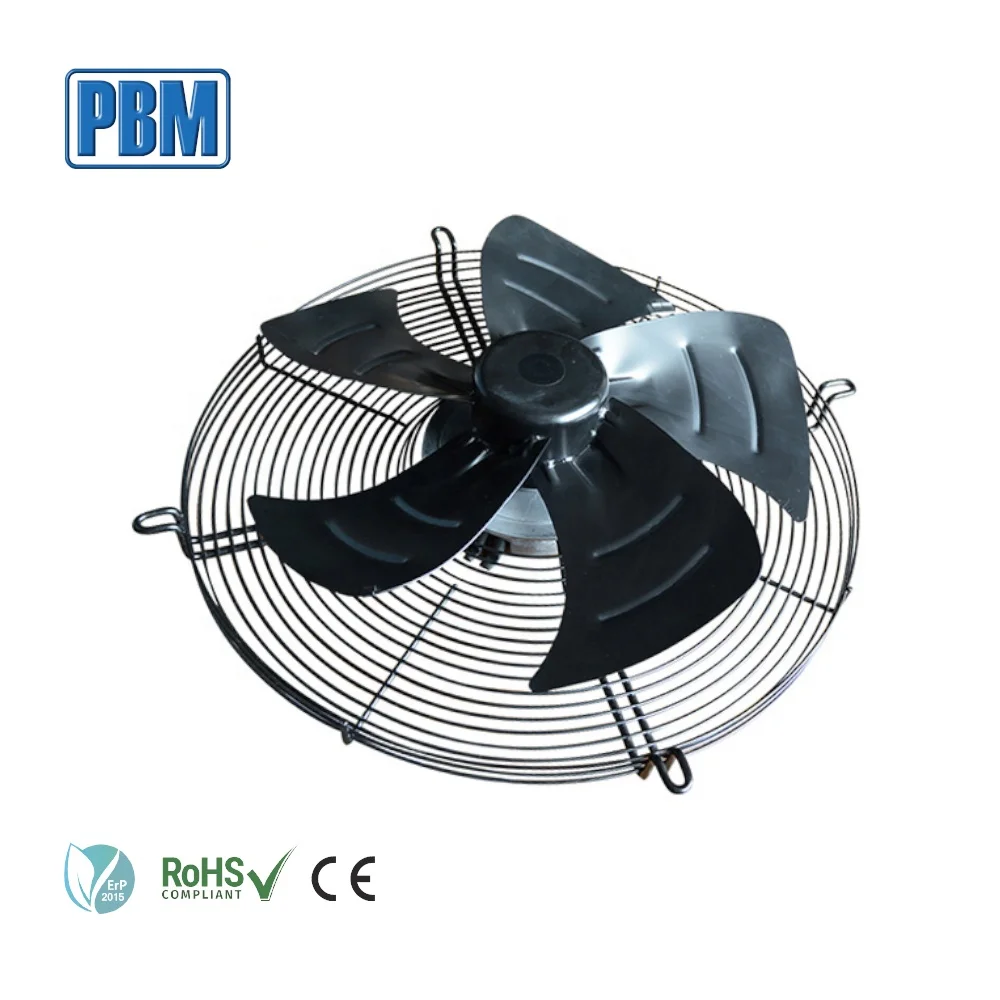

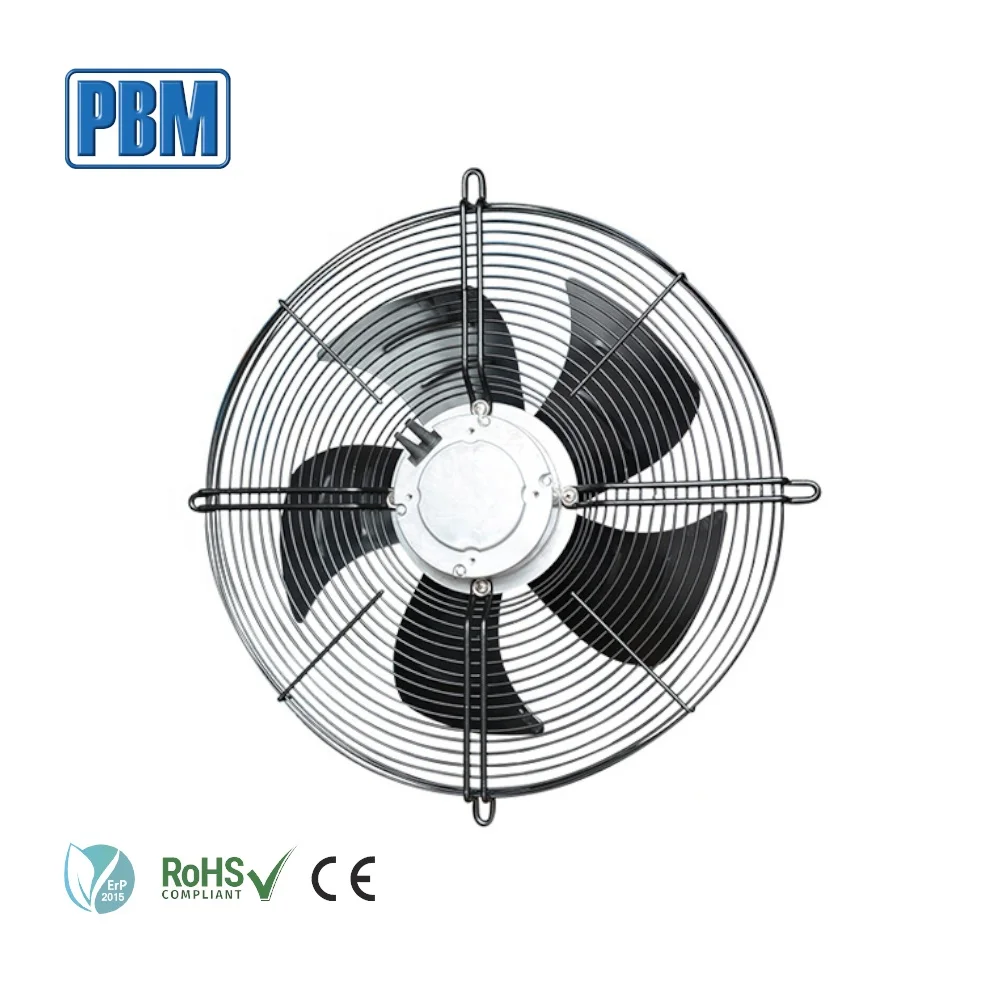

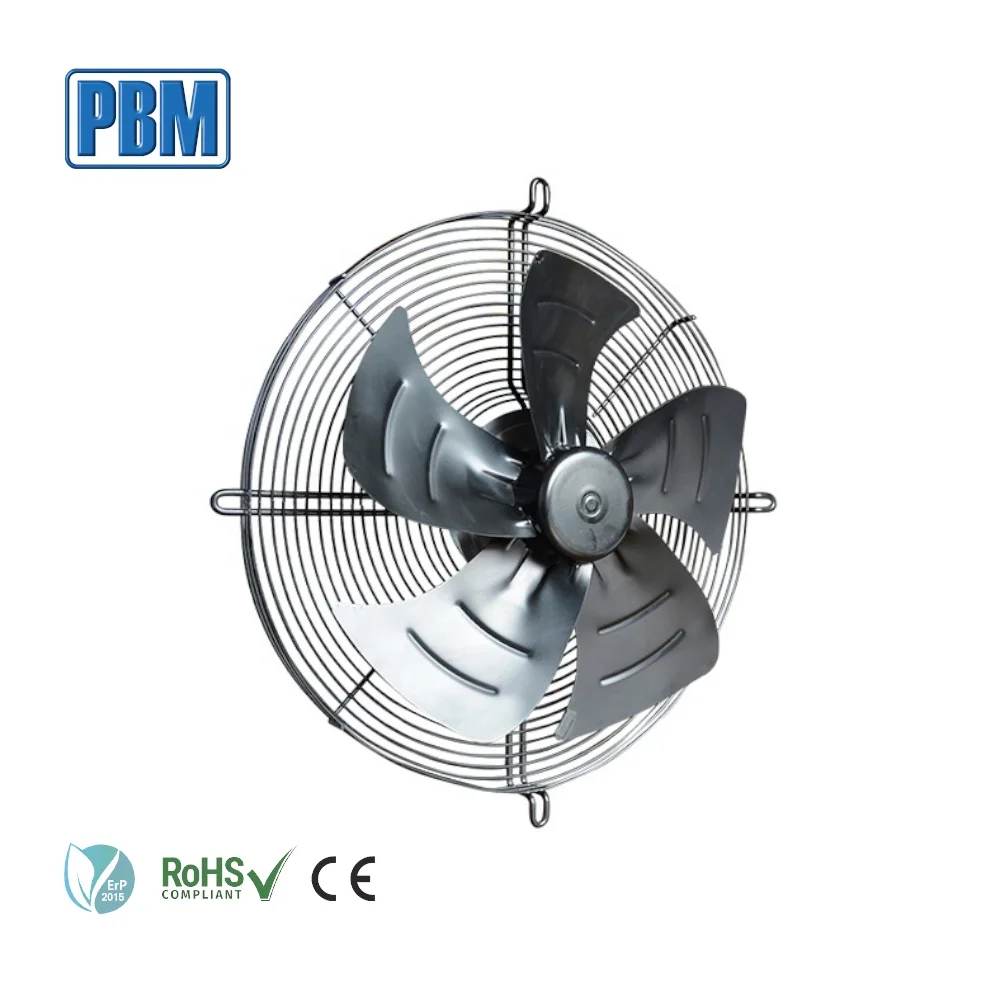

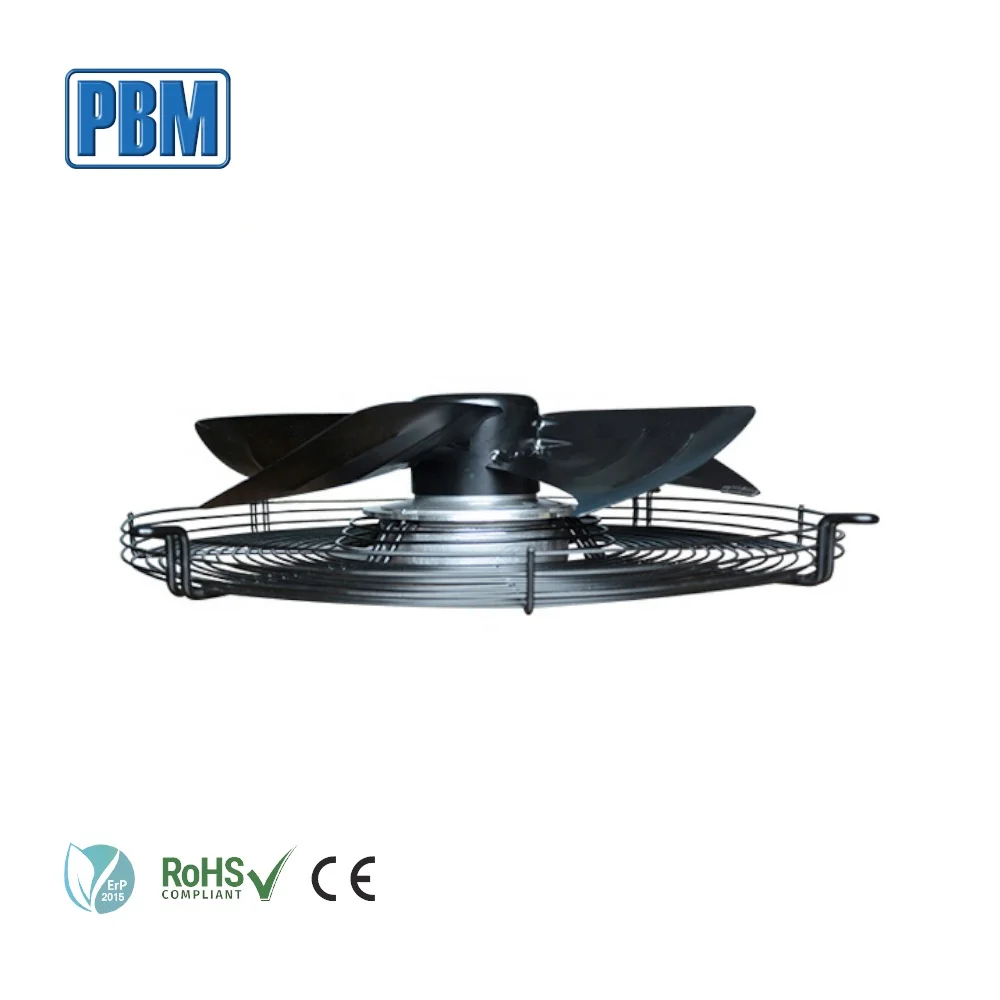

450x140 mm 230V EC Axial Ventilation Exhaust Fan with Guard Grille
- Category: >>>
- Supplier: Pbm Motor And Fan (suzhou) Co. Ltd.
Share on (60384543729):
Product Overview
Description
1.General Characters
1-1 | Rated Voltage | 230 VAC |
1-2 | Frequency | 50/60 Hz |
1-3 | Operating Voltage | 184~276 VAC |
1-4 | Rated Speed | 1750 RPM |
1-5 | Input Current | 2.7 A |
1-6 | Input Power | 400 W |
1-7 | Air Flow | 3531.59 CFM / 6001 m3/H |
1-8 | Static Pressure | 1.26 inH2O / 316 Pa |
1-9 | Acoustical Noise | 76 dB(A) |
1-10 | Life Expectance | 50,000 Hours(L10) At 40℃ room, humidity 15%~65%RH. |
1-11 | Insulation Class | Class B |
1-13 | Motor Protection | Locked rotor protection Polarity protection Automatic restart capability |
1-14 | Speed Control | Control input 0~10VDC / PWM |
1-15 | Protection Type | IP44 |
1-17 | Signal Output | FG (Frequency Generator) |
2. Mechanical Characters

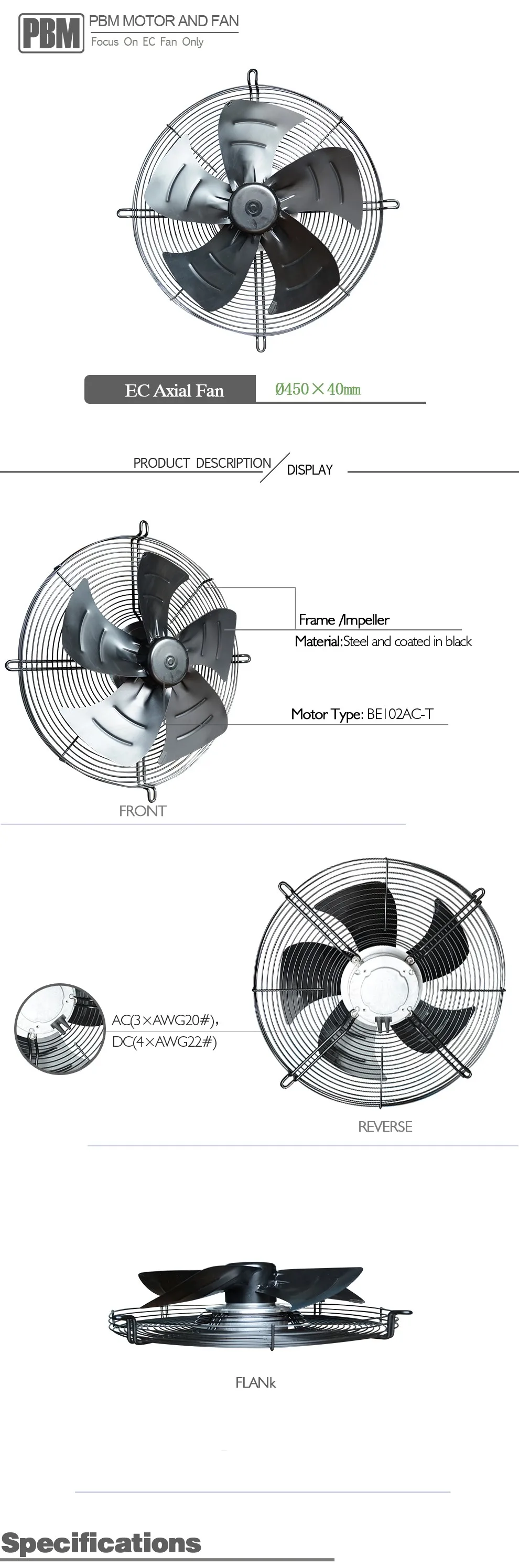

2-1 | Dimension | Ø450mm X 140mm (see dimension drawing) |
2-2 | Material of Impeller | Cold rolled steel sheet |
2-3 | Number of Blades | 5 |
2-4 | Bearing System | NMB ball bearing |
2-5 | Lead Wire | AC(AWG20#),DC(AWG22 #) |
3. Environmental Characters
3-1 | Operating Temperature | -25℃ to 60℃ |
3-2 | Storage Temperature | -40℃ to 75℃ |
3-3 | Operating Humidity | 5% to 90% RH |
3-4 | Storage Humidity | 5% to 95% RH |
| Model | Motor Type | Bearing System | Rated Voltage | Frequency | Rated Current | Rated Power | Rated Speed | Air Flow | Air pressure | Noise Level |
| Part NO. | Type | B / S | VAC | Hz | A | W | RPM | M³/H | Pa | dBA |
| PG3N450B2EM | BE102AC-T | BALL | 230 | 50/60 | 3.2 | 480 | 1950 | 6001.8 | 316 | 76 |

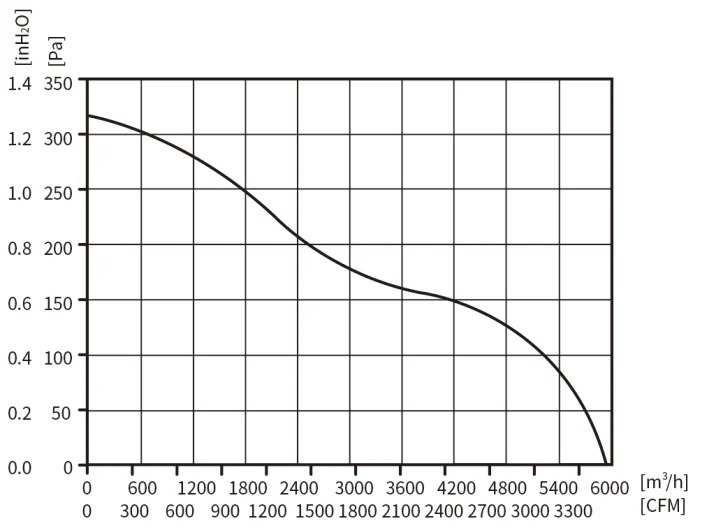

4.Outline Drawing and Performance Curve
FAQ
Q1. How about the delivery time ?
A1: Within 25 days after we receive the order.
Q2. What kind of payments do you support?
A2: T/T & L/C, other types please contact us.
Q3. What's the MOQ?
A3: Generally speaking, the MOQ is 100 pieces. Different products have different MOQ. Please contact us.
Q4. Transportation
A4: All available shipping ways could be applied, by courier, air or sea. Appointed shipping company or our own forwarders all could be used in shipment. Full-way tracking the cargos for you before the goods arrive.
Q5. Global Market
A5: Depending on advanced technology and knight service, we establish a good and diligent team and keep nice business relationship with a large amount of worthy clients in global market. We are prepared to provide the best EC Centrifugal Fan to clients at competitive price. In addition to control of cost and quality, our stipulated lead-time, variety of designs, capability of product development and flexibility of service bring convenience and value added services to the clients.
