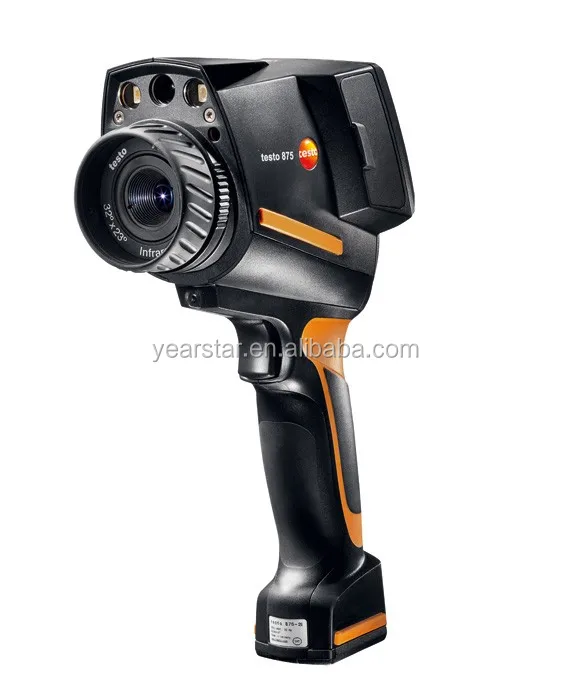

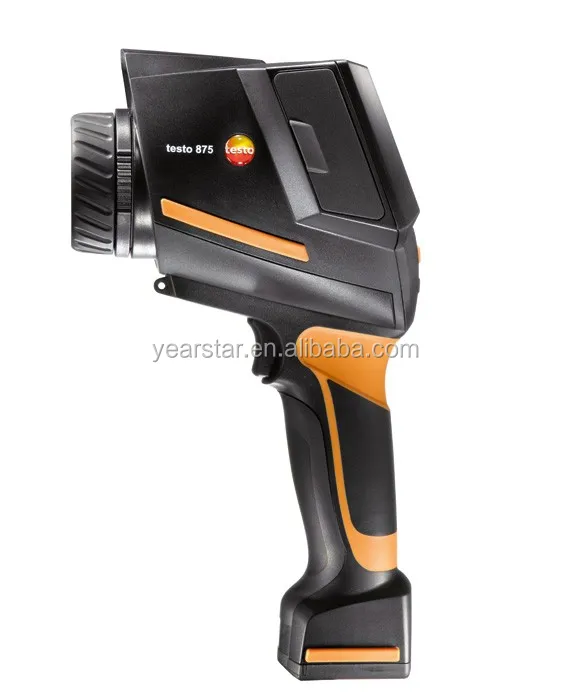

Testo 875 1i Thermal Imaging sensor Camera
- Category: >>>
- Supplier: Shenzhen Yearstar Intelligent Technology Co. Limited
Share on (60384720382):
Product Overview
Description
Product Description
Specification:
| Infrared image output | |
| Technical data | |
| Infrared resolution | 160 x 120 pixels |
| Spectral range | 7.5 µm; 14 µm |
| Focus | manual |
| Image refresh rate | 9 Hz |
| SuperResolution (IFOV) | 2.1 mrad (Standard lens) |
| SuperResolution (Pixel) | 320 x 240 pixels |
| Geometric resolution (IFOV) | 3.3 mrad (Standard lens) |
| Minimum focus distance | 0.1 m (Standard lens) |
| Field of view | 32° x 23° |
| Thermal sensitivity | 80 mK at +30 °C |
| Image presentation | |
| Technical data | |
| Display type | 3.5" LCD with 320 x 240 pixels |
| Display option | IR image only |
| Number of colours | 10 |
| Colours | 10 (iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HT) |
| Video output | USB 2.0 |
| Measurement | |
| Technical data | |
| Measuring range | 0 |
| Accuracy | ±2 °C, ±2 % of m.v. |
| Reflected temperature | manual |
| Measuring function | |
| Technical data | |
| Surface moisture distribution | Not included |
| Humidity measurement | Not included |
| Solar mode | Included |
| Analysis function | Centre point measurement, hot/cold spot recognition |
| Imager equipment | |
| Technical data | |
| Digital camera | Not included |
| Video streaming | Included |
| Standard lens | 32° x 23° |
| Power-LED | Not included |
| Imager storage | |
| Technical data | |
| File format image | .bmt; export option in .bmp; .jpg; .png; .csv; .xls |
| Storage device | SD card 2GB (approx. 2.000 images) |
| Power supply | |
| Technical data | |
| Battery type | Fast-charging, Li-ion battery can be changed on-site |
| Operating time | 4 h |
| Charging options | In instrument / charger (optional) |
| Mains operation | yes |
| Ambient Condition | |
| Technical data | |
| Storage temperature | -30 °C; 60 °C / -30 °C; 60 °C |
| Operating temperature | -15 °C; 40 °C / -15 °C; 40 °C |
| Air humidity | 20 to 80 %RH non-condensing / 20 to 80 %RH non-condensing |
| Housing protection class | IP54 / IP54 |
| Vibration | 2G / 2G |
| Physical specification | |
| Technical data | |
| Weight | 900 g / 900 g |
| Dimensions | 152 x 108 x 262 mm / 152 x 108 x 262 mm |
| Tripod mounting | M6 / M6 |
| Housing | ABS / ABS |
| PC software | |
| Technical data | |
| System requirements | Windows XP (Service Pack 3); Windows Vista; Windows 7 (Service Pack 1); Windows 8; Interface: USB 2.0 / Windows XP (Service Pack 3); Windows Vista; Windows 7 (Service Pack 1); Windows 8; Interface: USB 2.0 |
