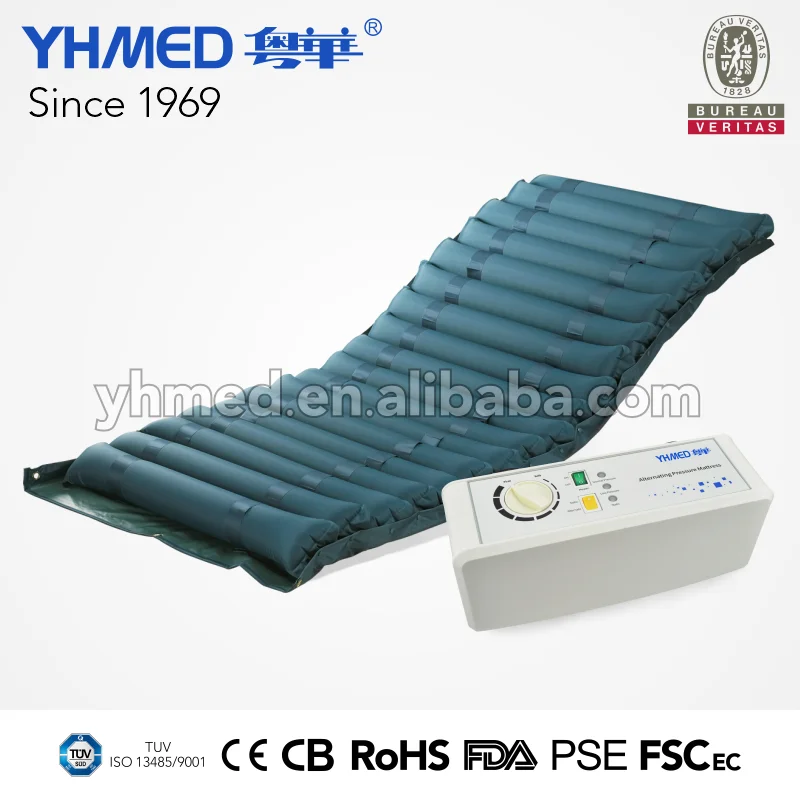

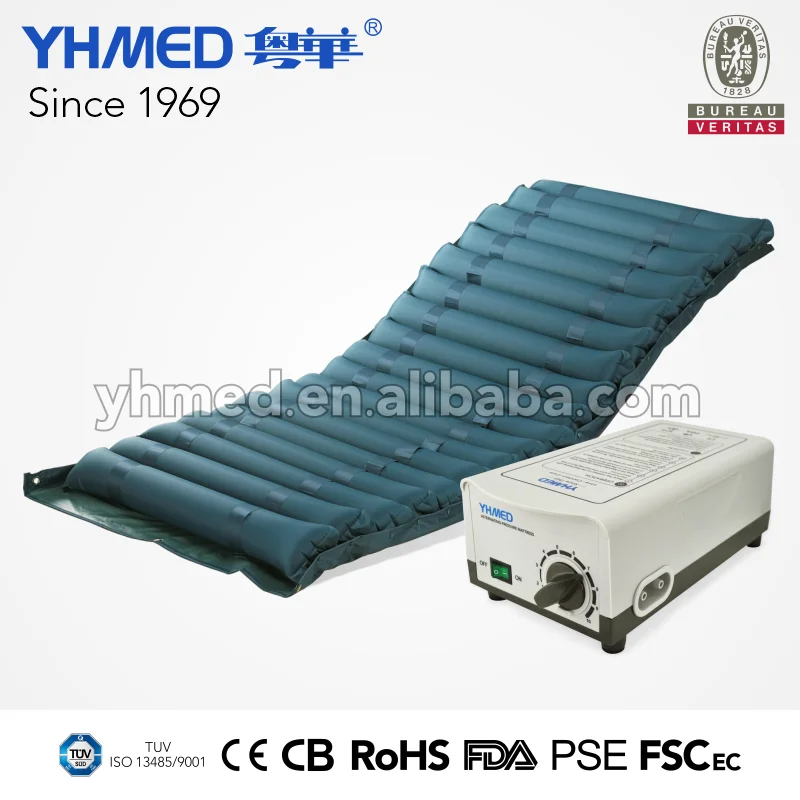

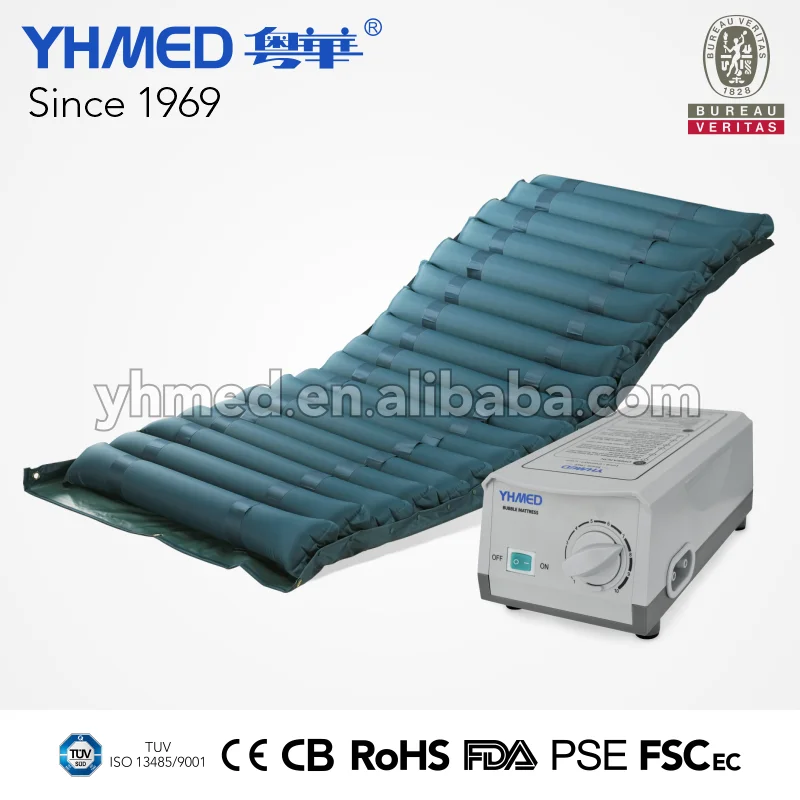

Hospital Bed Medical Anti bedsore Ripple Air Mattress

Product Overview

Description

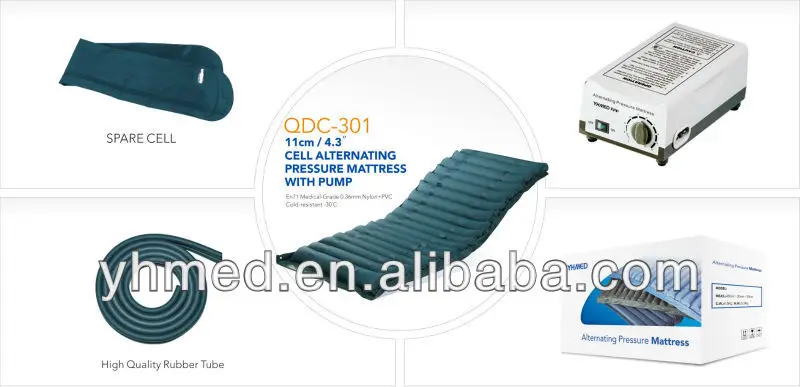

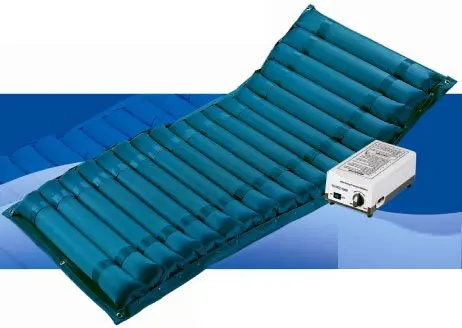

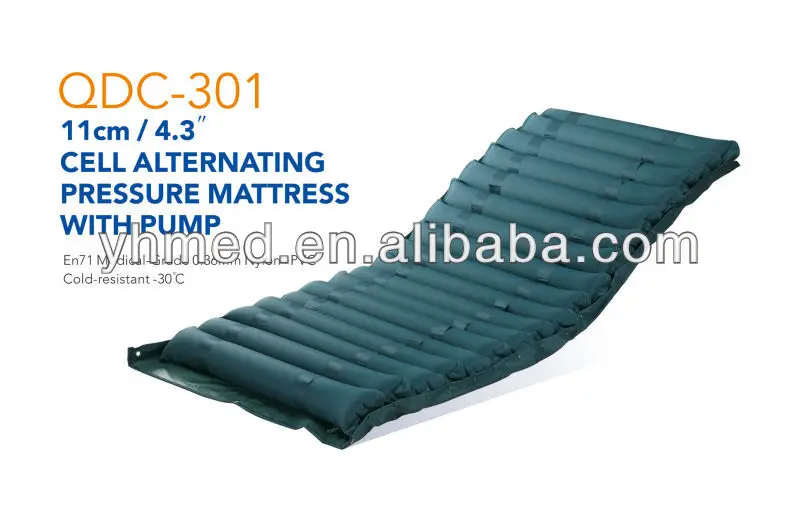

QDC-301

Alternating Pressure Mattress With Pump



En71 Medical-Grade 0.36mm Nylon+PVC

Cold-resistant-30°c







QDC-301 is recommended for the treatment and prevention of pressure sore stage Ⅰ and Ⅱ in long-term and domiciliary therapies. The 18 11cm-high cells in Nylon+PVC are comfortable. They are fixed by means of press-studs. Very easy to install, use and maintain with the possibility of adjusting the pressure according to the patient's weight. They are also easily interchangeable in case of breakage. The pump can be hung to the end of the bed by means of two hooks.













Technical Parameters Of The Mattress

Dimensions without flap(L*W*H)	200*90*11cm
Cell height	11 cm/ 4.3''
Cold-resistant	-30°c
Material thickness	0.36mm
Cell and base material	Nylon + PVC
Number of cells	18+1 Free space cell
Weight support	145kg
Mattress system	Overlay
Pressure Ulcer Stage	Ⅰ, Ⅱ
Warranty	12months

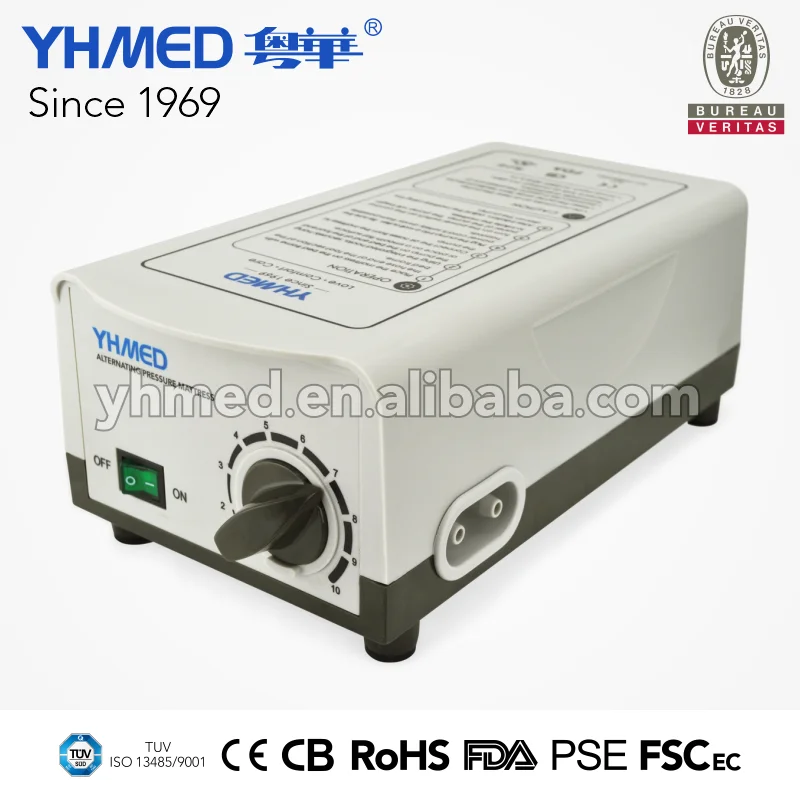

Technical Parameters Of The Pump (P1000)

(the most quiet pump in China)



Electrical	AC 110V/220V  50Hz/60Hz
Pressure	55-110 mmHg
Air output	7-8 Liter/min
Dimensions(L*W*H)	26.5*13.5*10 cm
Plastic Casing	Taiwan Chimei ABS
Test Duration	24 Hours (Inflation)
Certificates	TUV-CE IEC/EN60601-1&60601-1-2
Synchronous Motor	TW Ann Yih Brand
Cycle time	12 min
Warranty	24 Months
