CNC Gear Hobbing Machine For Less No. of Teeth And Large Module Gears

Product Overview

Description





 CNC Gear Hobbing Machine For Less No. of Teeth and Large Module Gears

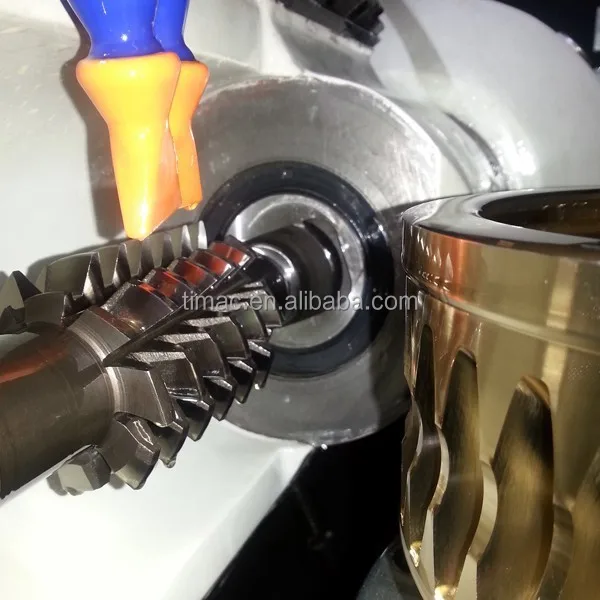

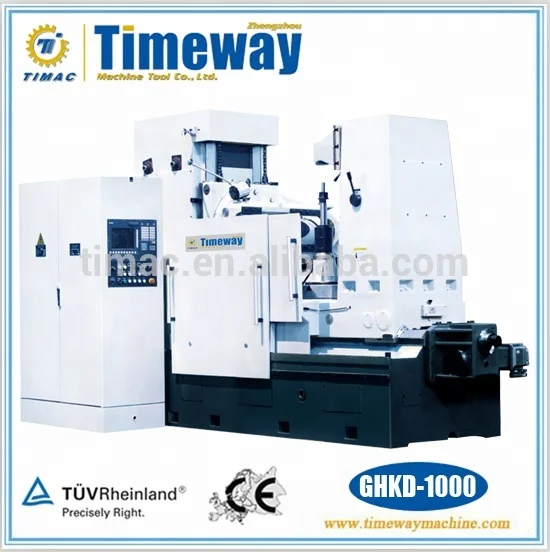

GHKD-1000



Machine Summary

The model GHKD-1000 large-module CNC gear hobbing machine, which is developed on the basis of the model GHKA-1250 CNC gear hobbing machine, is capable of cutting large-module workpiece, even up to 20mm module. It is 2-axis CNC machine: X-axis radial feed motion and Z-axis axial feed motion, which are all driven by AC servo-motors. The CNC system adopts German SIEMENS-802D. On the principle of continious indexing, the machine is capable of cutting cylindrical spur and helical gears, crowning and slightly tapered gears as well as worm wheels by radial cutting nethod. Axial and radial feed axes are driven by AC servo-motors through preloaded ball screws. The machine is best suited for mine, oil, marine, engineering machinery industries for hobbing large gears.

Remarks
1. Standard equipment includes: main machine, hob arbor assemblies Φ32, Φ40, Φ50 one for each, a complete set of change gears, a complete set of operating tools.
2. Special order: other dia. hob arbors Φ22, Φ27, Φ60.

Components for Special Order

• Workstay bottom blocked up 300mm/350mm/400mm for longer shaft gear
• Workstay adding height (distance between tailstock bore low end face and worktable surface
• Workstay center
• Workstay steady rest dia. Φ180-Φ270mm
• Worktable bore (bore dia.*depth) Φ260*300mm, Φ180*150mm
• Tool alignment device M8-M16
• Mangnetic chip conveyor for convenient to remove chip





Technical Parameters



Specifications	Units	GHKD-1000
Max. workpiece dia. with workstay	mm	1000
Max. module	mm	20
Min. tooth number		12
Max. worktable speed	rpm	5
Worktable dia. *hole dia.	mm	950*200
Hob speed/steps	rpm	24-187/7
Distance between hob axis and worktable surface	mm	200-730
Max. center distance between hob axis and worktable	mm	100-740
Distance between tailstock end face and worktable surface	mm	580-1000
Max. hob diameter*length	mm	Φ260*220
Max. hob head swivel angle	deg	±60
X and Z motors torque	N.m	27
Total power	kw	32.75
Main motor power	kw	15
T-slot of worktable	mm	6*M20
Overall dimension(L*W*H)	cm	443*270*260
N.W/G.W	kg	15400/16600
No. of cases		2 cases in total



Foundation Plan
