AITE LR LS 600M laser rangefinder

Product Overview

Description

AITE LR-LS 600M laser rangefinder









The Laser range finder monocular is a portable optoelectronic device combined a laser range finder and a monocular.  Its function includes:



1) Measure the distance of a stationary and slowly moving object within a certain range and can, at the same time, observe the object with great clearness and the data can be saved. It possesses many advantages, such as a high accuracy, short measuring time, low power consumption and automatic shutoff for power saving etc.



2) The transmission power of this device is very small and does no harm to users eyes,  and any target can be measured at random. It is compact, accurate in measure, light in weight, small in volume, very easy to operate and carry about.  One piece of CR2-3v battery is used which can be bought and changed easily.



The laser range finder monocular can be widely used for travel, sightseeing, golf sports, hunting, camping as well as for any measurement of outdoor projects. It is a very good assistant to improve our outdoor life quality.

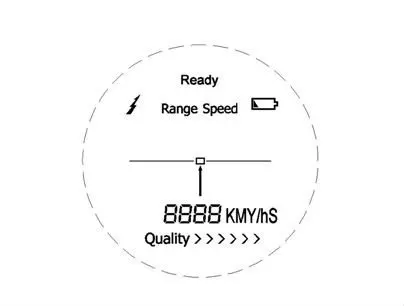

1) "Ready"——Range finder or Speed finder is ready



2) "Range"——Range finder mode



3) "Speed"——Speed finder mode



4) "+"——Aiming indication



5) "8888"——Distance Display will be in 4 figures



6) ""——Laser transimission indication



7) "    "——Low battery indication



8) "M","Y"——Distance unite



9) "KM/H", "M/S"—— Speed unite



10) "QUALITY >>>>>>"——Distance  quality indication

































Distance Measure Range	5~600M
Speed Measure Range	0-300KM/H
Object Lens Size	24mm
Magnification	6x
Field of view	7°
Exit Pupil Diameter	3.8mm
Diopter Adjust Range	±6
Operation Temperature	-20~50°C
Distance Measure Time	Less than 3s
Speed Measure Accuracy	+/- 5 KM/H
Battery Type	CR2-3V
Low battery indication	Yes
Net weight	185g
Dimension	104x72x41mm
