China Supplied FTTH EPON 1U 19inch L3 Route 8 SFP or SFP and 8GE UPLINK 8 PON Ports 1:64 Splitting Ratio GEPON OLT with CLI
- Category: >>>
- Supplier: Guangzhou V-Solution Telecommunication Technology Co. Ltd.
Share on (60385211366):
Product Overview
Description
VS Let More Partner Adopt V-S' Solution

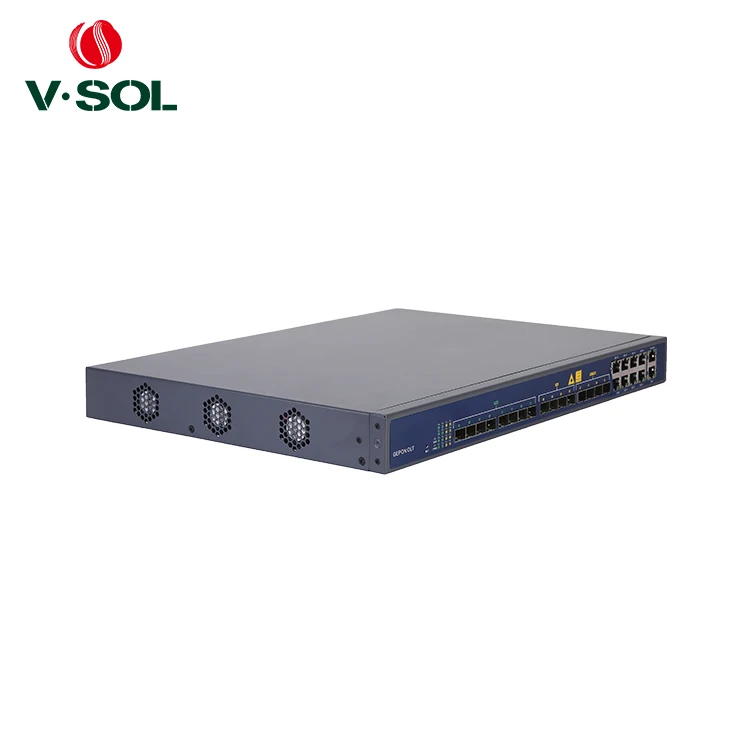

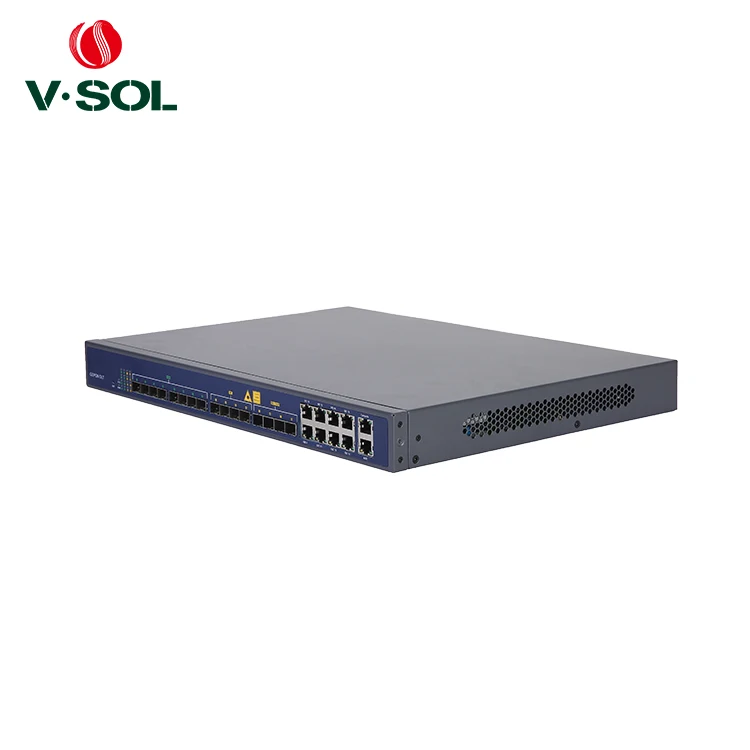

Optic Fiber 1U 19inch 8 pon Ports Gepon OLT
Product Description
Introduction
V1600D series EPON OLT products are 1U height 19 inch rack mount products. The features of the OLT are small, convenient, flexible, easy to deploy, high performance. It is appropriate to be deployed in compact room environment. The OLTs can be used for “TriplePlay”, VPN, IP Camera, Enterprise LAN and ICT applications. There are three members in this series, V1600D2, V1600D4 and V1600D8.
V1600D8 provides 8GE(copper) and 8SFP slots independent interface for uplink, and 8*EPON OLT ports for downstream. It can support 128 ONUs under 1:64 splitter ratio.
Technical Specifications
Item | V1600D8 | ||
Chassis | Rack | 1U 19 inch standard box | |
1000M Uplink Port | QTY | 16 | |
Copper | 8*10/100/1000M auto-negotiation | ||
SFP (independent) | 8*SFP Or 4*SFP and 4*SFP+ slots (SFP+ is 10GE) | ||
EPON Port | QTY | 8 | |
Physical Interface | SFP Slots | ||
Connector Type | 1000BASE-PX20+ | ||
Max splitting ratio | 1:64 | ||
Management Ports | 1*10/100BASE-T out-band port, 1*CONSOLE port | ||
PON Port Specification | Transmission Distance | 20KM | |
EPON port speed | Symmetrical 1.25Gbps | ||
Wavelength | TX 1490nm, RX 1310nm | ||
Connector | SC/PC | ||
Fiber Type | 9/125μm SMF | ||
TX Power | +2~+7dBm | ||
Rx Sensitivity | -27dBm | ||
Saturation Optical Power | -6dBm | ||
Function
Management Mode | SNMP, Telnet and CLI |
Management Function | Fan Group Detecting; Port Status monitoring and configuration management; Layer2 switch configuration such as VLAN, Trunk, RSTP, IGMP, QOS, etc; EPON management function: DBA,ONU authorization, ACL, QOS, etc; Online ONU configuration and management; User management; Alarm management. |
Layer2 Switch | Support port VLAN and protocol VLAN; Support 4096 VLANs; Support VLAN tag/Un-tag ,VLAN transparent transmission, QinQ; Support IEEE802.3d trunk; Support RSTP; QOS based on port, VID, TOS and MAC address; IGMP Snooping; IEEE802.x flow control; Port stability statistic and monitoring. |
Layer 3 Route | 1024 Host Routes; 512 Subnet Routes; 256 IP Multicast Groups; |
EPON Function | Support port-based rate limitation and bandwidth control; In compliant with IEEE802.3ah standard; Up to 20KM transmission Distance; Support data encryption, multi-cast, port VLAN, separation, RSTP, etc; Support Dynamic Bandwidth Allocation (DBA); Support ONU auto-discovery/link detection/remote upgrade of software; Support VLAN division and user separation to avoid broadcast storm; Support various LLID configuration and single LLID configuration; Different user and different service could provide different QoS by means of different LLID channels; Support power-off alarm function, easy for link problem detection; Support broadcasting storm resistance function; Support port isolation between different ports; Support ACL and SNMP to configure data packet filter flexibly; Specialized design for system breakdown prevention to maintain stable system; Support dynamic distance calculation on EMS online; Support RSTP, IGMP Proxy. |
Physical Specification
Dimension(L*W*H) | 442mm*320mm*43.6mm | ||
Weight | 4.5kg | ||

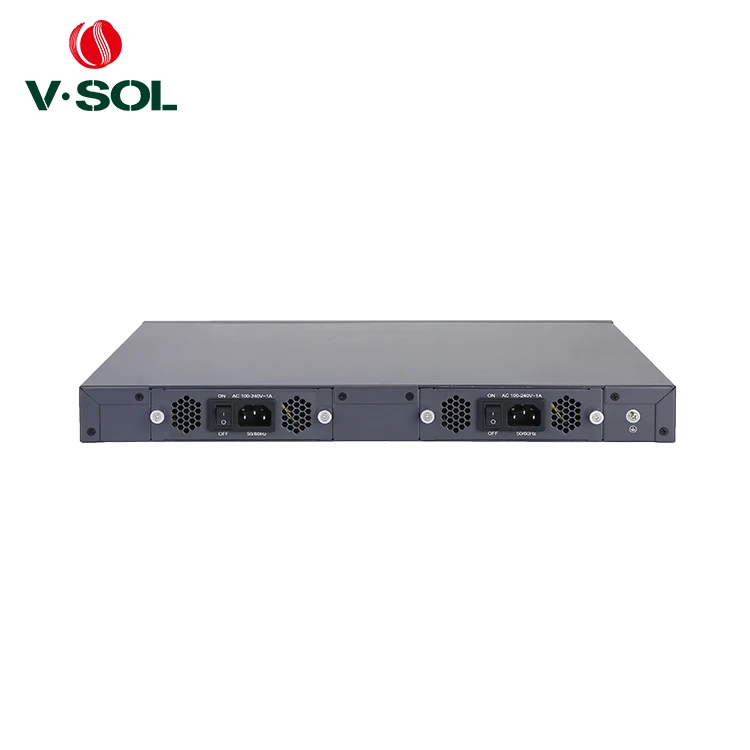

Power Supply | 220VAC | AC:90~264V, 47/63Hz | Double Hot Backup |
Power Consumption | 45W | ||
Operating Environment | Working Temperature | -10~+55℃ | |
Storage Temperature | -40~+85℃ | ||
Relative Humidity | 5~90%(non-conditioning) | ||
Hot sale product
Contact US
Packaging & Shipping
1. Shipping:We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS .

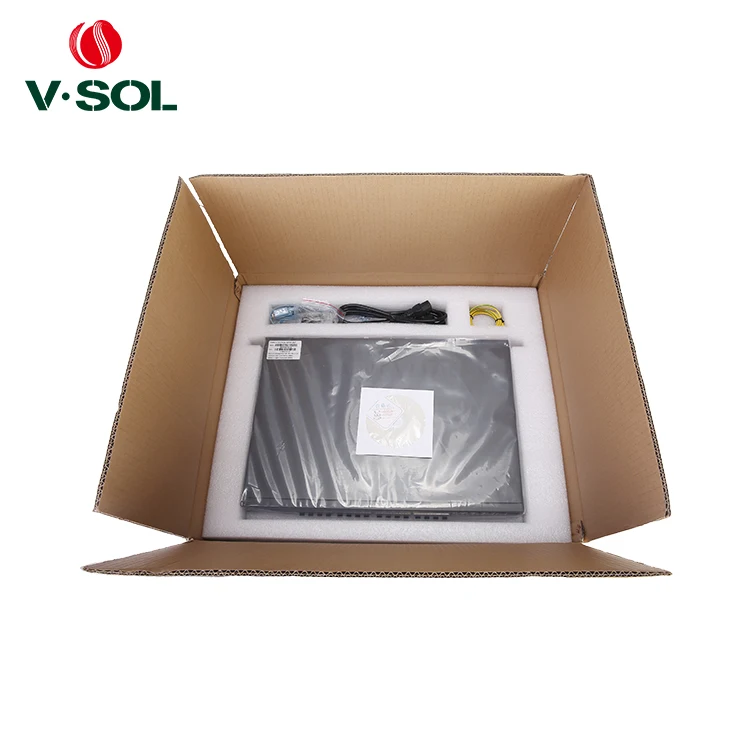

2. Packaging: standard carton which suitable for air/ sea transportation.
Our Services
1.Good Reply:Your inquiry related to our products or price will be replied within 24 hours.
2.OEM&ODM: We can help you to design and put your good idea into products.
3.Warranty: 1-years warranty
Company Information
V-SOLUTION Telecommunication Technology Co., Ltd. is a professional manufacturer in China Guangzhou. Our company has established business relations with over 50 countries worldwide and more than 100 companies . We devote to product GEPON ONU, GEPON OLT, GPON ONU, VoIP Gateway, Fiber CPE, Wifi Module, and so on.
FAQ
1.Can we get a lower price? Any Discount?
Yes,price is not a problem,everything could be negotiated based on the quantity.
2.Can I get a free sample?
Sorry that V-Solution is not available to new customer.
3.We are new in this PON fields,can you help me and recommend me some items?
Yes,of course.it is our pleasure to help you with it.
You only need to offer us more details about your application.
4.What is your MOQ?
No MOQ for any sample test,at least 10pcs/models after sample order.
5.OEM,ODM Service is available?
Yes,V-Solution have strong ability to offer customers ODM&OEM products of highest quality.
And it will requirement about your quantity.
6.For Trade Terms,such as payment and leadtime.
>Payment Terms:We mainly support T/T bank transfer,Paypal and Western Union
>Price Terms:FOB Guangzhou
>Shipping Methods: EMS,DHL,Fedex,TNT,UPS,by sea or your own shipping agent
>Leadtime: Sample order,3-7work days; Bulk order 15-25work days(after your payment )
7.How about the Warranty?
There are 12 months for the warranty.
While the warranty is not responsible for those broken by violence or updated with other brands.
