Высокоскоростная машина для резки листового металла с ЧПУ

ZJ-1250/50 Transformer Servo motor Silicon Steel Slitting Line

1. Technical parameter

1.1   Applicable silicon steel coil max width 1250mm, spindle width 1350mm

1.2   Applicable silicon steel coil thickness 0.23~0.50mm.

 2. Equipment composition

 2.1 Loading trolley (hydraulic expansion)

 2.2 Feeding car (hydraulic lift, hydraulic moving)

 2.3 Loop pit guiding device

 2.4 Stationary guiding device

 2.5 Main slitting equipment

 (With 125mm main spindle,8 pairs of Φ250mm carbide disc cutter )

 2.6 Tension device

 2.7 Hydraulic winding device (hydraulic expansion)

 2.8 Unloading trolley (hydraulic lifting, hydraulic moving)2.9 Hydraulic station

 2.10   Electrical control system

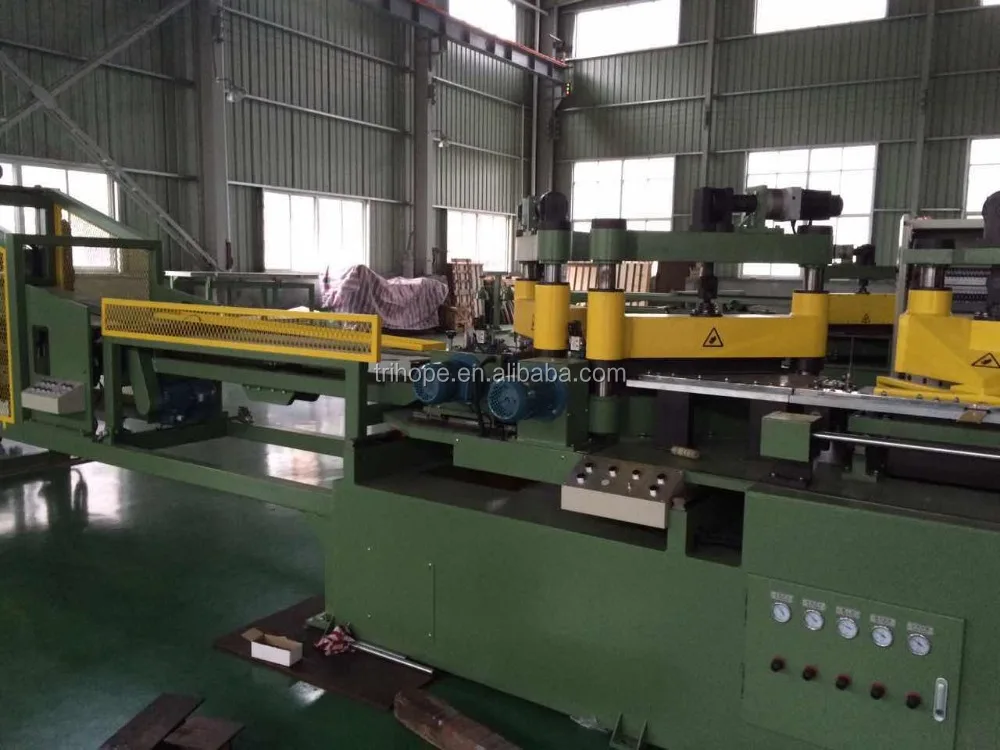

3.Detailed photos

4.Core silitting display
