5kw home solar panel kit with free ship / pv power energy system 10KW 15kw / how many cost of 5 kv solar system solar power system
- Category: >>>
- Supplier: Foshan Tanfon Energy Technology Co. Ltd.
Share on (60385436124):
Product Overview
Description
Product Description
What loads can i use in this hybrid solar energy system?
Load name | Load’s watt | Qty |
lights | 11W | 20 |
Fan | 80W | 4 |
Computer(LCD display) | 150W | 2 |
printer | 250W | 1 |
Fax machine | 150W | 1 |
refrigerator(200L) | 120W | 2 |
Washing machine | 300W | 1 |
Microwave | 1500W | 1 |
Electric cooker | 300W | 1 |
Air conditioner(1.5HP) | 1125W | 4 |
Satellite TV receiver/VCD | 25W | 1 |
Color TV(32 inch) | 150W | 2 |
Water pump | 200W | 1 |
System parameters
Tanfon pv power energy system 10KW solar power system (Can be customized according to customer requirements)
Item | Model | Quantity |
Solar Panel | FS360W mono solar panel(poly optional) | 28 pcs |
PV Combiner | H8T/96V | 1 piece |
Solar Inverter | 10KW IGBT inverter | 1 piece |
Solar Controller | Charger 96V/100A | 1 piece |
Solar Bettery | Gel 12V/200AH | 16 pcs |
Mounting Structure | On roof or on ground | 1 set |
Cables | Battery cable: 16pcs 16mm²*35CM & 7pcs 16mm²*2M PV cable: 4mm² *200M | 1 set |
MC4 Connector | Rated Voltage:1000V | 1 set |
Solar Panel
> 25 years Warranty
> Highest conversion efficiency of 19%
> Anti-reflective and anti-soiling surface power
loss from dirt and dust
> Excellent mechanical load resistance
> PID Resistant, High salt and ammonia resistance
PV Combiner
> Simplify wiring between PV and controller.
> Prevent hot spot effect
> Thunderstorm & surge protection
> Wide range of DC input voltage
> Prevent hot spot effect
> Thunderstorm & surge protection
> Wide range of DC input voltage
Solar Inverter
> 2 years warranty
> IGBT module inside
> Pure sine wave output
> Copper transformer
> Bypass function with AC charger
> Output: 220V 50/60HZ
> Charging efficiency: 90%-95% .
> Charging mode: intelligent control .
> Various protection functions .
Solar Battery
> Full sealed gel battery
> Service life:6-8 years
> 12V 200AH
> free Maintenance

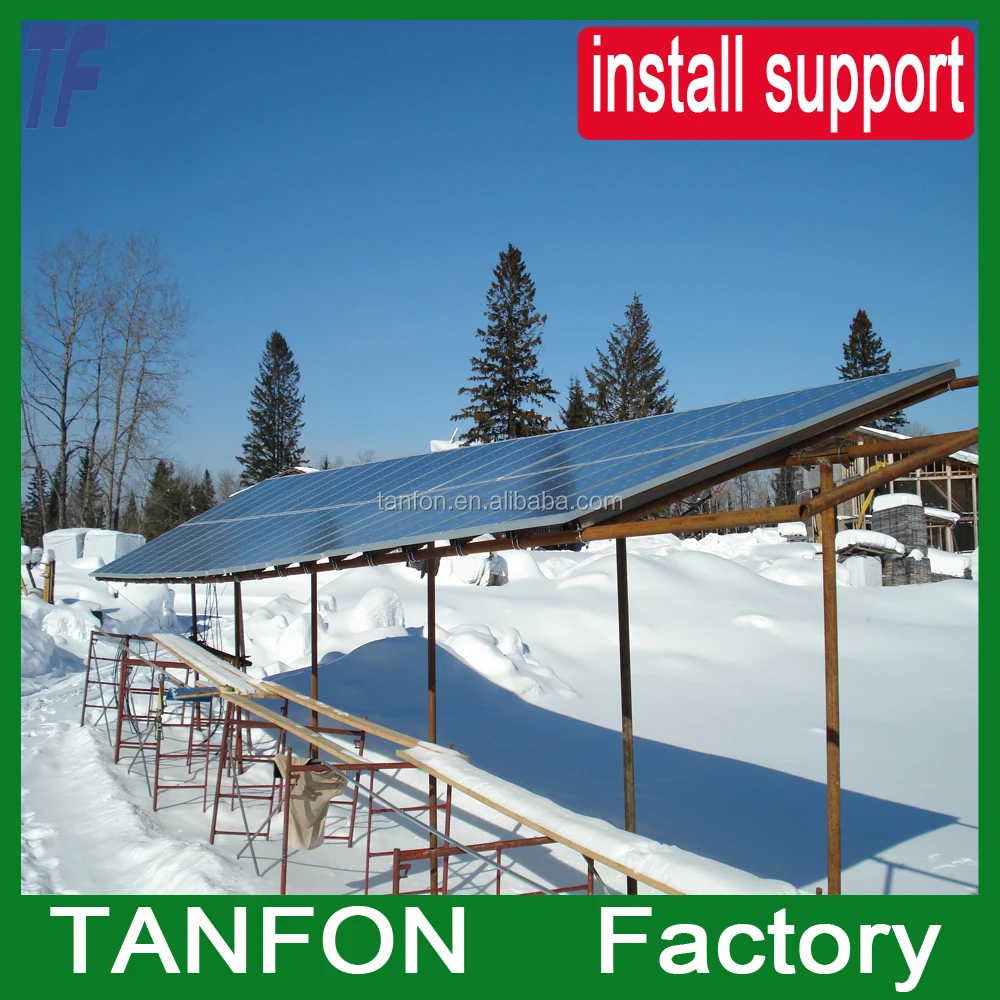

Solar Panel Rack
> Slope Roof or Flat roof or Ground (option)
> Including complete fittings
> Wind load:55 m/s,snow load:1.5 kg/m2
> Structure: Anodized Aluminum +stainless steel, Angle adjustable(other type of rack can be customized as per client's requirement )
Why Tanfon is your right Choice
We accept OEM and small trial orders, contacting with us now for more pv power energy system 10KW information. All inquiries will be replied with in 24 hours.
For more pv power energy system 10KW information, please send an inquiry or contact us directly.
Solar System Application

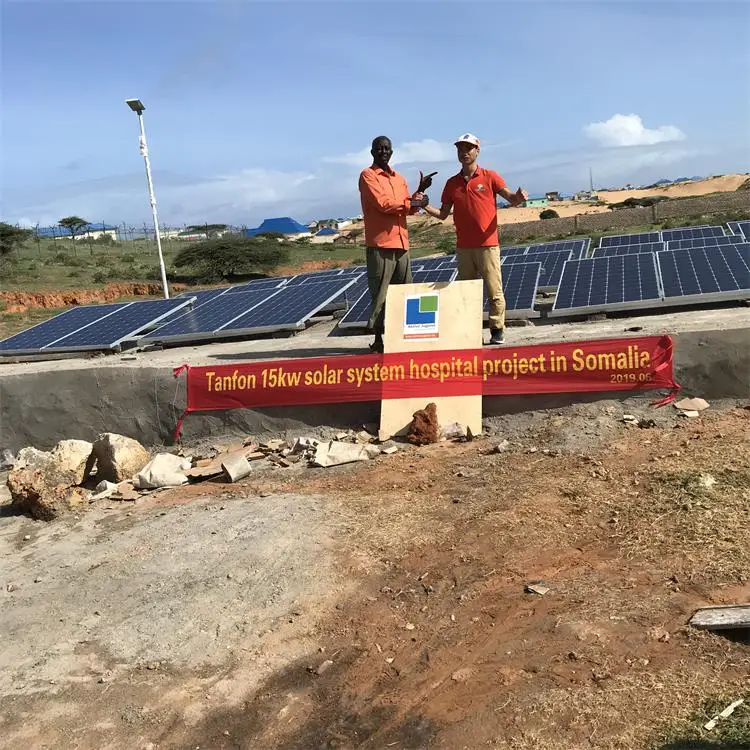

Tanfon Solar Case
Products have been sold to more than 130 countries, Importantly, we have one professional installation team, has been to 32 countries and regions for installation service as well as win good feedback from the customers.

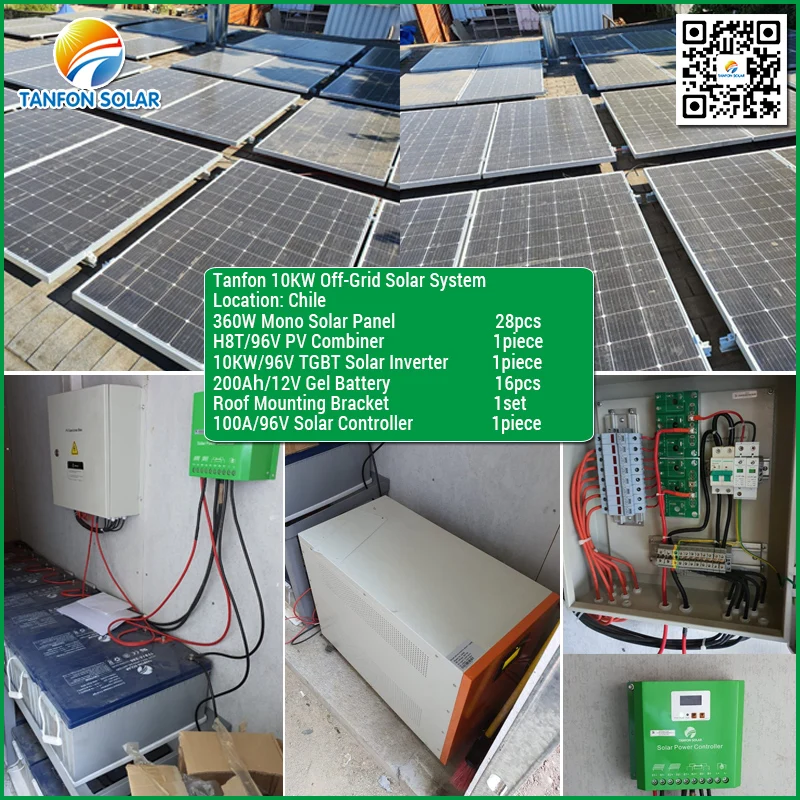

Why chile customer choose Tanfon solar system?
How she knows our company Tanfon selling solar system?
She found our company name Tanfon through her friends introduction.
First,she got our sales person whatsapp contact number and sent message for us said she needpv power energy system 10KW.
She is very clear for her requirement on this solar system, so after getting quotation from us, she said, she must need the best quality and good service from our company, because my friend bought 20kw solar system from your company Tanfon in 2016, now still working very well,so i very trust your company.
She found our company name Tanfon through her friends introduction.
First,she got our sales person whatsapp contact number and sent message for us said she needpv power energy system 10KW.
She is very clear for her requirement on this solar system, so after getting quotation from us, she said, she must need the best quality and good service from our company, because my friend bought 20kw solar system from your company Tanfon in 2016, now still working very well,so i very trust your company.
About Tanfon
Workshop
Global Solar Exhibition
Certification
Packing & Delivery
How do customers evaluate Tanfon products & service
