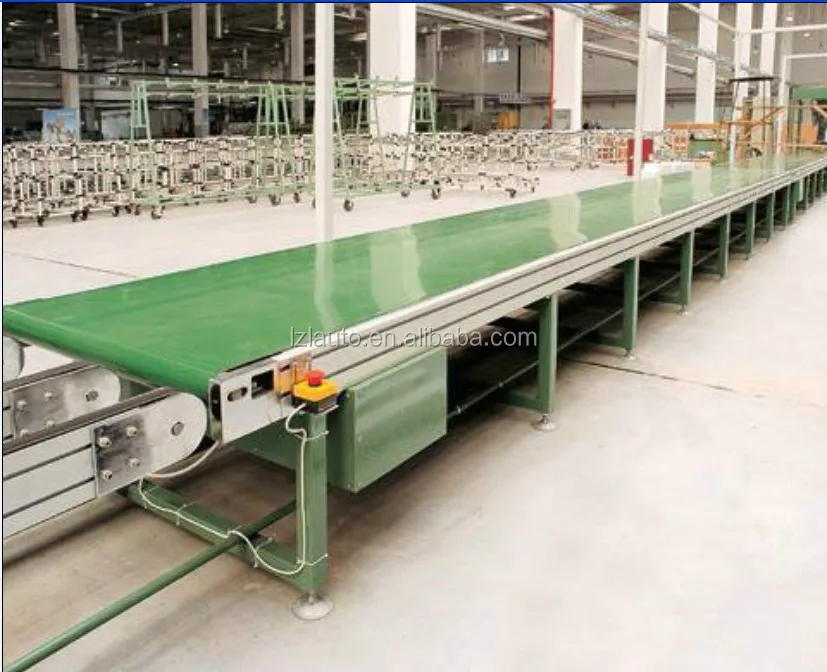

belt conveyor

Product Overview

Description

Speed adjustable belt conveyor for carton, bag, case, etc

Material transport belt conveyor





Belt conveyor for food, fruit, vegetable, carton, bag, case, parts, etc

Belt conveyor Features:
1. Economic and practical

2. High speed and low noise
3. Easy operation, easy maintenance

4. Good looking, durable

5. High quality competitive price



Belt conveyor Specification:

1. Support Modes: Roller Support
2. Conveying Load Capacity: 20-100 Kg/m
3. Dimension ( L* W*H) of Conveyor: customized

4. Frame structure: carbon steel/sus304 /aluminum profile

5. Belt material: PVC / PU

6. Power of Motor(kw): 0.4-2.0 Kw
7. Conveying Speed: Adjustable

Belt conveyor Usage:

1.Applicable for the indoor or outdoor environment

2.For the irregular items, bulk materials and the level of difference transmission

3.You can install the work bench at both sides of belt conveyor. It can be the assembly line of the electronic device, food and so on.

Characteristics:

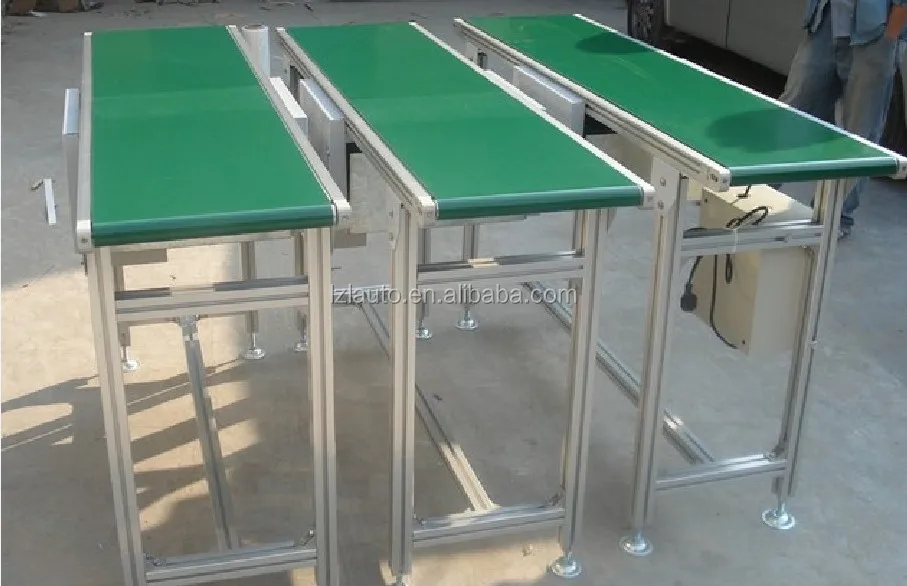

1.Light weight, simple structure.

2.Medium-speed, low noise

3.Machine body can be aluminum alloy. The appearance is pleasing

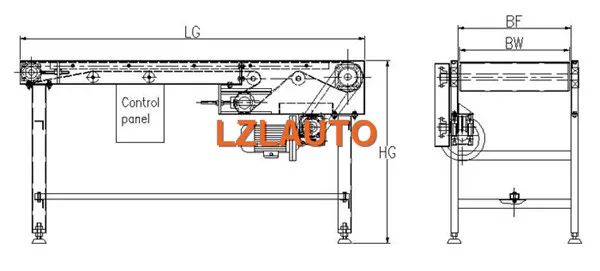

Belt conveyor technical date:

Name type	LZL010 belt conveyor
Effective width(mm)	100-1000, customized
Height of this machine (mm)	200 if it is under 900,customized
Limited length of one machine drive L(m)	1-80
Load capacity kg/m	10-40,customized
Transmmision speed m/min	adjustable frequency invert
Electric power W	customized

Note:The frame can be carbon steel, stainless steel or aluminium profile. Belt is according to your requirement.

2.Motor can be settled uder or above the frame. It depends on you.



Belt Conveyor Feature:

1. Compared with chain drive,belt drive has the advantage of high speed and low noise,”O-belt”is the most popular way of belt drive.

2. Roller is driven by the friction of the ”O-belt” in the groove of roller.To avoid the damage of the static to the goods(e.g.CMOS chip in electronic industry),anti-static design has already been the standard configuration of this product.

3. Except standard type,the position and number of grooves could be customized(4 or more grooves on one roller is not recommended)

4. The load capacity of roller depends on the driving power of “O-belt”and the transmission structure(line shaft drive is higher than hook-ups),reference date is normally less than 300N.

5. Precision ball bearing polymer bearing housing,end cap form the bearing unit which is very important.It is not only for good looking but also further more for the smooth and quiet running.

6. The end cap of roller resists dust and water splash well in operation environment.

7. Suitable in high speed application.Speed could vary according to diameter and length of roller,Max,speed up to 120m/min.

8. Temperature range:0 to +40°

9. Apply for the Single/Double Chain Roller Conveyor .



 Belt conveyor Advantage :

1. Nice appearance.

2. Corrosion resistance is good, much more durable than common steel tube.

3. High-temperature resistance, oxidation resistance, intension is high.

4. No requirement of surface treatment, esy maintenance.

5. Smooth and easy cleaning.

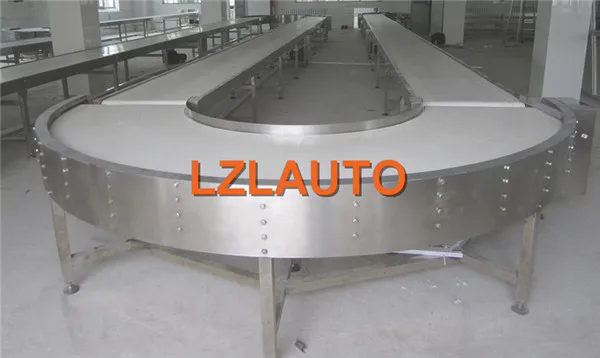

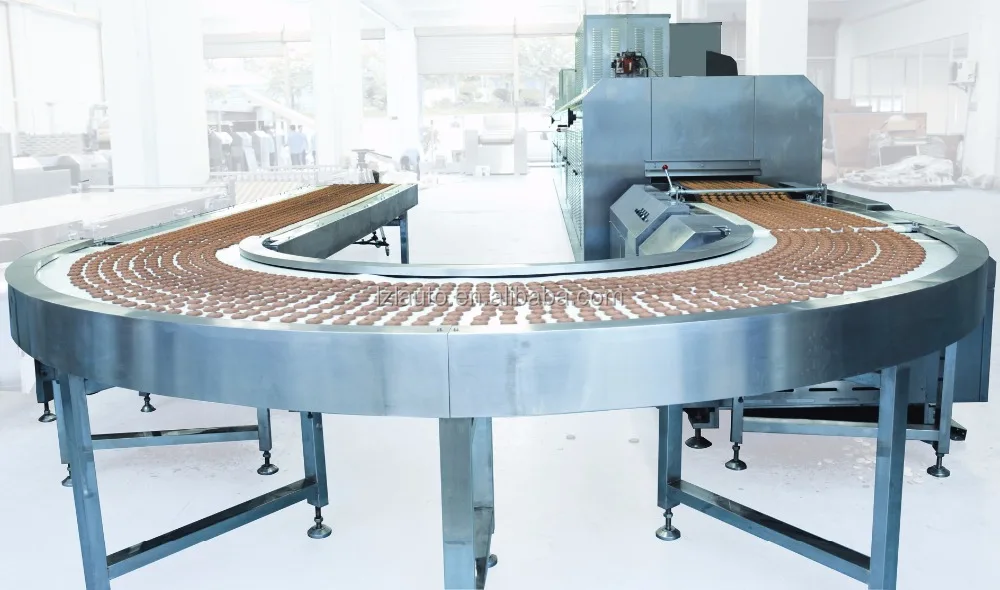

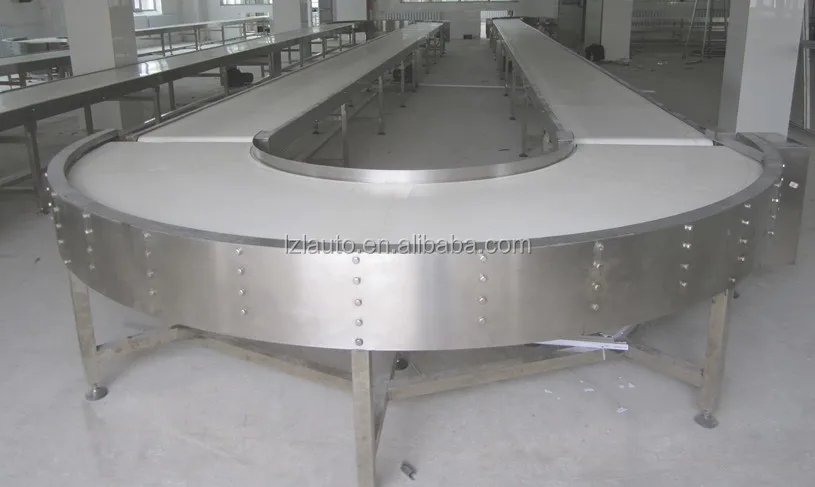

Specifications of  90  degree  curve  belt  conveyor :

Belt conveyor take different weight goods through continuous or intermission motion. It is used in conveying different kinds bulk cargos, cartons and various bags, it is wide application.

1. The belt can be from rubber, rubber & plastic, PVC, PU ect,. This belt can be used not only for normal item conveying, but also meet requirement with oil resistance, corrosion resisting, anti-static. Food grade belt usually be used in food, pharmacy, daily chemical industry and so on.
2. The structure of belt conveyor : groove belt conveyor, flat belt conveyor, climbing belt conveyor, turn belt conveyor ect., it can add baffle plate, side and other accessory . With working plate, lamp holder, it can be for electronic instrument assembling and food packing of assembling lines.
3. Driving way: reducer motor driving,, electronic roller driving

4.Speed regulation : frequency conversion, stepless speed change

5.Frame material: carbon steel, stainless steel, aluminum.

6. Character of equipment: It conveys steady and no relative motion between materials and belt, avoid to damage for materials. With lower noise compared with the other conveyors, the belt conveyor is more suitable for quiet place; simple structure , convenient maintenance; less energy and cost.



FAQ

1. Can you accept OEM?

A: Yes, we can. We had 6 years OEM experience.

2. What’s the MOQ of order?

A: MOQ is 1 set

3. Can you make a general proposal for us if we have no technical engineer?

A: Yes, sure. We can offer the professional suggestions and proposal design for you freely.

4. How long is the delivery time?

A: Most simple and standard type is 3~7days, non-standard design depends on per order.

5. How about your machine quality control ?

 A: 48 hours testing before the shipment, there is a specialized quality control engineer to check the processing quality for each step and strictly obey the ISO,CE rules.

6. How about after-sale service?

A: We will make a completely installation and manual operation attached with shipment. If the customer still have question aboard, we will guide the customer by phone, email, or video firstly, engineers available to service overseas if necessary, the customer will bear all travel expense.
