XINSILU wired 7inch video doorbell video visual intercom entry system home security video door phone intercom system
- Category: >>>
- Supplier: Shenzhen Xinsilu Electronic Co. Ltd.
Share on (60385522031):
Product Overview
Description
XINSILU wired 7inch video door phone audio visual intercom entry system home security one camera one monitor for sale
- It provides an extra security and convenience for you and your family
Installation is simple and convenient, users can install it by themselves
High quality, durable for long-lasting use
With night vision function, automatically open infrared lights in the dark
Features
XINSILU Video Door Phone Intercom System
- Mute function: If it is set to mute, someone calls the outdoor camera, the indoor machine will display but there will be no ringtone.
- Ring volume and change: The doorbell ringtone volume has 3 options, 25 ringtones to choose from.
- Monitoring function: Even if there is no call, you can press the monitoring button of the indoor unit to see the outside situation at any time, the monitoring time is 90 seconds.
- Unlock function: If the outdoor camera has a connection lock, this function can be realized (the doorbell set does not include a lock, and the customer needs to purchase it separately).
- Intercom function: When someone calls, the indoor machine will automatically ring to remind you that someone is coming. When you press the answer button, you can talk to someone outside, which is very safe and convenient.
- The outdoor camera has Night vision and waterproof function.
High definition camera with night vision
Camera :waterproof Outdoor Unit
Product Description
| Specification | |||
| Indoor unit parameters | Outdoor unit parameters | ||
| Model | XSL-V70E-white | Model | XSL-L |
| Power Supply | Input: AC 100 240V Output: DC 15V 1500mA | Power | Standby: ≤0W Working:≤2W |
| Power | Standby: ≤1W Working:≤10W | Camera | 700 CMOS Super backlight compensation |
| Screen | 7"Colour TFT Liquid Crystal Display | Night Version | WLED |

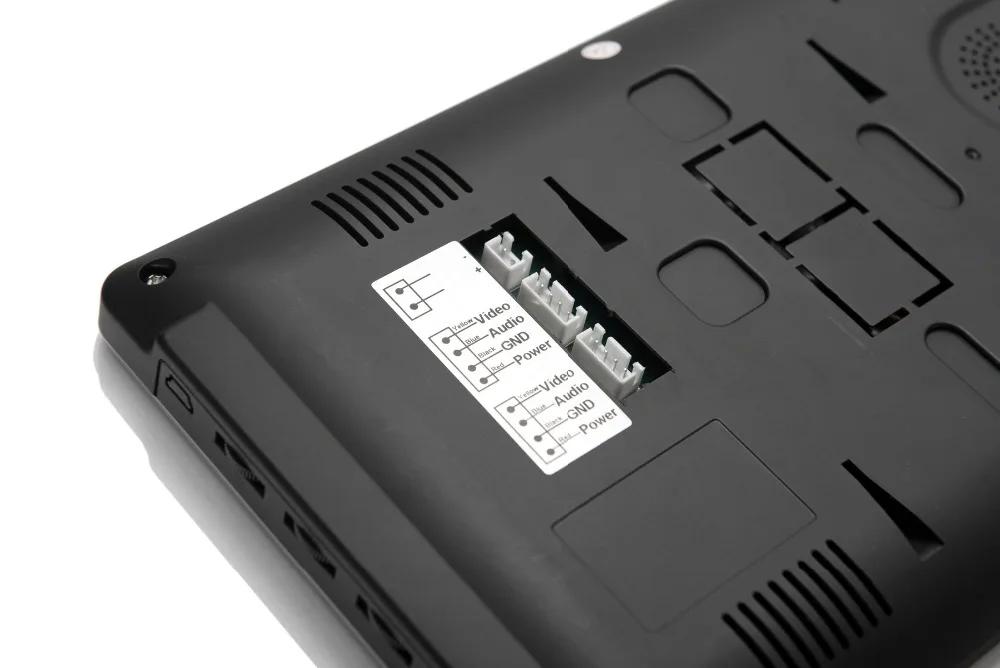

| Wiring | 4 PIN Line RVV4 | Working Temperature | -20℃-+60℃ |
| Video Signal | 1 VP-P | Dimension | 93X130X30mm (W x H x T ) |
| Timing | Monitoring: 60 seconds Intercom: 60 seconds | Weight | 0.22KG |
| Working Temperature | -20℃-+60℃ | ||
| Ringtone | 25 chord | ||
| Weight | 0.44kg | ||
| Dimension | 240X150X23mm( (W x H x T ) | ||

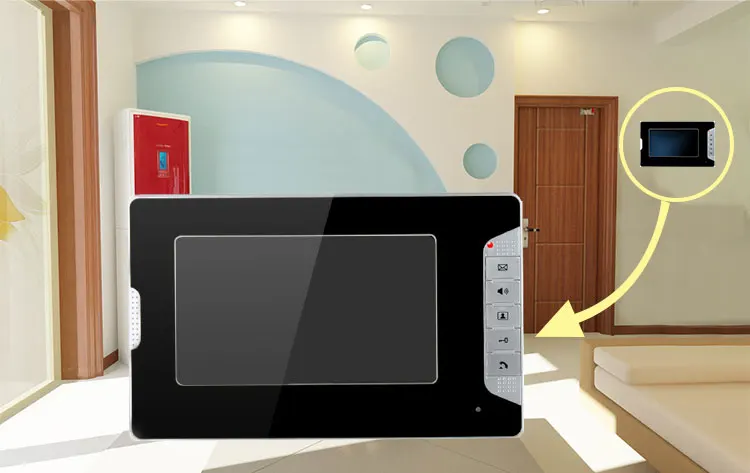

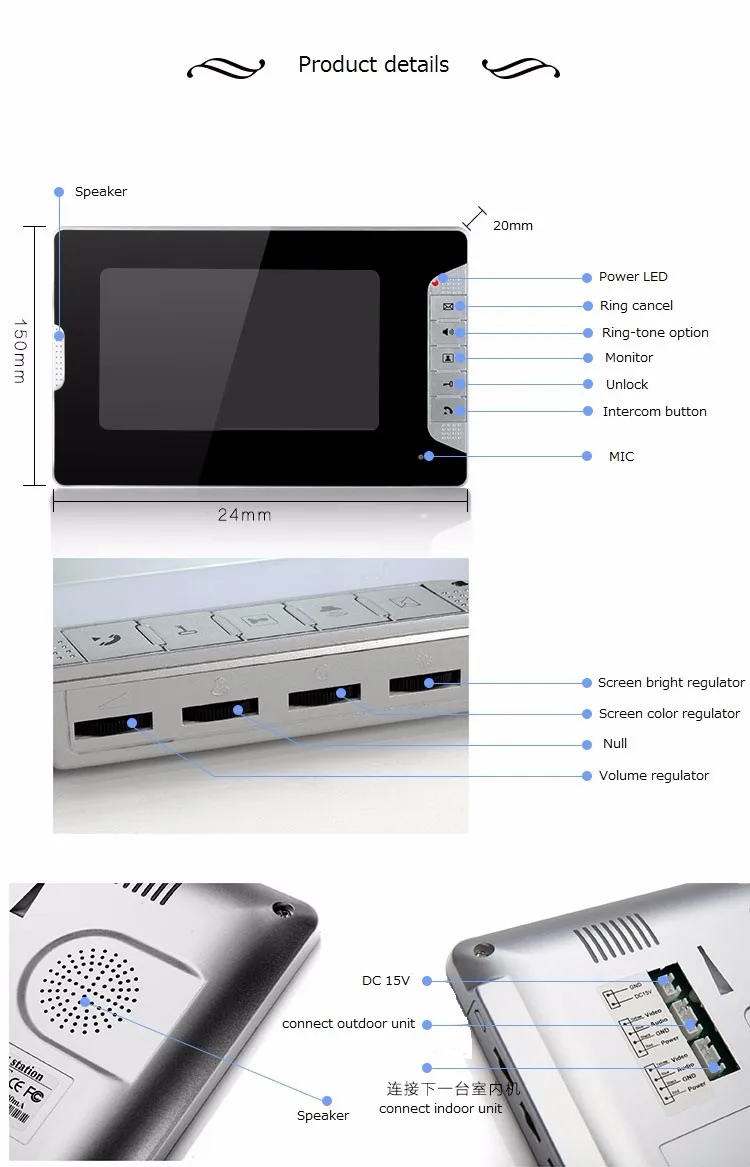

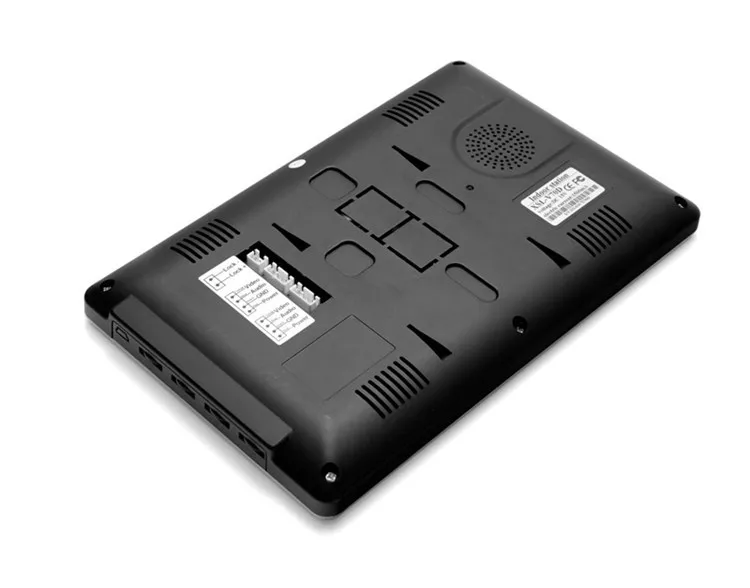

Indoor Monitor:
Display: 7 inch TFT LCD (16:9 display)
Resolution: 800 x 480
Charger:Adapter input voltage: AC100-240V 50Hz-60Hz
Adapter output voltage current: DC15V 1500mA "
Material:Aluminium Alloy
Installation:Surface mounting
Power cons umption : waiting-0.2W; Working-0.8
Ring the bell : 25-chord
Dimensions: 240X150X23mm(W x H x T)
Weight : 0.44 kg
Display: 7 inch TFT LCD (16:9 display)
Resolution: 800 x 480
Charger:Adapter input voltage: AC100-240V 50Hz-60Hz
Adapter output voltage current: DC15V 1500mA "
Material:Aluminium Alloy
Installation:Surface mounting
Power cons umption : waiting-0.2W; Working-0.8
Ring the bell : 25-chord
Dimensions: 240X150X23mm(W x H x T)
Weight : 0.44 kg

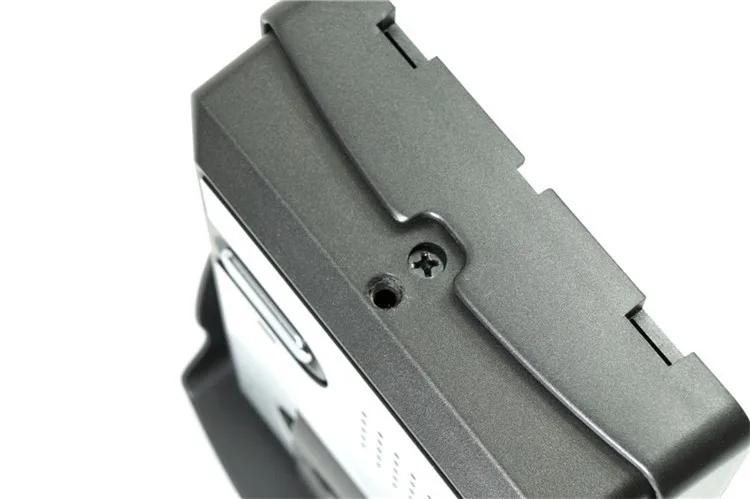

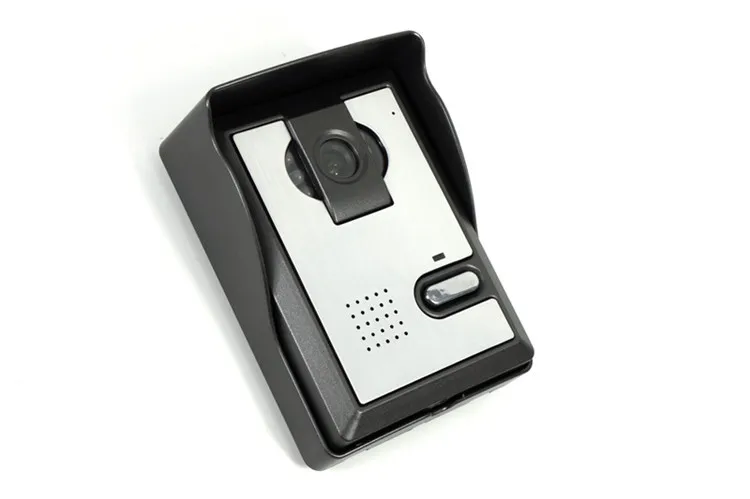

Outdoor station:
Camera: 700 Line CMOS
Illumination: 0.1Lux
Lighting: 6 Infrared LED
Night vision illumination distance; 1 meters
Power Adapter: DC 12V / 1A(Optional)
Viewing angle: 92°
Case:Metal , Rainproof
Installation: Flush mounting
Work environment : -15℃-+60℃
Dimensions: 93X130X30mm (W x H x T )
Weight:0.22 kg
Illumination: 0.1Lux
Lighting: 6 Infrared LED
Night vision illumination distance; 1 meters
Power Adapter: DC 12V / 1A(Optional)
Viewing angle: 92°
Case:Metal , Rainproof
Installation: Flush mounting
Work environment : -15℃-+60℃
Dimensions: 93X130X30mm (W x H x T )
Weight:0.22 kg
Showing more our video door phone/video doorbell :
Packaging Details

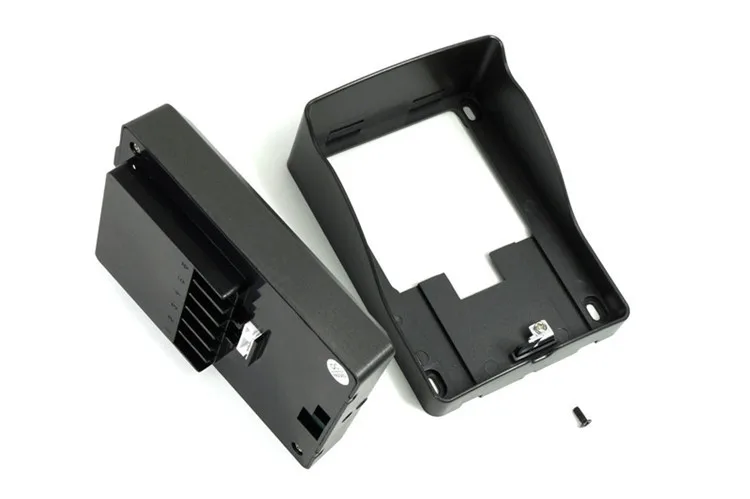

1* 7"inch screen 1*outdoor unit (With flushed intall cover and rfid card )

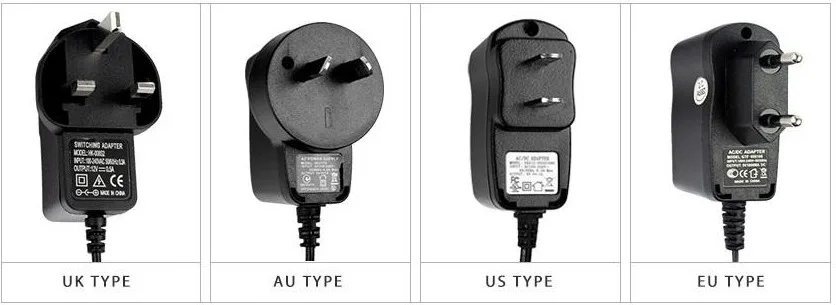

1* power adapter(EU/AU/US/UK)
1* Mounting bracket
1* 4-core connection cable
1* 5-core connection cable
1* User Manual
Some screw package
Shipping of our video door phone :
Any shipping way you can choose, UPS/ FEDEX/ DHL/ EMS.
PS: the shipping fee which you must pay for it. But we will give you the best price of shipping fee, pls do not worry about it.
