This trackless train is specially designed for city tour and sightseeing purpose. They are widely used in cities, towns, or amusement parks, resorts, and so on. It is with high climbing capacity, and could widely used in some hilly or mountain area for tourists transportation. We are a professional manufacturer.
Product Description
Power System
Motor
IVECO Sofim 8140.43S3 Diesel Engine
Displacement
2.798L
Rated power
93KW/3600rpm
Max. torque
285Nm/1800rpm
Emission
EURO III
Specification
Dimension
3965*1620*2330mm
Weight
2360kg
Brake distance
≤6m (with wagon)
Loading capacity
500kg
Rated passenger
2
Tread
1325/1280mm (front/rear)
Max. speed
25km/h
Wheelbase
2375mm
Climbing capacity
20% (with wagon)
Min. ground clearance
130mm
Min. turning radius
6.5m (with wagon)
Body System

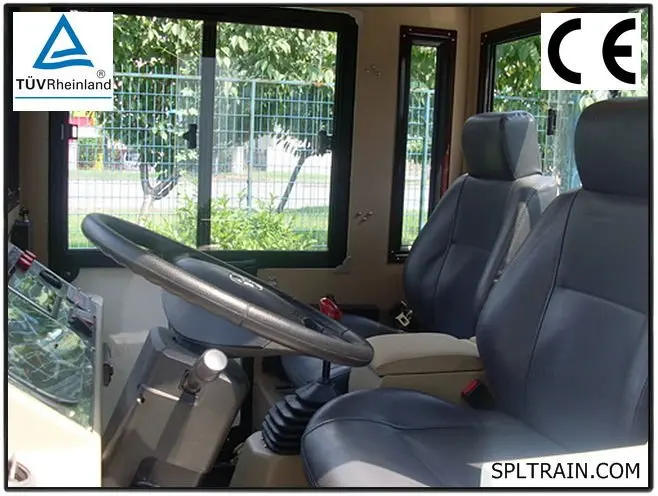

Seat
Professional driver seat with E-mark approved safety belt
Chassis
Steel chassis,Power coating treatment
Body
FRP plastic, with Rohs approval

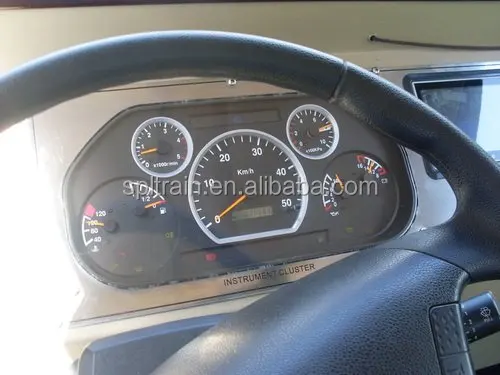

Meter

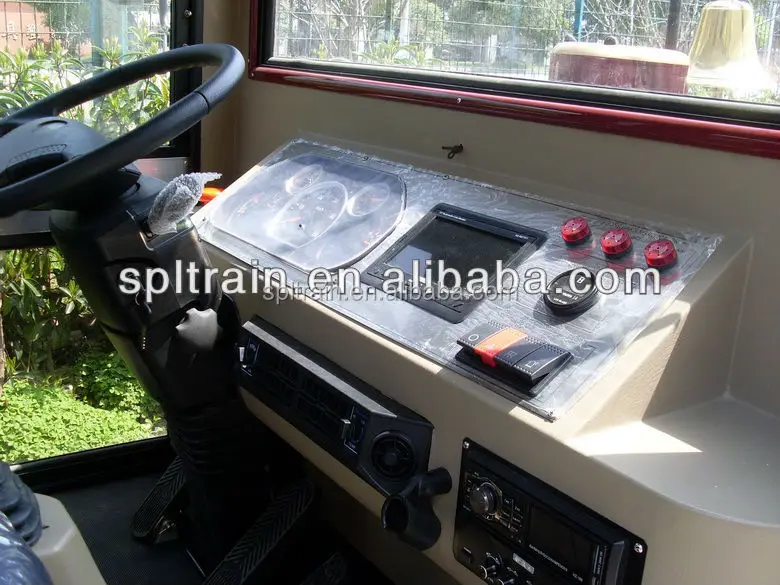

Instrument cluster
(including speed,rpm,range,lighting,air pressure and so on)
Rear view mirror
Manual rear mirror
Lighting & Signal
Front head light, LED E-mark approved turning light, LED inner reading light, rear LED combination light, roof warning revolving light, & horn
Sound
On-board MP5 player, Japanese PIONEER loudspeakers
Switch
Emergency Switch, combination switch for lighting and windshield wipers, dashboard switches
Windshield wiper
Boneless wipers,wiper system with water sprayer
Towing system
Original German ROCKINGER coupling
Steering wheel
City bus steering wheel
Door
Aluminum frame + tempered glass windows

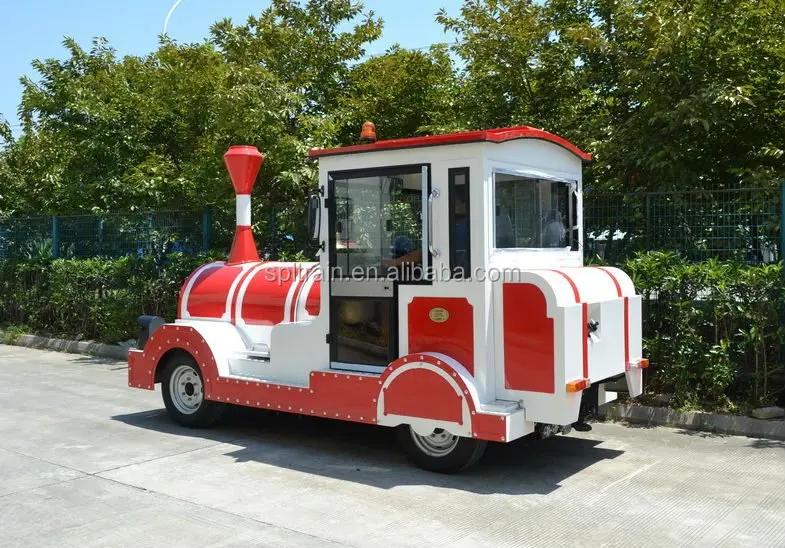

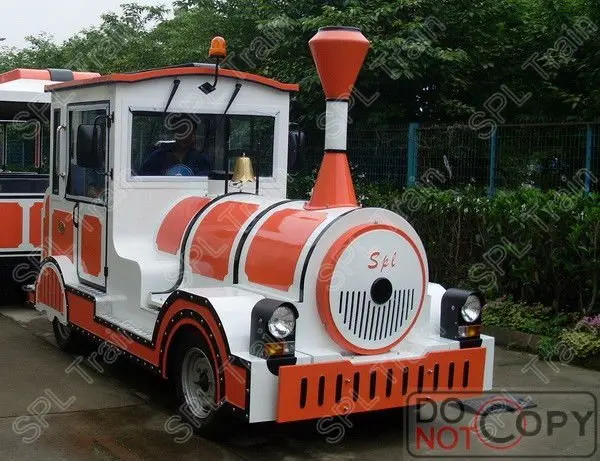

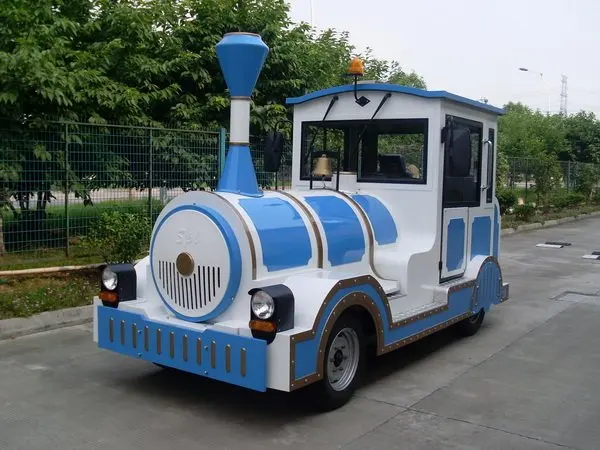

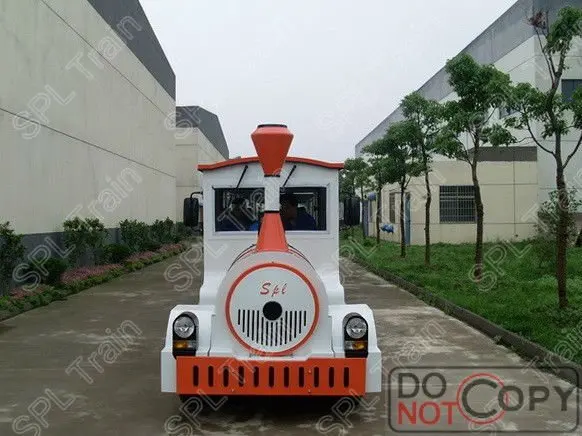

Product pictures
Certifications
Company profile
Packing & Loading
Our workshops
