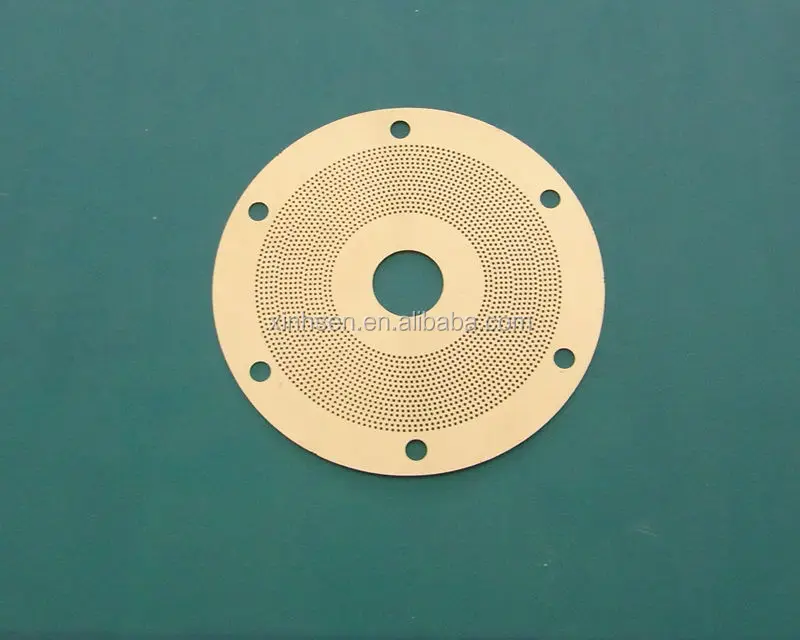

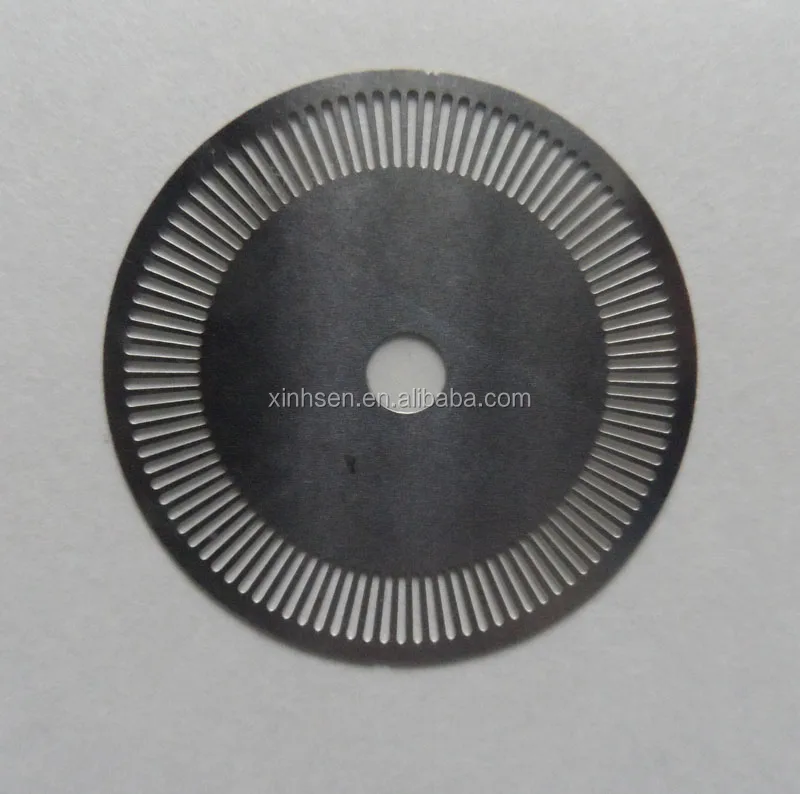

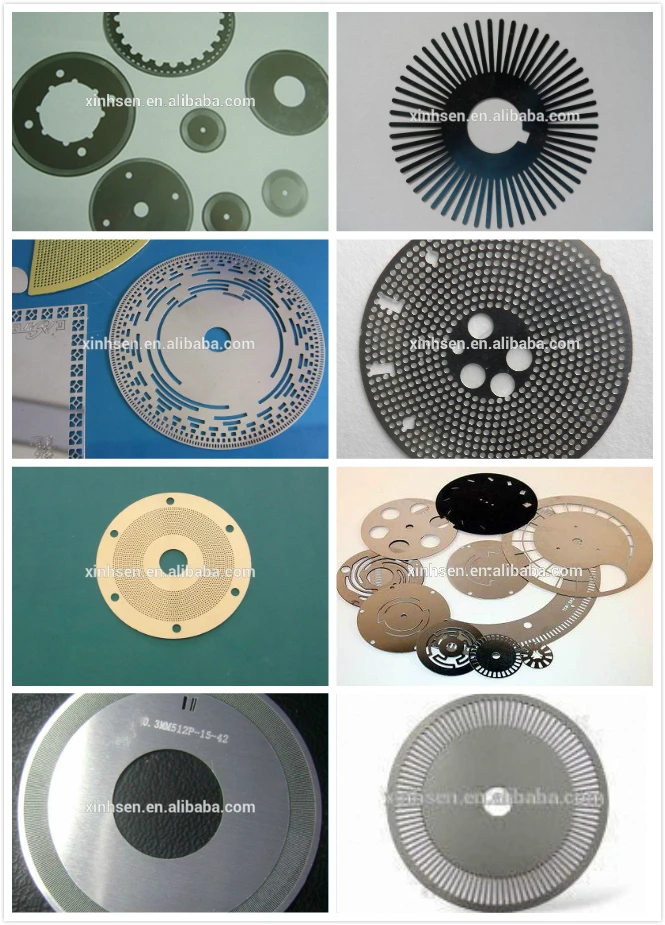

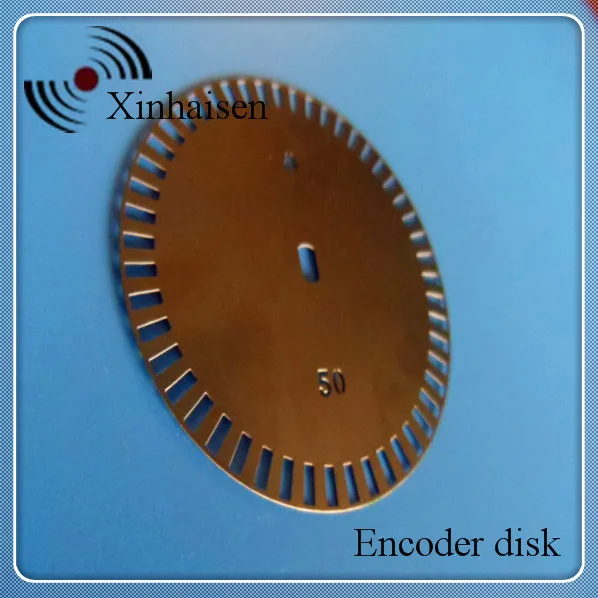

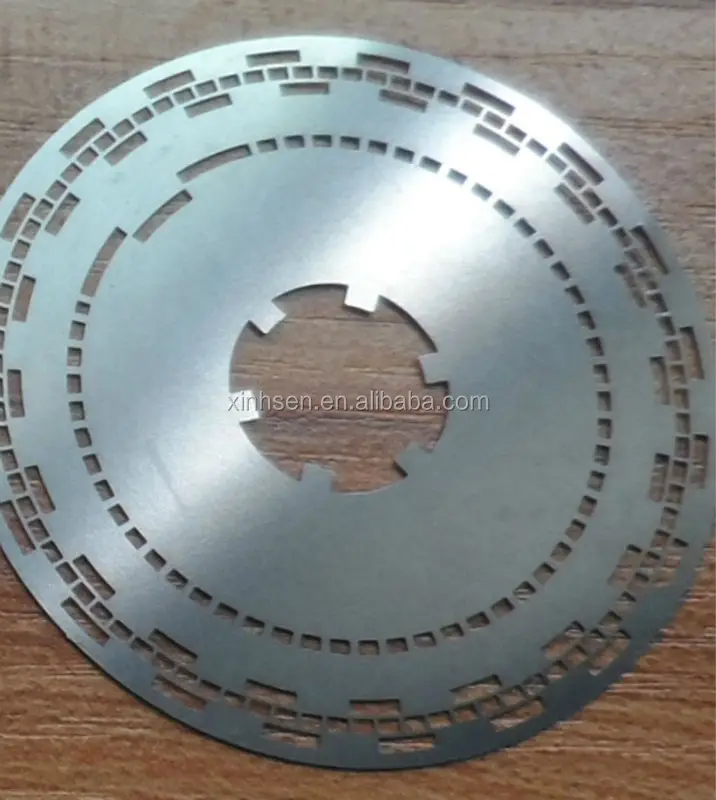

Acid etching metal hardware parts steel encoder wheel disk

Our advantages of encoder disk:

1.Competitive price and most importantly quality control.

2.Modifications for machining flat complex metal parts would incur no tooling or set-up costs.

3. High precision metal etching process.

4. All the holes are clean, sharp, and burr-free with no heat affect zone.

5. Pass the audit from SGS.

6. Quality guarantee.

7. No harmful to people, environment friendly products.

8. Strict inspection before despatch.

9. RoHS and CE compliant.

Descriptions of encoder disk:

 Introduce of the encoder disk:

1. Field of application: Encoder disk is widely used in devices and equipment , such as CNC machine tools, rotary table, servo drives, robotics, radar , servo controls and other military targets, all of which need to measure the angle .

2.Metal optical encoder disk is the main component of optical encoder. It has strong resolution, high precision and reliable operation. It is one of the most common displacement sensor, which is used to measure the shaft angle position.

3.The precision of encoder disk determines the encoder’ quality, the resolution depends on the number of code channels. Its working principle is to make the light through the rotating hole and control its speed. If the opening hole is uneven, it will have a direct impact on the accuracy speed of the encoder.

The following are three factors which impact the production difficulty:

A. the external diameter

B. the number of lines

C. material thickness

4.Since several years, our customers have been trusting us for the manufacturing and production of encoder disk ,as for the quality,please rest assure,every product will be check before we shipping to the customer.Please send me the drawing and telll me more details about the encoder disk,then I can give you a quotation.

Because our etching process dissolves the extra material, it does not add any extra stress to the metal. This will allow the disks to stay as flat as the material with which we started. Chemical etching does not create any burrs on parts thus leaving no extra obstruction on the part.

Packaging Detail:

1.Using paper bag in the fist layer

2.Then PE bag in the second layer

3.Foam in the packing box

4.wooden box outside

Shipping Details:

Shipping by DHL,TNT,FedEx,EMS

Payment Terms:
1.we accept T/T,western union.
2.Payment terms:30% to 50% deposit,the balance should be paied before shippment
3.other negotiating payment terms.

 We have been specialized in chemical etching for more than 8 years.We are a professional manufacturer of producing various kinds of high precision metal parts such as encoder disk,coffee filter mesh, tea infuser/strainer,speaker grille mesh,metal business card,metal craft,metal foot file, etc.

Etching process:
Film(CAD output) →get the materials ready→Pre-treatment→DRY FILM(Lamination) →Exposure→Developing→Drying→Etching→Stripping → Checking,Packing,Delivery
 Producing process:
Feeding--etching1 --etching 2-- recycle water washing→urban water washing→bolt up→check→soak→spraying stripping → recycle water washing→urban water washing→bolt up→hot air drying→ discharge

Warranty is available based on the following points:

1.If the item you purchase from our company are not of perfected quality, that is they don't work electronically to manufacturers specifications, simply return them to us for replacement or refund.

2.If the items is defective, please notify us within 3 days of delivery.

3.Any items must be returned in their original condition to qualify for a refund or replacement.

4.The buyer is responsible for all the return shipping cost incurred.

Thank you for visiting our website.If you are interested in our products, please contact me by the following way, I will give you the good prices and high quality products!
