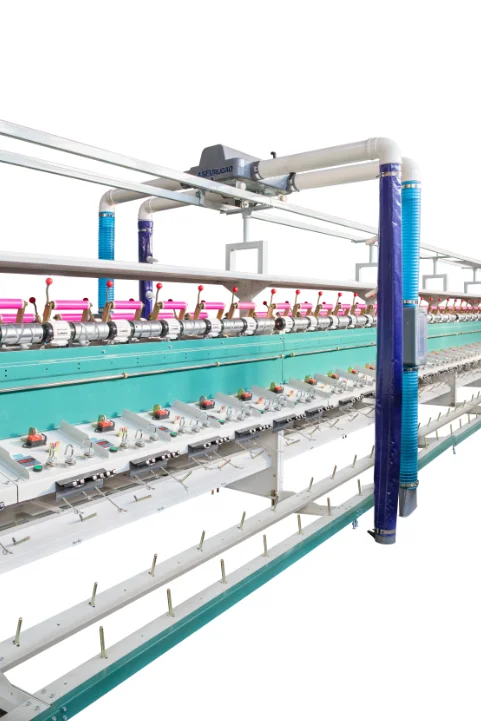

Assembly winder machine / winder machine/ yarn doubling machine
Product Description
Product Description:
Mainly applicable to joining cotton, wool, polyester, chemical fiber and blended yarns, double raw material bobbins of different specifications into parallel bobbins for processing on twisting machines.
HW368 Specification
HW368 Main Specifications:
| 1 | Machine type | Double sides, single layer |
| 2 | Spinde distance | 334mm |
| 3 | Section distance | 2008mm |
| 4 | Doubling speed | 100~600m/min |
| 5 | Max. winding size | Φ160 x 152mm (1100g for 166 type spindle) |
| Φ130 x 152mm (800g for 146 type spindle) | ||
| 6 | Winding traverse | 152mm |
| 7 | Winding package type | Cylindrical |
| 8 | Winding tube specification | Φ43.5 x Φ37.5 x 170mm (+2) |
| Φ51 x Φ45 170mm (+2) | ||
| 9 | Groove drum specification | Φ82 x 178mm |
| 10 | Motor power | 90w x 96 spindles |

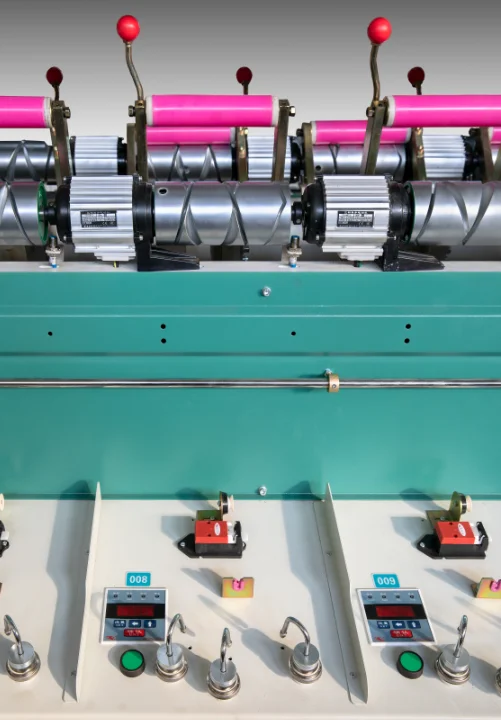

| 11 | Motor driving mode | One coaxial AC motor per spindle |
| 12 | Bobbin frame holder | Adjustable limit cam frame |
| 13 | Number of yarns | 2-3 yarns or customize |
| 14 | Anti-overlap device | Frequency inverter anti-overlapping |

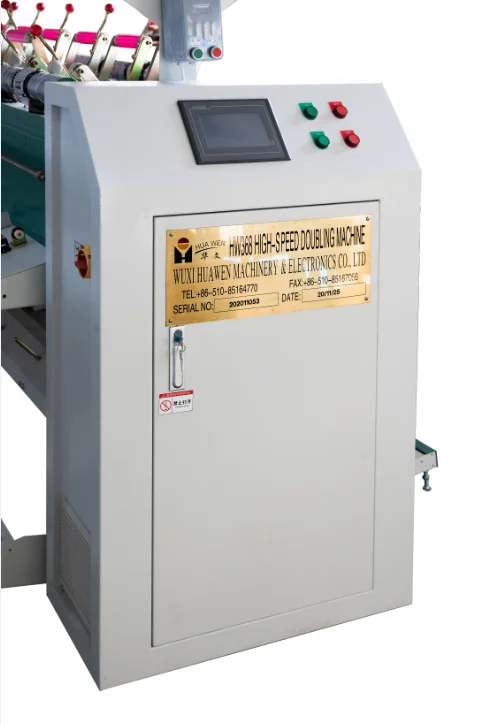

| 15 | Length counter | Set the length of each spindle by transmission/control panel in machine head |
| 16 | Tension device form | Pad type tension plate |
| 17 | Broken yarn cutting form | Photoelectric yarn detection and automatic yarn cutting |
| 18 | Yarn Meeting form | R type procelain ring |
| 19 | Application | Cotton yarn: 16/2~120/2Ne |
| Wool yarn: 2/17~2/76Nm | ||
| Blended yarn: 20/2~45/2Ne | ||
| 20 | Weight | About 3000KG |
| 21 | Overall dimension | 16260 x 1410 x 1600mm (L x Wx H) |
| 22 | Optinal | Air Blower device |
FAQ
FAQ:
Are you the manufacturer or the trading company?
We are the experienced manufacturer of textile machines, especially for the two-for-one twisting machines, doubling winder machines, yarn covering machines and etc. We have got the self-support imports and exports right.
What is your advantage compared with other textile manufacturers?
We are expert at making yarn machines for almost 20 years and we have a professional technical team who can provide special customer requirements. Our machines have been exported to a lot of countries such as Vietnam, South Korea, Uzbekistan, the Philippines, Tunisia, Morocco, Indonesia and so on.
What kind of service can you offer?
Design with your requirements by professional team.
ISO 9001:2008 certificates and letters patent.
Engineers go overseas for training.
How to check my order at last?
We warmly welcome you to visit our company in Wuxi, which is close to Shanghai, for checking your machines. If you don’t come here, we can also take photos and videos for your confirmation.
Customer Visiting
Customer Visiting:
Packaging & Shipping
Packaging & Shipping:
We mostly use the nude cargo with waterproof plastic bags. We will separate the whole machine into sections after adjustment, and then put each section one by one into the container.
