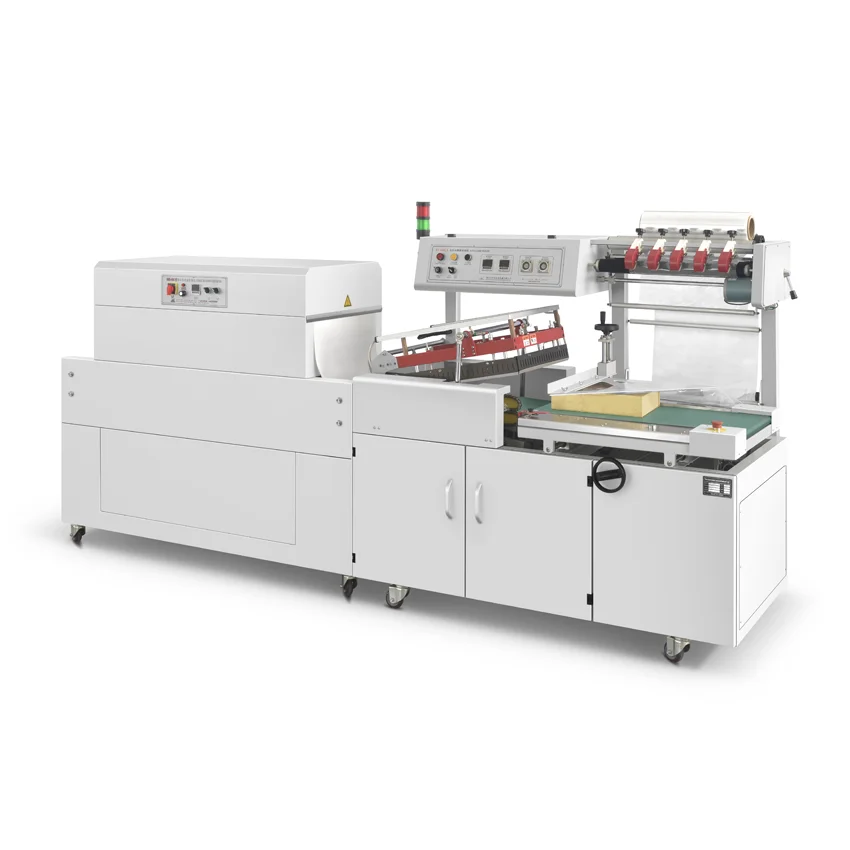

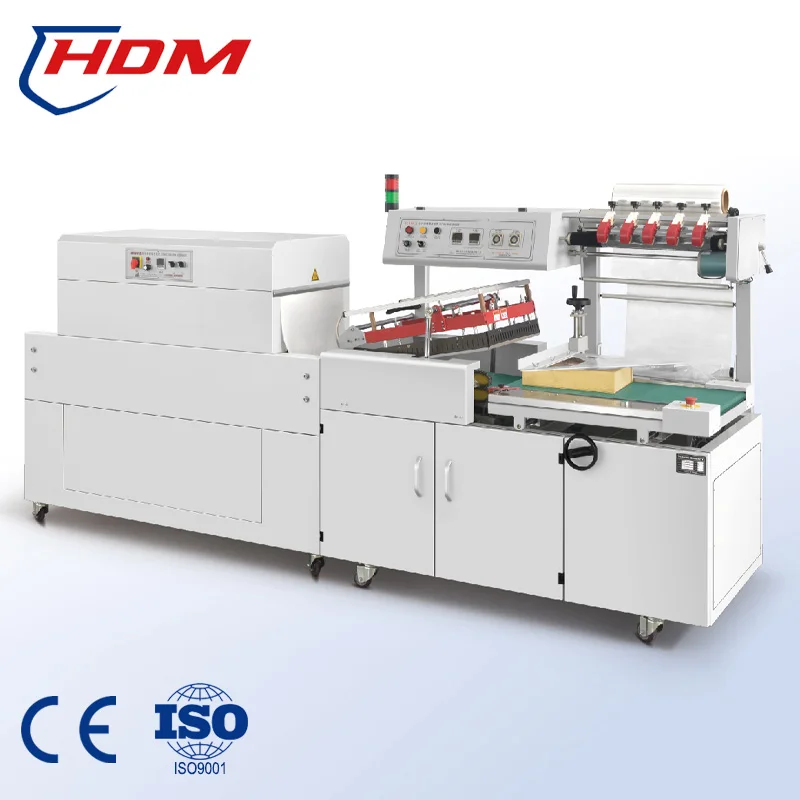

Factory promotional wrapping automatic film packaging machine for mosquito coil
- Category: >>>
- Supplier: Ruian Huadong Packing Machinery Co. Ltd.
Share on (60385796650):
Product Overview
Description
BS-400LA+BMD-450C
Factory promotional wrapping automatic film packaging machine for mosquito coil
| Technical Data | BS-400LB+BMD-450B |
| Sealing type | L-sealing |
| Power supply | 380V/50-60Hz/3phase |
| Packing capacity | 15 - 35 packs/min |
| L-bar sealing size | 570x480 mm |
| Sealing height | 150 mm |
| Product size | width + height < 400mm, length + height < 480mm |
| Film type | center-folded polyolefin (POF) film |
| Max film size | 530mm (width) x 280mm(outer diameter) |
| Oven size | 1200(L) x 450(W) x 220(H) mm |
| Shrink tunnel conveyor speed | variable, max. 40 m/min |
| Shrink tunnel conveyor | rotating silicon coated rods |
| Power consumption | max. 8.5 kW |
| Working height | 780-850 mm |
| Air pressure | 0.5MPa (5 bar) |
| Sealing knife | Teflon coated alloyed knife with permanently heated bar |
| Main control components | Siemens PLC and touch screen, Omron temperature controller, relay and sensor |
| Machine main material | stainless steel |

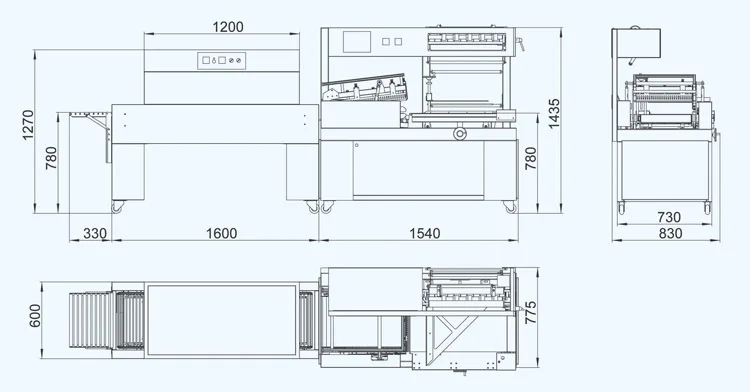

| Machine dimension | 1600 x 770 x 1450mm 1600 x 600 x 1260mm |
| Machine weight | 450kgs |
