China supply semi automatic polyester yarn filament winding machine TH 11C

Product Overview

Description

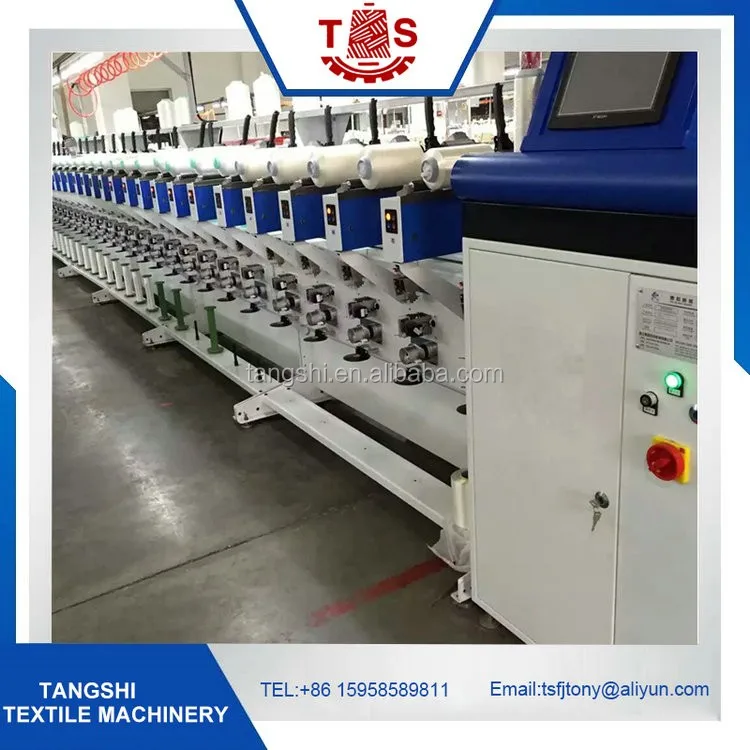

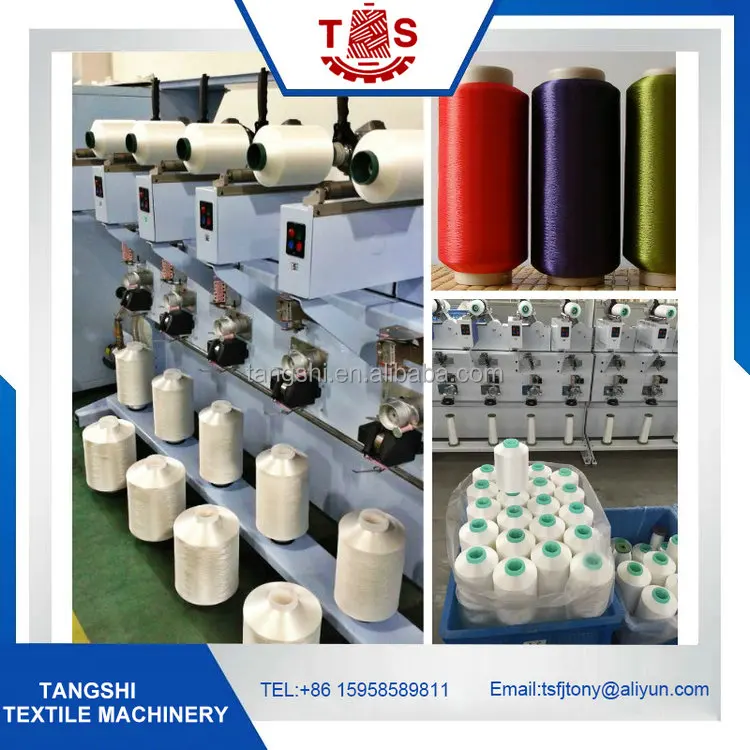

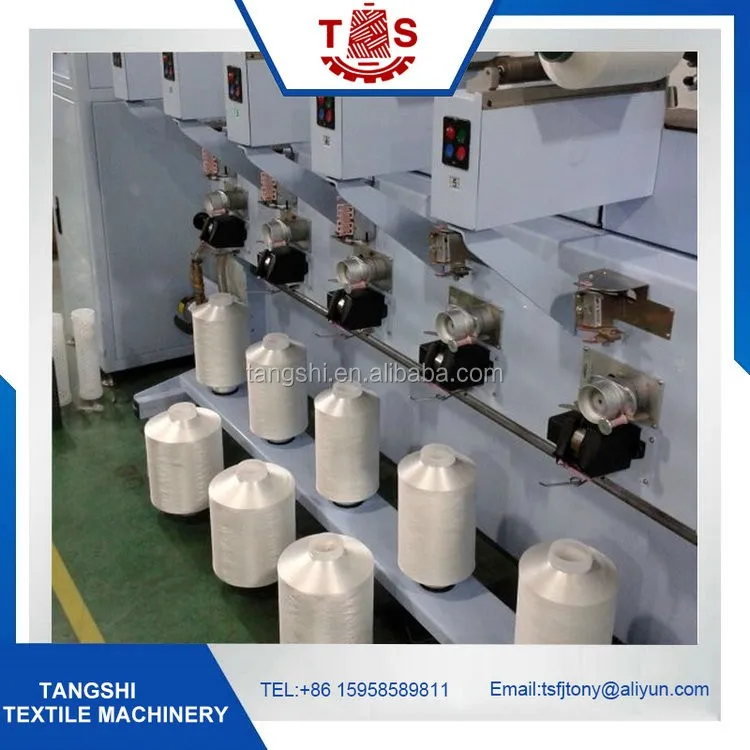

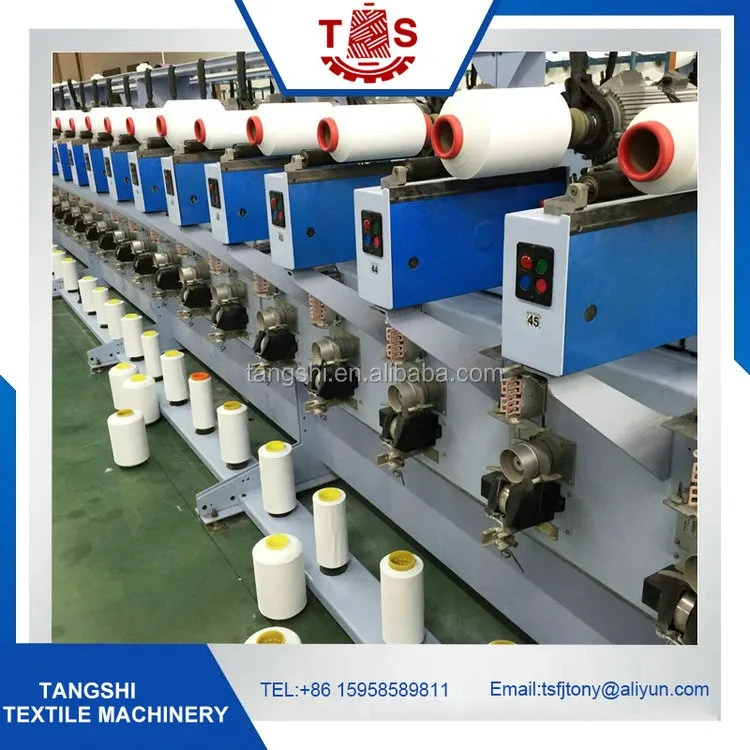

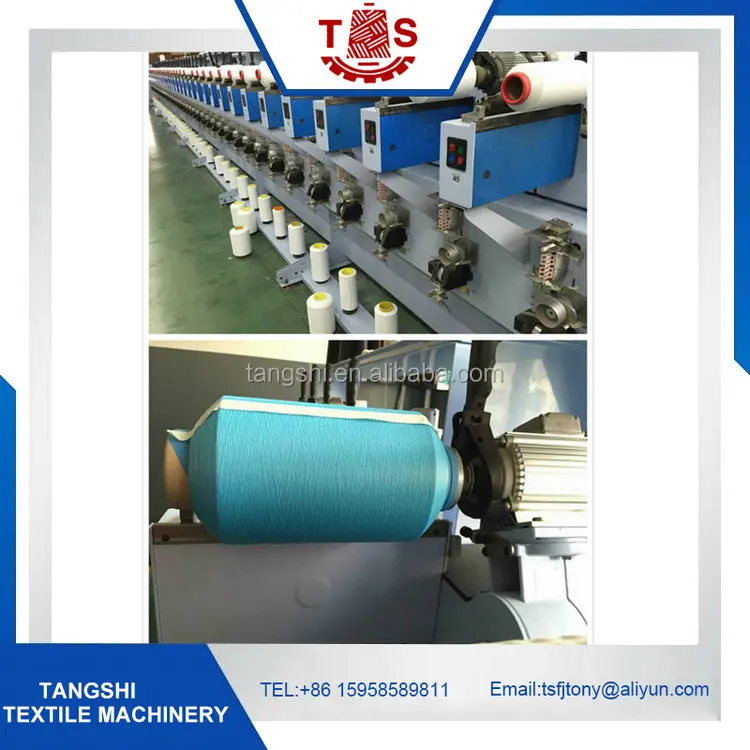

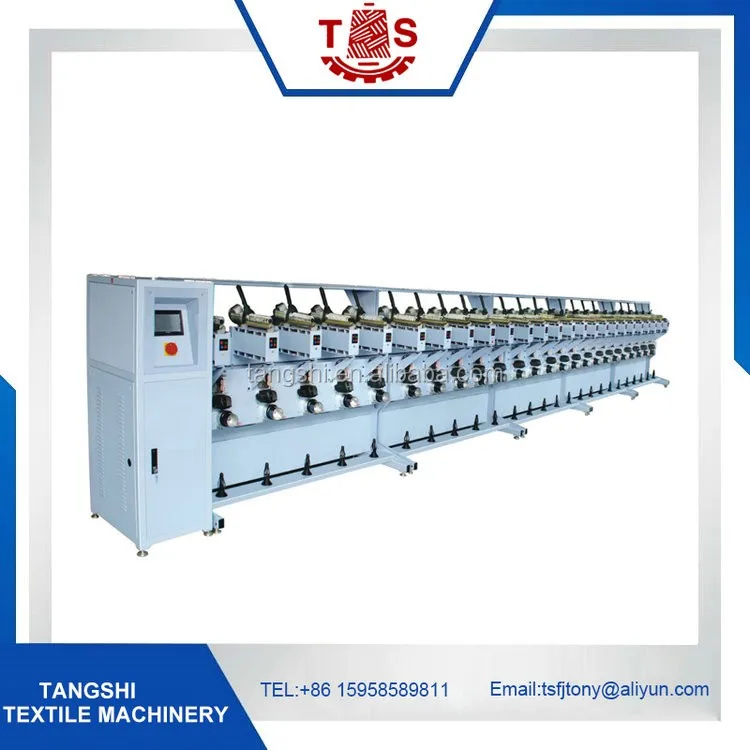

     TH-11C Precision Filament yarn winding machine(pineapple cone winding machine),Innovative scheme, advanced technology and application. The winding speed of this machine is controlled by computer, which has the maximum of 1200 m/min. Precise and sensitive speed testing system can even ensure the winding length (weight). It is quite suitable for winding yarn of cotton, flax, silk, and chemical fiber.
nsity of labour for next processing work.



Types of winding	program or precision
Mechanical speed	up to 1200m/min (process speed depending on process parameters)
Package shape	freely programmable
Traverse length	147-250mm infinitely variable
Take-up package diameter	up to 280mm
Package weight	up to 4kg
Supply package diameter	up to 320mm
Yarns	textured or flat filaments, elastic yarns, silk, staple yarns, fine technical yarns
Take-up tubes	cylindrical and conical up to 3°30′ conicity
Layout	single sided machine
Number of spindles per section	5
Min. / Max. number of spindles	5/60
Gauge	360mm
Drive	individual
Installed power	~280w per spindle
Power consumption	~100w per spindle
Density of winding	automatic control
Volume per section (L*W*H)	1880*780*1720mm
