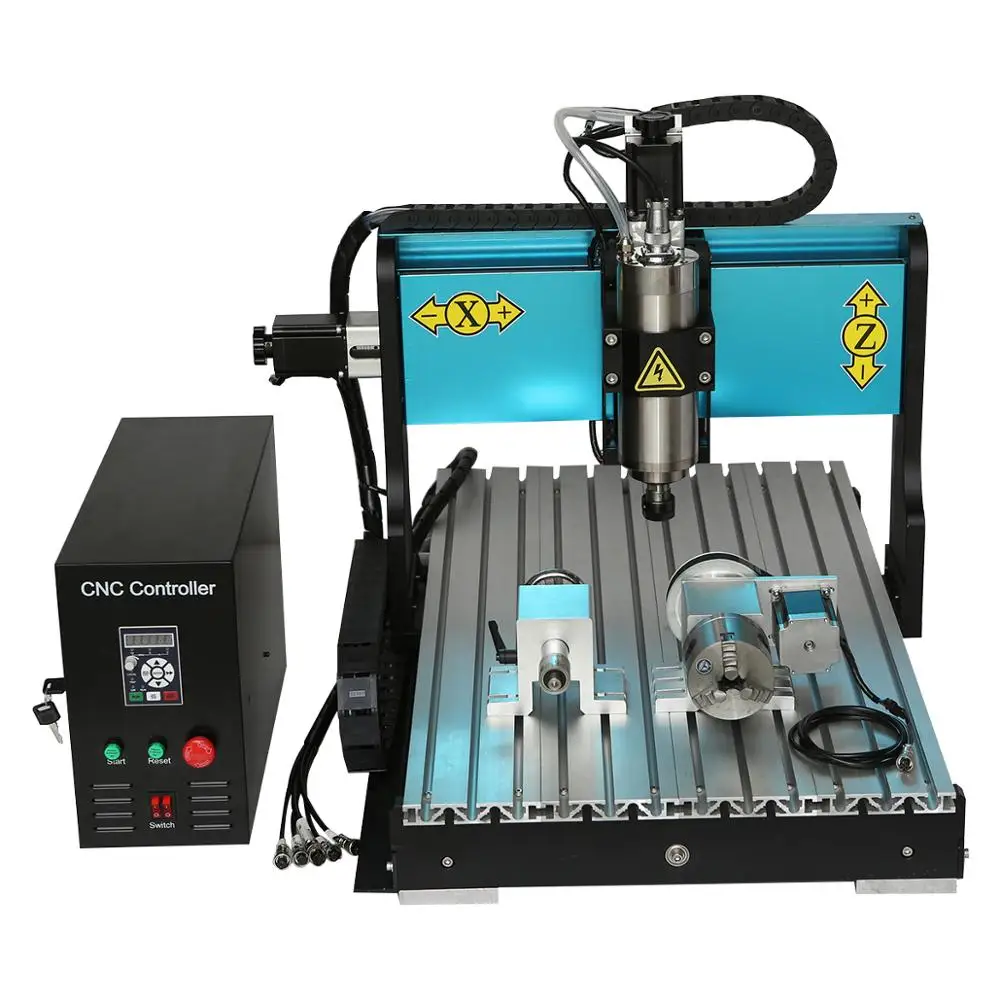

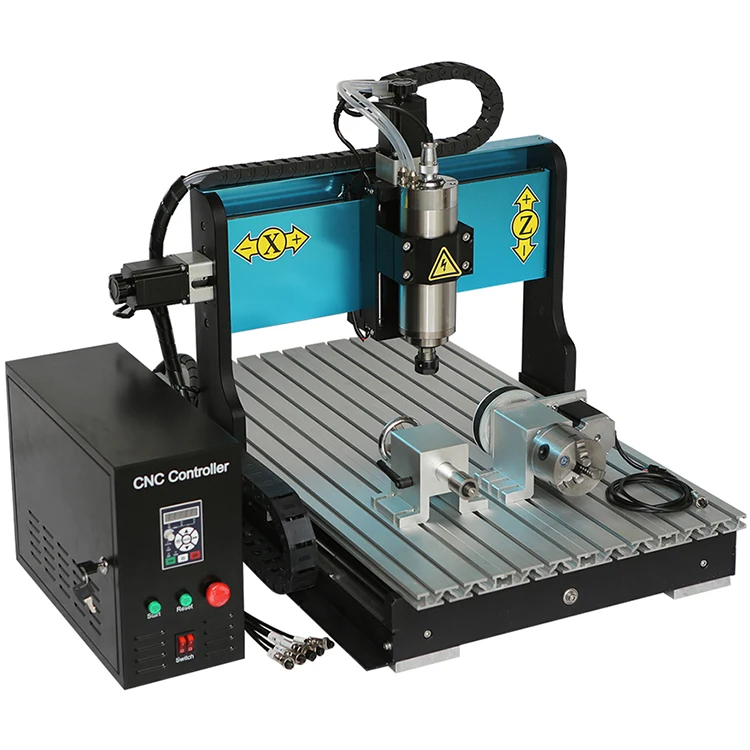

Hobby Cnc 6040 4 Axis Router Table Programming Mini Milling Cnc Machine Price List
Product Description
What is CNC Machine?
A CNC machine or a Computer Numerically Controlled system which uses computer software and CNC controller electronics to drive a mechanical system. Using this setup, it is possible to achieve far better accuracy and precision than a human operator.These machines are very efficient in that they work in all three directions in near perfect unison, giving this machine the capability of carving complex shapes.
What is the Application of JFT CNC Engraving Machine?
A.Our CNC Engraving is widely used for different area, like Industry,Technology Research,Advertising Design,Arts Creation,Teaching,Student Project and Hobby Purposes, Building Model Making, Advertising Signs,Artwork,Crafts,Aircraft Models,RC Model parts and Hobby Purposes
B. Our CNC router is designed for different engraving work such as Wood, Jade, PCB ,Aluminum, Copper, Acetate Sheet, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, Industrial or Hobby Prototype Building, Building Model Making, etc. So, you can do engraving work at office or home.
C.Ideal for milling, engraving, drilling & cutting.
What is the Parameters of your engraving machine?

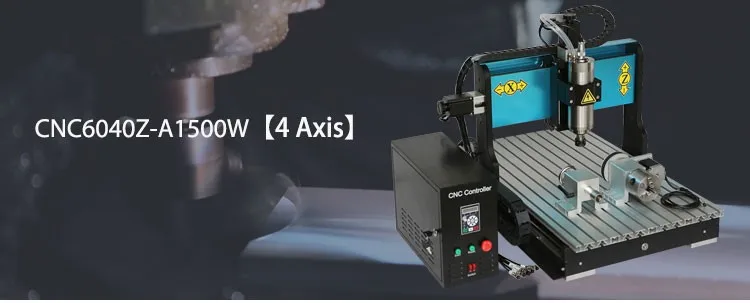

Model
CNC6040Z-A1500W
Dimension
900*650*590mm(L*W*H)
worktable dimensions
840*480*20mm(L*W*T)
Working area
400mm*600mm *100mm
Frame material
The machine is 6061 aluminum. Panel is 6063 aluminum.
Type of Screw
TBI SFU1605 ball Screw
Rail type
Chrome plate shaft + Linear Bearings(surface hardening 61 HRC)
Spindle Motor(rated voltage)
1500W(600HZ 2200WVFD)
Cooling mode
Water cooling

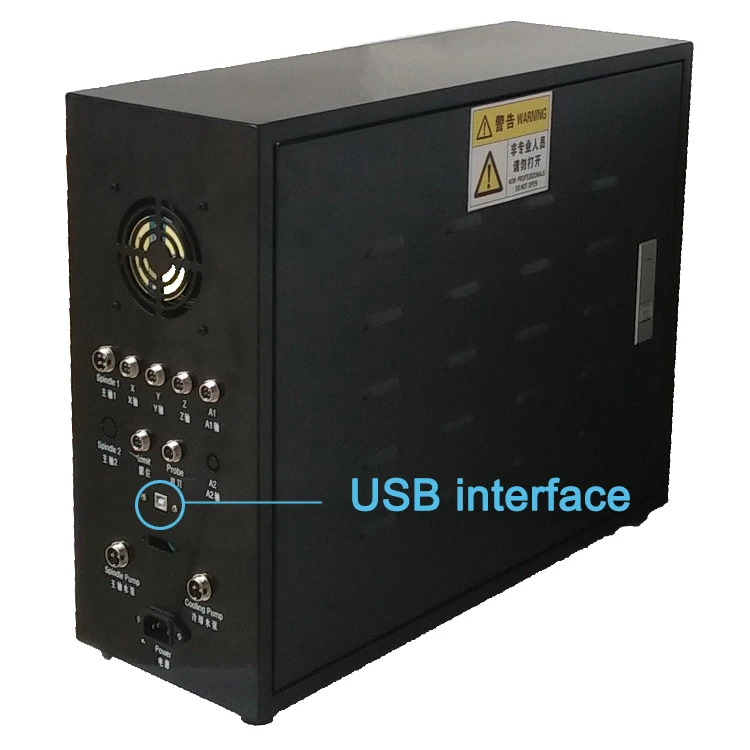

Control system
Mach3 USB port
Collet type
ER11 1/8”(3.175mm)and 6mm collet
Stepper motor
57 type,100 length, high torque, 5.6A heavy current
Max. working speed
8000mm/min(engraving speed: 50-7500mm/min)
Repeat positioning
Less than or equal to 0.02mm
Carving accuracy
0.02mm
Spindle speed
24000rpm/min
Command code
G Code (tap, nc, ncc, text)
Input voltage
AC220V/AC110V
Package size
94*67*43cm(L*W*H)
Package weight
92Kg
Packing
Wooden case

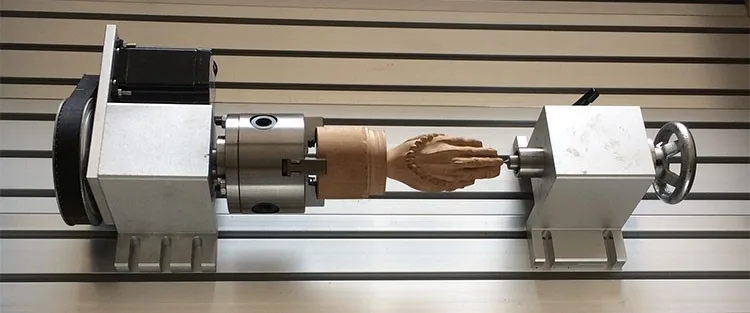

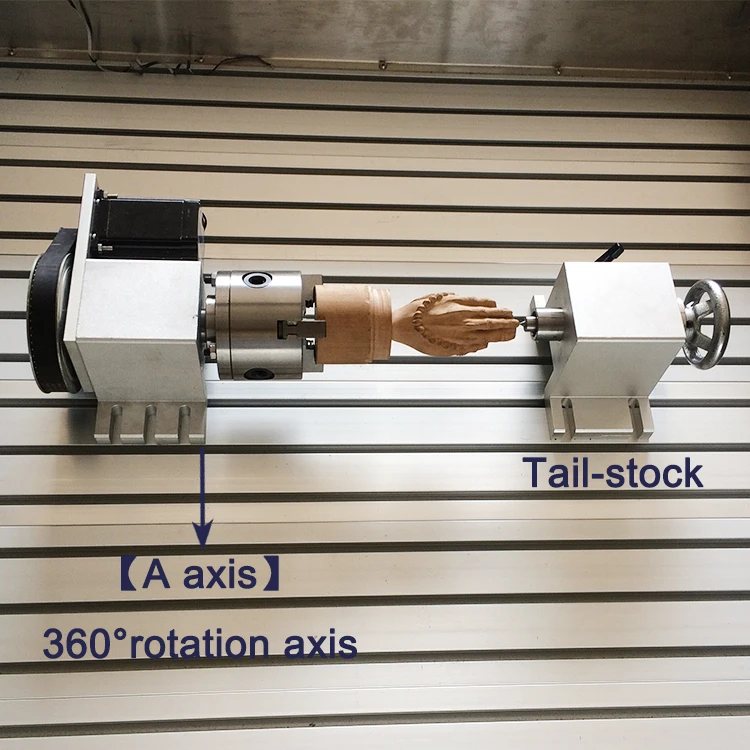

Axis & Tail-stock:(The 4th axis)
Rotation Axis A Axis
Reduction ratio
6 : 1
Center height
65mm
Tail-stock
Center height
65mm
Scalable amount
50mm

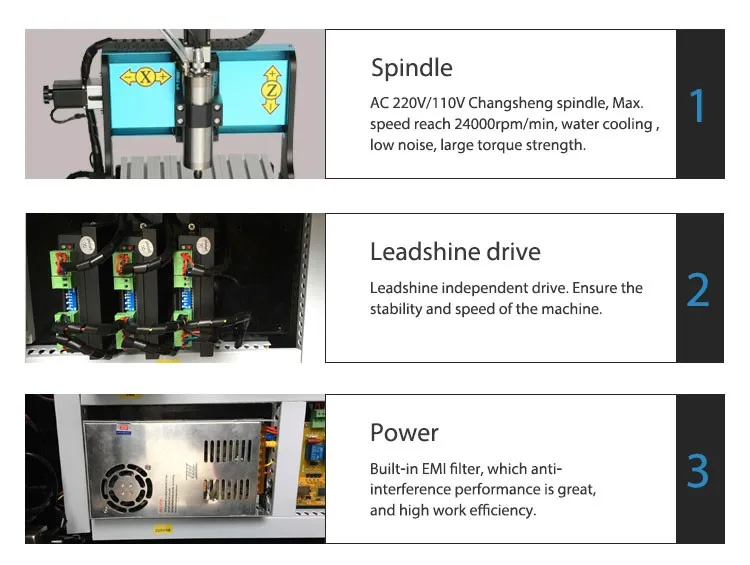

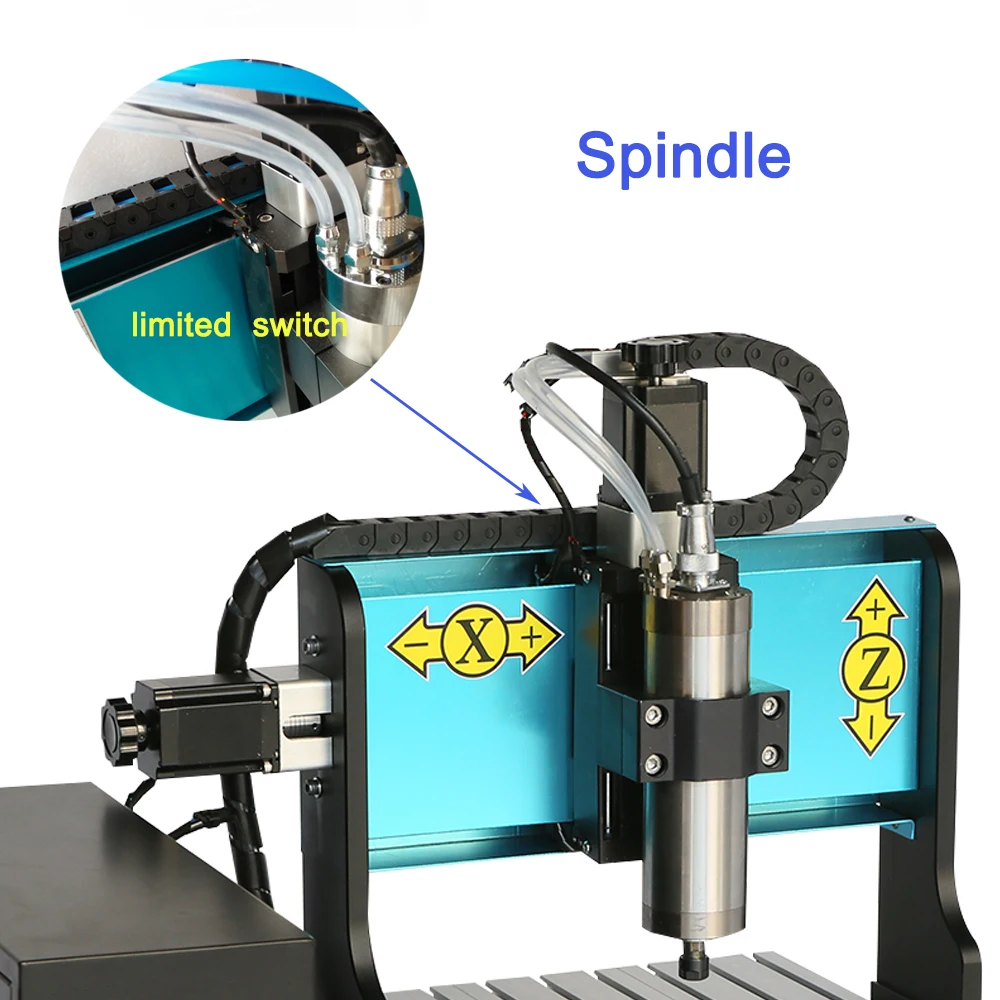

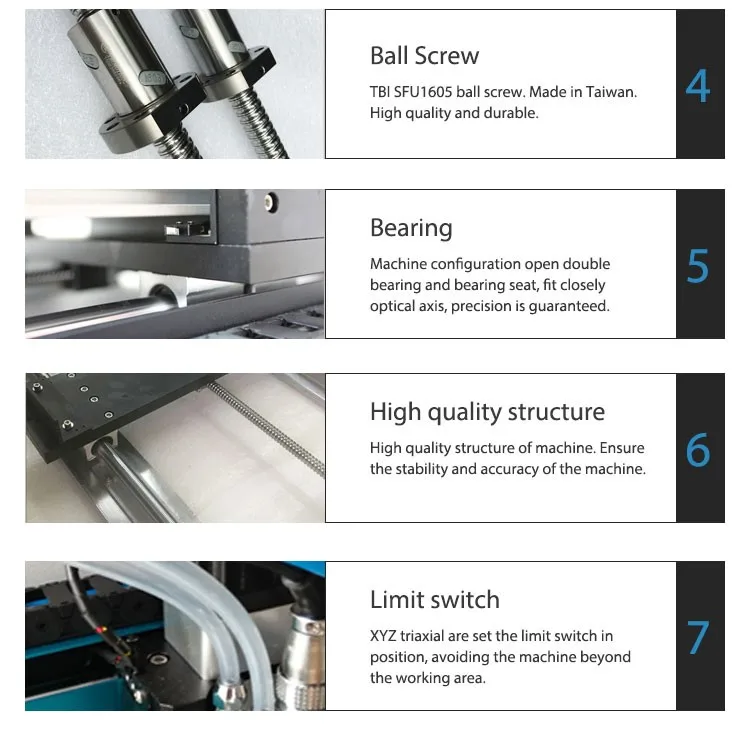

Main Parts:

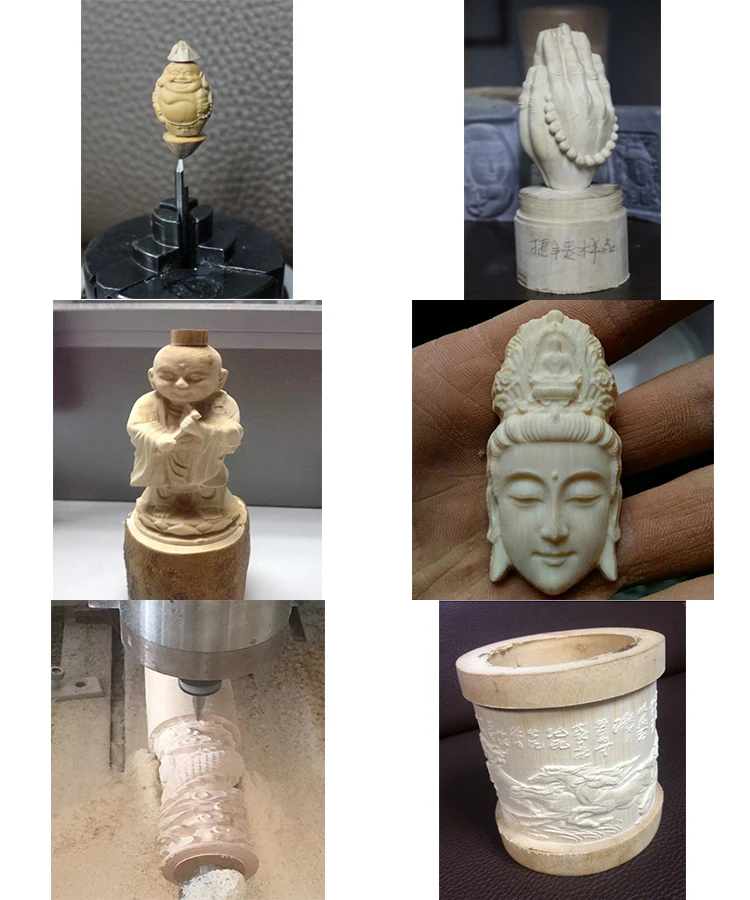

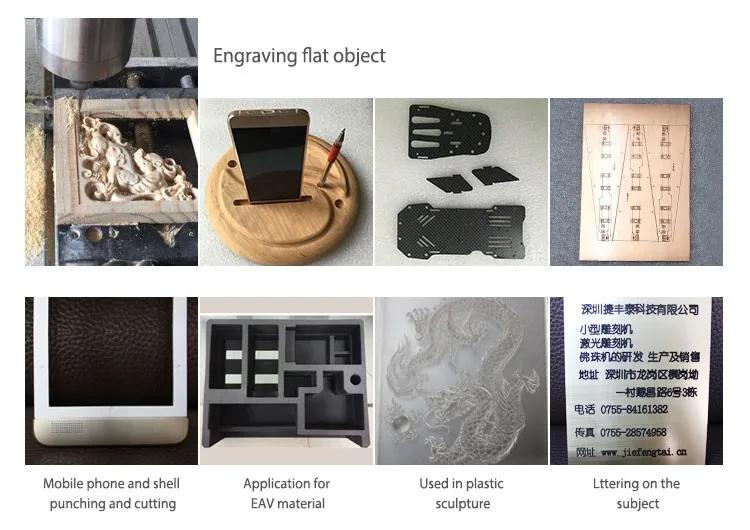

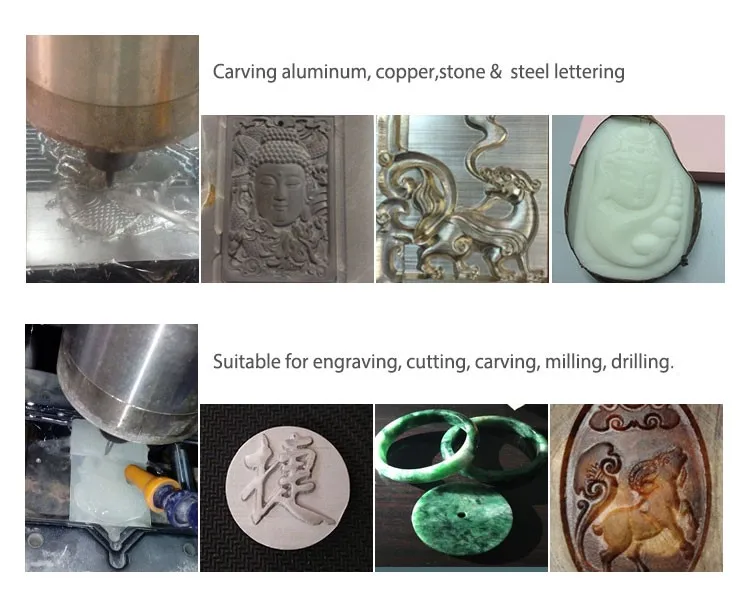

Samples:
Packaging & Shipping
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. We can arrange shipment by sea. Minium CBM requirement : 1 CBM

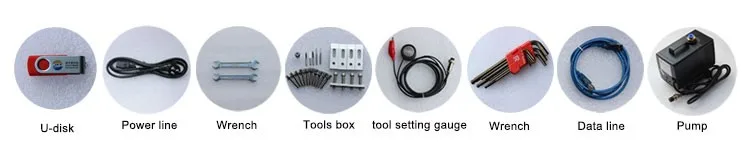

Packinng List:
1. 1*Engraving machine
2. 1*U-disk (Different software)
3. 1*Power line
4. 2*Wrench
5. 1*Plastic tool box
6. 1*Tool setting gaugue
7. 1*Water purmp
8. 1*USB cable or Parallel cable for selection
9. 8*sets convenient wrench
Company Information
Our company specializes in the R&D, production and marketing various types of CNC advertising engraving machine, woodworking engraving machine, marble engraving machine, computer cutting plotter, laser engraving machine, laser cutting machine, crafts laser engraving machine, laser engraving machine and other equipment.
Our Services
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
Engraving Video
Different Engraving Vedio for your reference, more You Tube link welcome to contact us.
IC Grinding machine: https://youtu.be/Jz0ouZC6acE
Aluminum: https://youtu.be/XcxrXnTOjfk
Wood: https://youtu.be/6DKhk37H2Ho
Bakelite: https://youtu.be/fZzHo3aEdS8
Nuclear: https://youtu.be/sxEG2kXnIPw
Ivory: https://youtu.be/RB_4NESG020
Plastic meter box cutting: https://youtu.be/pFI6HrahBNg
Plastic housing: https://youtu.be/QRd4y7c6OSI
Hollow cutting: https://youtu.be/JkNk_5yPOmw
Acrylic: https://youtu.be/D7IrcHzTvW4
Ceramic tile: https://youtu.be/HLgOQu3N7k8
Mach3 Install Vedio:https://youtu.be/JOCqC-tBAK8
OTHER PRODUCTS
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is an English manual also a guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
We provide 1 year warranty, if you there is any problem when you receive CNC machine, just feel free to contact us.
3)What is your MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you?
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why i choose you ?
A. Because we are the manufacturer, we can keep the quality for you.
B. At the same quality grade, our products' price is better.
C. At the same products' price level, our service is better
D.Short delivery time 2-3 days after confirming the ordery.
Contact us
If you are interested in our machine, welcome to send us an inquiry, we have Professionals to servise you immediately, here CUSTOMERS FIRST.
