Product Overview
Description

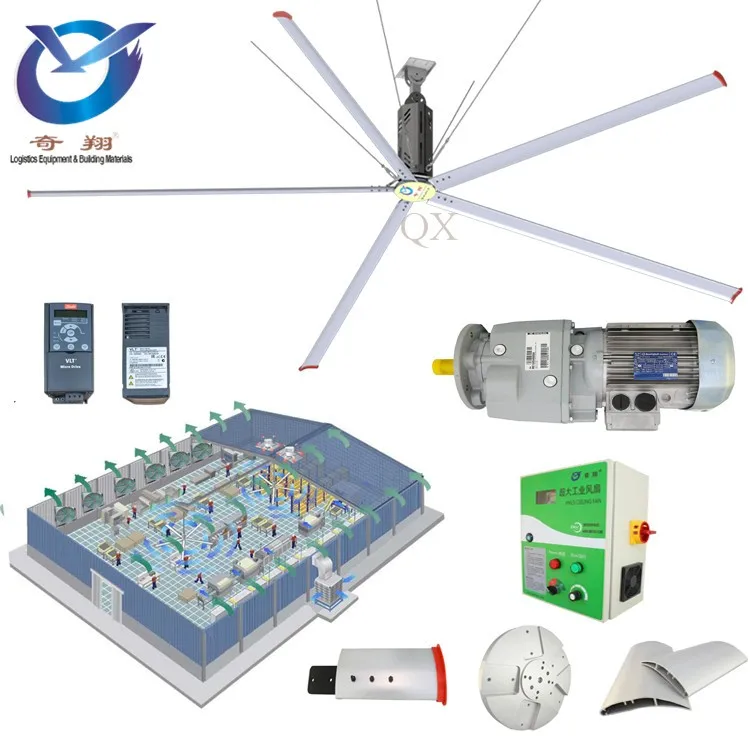

high volume low speed low noise energy saving carport ceiling fan with 5 blade
The introduction video is available at :https://www.youtube.com/watch?v=g7uqw6TbIEU

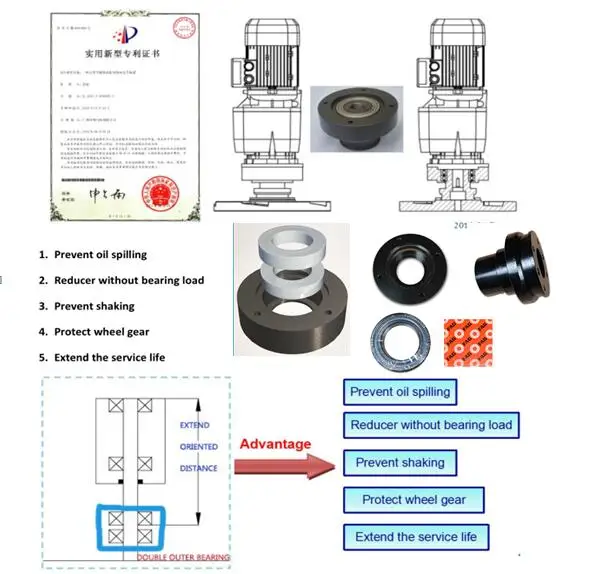

Double Outer Bearing --Our self-patent design
The traditional bearing structure :
Our patent design -- Double Outer Bearing can absolutely solve all these problems by Extend Oriented Distance
1. Prevent oil spilling
2. Reducer without bearing load
3. Prevent shaking
4. Protect wheel gear
5. Extend the service life
Also ,Double Outer Bearing can avoid the big knockout press and extend the the lifespan.
A. We use the Germany Brand FAG bearing 6014-2Z model deep groove ball bearings ,Special lithium grease,15 years warranty .
B .Solve the knockout press: without double outer bearing ,When the power failure happened , the fan will stop suddenly .it will generate big knockout press ,which can lead to blade fracture.
Like the following pictures .
While if we use the double outer bearing device ,it will avoid the big knockout .so this can protect the blade and extend the lifespan.
C . Extend the lifespan .This is similar with the lever principle ,when the distance is longer ,than the bear load will be lighter .Thus can extend the lifespan of bearing .
Fan details page
The motor-reducer is imported from Germany. The brand is Bauer.Other type is BONFIGLIOL.
The motor with fluoriine rubber oil seal to ensure the reliability of the rotary drive member.
Converter
Using Danfoss Brand bearing high carrier frequency to reduce motor zing,improve the control pulse signal quality.
Control Box
Introducing importde high quality electric cabinet, energy efficientcy integated with security potection. Using Fluorocarbon Iacquer box configuration Schneider load switch,ventilating port. with over current and overvoltage/under votage/open phase/over load/overheat protection,make it antomatic power-off when have an accident.
Chassis:
Using integrated aluminum magnesium alloy and made by precise cutting technology to ensure the consistency of the chassis as well as seurity. 380mm diameter the chassis,33mm thickness.
Blade
Using high quality aluminum magnesium alloy ,more than 20 years with corrosion resistance,high strength,high toughness ,fattgue resistance,bright surface oxidation treatment,easy to clean. The use of advanced fluid dynamics simulation software CFD modeling and wind tunnel testing ,aerodynamic shape with a unique anti-fatigue lined design.
Safety
8 ways to protected the fan more safety
1.transmissions system an-ti drop ring
2.bracket system an-ti drop ring
3. chassis system an-ti drop ring
4. double Outer Bearing
5.fan Chain
6.infrared micro-distance monitoring device
7. the main beam of the roof rack fan surrounded by a rope
8.4pcs 8MM wire rope
Q1: What is the MOQ?
No any requirements, 1 pcs can be accepted.
Q2: Compare with the pictures,I prefer to see the real products,Can you promise your products are the same with the pictures?
All the pictures were taken from real products,so the quality can be guaranteed,You can place sample order first .
Q3: Some of my orders are urgent, I don’t want to wait long time, can you guarantee mass production period .
We suggest you contact our sales for urgent orders ,usually 3-5days for stock items,20-30day for mass production period .
Q4: Can all products be customized?
Yes,all of products can be customized according to customers' requirements.
Q5: What kind of motor do you used?
Bauer , Bonfiglili ,Nord.
Q6: How about the motor power?
380v/50 Hz, three phase ,1.5kw power , 2.0Hp ,it depends on specification.
Q7: Are the fans safe,how do you make the fans safer than others?
Yes,We have 8 methods to guarantee safety and stability.
