Product Overview
Description
rolling mill is mainly used in steel factory which produce deformed bar, wire rod, channel steel , flat bar or other products.
Deformed bar hot rolling line is divided into continuous rolling and semi-continuous rolling.
For continuous rolling, rolling type is double-groove single-line.
Billet hot charging and directly rolled reduces the billet storage procedure compared with traditional production type. It reduces storage area, as a result factory area is reduced and investment is saved, cash flow is increased at the same time. Billet hot charging and directly rolled make cold billet heating procedure before rolling unnecessary; it increases yield rate, reduces energy consumption and lower the production costs to attain better economic benefits. It also reduces scale generated in heating furnace by secondary heating and increases 0.3-0.5% yield rate.
Basic parameters:
Machine model | Deformed bar rolling mill |
Production ability | Custom made |
Deformed bar range | 8mm-36mm |
Final product specification | deformed bar, angle steel, wire rod |
Raw material | Billet hot charging or cold billet reheating |
Rolling type | full continuous rolling or half continuous rolling |
Cooling method | Cooling bed |
Bar out method | Bar transfer machine |
Color | Depending on customers requirement |
Delivery time | Around 8 months (without busy schedule) |
Standard supply scope | |
1 | Charging roller table |
2 | Billet pusher |
3 | Buffer |
4 | Charging bracket |
5 | Heating furnace |
6 | Billet out machine |
7 | Furnace out roller table |
8 | Working roller table before rolling mill |
9 | Hot charing turnover roller table |

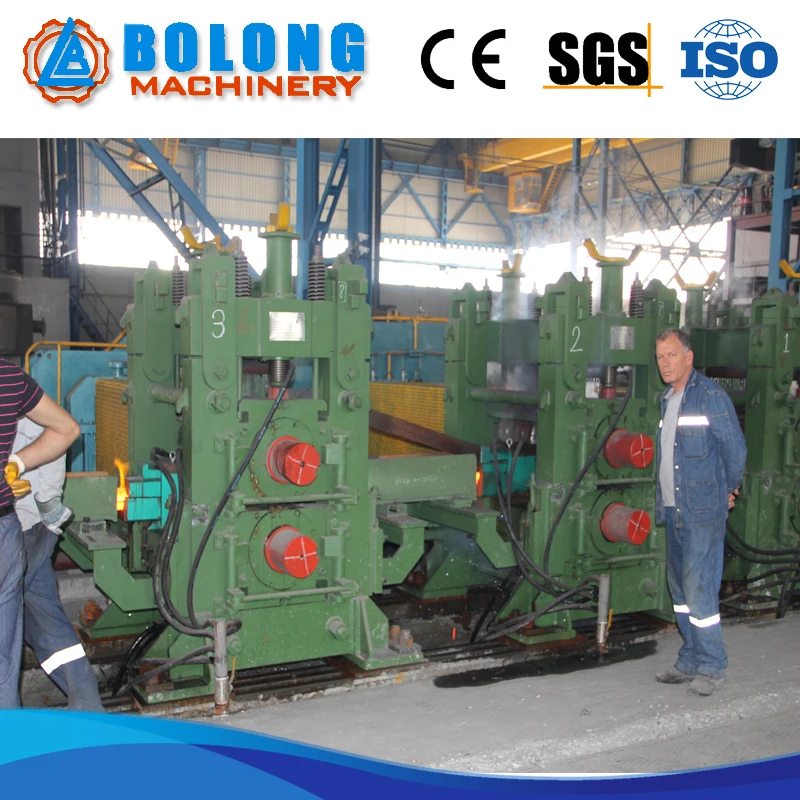

10 | Φ400×3 rough rolling mill group |
11 | Φ400x2 rolling mill group |

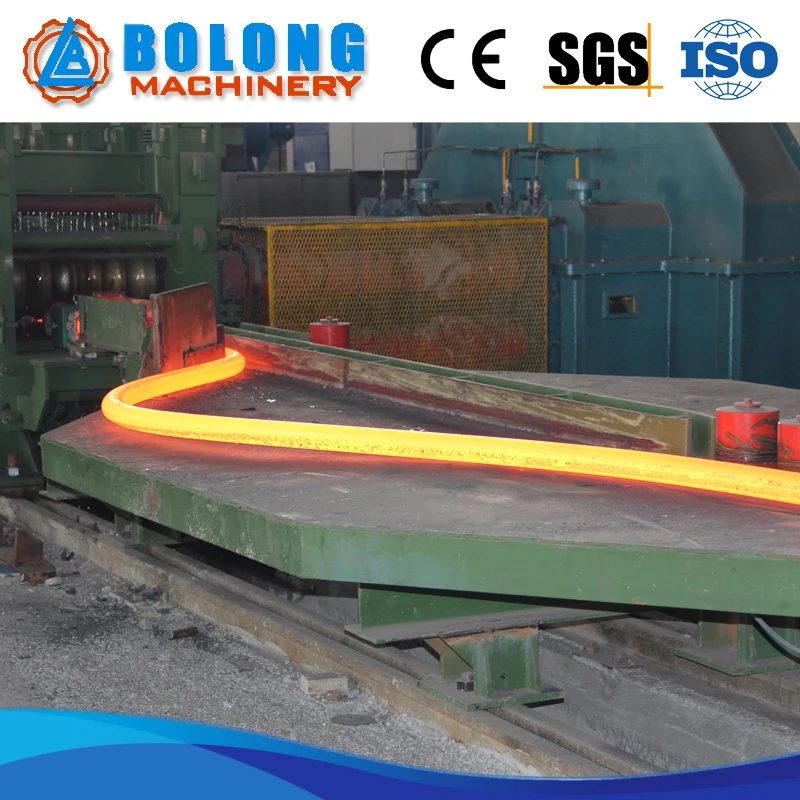

12 | 1#side loop |
13 | intermediate rolling mill group |
14 | 1#End-cropping flying shear |
15 | Snapping shear |
16 | Φ300×2 finish I rolling mill group |
17 | 2# end-cropping flying shear |
18 | Φ300x2 finish II rolling mill group |
19 | Vertical type loop |
20 | Remained heat treatment device |
21 | Multiple length flying shear |
22 | Pinch roll |
23 | Cooling bed entering device |
24 | Step by step cooling bed |
25 | Alignment device |
26 | Cooling bed exit device |
27 | Roller table for cooling bed output |
28 | Final products cut-to-length shear |
29 | Cut-to-length baffle/length stop |
30 | Roller table after cutting |
31 | Final products inspection and transferring bracket |
32 | Collecting and bundling device for final products |
33 | Guiding pipe |
34 | Loop laying head |
35 | Heat radiating roller table |
36 | collecting barrel |
37 | Transfer chain |
38 | Coil tilting machine |
39 | Coil collecting machine |
40 | Bundling machine |
