Farm equipment sunflower shells pellet machine
- Category: >>>
- Supplier: Shandong Tony Environmental Protection Sci-Tech Co. Ltd.
Share on (60386322562):
Product Overview
Description

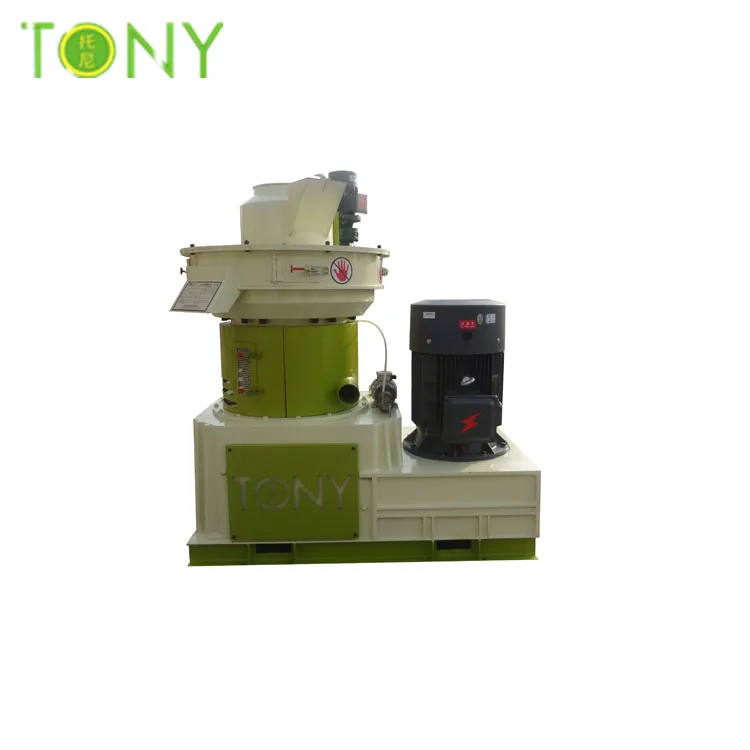

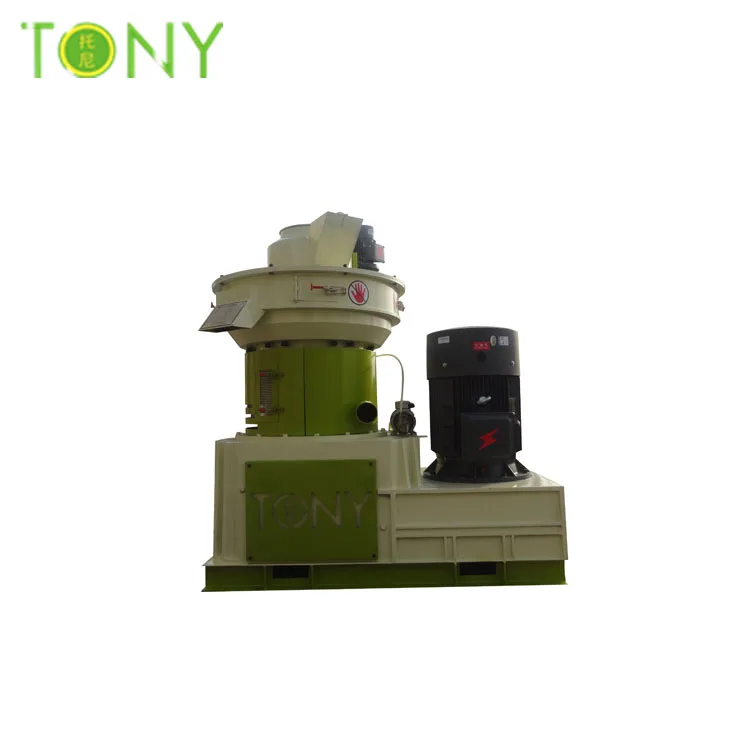

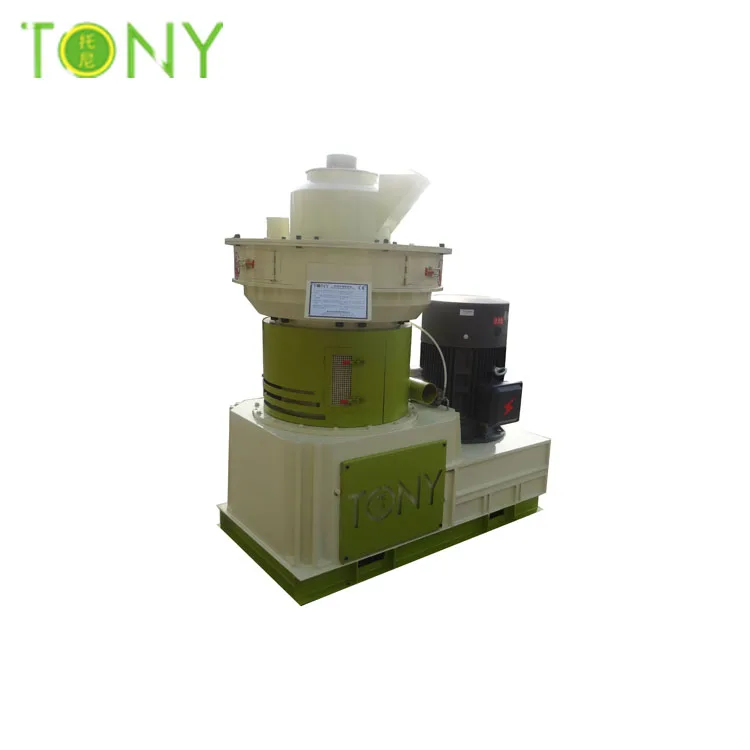

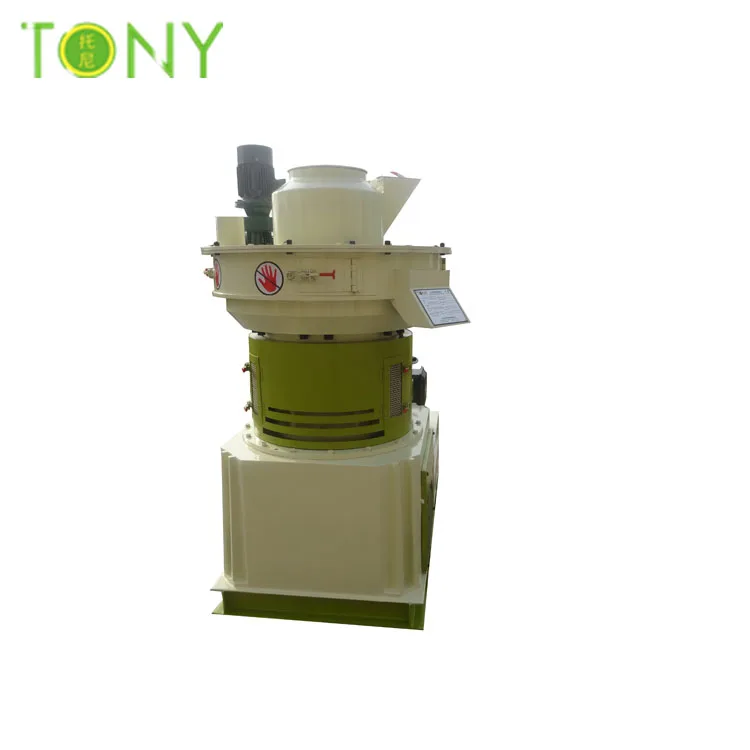

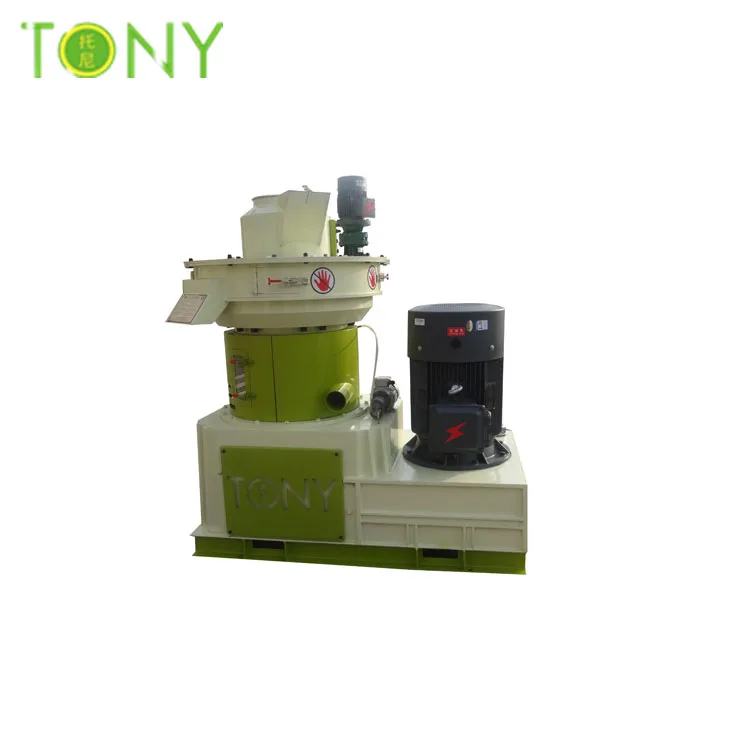

Pellet Machine
Working process of pellet machine
A, Preparing raw materials:
All the raw materials must be crushed into sawdust before going into wood the pellet machine. If not, you may need a wood chipper, wood crusher.
B. Drying process:
Before going to the pellet machine, the moisture of sawdust must be controlled
between 10-15%. This process can be realized by a drum dryer.
C, Feeding process:
The dry sawdust is delivered by a conveyer into the stock bin which is installed over the feed hopper.
D, Pressing process:

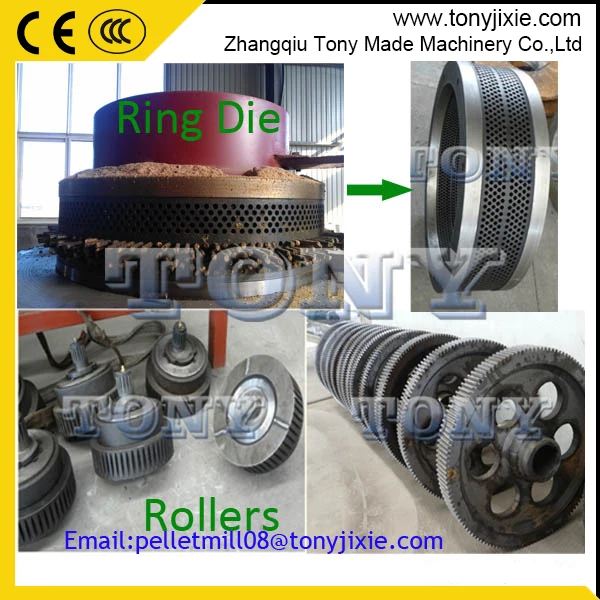

After the sawdust delivered into the rotating die of wood pellet machine, we can start the wood pellet machine. The sawdust will be pressed through 4 rotating press rollers. The resulting pressure compresses the sawdust and extrudes it through the holes in the die.

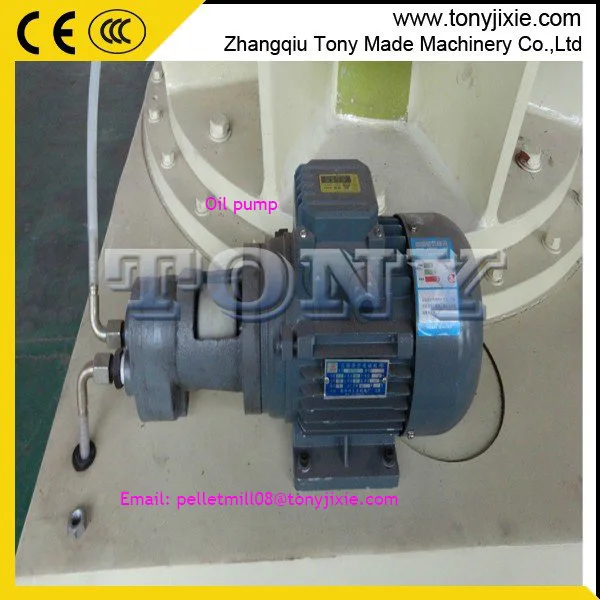

NO Grease. Oil Lubrication!
High Capacity!
Excellent Design!

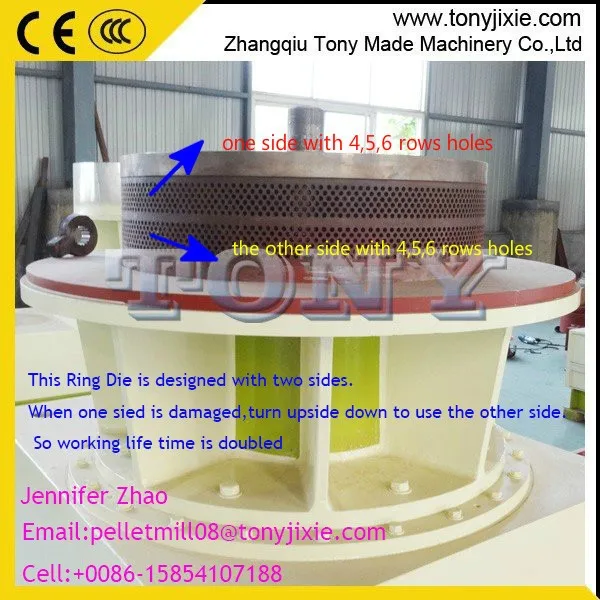

Longer Working Life!

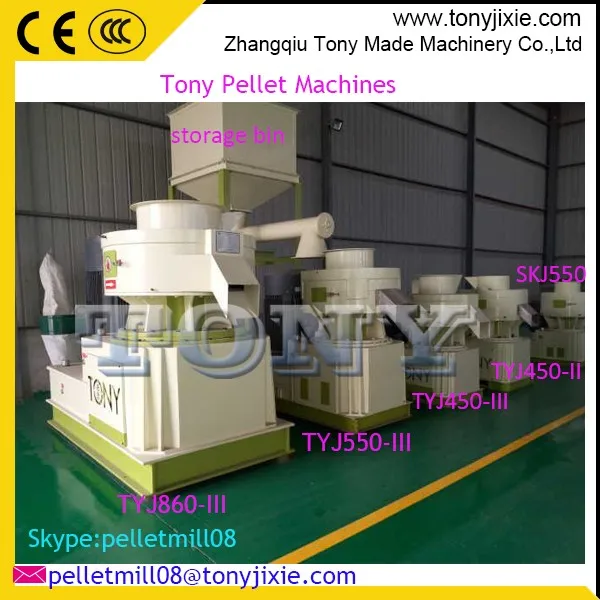

Technical Data of pellet machine
Item | Mode | Power(KW) | Capacity(T) | Weight(T) | Size(mm) |
1. | TYJ450-III | 55 | 0.8-1.2 | 2.5 | 1650*850*1600 |
2. | TYJ550-III | 110 | 1.5-2.2 | 4.5 | 2000*1100*1800 |
3. | TYJ680-III | 160 | 2-3 | 7 | 2200*1250*2000 |
4. | TYJ860-III | 220 | 2.5-4 | 8.8 | 2450*1400*2100 |
5. | TYJ980-III | 315 | 3.5-6 | 15 | 2800*1600*2500 |

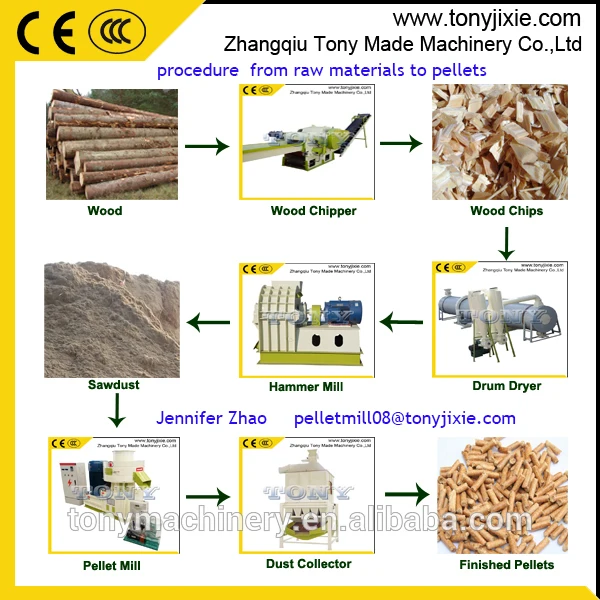

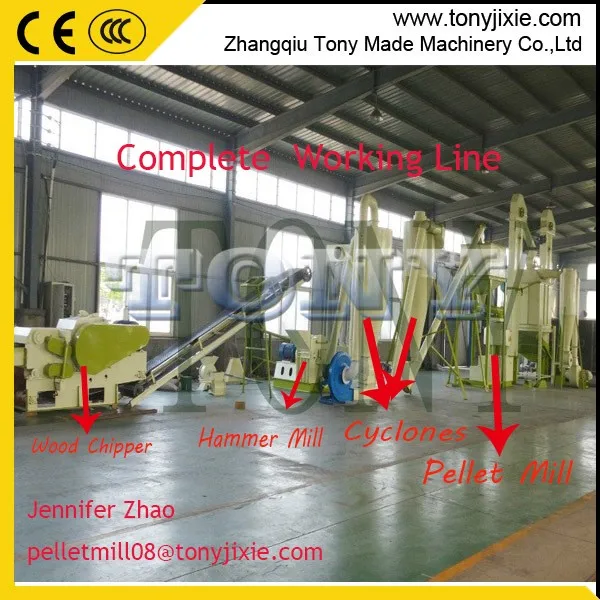

The Whole Process from raw material to wood pellets
We can also supply the following machines
1. The SKJ Series flat die pellet mill with the volume 100kg to 4T per hour.
2. TheTYJ Series ring die pellet mill with the volume 800kg to 5T per hour.
3. The SKJD Series Pellet Mill with Diesel Engine with the volume 100kg to 400kg per hour.
4. The SKJT Series Pellet Mill with Tractor Engine with the volume 80kg to 400kg per hour.
5. Hammer Mill
6. Wood crusher
7. Wood chipper
8. Drum dryer
9. Packing machine
10. The complete pellet production line from the capacity 0.5 ton to 20 ton per hour.
For more information, please leave me an inquiry or send me an email, and I will give you the reply asap.

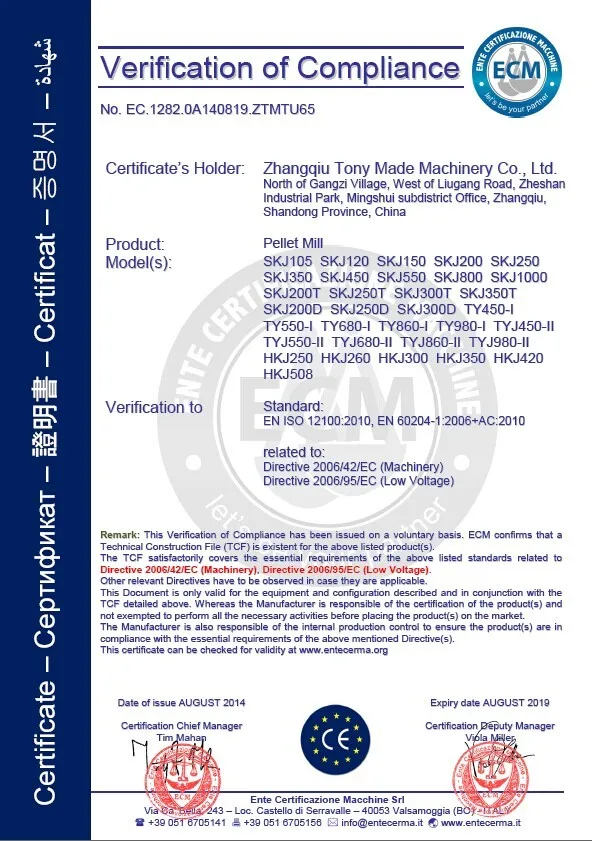

Certification
F

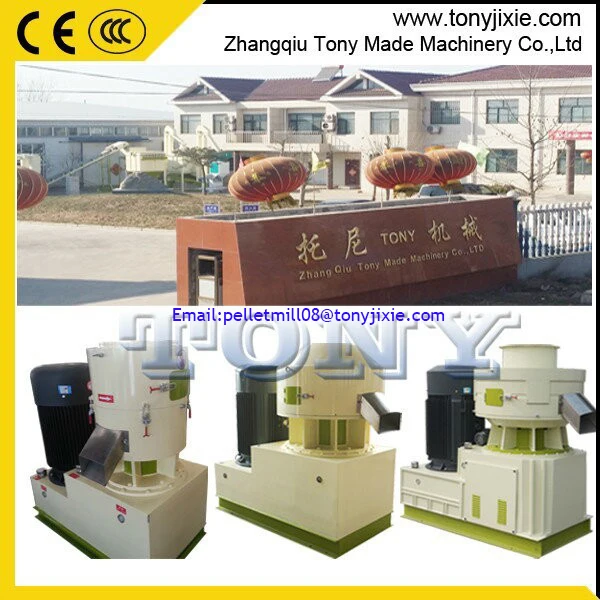

About Us
TONY is a professional manufacturer and exporter engaged in the research, production, sale and service of Biomass wood pellet line, wood pellet mill(flat die low temperature pellet mill, vertical ring die pellet mill, feed pellet mill, grinding equipment, crushing equipment, drying equipment, cooler and other screening, conveying equipment.
Having developed the pellet machines with reliable functions, reasonable design, energy saving and high efficiency low consumption, our vertical ring die pellet mill which use special gear transmission has sold very well during home and aboard.
We always supply the most suitable machines for customers with excellent quality and competitive price.

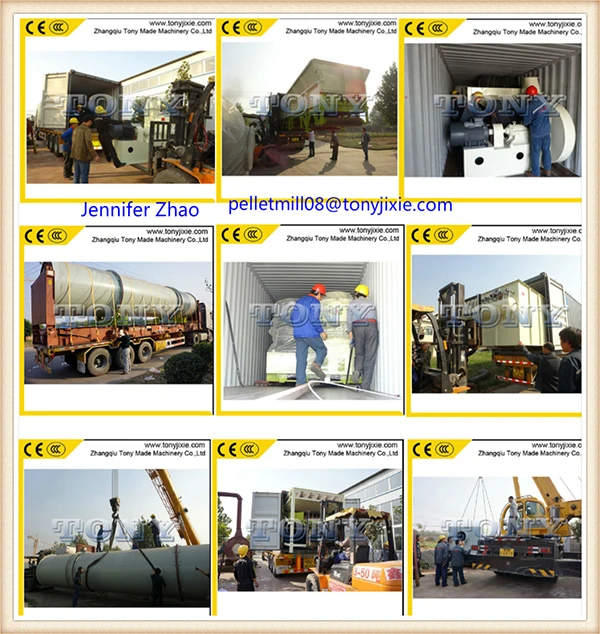

Packaging and shipment
Shipping cost
Please Message or Call us. If You Have Questions About The Shipping Cost, Depending On Your Location, It May Be Cheaper!! When Contacting Us Please Provide Your Zip Code.
Packing
The kind of packing will be decided by our clients, or you can leave it to us. Whatever which one is used, all the good will be packed carefully by our professional workers to ensure the safety of your shipment.
After –sales
Quality is the soul of our factory, we have design departments, equipment installation department and after-sales department which helps our clients all over the world. They gain huge reputation for our company.
Our after-sales service includes: equipment debugging and installation,Product guidance, spare parts delivery, shipment follow up. If you have any question please contact us, We will do our best to accomplish your requirement on time.
Cooperation and overseas business
In order to give you the quotation in time ,please tell me the following answers:
We need to know:
| what capacity would you prefer? | The capacity for vertical ring die pellet mill model. |
| What is your raw material ? | According to different raw material(such as hard wood, softwood, straw, rice husk), capacity is different. |
| What is your raw material size? | Best size for pressing high quality pellets is 3mm. |
| What is the moisture of your raw material? | Better to be 10-15%. |
FAQ
1.Q:Are you a manufacturer or agency?
A:We are a manufacturer with our own factory.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Zhangqiu City, Shandong Province, China. You can fly to Jinan airport and then we will pick you up(40 minutes by car) . All our clients are warmly welcome to visit us!
3.Q:How does your factory do regarding quality control?
A:"Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained CE.
Best Service
-24 Hours Online Service.
-Inquiry will be replied within 2 hours.
-All-the-way tracking service offered from placing order to delivery.
-Free training for operation, debugging and daily maintenance.
-We can provide professional guide installation.
-One year warranty and all-round after-sales service.
-Customized design and flow chart are available for our clients.
-Independent R&D team and strict & scientific management system.
Contact Us
MS. Amy Zhang
Skype:tonypelletmill_01
QQ:2975663765
Mobile: 0086-15853148288
Email: pelletmill01 at tonyjixie.com
whatsapp: +8615853148288
-----------------------------------------------------------------------------------------------------------------------------------------
Pellet Mill, Pellet Making Line , Grinding Equipment, Crushing Equipment, Drying Equipment!
