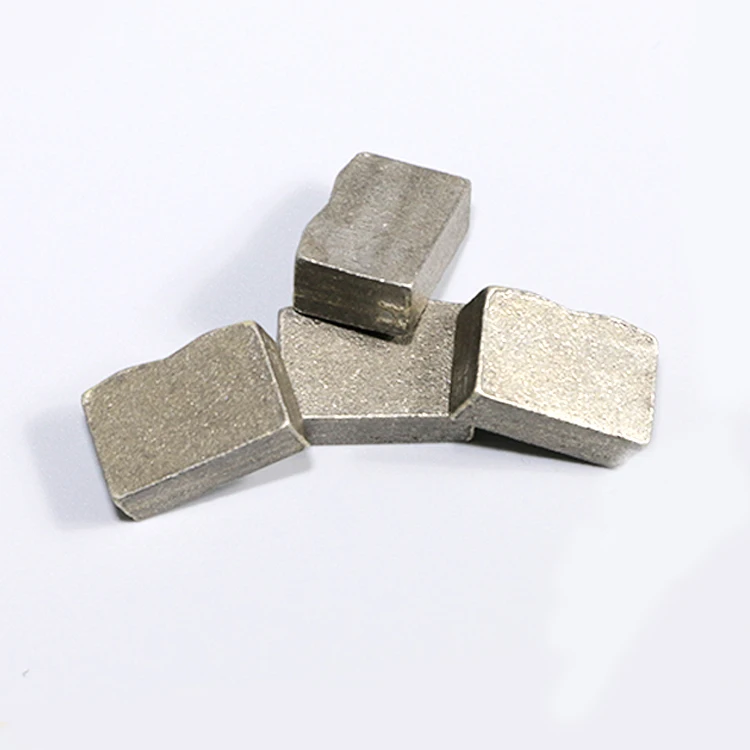

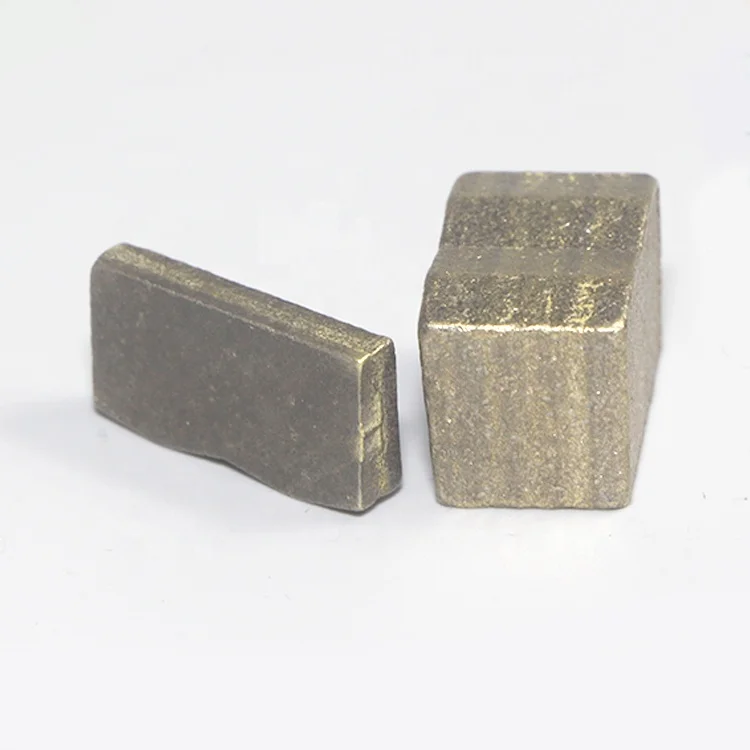

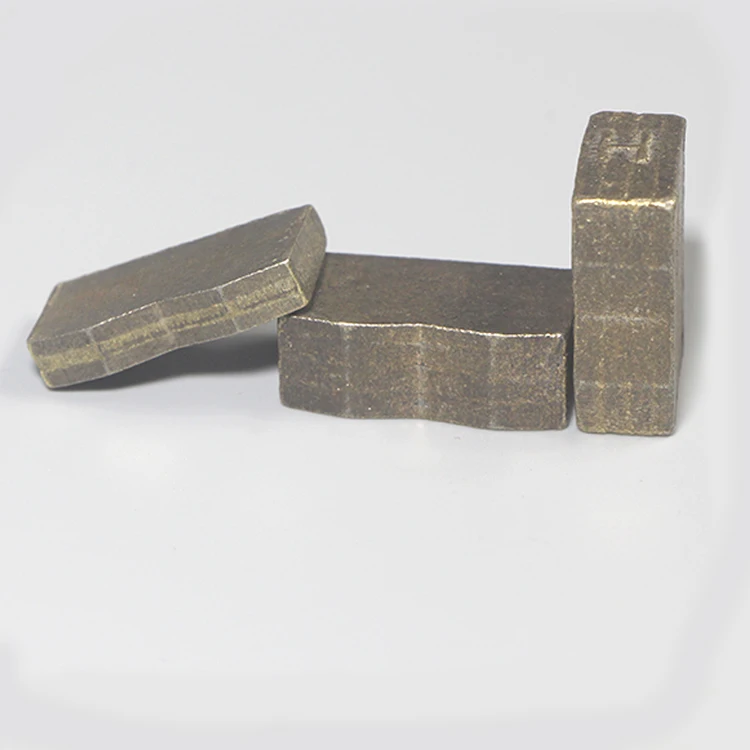

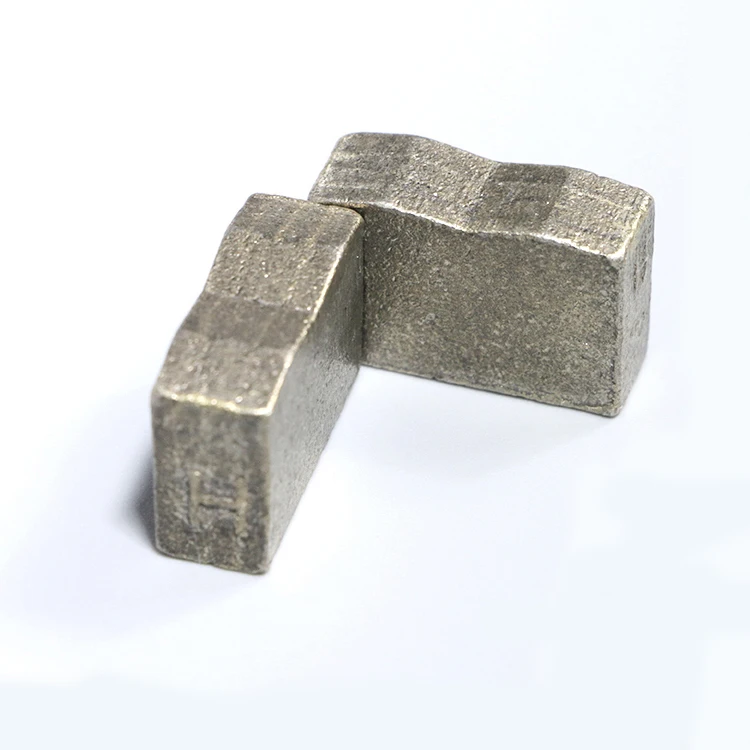

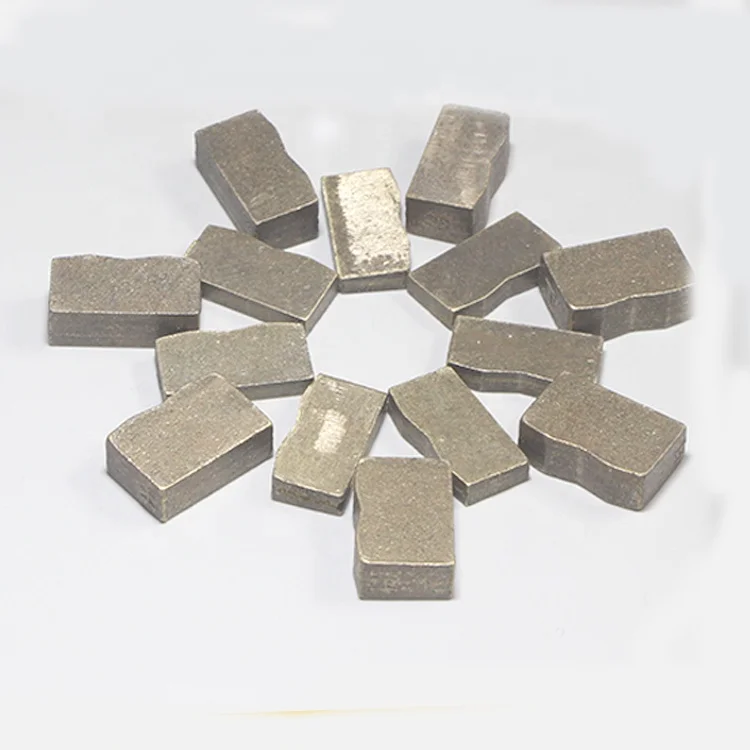

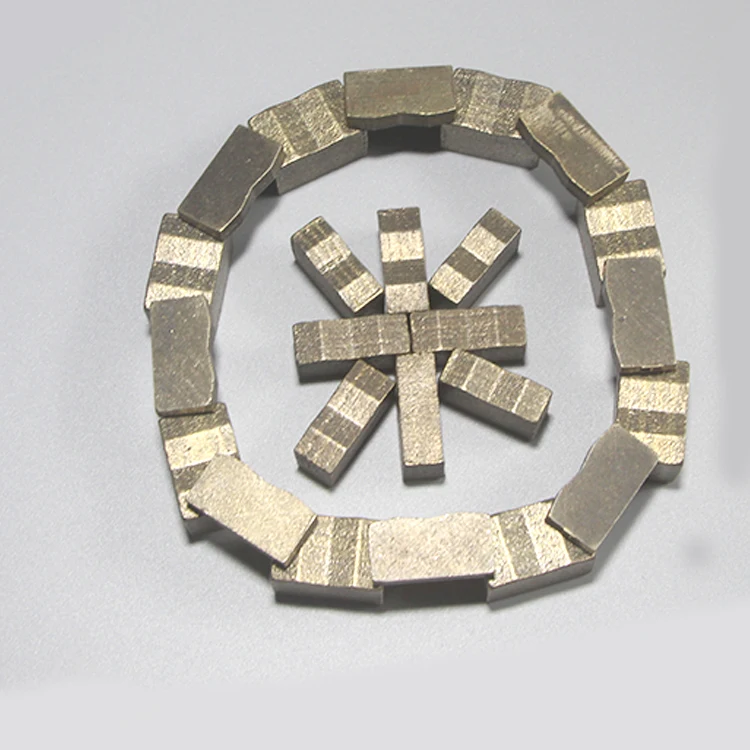

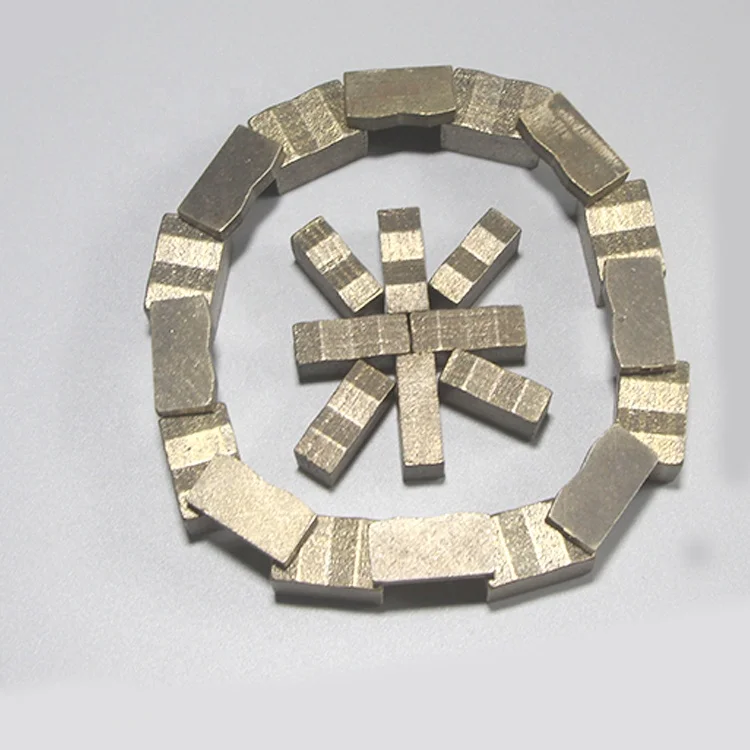

Diamond segment of various stone fast cutting segment tools

cutting segments

Product Details:
Diamond segmentsThe segments are attached to the core by brazing with silver solder;
High-quality Diamond Segment Made from High-grade Diamond by Special and Advanced Techniques;
Segment for diameter 100mm to 3000mm blade;
Specifications supplied by customers are available;
High cutting efficiency and long life;
Forms:
M shape, K shape, Taper shape, Flat shape, T shape, U shape, etc.

Application of diamond segment:
Diamond Segment can be produced for cutting granite, marble, asphalt, tile, concrete, fire-proof materials or for continuous polishing machine. Our diamond segments for large circular saw blades are always manufactured in sandwich design. No matter what the shapes, the aim is to obtain a good cooling and easy flush away the chipping. Diamonds and bond in the outer and inner layers are carefully designed to ensure cutting stability.
Advantage of our diamond segment:
1. High percent of bond materials
2. High grade of diamonds
3. Over 13 years experence with hundreds of formula against different stones
4. Competitive price and stable quality
5. Strict quality control
6. Our products last long life and give a sharp cut





Model Number	Inch	Diameter	Length	Height(Flat)	Height(Flat)	Height(type)	Segment No.	Use for
	(in)	(mm)	(mm)	(mm)	(mm)	(mm)
HSGB300	12	300	38	3.0/3.2	10/12/15	10/12/15	21	single or multi-blades
HSGB350	14	350	38	3.2/3.4	10/12/15		24
HSGB400	16	400	38	3.6/3.8	10/12/15		28
HSGB450	18	450	38	3.8/4.2	10/12/15		32
HSGB500	20	500	38	4.4/4.8	10/12/15		36
HSGB600	24	600	38	4.8/5.2	10/12/15		42
HSGB800	32	800	22.5/24	6.6/7.4	12/15/20	11.5/12.5	70
HSGB900	36	900	22.5/24	7.0/7.8	12/15/20		80
HSGB1000	40	1000	22.5/24	7.6/8.2	12/15/20		92
HSGB1200	48	1200	22.5/24	7.8/8.4	12/15/20		92
HSGB1400	56	1400	22.5/24	8.0/8.8	12/15/20		96
HSGB1600	64	1600	22.5/24	8.4/9.2	12/15/20		108
HSGB1800	72	1800	22.5/24	9.2/9.8	12/15/20	14/15	120
HSGB2000	80	2000	22.5/24	9.6/10.2	12/15/20		128
HSGB2200	88	2200	22.5/24	13.6/14.2	12/15/20		132
HSGB2500	100	2500	22.5/24	14.5/15.1	12/15/20		140

Remarks:

1.Other Specification are available upon request
2.Our company can also design and produce different specification of diamond gang saw segments



2.2Diamond saw segment cutter
PROTUCT APPLICATION:Mainly applied to all kinds of marble and sandstone cutting.





Welcome to Huisen Diamond Tools co.,ltd.,we are a production factory which specialized in producing all kinds of diamond cutting tools. Our products include: Granite and Marble cutting wire saw, Granite and Marble cutting saw blade, Granite and Marble cutter head, Diamond drill bit, and various diamond cutting discs.





1. How can I know the quality whether it is suitable for our factory or market?
A:Provide to us more details about your stone ,and try to make a trial, after you used our segments, then you will know the quality. According to your requirements, production of products what you want.We have 16 years of experience in diamond tools industry.



2.As I know many companies supply free samples, do you offer free samples?
A:We don’t offer free samples, Although the quantity of sample is small however its cost is higher than normal production.



3. What is the delivery way you send our goods?
A:For order diamond tools we always make the shipment by Air, also we can make the shipment by sea, it depends on our customers’ requirement.



4. What is the delivery way you send our goods?
A:For order diamond tools we always make the shipment by Air, also we can make the shipment by SEA, it depends on our customers’ requirement.



5. How can I know how much I should pay the delivery charge?
A:We will calculate the approximate gross weight, then according to the current Air Freight rate or Ocean Freight rate and add Chinese customs formalities & documents charge,Then we will let you know the finall charges.



6.What could we do if we find your products cannot run well?
A:Please contact us directly,provide us the details data.We can analyze the possible reasons, try to find the problem, then tell you how to solve them.



7. I want to be your agent, what is the conditions?
A:If you want to be our agent, the good capability of marketing is necessary, the other items we can settle down by negotiation.
