Product Overview
Description
Product Description

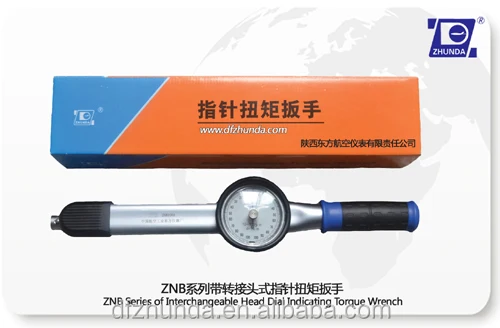

ZNB series of dial indication torque wrench is the new generation of high-quality torque wrench which is developed with military technology.

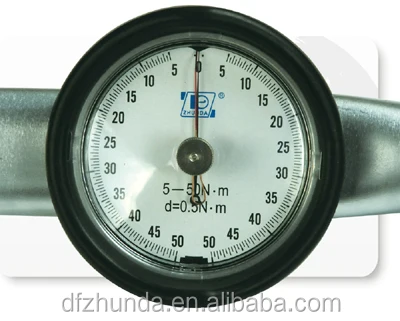

It is a new version of measuring tool that using pointer in the dial to indicate and remember the value.

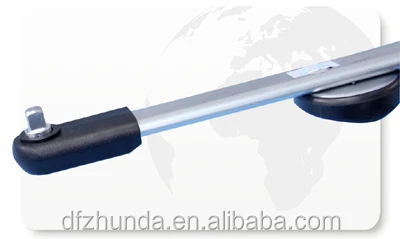

It mainly consists of body, elastic element, amplifier, indication mechanism and memory mechanism.
It has the following features: beautiful appearance, simple operation, high accuracy, reliable performance, durable and so on.
It mainly used in aerospace, aviation, ship, automobile, precise machinery, electricity, engine and internal combustion engine etc where need strict torque value for screw threaded fasteners.

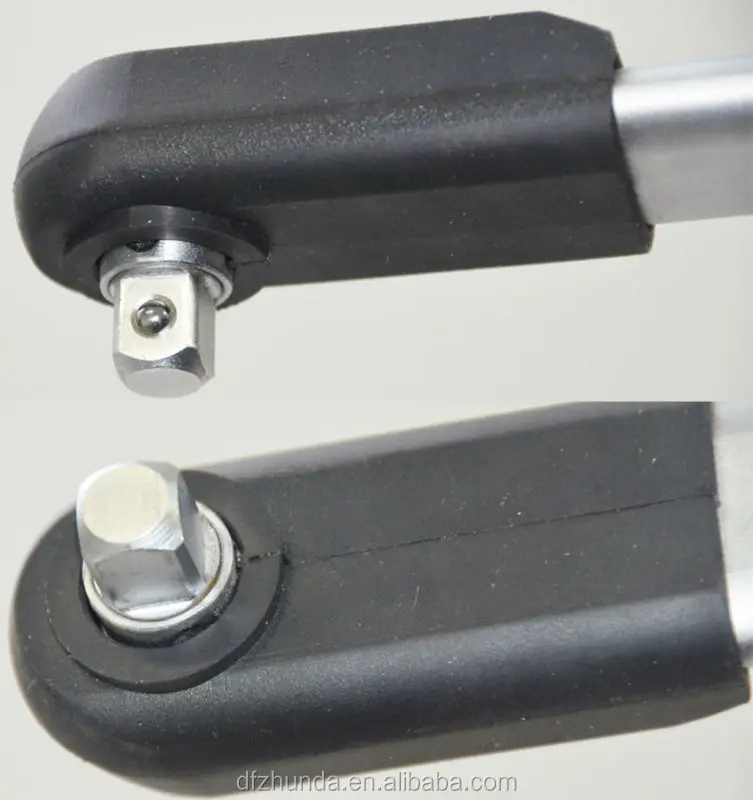

ITEM | MODEL | RANGE (N.m) | TOTAL LENGTH (mm) | LENGTH (mm) | SQUARE JOINT SIZE (in) | WEIGHT (kg) | GRADATION (N.m) |
1 | ZNB-1.5A | 0.2-1.5 | 225 | 180 | 1/4" | 0.4 | 0.02 |
2 | ZNB-3A | 0.3-3 | 225 | 180 | 1/4" | 0.4 | 0.05 |
3 | ZNB6A | 1-6 | 225 | 180 | 1/4" | 0.4 | 0.1 |
4 | ZNB12A | 2-12 | 225 | 180 | 1/4" | 0.4 | 0.2 |
5 | ZNB25A | 5-25 | 250 | 200 | 3/8" | 0.4 | 0.5 |
6 | ZNB50A | 10-50 | 332 | 257 | 3/8" | 0.6 | 0.5 |
7 | ZNB100A | 20-100 | 380 | 307 | 1/2" | 0.7 | 1 |
8 | ZNB200A | 40-200 | 470 | 410 | 1/2" | 1 | 2 |
9 | ZNB280A | 50-280 | 690 | 605 | 3/4" | 1.65 | 5 |
