High Quality SJM Double Key Elastic Diaphragm Shaft Coupling

Product Overview

Description

High Quality SJM Double Key Elastic Diaphragm Shaft Couplig







Details of  High Quality SJM Double Key Elastic Diaphragm Shaft Coupling

1. Material:60SiaMnA(SAE9260) ,50CrVA(SAE6150)

2.Surface treatment: bluing, phosphatization, galvanization, electrophresis and mechanical and etc.

3. Good quality and long service life.



Application of   High Quality SJM Double Key Elastic Diaphragm Shaft Coupling

CNC machine, CNC lathes, CNC machine center,

CNC milling machine ,engraving machine, metallurgical machinery, mining machinery,

petroleum machinery, Chemical Machinery, Hoisting Machinery,

Transport Machinery, water pump, Fan, etc



Advantage of    High Quality SJM Double Key Elastic Diaphragm Shaft Coupling

1.Elastomer connecting in the middle

2.Can absorb vibration, compensates for radial, axial and angular deviation

3.Oil resistance and electrical insulation

4.Have the same characteristic of clockwise and anticlockwise rotation



Classifications of    High Quality SJM Double Key Elastic Diaphragm Shaft Coupling


A: Welded shaft type with length compensation / expansion joint

B: Short type with length compensation / expansion joint

C: Short type without length compensation / expansion joint

D: Long type without length compensation / expansion joint

E: Double flange with length compensation / expansion joint

F: Long type with big length compensation / big expansion joint

G: Super Short type with length compensation / expansion joint

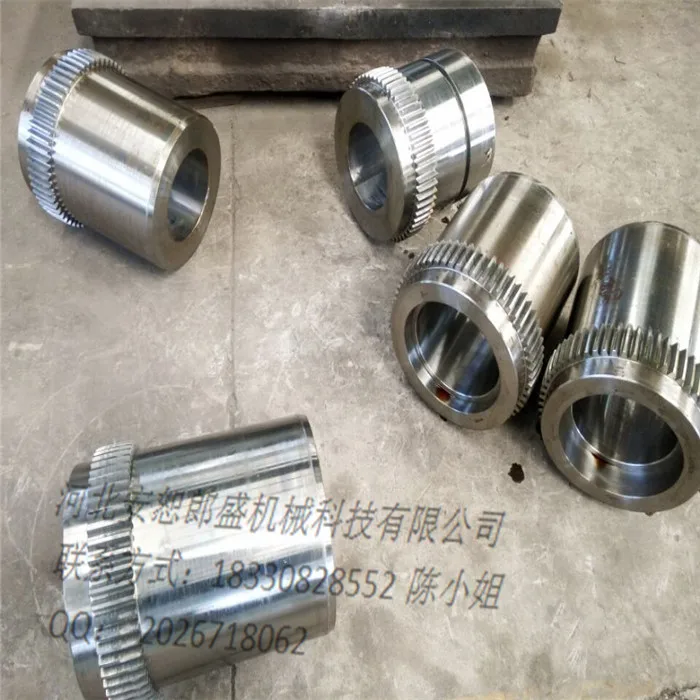

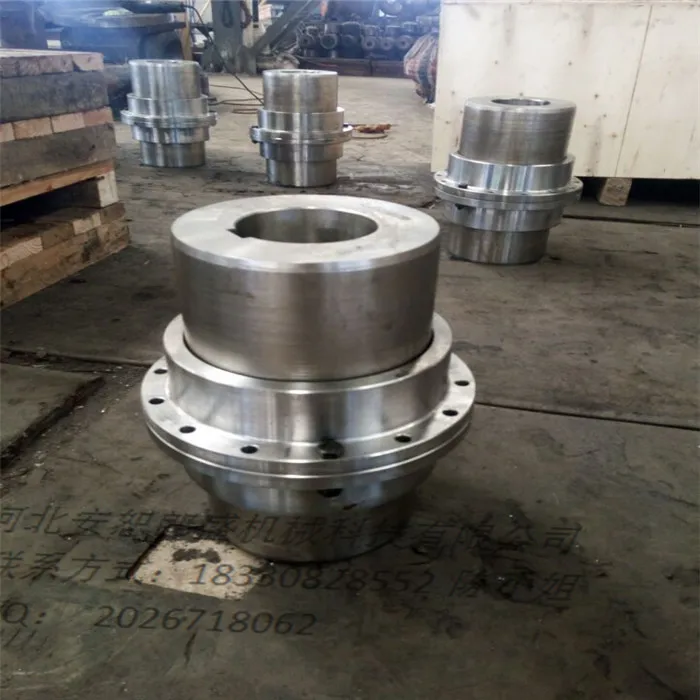

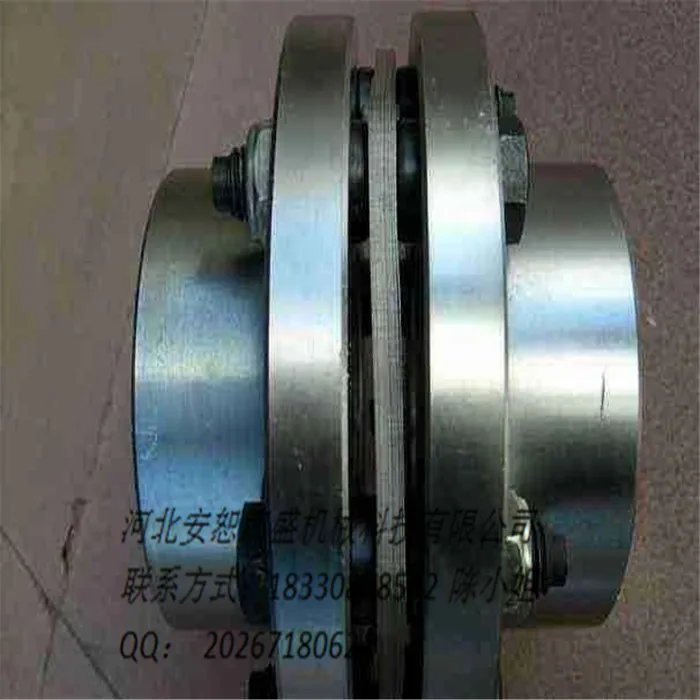

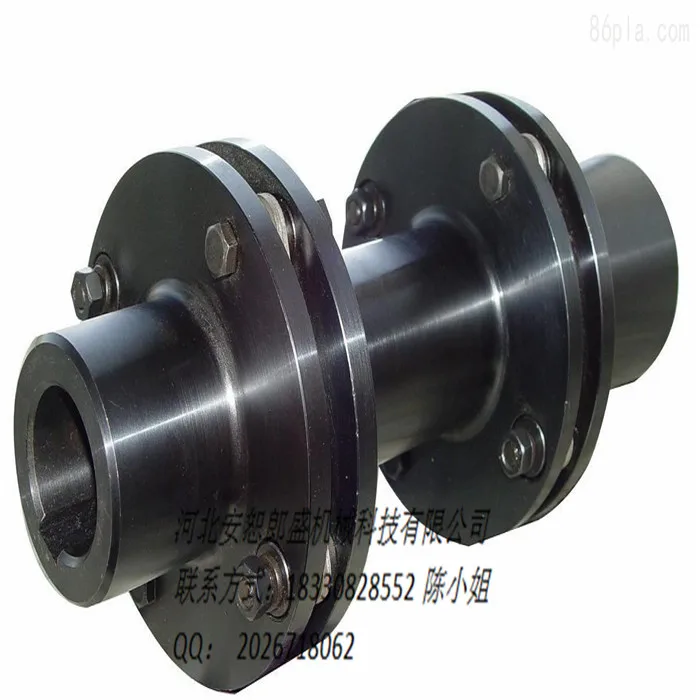

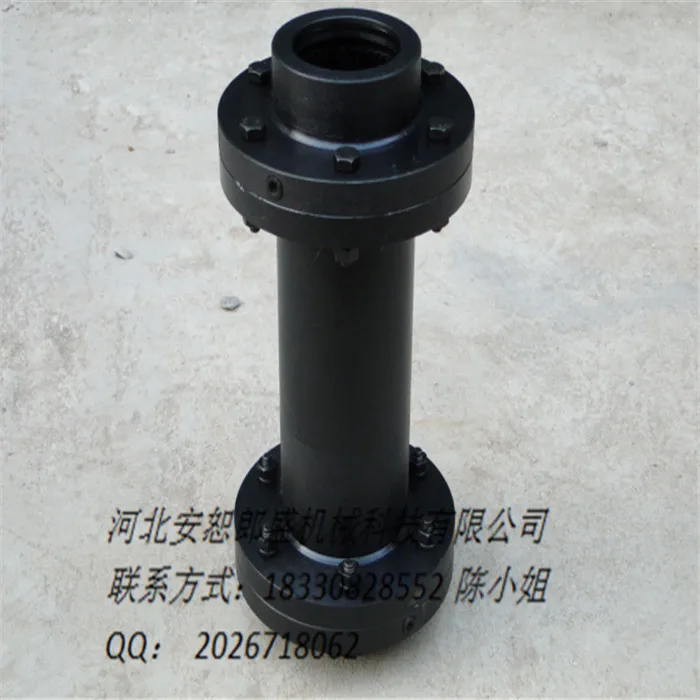

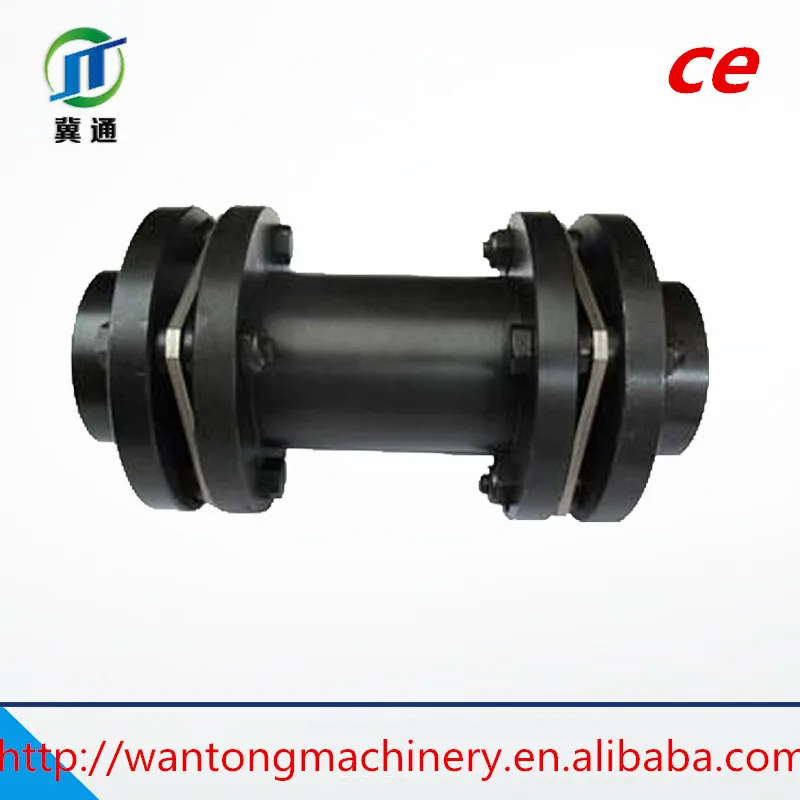

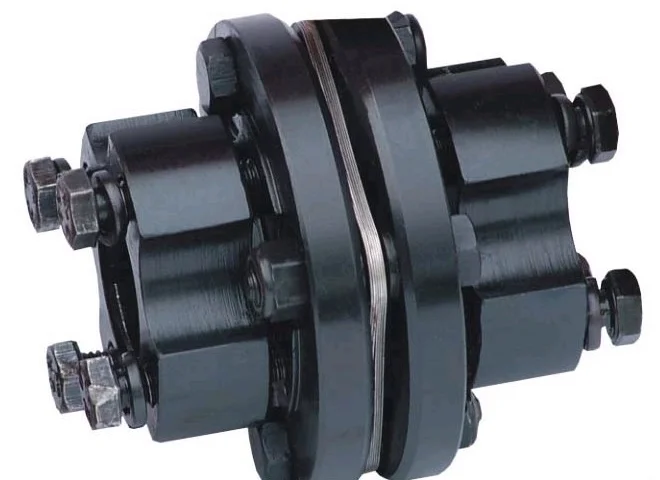

PICTURES

Packing and shipping





Package of universal coupling is

Plywood case / Carton / Customized



 workshaop

 Certification
