Product Overview

Description

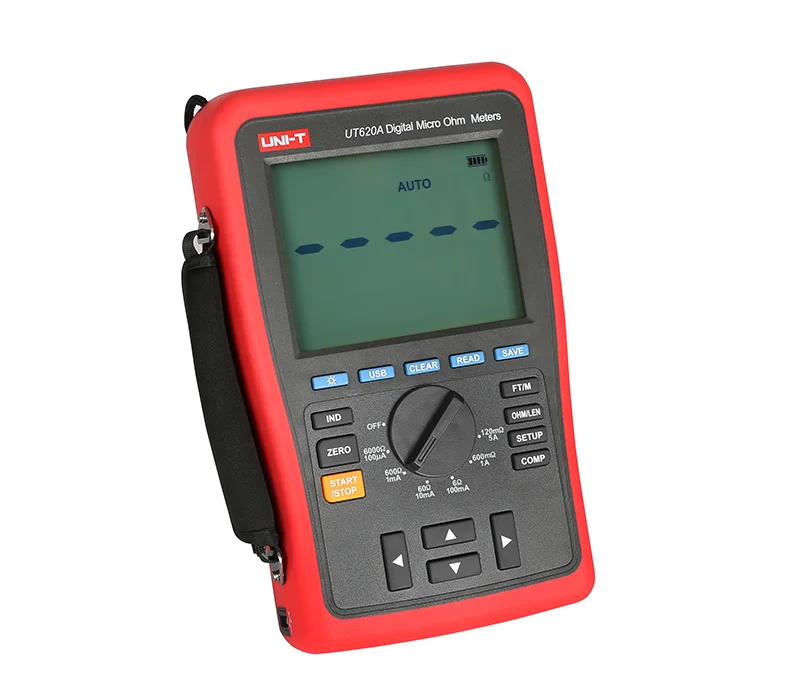

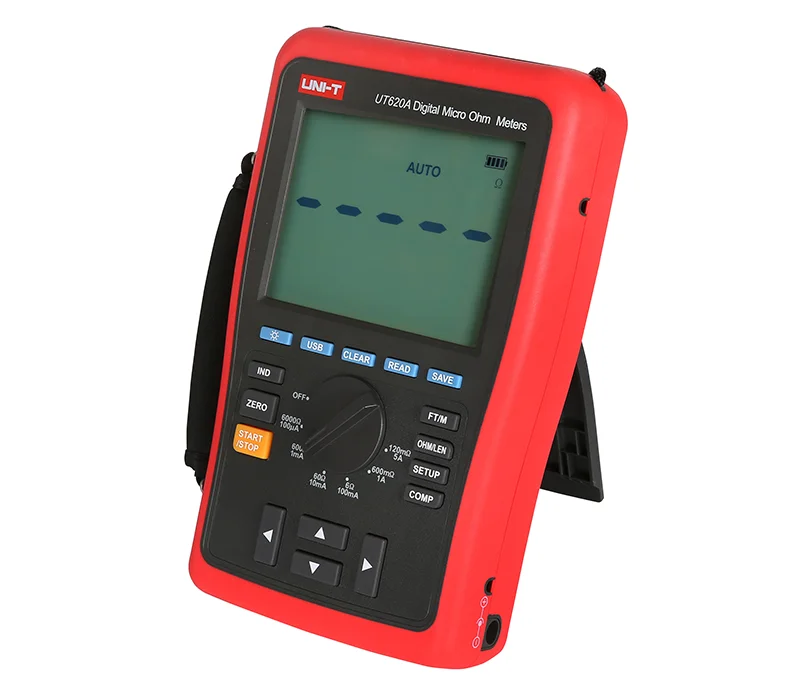

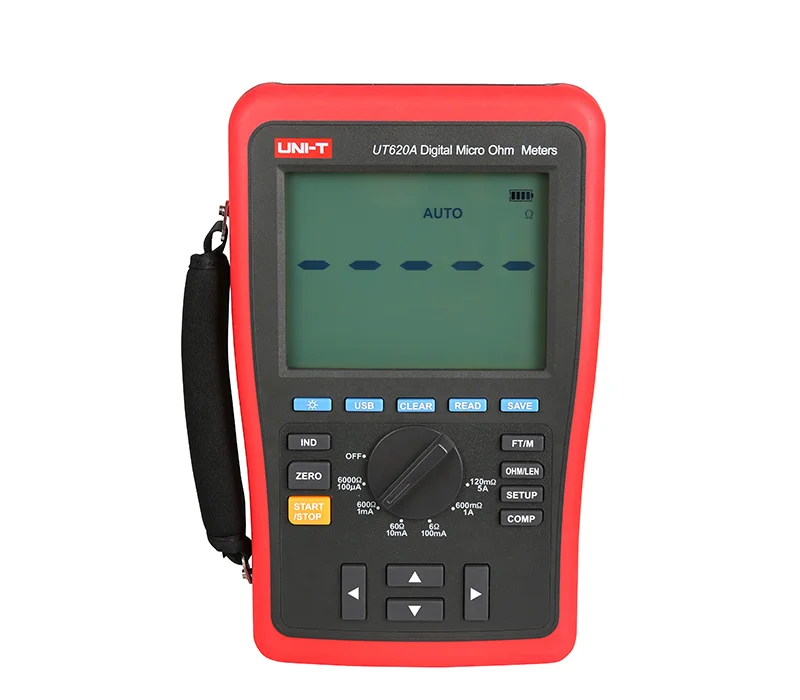

UT620A Digital Micro Ohm Meter Resistance Meter

Applications:

Testing the resistance of metal coating, electromotor, and the winding resistance of  small-sized transformer. Point of junction of earthing system; the integrity of welding contact; breaker and switch; the connection of spacecraft and the track; amphenol connector and conductor jointing; multi-cell battery; the generatrix of switchboard; contact resistance of component like relay; metallic material; conductor resistance of wires and cables; the ground resistance of the PEM LK  of vessels, vehicles and aircrafts.
Features:
1 Low resistance range: 0.5mΩ~6kΩ;
2 Tesing 10A to increase the accuracy;
3The minimum resolution 1 uΩ;
4Bacis accuracy: 0.25%, four-wire testing;
5Top and bottom testing, making it convenient to classify component, and judge automatically whether the object is standard or not;
6Unique function of designing wire length , the unit meter and inch can be changed freely;
7Chargable battery inside, long working life;
8The data can be storage, read, and deleted. Data storage is 1000;
9USB interface.

Specification
Model		UT620A
Minimum Resolution	10uΩ	√
Resistance(Ω)	120.00mΩ/5A	±(0.25%+25dgts)
	600.00mΩ/1A	±(0.25%+25dgts)
	6.0000 Ω/100mA	±(0.25%+25dgts)
	60.000Ω/10mA	±(0.25%+25dgts)
	600.00Ω/1mA	±(0.25%+25dgts)
	6.0000KΩ/100uA	±(0.75%+30dgts)
Features
LCD Counts		60000
Four-wire  measurement		√
Wire length measurement		√
High/Low limit Alarm		√
Data Storage		1000
USB Data Transfer		√
Manual Range		√
Backlight		√
Data Hold		√
Relative Value		√
Low Battery Display		√
GENERAL CHARACTERISTICS
Power	Lithium Battery 7.4V4000mAh, Rechargerable
LCD Size	116mm × 87.5mm
Product Color	Red and Grey
Product Net Weight	1.5 Kg
Product Size	268mm × 168mm × 60mm

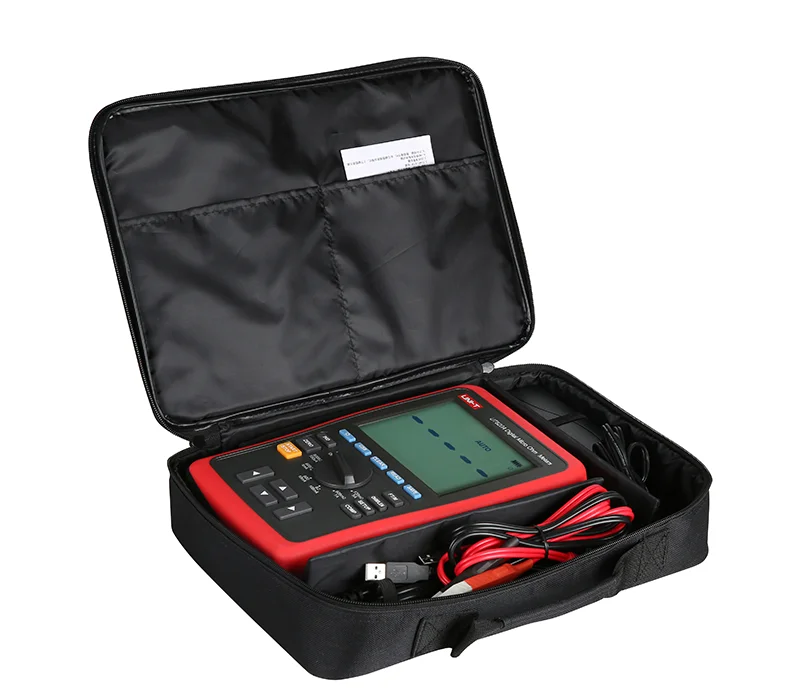

Standard Accessories	Kelvin Clips(Red&Black)×1, Power Adaptor×1pcs, USB Cable,Software CD
Standard Individual Packing	Gift Box, Carrying Bag, English Manual
Standard Quantity Per Carton	5PCs
Standard Carton Measurement	390mm × 370mm × 285mm
Standard Carton Cross Weight	11.5 Kg
Optional Accessories
Four-Wire Test Probes(Red&Black)×1

Kelvin Clips(Red&Black)×1,
Power Adaptor×1pcs,
USB Cable,Software CD,
Four-Wire Test Probes(Red&Black)×1*
