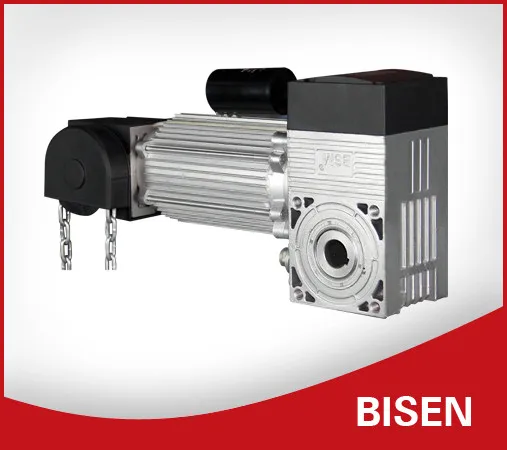

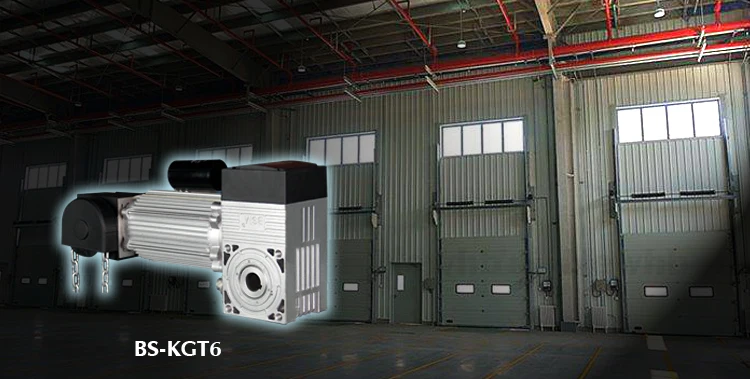

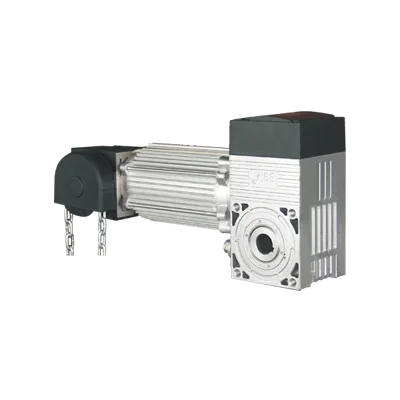

CE and Rohs Approved BS KGT6 Automatic Overhead Industrial Sectional Door Opener/Operator
- Category: >>>
- Supplier: Bisen Smart Access Co. Ltd.
Share on (60386695232):
Product Overview
Description
Technical Specifications
Model | KGT6.35-Z | KGT6.50-Z | KGT6.50S-Z | ||
Power supply | 220V | 220V | 380V | ||
Motor power | 370W | 450W | 450W | ||
Capacitor | 18uF | 25uF | / | ||
Thermal protection | 120℃ | ||||
Max output torque | 35 N.m | 50 N.m | |||
Output rotational speed | 24 r/min | ||||
Max lift height | ≤5m | ||||
Output aperture | Φ25.4mm or Φ31.8mm | ||||
Max square metre | 12m2 | 16m2 | 18m2 | ||
Features
1. Emergency string when motor don't work or for emergency.
2. Convenient manual operation in case of power failure.
3. 380V input power three phrase motor is available
4. Many optional output terminals for external receiver, time protection, alarm, airwave switch, or photocell.
2. Convenient manual operation in case of power failure.
3. 380V input power three phrase motor is available
4. Many optional output terminals for external receiver, time protection, alarm, airwave switch, or photocell.

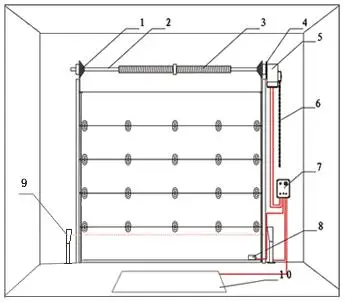

- 1.Steel wire tray
- 2.Spring axostyle
- 3. Spring
- 4. Mounting plate
- 5. Motor
- 6. Chain
- 7. Control box
- 8. Air Wave Switch(Optional)
- 9. Photocell(Optional)
- 10. loop Detector(Op
Control BOX
BS-C13
Power supply:AC220V 50Hz
Max. consumpation:10W
Accessories power supply :AC24V 0.4A max
Operating temperature range: -20℃~+50℃
Frequency:433MHz
BS-C06
Power supply:AC380V 50Hz
Max. consumpation:10W
Accessories power supply :AC24V 0.4A max
Operating temperature range: -20℃~+50℃
Frequency:433MHz
BS-C31
Power supply:AC220V 50Hz
Max. consumpation:10W
Accessories power supply :AC24V 0.4A max
Operating temperature range: -20℃~+50℃
Frequency:433MHz
Accessories
Trouble shooting
Number | Trouble | Possible cause | Troubles shooting |
1 | Motor can’t turn on | 1. No power supply 2. Fuse is broken 3. Capacity is broken down 4. Overload protect 5. Overheating protect 6. Micro switch is inoperative | 1. Check power supply 2. Change fuse 3. Change capacitor 4. Check if any barrier on the rack 5. Restart after 20 minutes 6. Pull the hand chain |
2 | Open( close) but can’t close ( open) | Whether L1\\com\\L2 wires are connected wrong | Connect correctly according to wiring diagram |
3 | Cannot limit position | Limit switch is damaged | Change the limit switch |
4 | Release device cannot work | 1. The gears are jammed 2. The spring in gear reducer is damaged | 1. Turn the gear double direction 2. Change a new spring |
5 | Push “open” but the door is down | Whether L1\\L2 wires are connect wrong | Connect according to wiring diagram |
6 | Motor can turn but operator not work | 1.Spring in gear reducer 2. Whether gears are released | 1. Change or adjust stress of spring 2. Check the position of handle |
Company Profile
BISEN SMART ACCESS CO,.LTD was established in 1999, located in NanChang, China.
We are the biggest professional manufacturer for parking management system and equipments, gate and door automatic operators in China. more than 70 experienced engineers are engaging in R&D team , and more than 500 employees are working in manufacturer and service. We can provide quality ODM / OEM service for customers.
Our main products: Parking system auto-barrier gate, Sliding gate opener, Swing gate opener, Industrial sectional door opener, anti-terrorism road blocker, Hydraulic bollard, Pedestrian gate, Entrance control system etc.
Exhibition
Certifications
Manufacturing Technique
Testing Equipment
Our Services
1.ODM,OEM Customised for special requirements.2. MOQ: 1 piece
3. Warranty:1 year
4. 24- hour responce.
5. Training
3. Warranty:1 year
4. 24- hour responce.
5. Training
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer.
Q: How long is your delivery time?
A: Depends upon the quantity. Normally about 5 days for 1 full 20 container, 7 days for 1 full 40 container.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we provide samples, it depends on the price, free or not need to negotiate.
Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 50% T/T in advance, balance before leaving factory
If you have any other question, pls feel free to contact us.
