Integrated lemonade/orange fruit juice bottling plant/filling machine/production line
Feature
1.The juice filling machine is used to fill PET heat-resistant bottle for fruit tea, juice and other high-temperature juice.
2.The core parts of machine employs PLC+, frequency convertor+ and human-machine interface control technology
3.The machine can be connected with UHT, CIP control center and bottle-invert sterilizer
4.The machine structure is reasonable and firm, the running state is stable
5.The suspension bottle neck catcher allows the machine change the bottle type easily
6.Safe protective devices ensure safety of operator and machine
7.Magnetic torsion type screw capper ensures the tightness of the cap and avoids bottle damage
8.The module of screw capper ensures the tightness of the cap and avoids bottle damage
9.Slight negative-pressure gravity circumfluence filling system increases juice filling accuracy and reduces contamination
10.Unique control mechanism keeps circumfluence volume below 5%
11.Airtight valve made of non-plastic material prevents worn-out particles from dropping into bottles adversely affecting product quality
12.High efficient clean air filter circulation system ensures high sanitary requirements
13.Low overall machines noise that is comparable to any internationally known equipments in its class
14.Self-lubricationg system imported from America provides continuous smooth operation
Technique parameter
| Model | Production capacity | Power(kw) | Weight(kg) | Dimension(mm) |
| RCGF16-12-6 | 3000 | 5.88 | 2500 | 2100*1500*2200 |
| RCGF18-18-6 | 6000 | 6.68 | 3000 | 2450*1800*2200 |
| RCGF24-24-8 | 10000 | 7.68 | 4000 | 2750*2180*2200 |
| RCGF32-32-10 | 14000 | 9.18 | 5000 | 3600*2800*3150 |
| RCGF40-40-12 | 20000 | 10.58 | 6000 | 4000*3100*3550 |

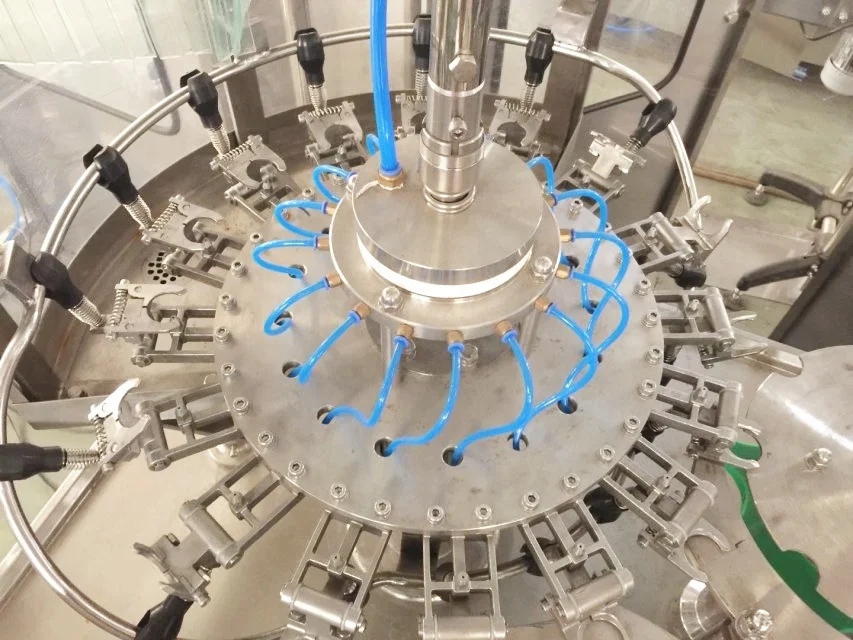

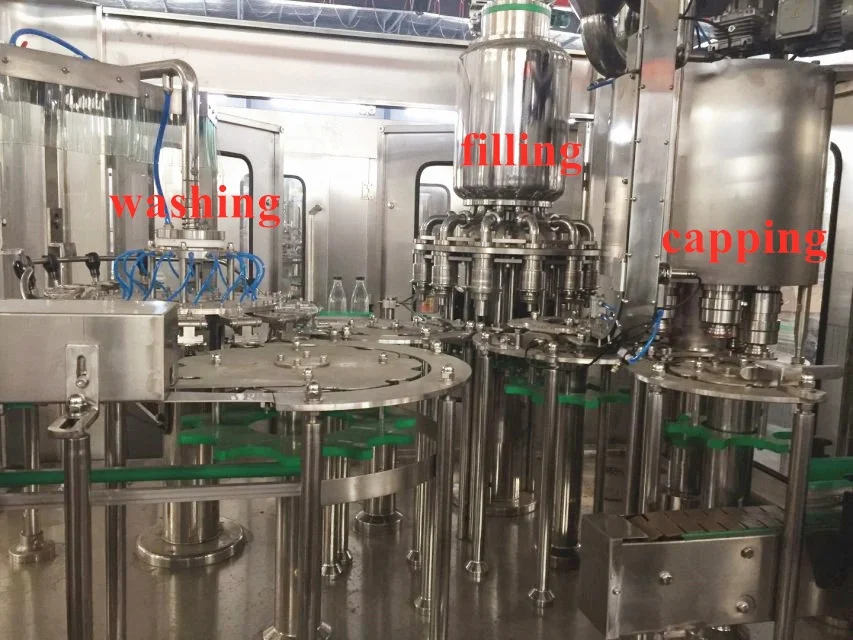

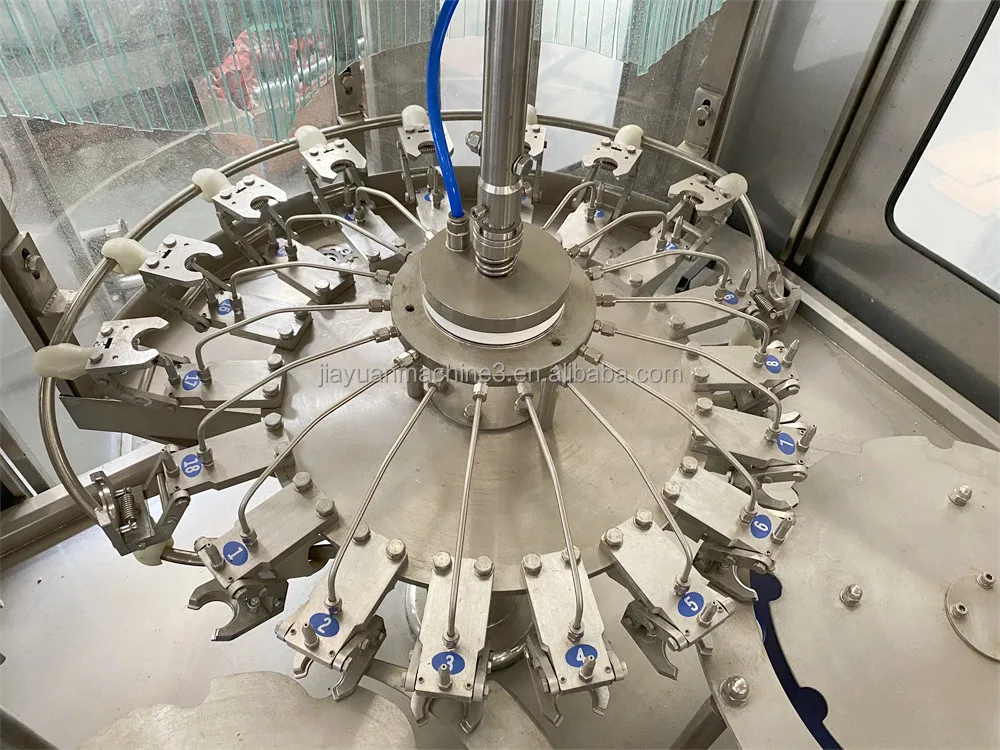

Rinsing part

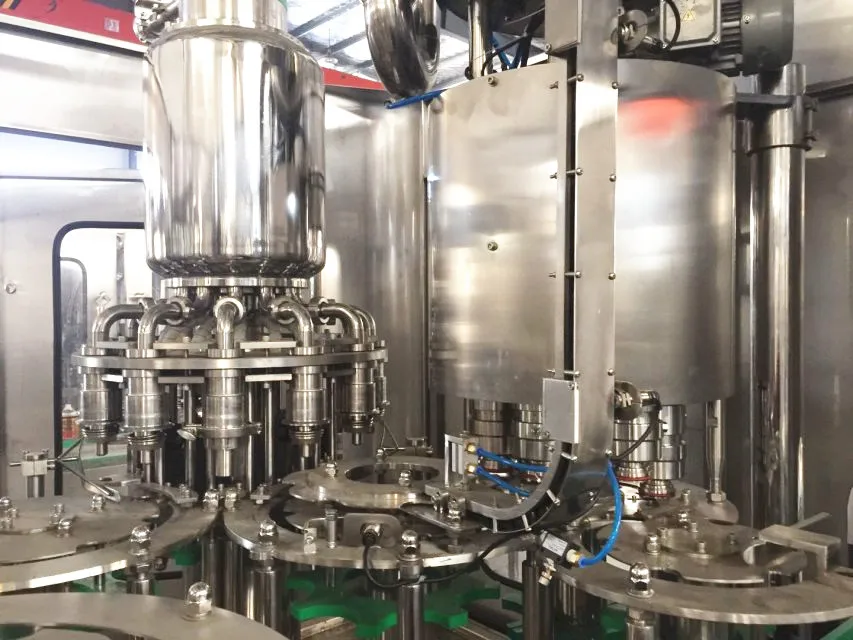

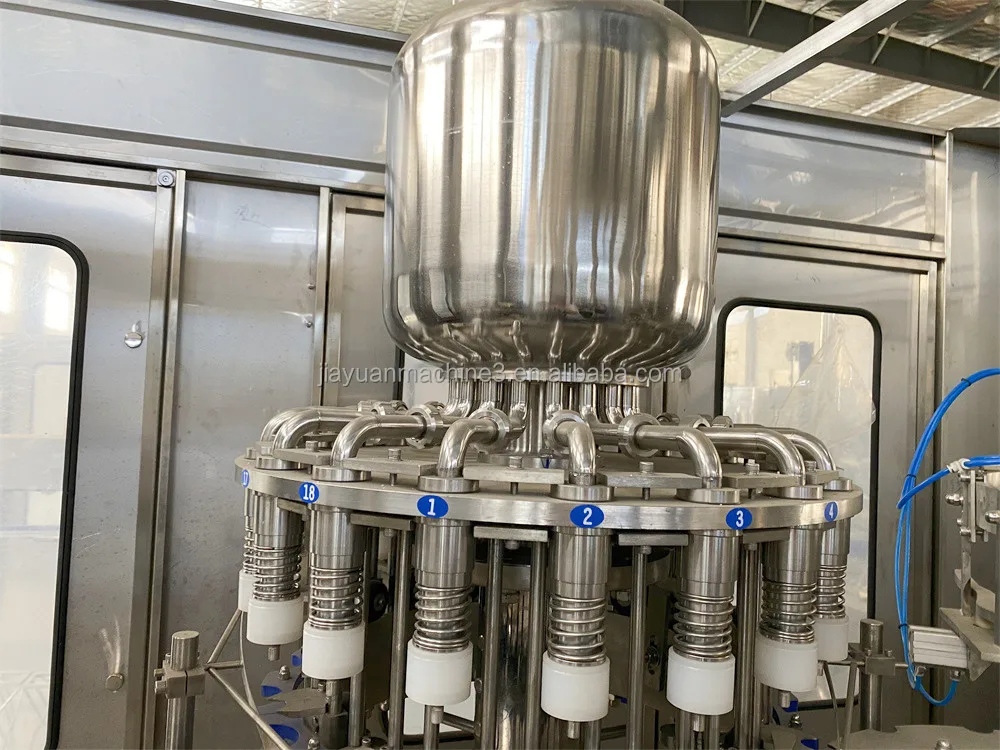

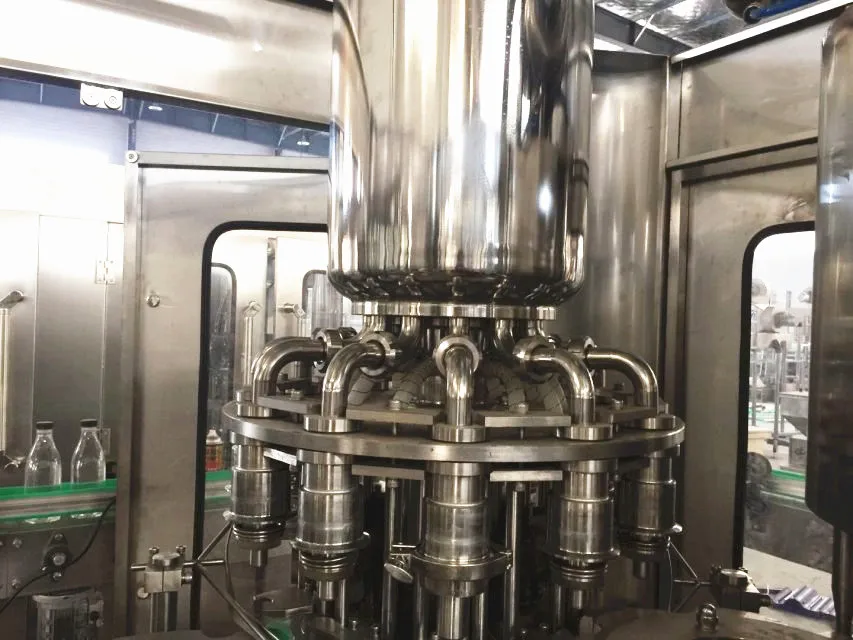

Filling part

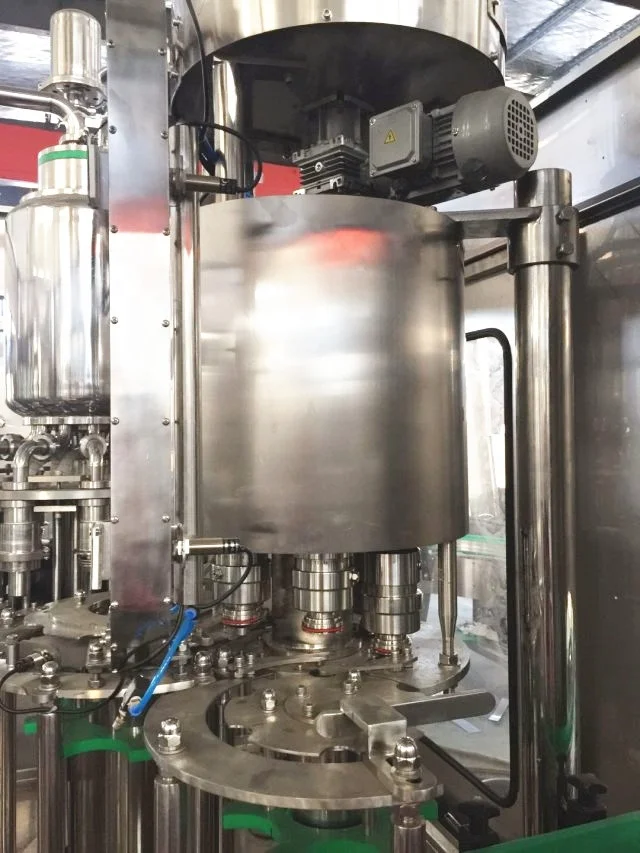

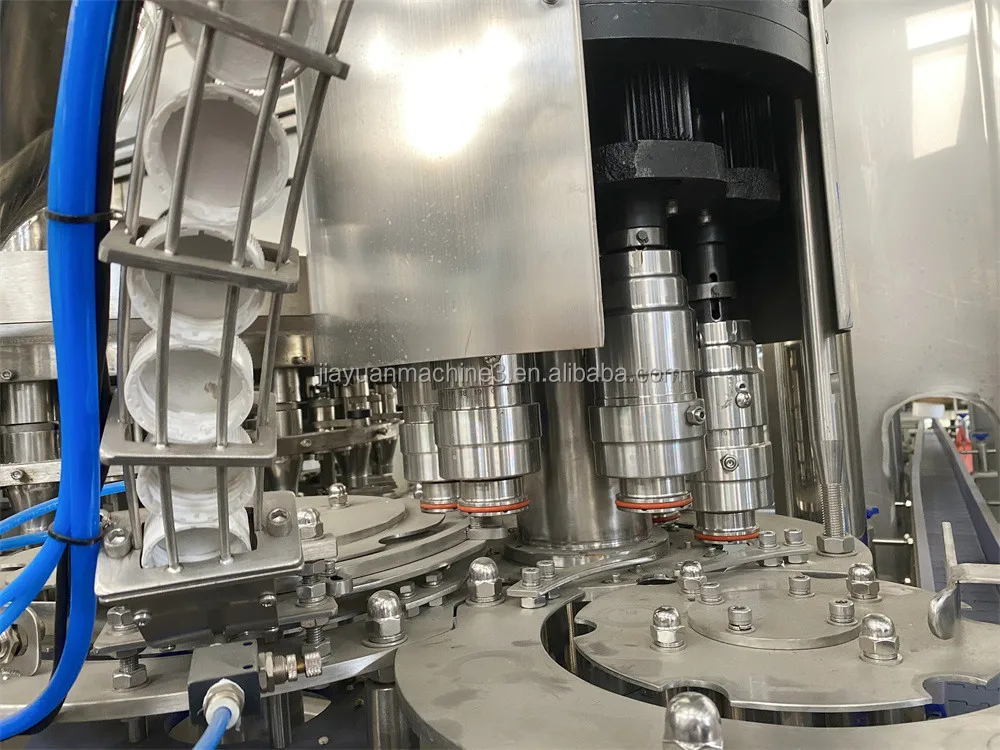

Capping part

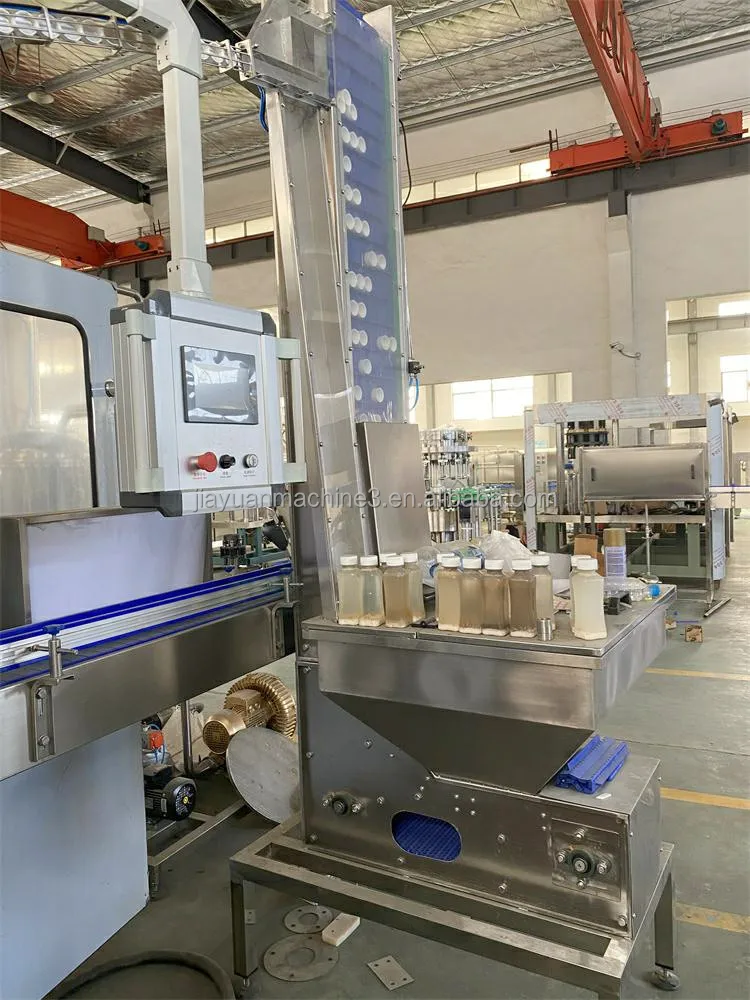

Cap loader

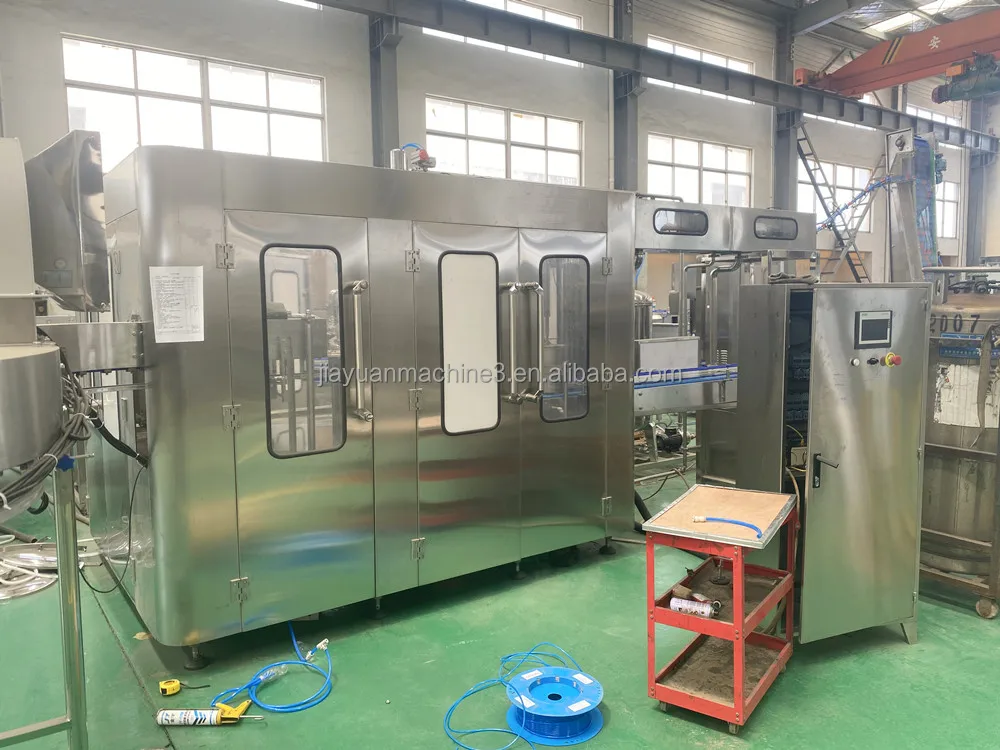

Outside look

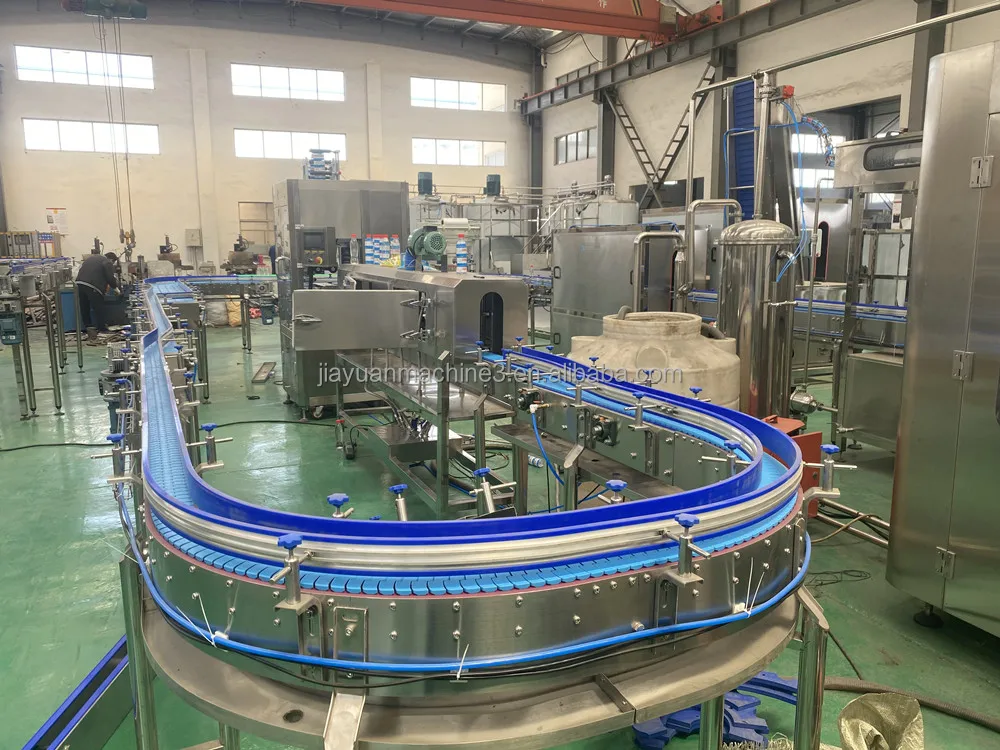

Conveyor

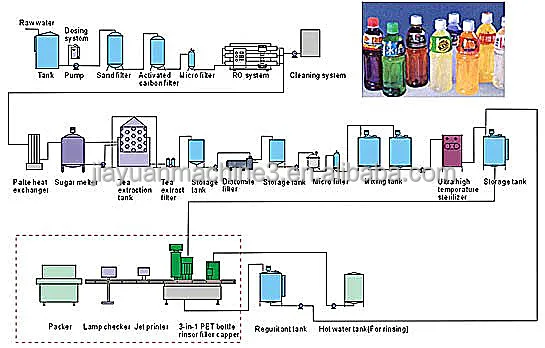

Flowchart
Export Market
Our Services
1.One year warranty for the whole system.
2.Free equipment installation and debugging.
3.After one year, we can help you to maintain the machine and the accessories are provided only one the cost price.
4.We can provide internship service and help you train the operator and mechanic.
5.Free beverage production technology and process configuration.
6.We can help you to design the product line, workshop and provide turn-key project.
About us
ZHANGJIAGANG JIAYUAN MACHINERY CO.,LTD
JIAYUAN supply and manufacture the followings machines for you
1) Water treatment equipment---RO purified equipment, UF purified equipment, Sand filter, Carbon filter, Water softner,raw water pump,storage tank
2) Filling Machine----3 in 1 Washing filling capping---for your water,cabonated drink, juice,wine,vinegar, milk,tea,oil and so on.
----150 to 2000ml bottle, 3.5-10L,11- 20L bottle (3-6gallon bottle)
----PET bottle, Glass bottle, PP bottle and Can
----Screw cap, Aluminum cap, Crown cap and three (four) twist caps etc.
3) Labeling Machine---Stick label, Shrink sleeve label, Hot melt Opp labels. Wet gule label
4) Printer ---Inkjet printer , Laser printer
5) Packing Machine----Shrink film, Cartons packing machine
6) Bottle Blowing Machine--- for making plastic bottle
7) Injection Molding Machine---for your cap and proform.
8) Subsidiary products for drink production---Bottle Washer, Bottle Capper, Conveyor, Bottle Dryer, Bottle Warmer, Bottle Loading system, Bottle unscrambler, CIP system, Bottle Cooler, Bottle Sterilizer, Blending tank, Storage Tank, Sugar Melting Pot, Syrup Filter Conveyor and so on.
JIAYUAN will supply you bottle design, label design, workshop design free and make turnkey project equipments for you.
