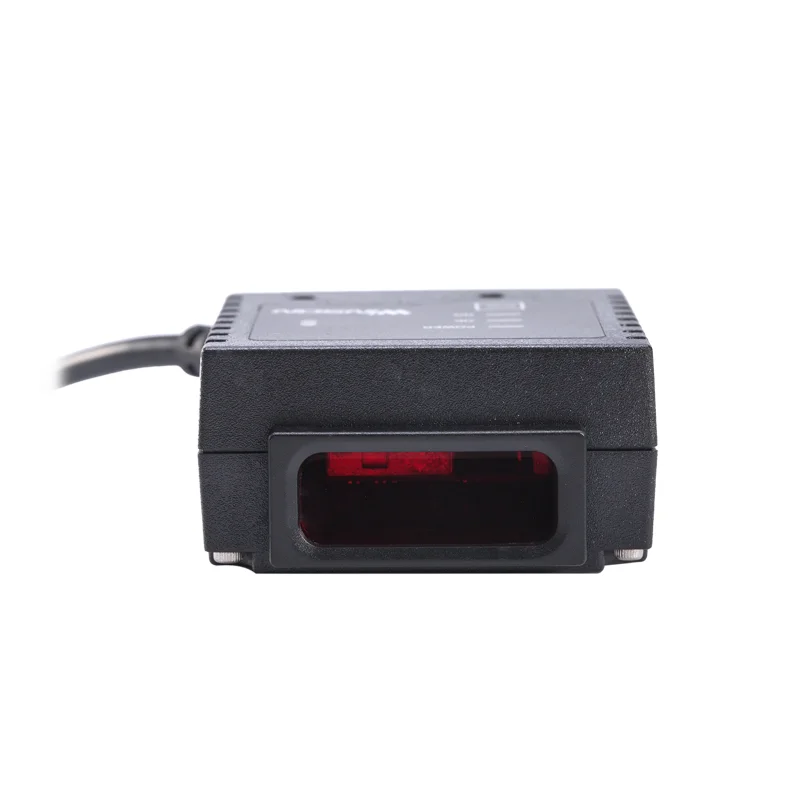

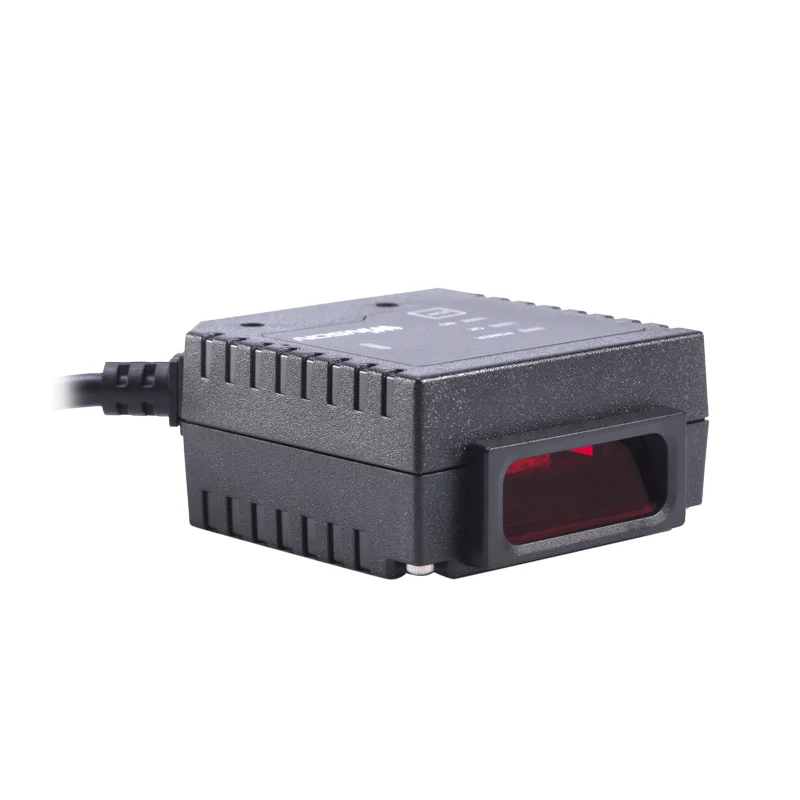

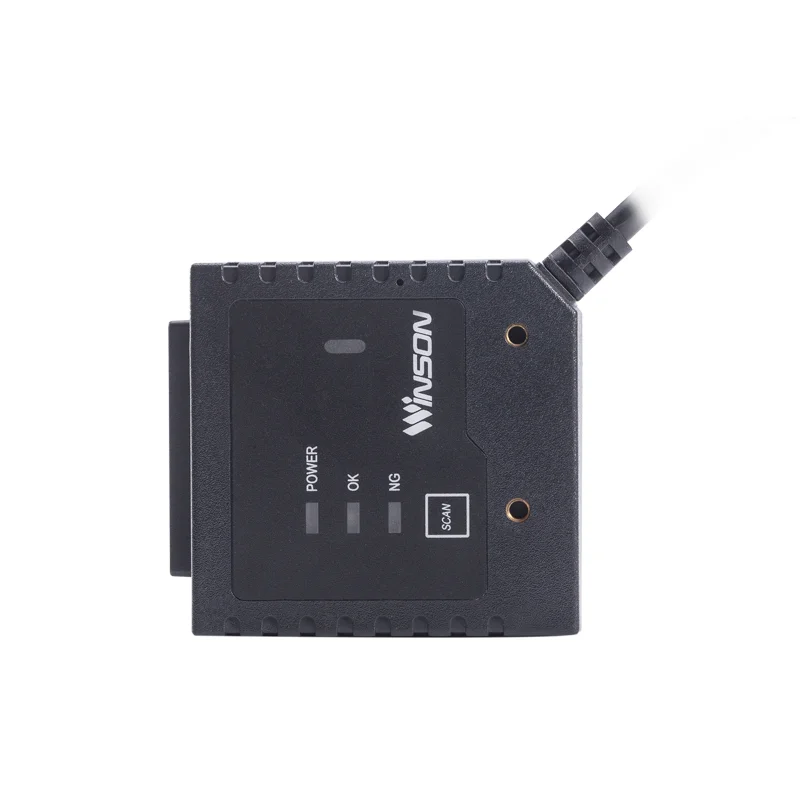

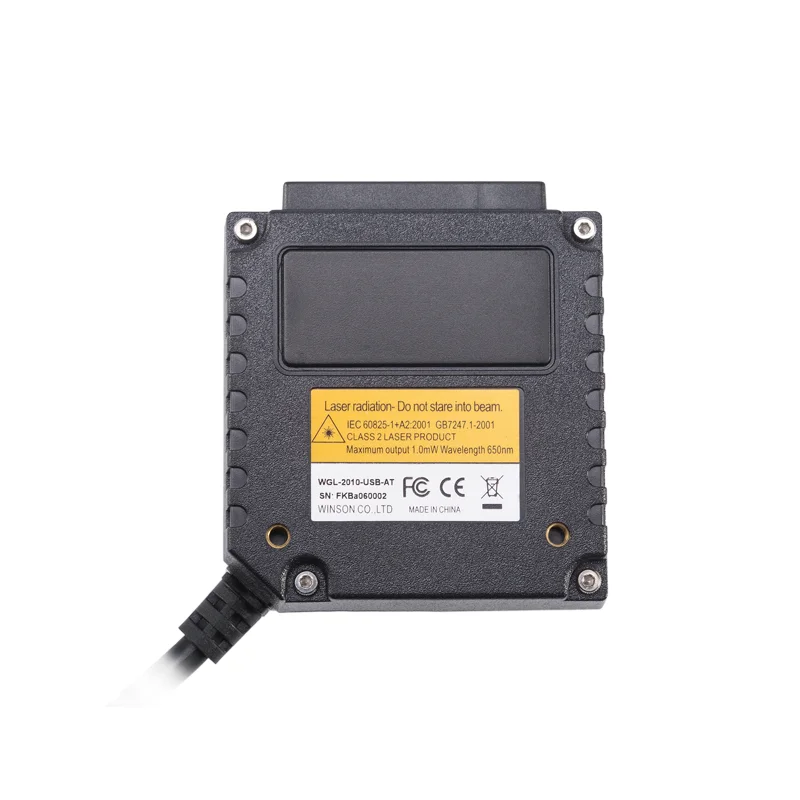

tablet fast Laser fixed mounted barcode scanner for production line
- Category: >>>
- Supplier: Guangzhou Yingbin Mould & Die Co. Ltd.
Share on (60387061328):
Product Overview
Description
supermaket desktop 32 bit processor 1d qr code scanner usb
Product Description

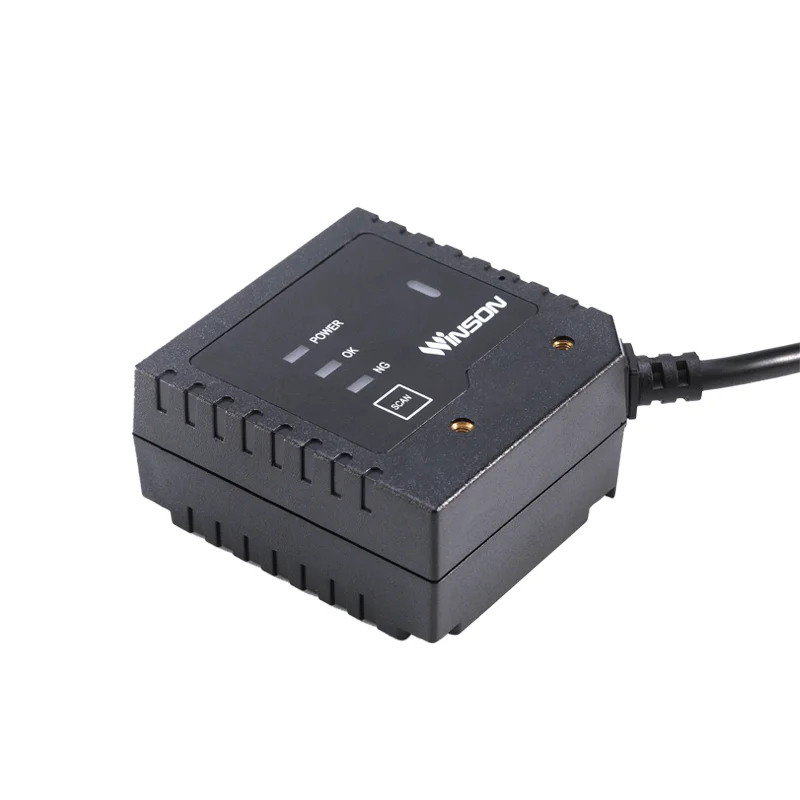

| Operating indicators | Visual | 2 LEDs(Blue,red) |
| Non-visual | Buzzer | |
| Communications | RS232 USB(Ver. 1.1 HID Keyboard) RS485 industrial port | |
| Power | Voltage requirement | 5V±10% |
| Current consumption | 85mA(typical use),max:150mA | |
| Barcode scanner Optics | Light source | 650nm visible laser diode |
| Scan method | Bi-directional scanning | |
| Scan rate | SR:100scans/sec LR:35±5scans/sec | |
| Trigger mode | Manual, multiple read, auto-trigger, serial software trigger | |
| Reading pitch angle | SR:-50 to 0°, 0 to +50°(pitch); -65 to 0°, 0 to +65°(skew); -35 to 0°, 0 to +35°(tilt) | |
| Curvature | R>15 mm (EAN8),R>20 mm (EAN13) | |
| Min. resolution | PCS 0.9: 0.101 mm / 4 mil, Min. PCS value: 0.35 | |
| Physical | Dimensions | 60 x 57 x 30 mm/2.36 x 2.24 x 1.18 in( d x w x h ) |
| Weight body | 67g / 2.36oz (excl ,cable) | |
| Case | PC black | |
| Durability | Temperature | -20°to 65°C / -4°to 149°F(operation) -30°to 70°C / -22°to 158°F(storage) |
| Humidity | 20-85% (operation) 20-90% (storage) | |
| Ambient light immunity | Fluorescent 3000 lx max,Direct sun 50,000 lx max, Incandescent 3000 lx max | |
| Drop test | 1.2m/4 ft drop onto concrete surface | |
| Protection rate | IP54 | |

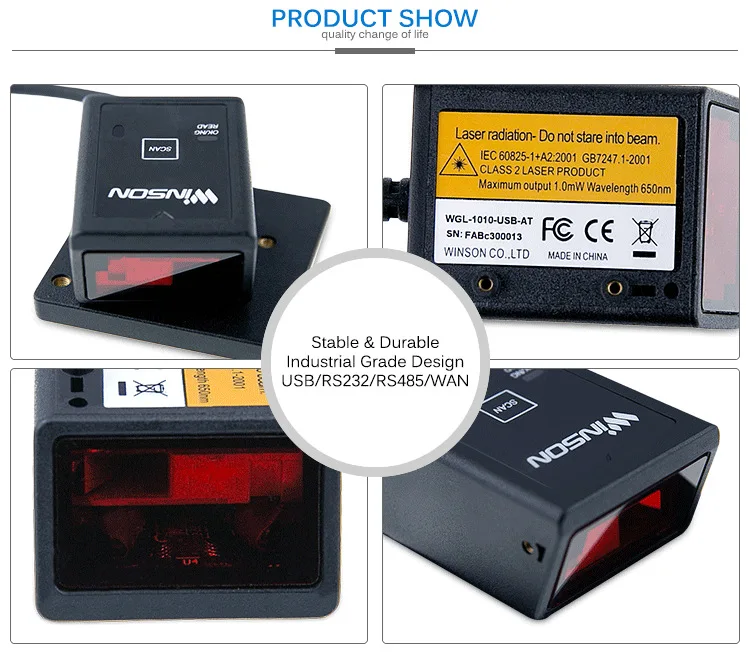

| Regulatory & Safety | Product compliance | CE, FCC, IEC 60825-1 Class 2, GB7247.1-2001 |
| Enclosed items | Cable(USB,RS232,RS485),User Guide,DC power supply(RS232,RS485) | |
| Supported Symbologies | Barcode(1D) EAN128(GS1-128),CODE11,CHINESE_POST | |
| Application and Solution | Industrial manufacture and warehouse management greatly improve work efficiency and simplified process for retail, medical and healthcare, government, manufacture industry, etc | |
Depth of field | PCS 0.9 Code 39 70 - 650 mm / 2.76 - 25.59 in (1.0 mm / 39 mil) 50 - 420 mm / 1.97 - 16.54 in (0.5 mm / 20 mil) 50 - 260 mm / 1.97 - 10.24 in (0.25 mm / 10 mil) 50 - 150 mm / 1.97 - 5.91 in (0.15 mm / 6 mil) 60 - 120 mm / 2.36 - 4.72 in (0.127 mm / 5 mil) 50 - 110 mm / 1.97 - 4.33 in (0.101 mm / 4 mil) | |
SR | | |
| ||
Features
Features
1. Bi-direction scan design ;
2. Diversity of interface,Support TTL, RS232, USB ;
3. 32 bits high performance CPU ;
4. Achieving one-to-many communications (one PC/PLC host to many barcode scanners) ;
5. Complement checking code for barcode data and command ;
6. Creative user defined barcode technology ;
7. More flexible for different application and solution ;
8. User defined barcode binding with unique ID barcode scanner ;
Company Information
Guangzhou Winson Information Technology Co., Ltd is a prestigious high-tech company specializing in designing,developing and manufacturing barcode scan instruments including micro laser barcode scan engine,OEM scan module,embedded barcode scanner, fixed barcode scanner,high-speed industry laser barcode scanner, handheld barcode scanners,cordless barcode scanners,etc.
