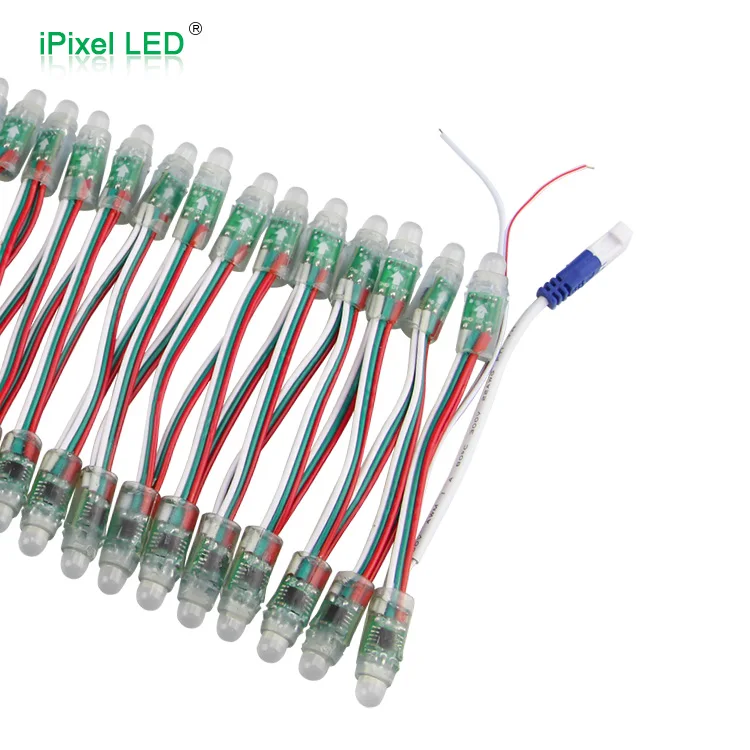

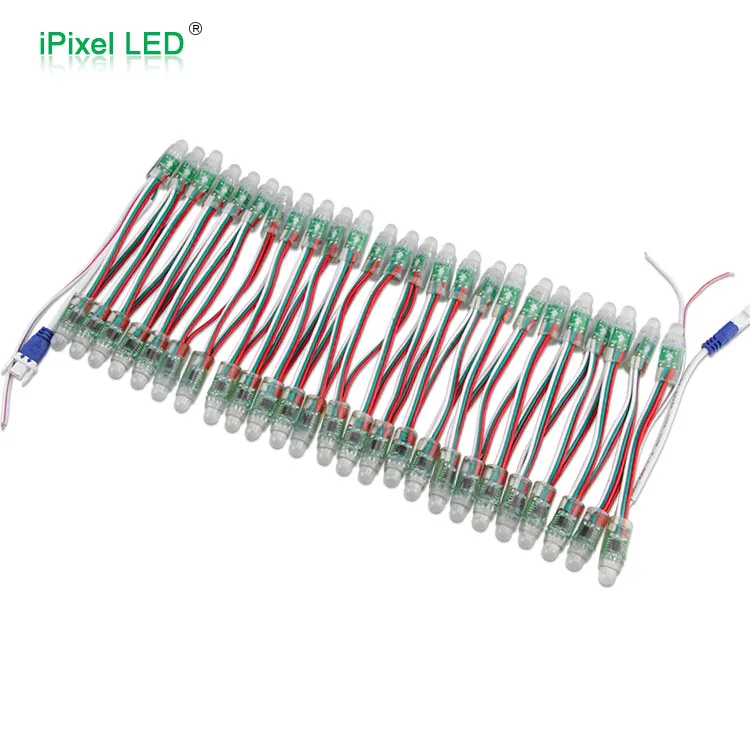

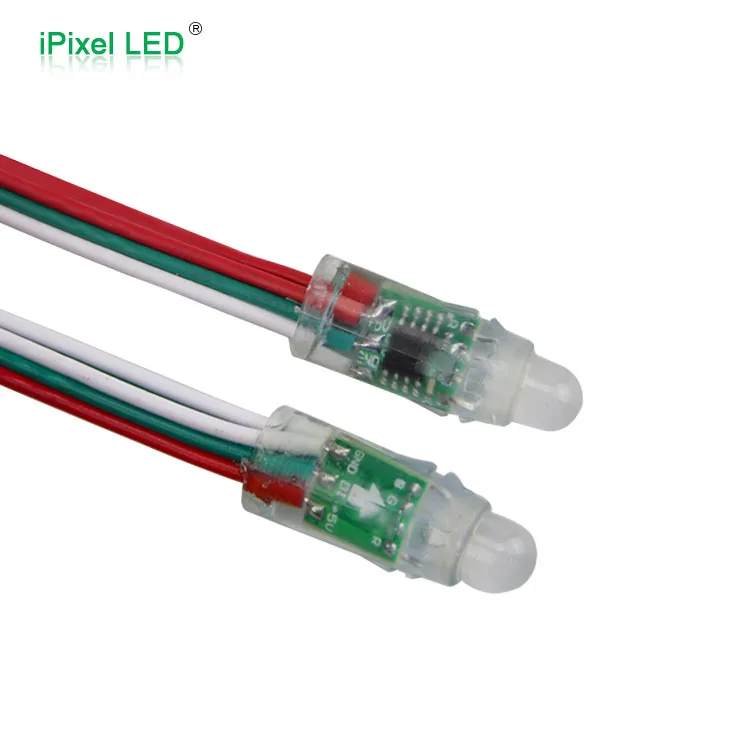

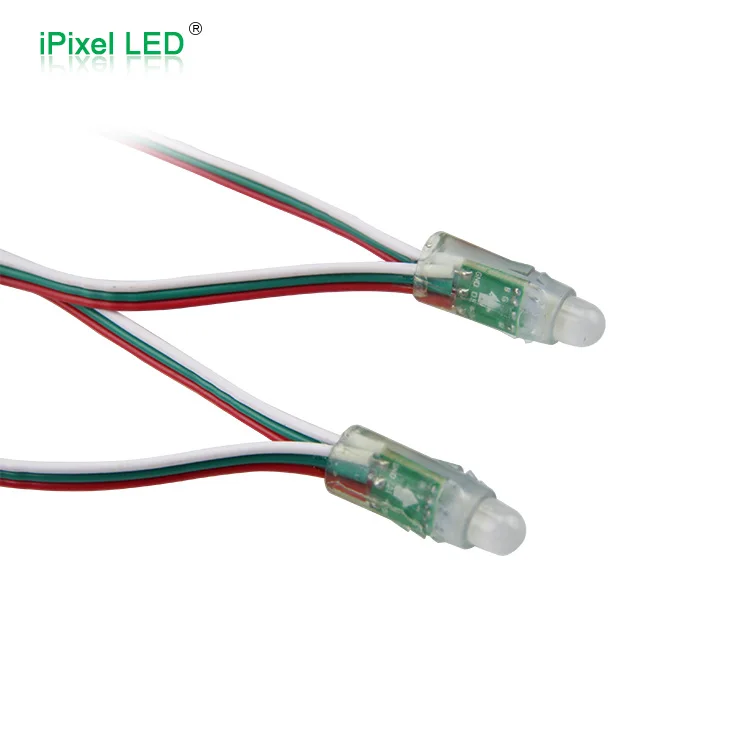

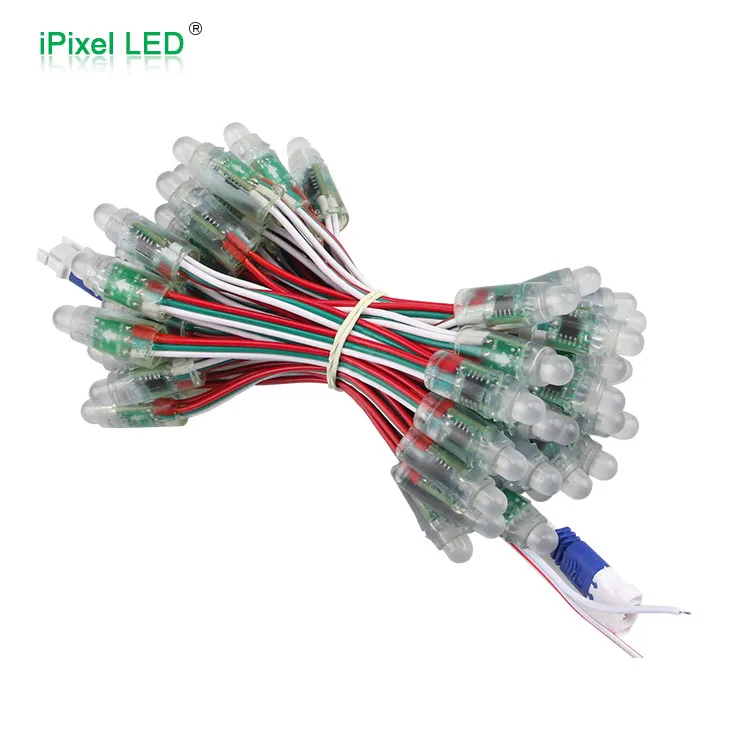

iPixe LED 12mm addressable multicolor led dmx christmas lights

1. Individually control: 1PCS LED pixel & 1IC

2. IC chip: can be ws2801, ws2811, ucs1903, sm16716, lpd6803 IC .

3. Waterproof: Yes IP66, with full silicon glue waterproof protection.

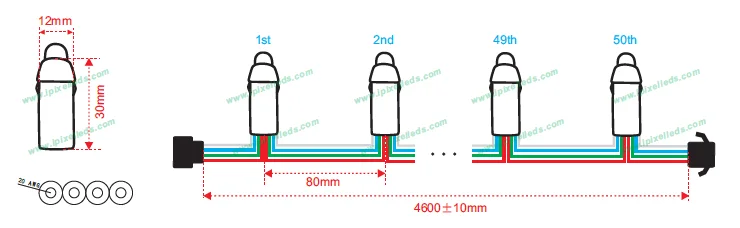

4. Installation: Easy to install, you'd better drill the hole with 12mm.

5. With features of high brightness, low power dissipation, long lifespan, low Voltage, low decline, colorful.

6. Power supply: You must use a 5V DC power supply to power this pixel, do not use higher than 6V

     or you can destroy the entire pixel.

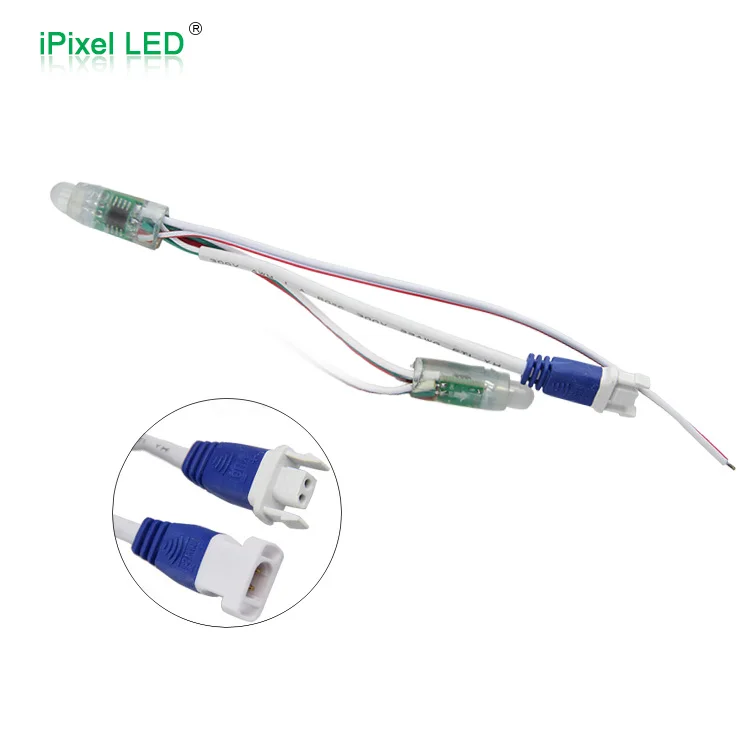

7. Connetors: 3PIN or 4PIN JST female and male connectors.

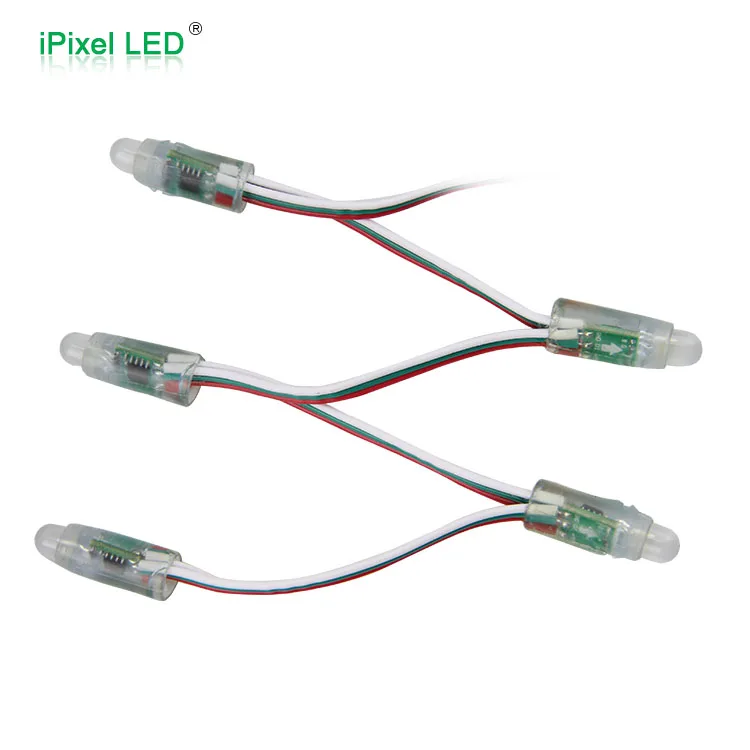

    each led pixel is seperate, you can connect them one by one via male and female connectors easliy.

    3PIN: DAT, DC5V+, GND-

    4PIN: DAT, CLK, DC5V+, GND

8. Factory sales directly, good quality and price, offer 2 years warranty and quikly after-sale service.

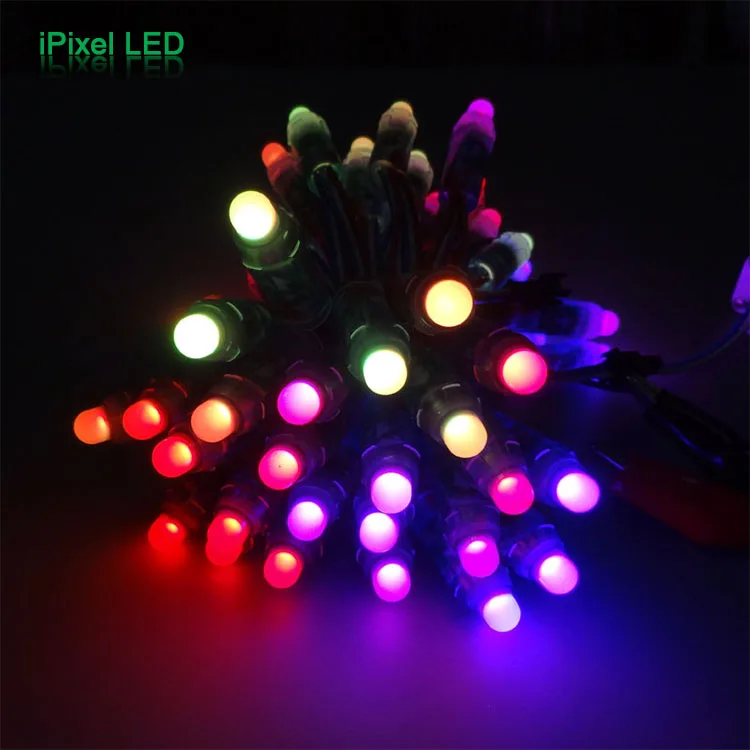

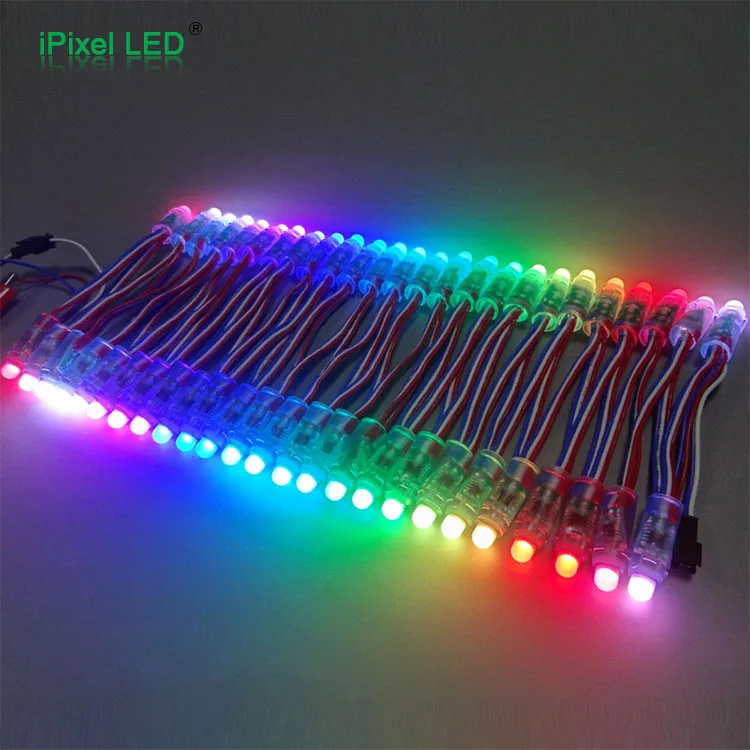

9. Color and effect: addressable lights you can set to any color, or animate, like running water,chasing

     and scanning etc. depending on the different installation methods may compose different dynamic

     effect of different color's character and design

10. Brand: iPixel LED

Newest Design 2 Wires Data Transmission 12mm Pixel Light

Convenient Connect Terminal 12mm LED Pixel

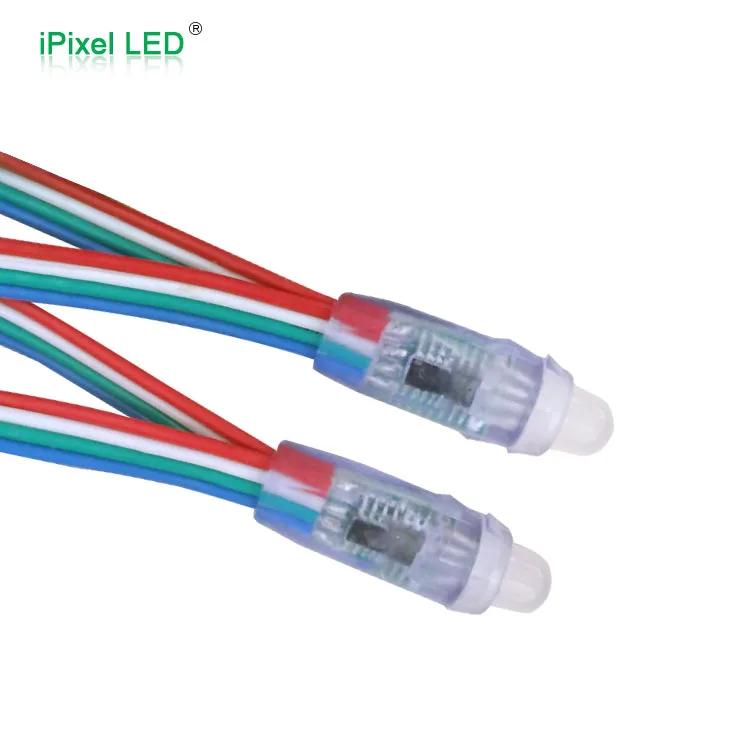

12mm round pixel led-WS2801/SM16716

12mm round pixel led-WS2811/UCS1903

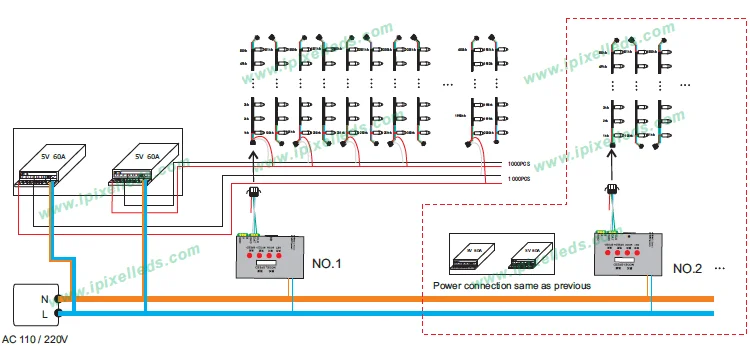

SPI signal: LED Strip+LED power supply +LED controller

DMX control: LED Strip+LED pwer supply+DMX Controller+DMX decoder

LED controller: T- series SD card controller, RF remote controller, DMX controller, Arduino...

(offline / PC online)

LED power suppply: Meanwell power supply, T- series, A- series power supply...

(waterproof / non-waterproof)
