11 wheels glass beveling machine price / grinding mirror and glass machine/Glass Processing Machinery

Functions:

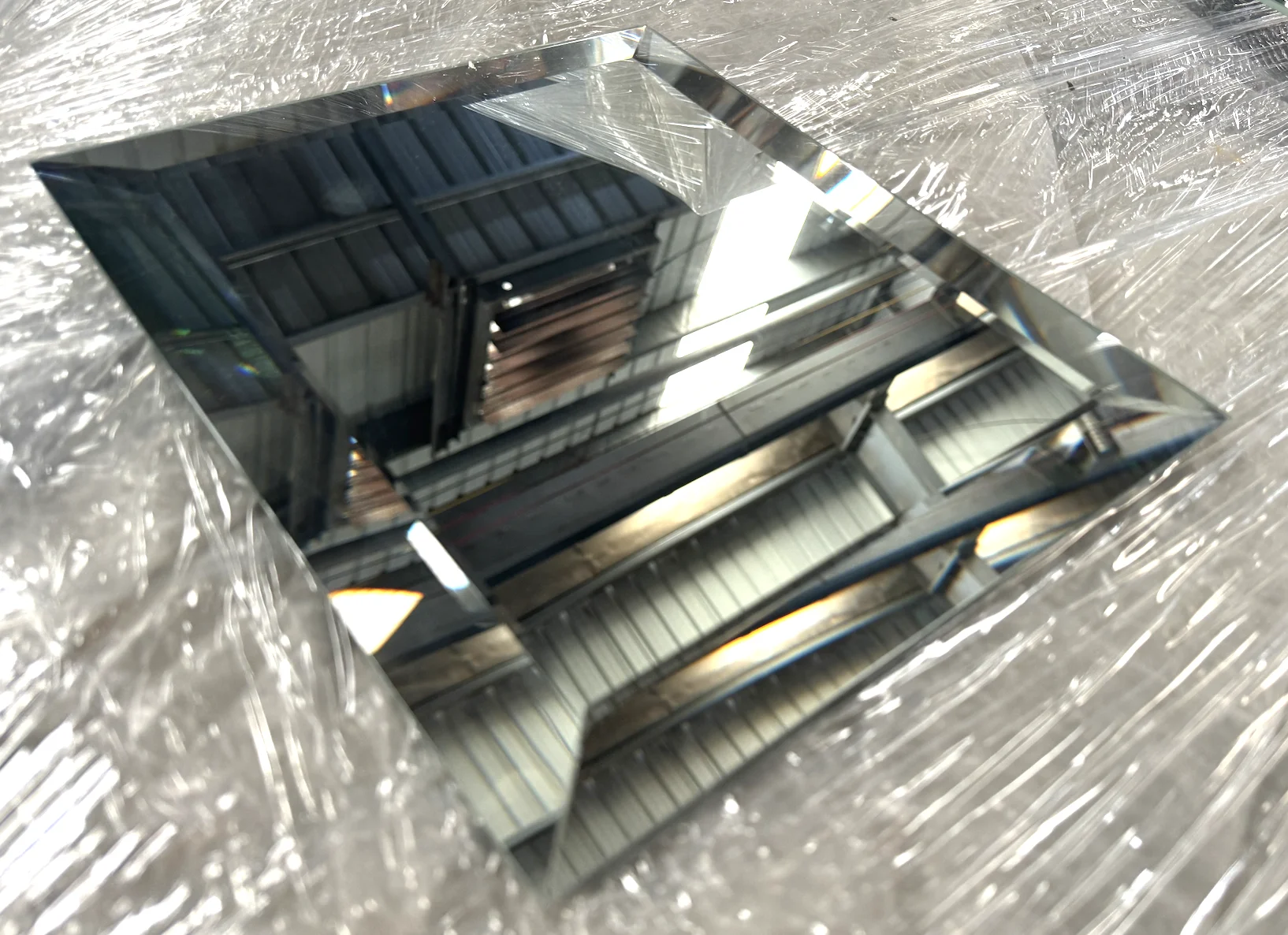

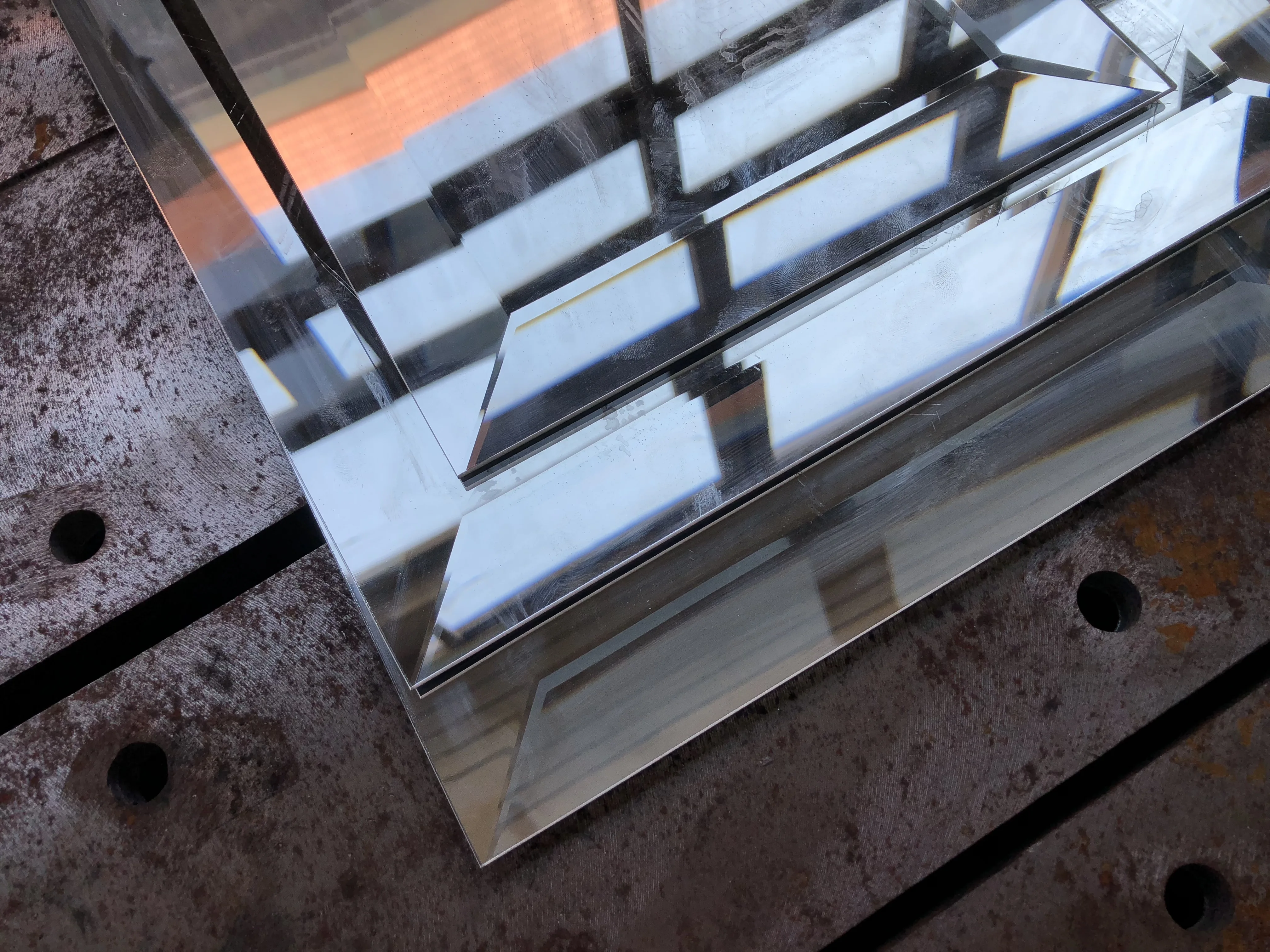

1.Processes rectilinear glass/mirrors plates in various sizes and thicknesses;

2.The grinding (roughing), finishing resin and polishing can be performed simultaneously;

3.The same thickness as the glass sheet can be continuously processed, so that the machine allows having a larger volume of production lines hardening processes, rolling processes and other processing.

Advantage of the machine

1. Easy operation and adjustment

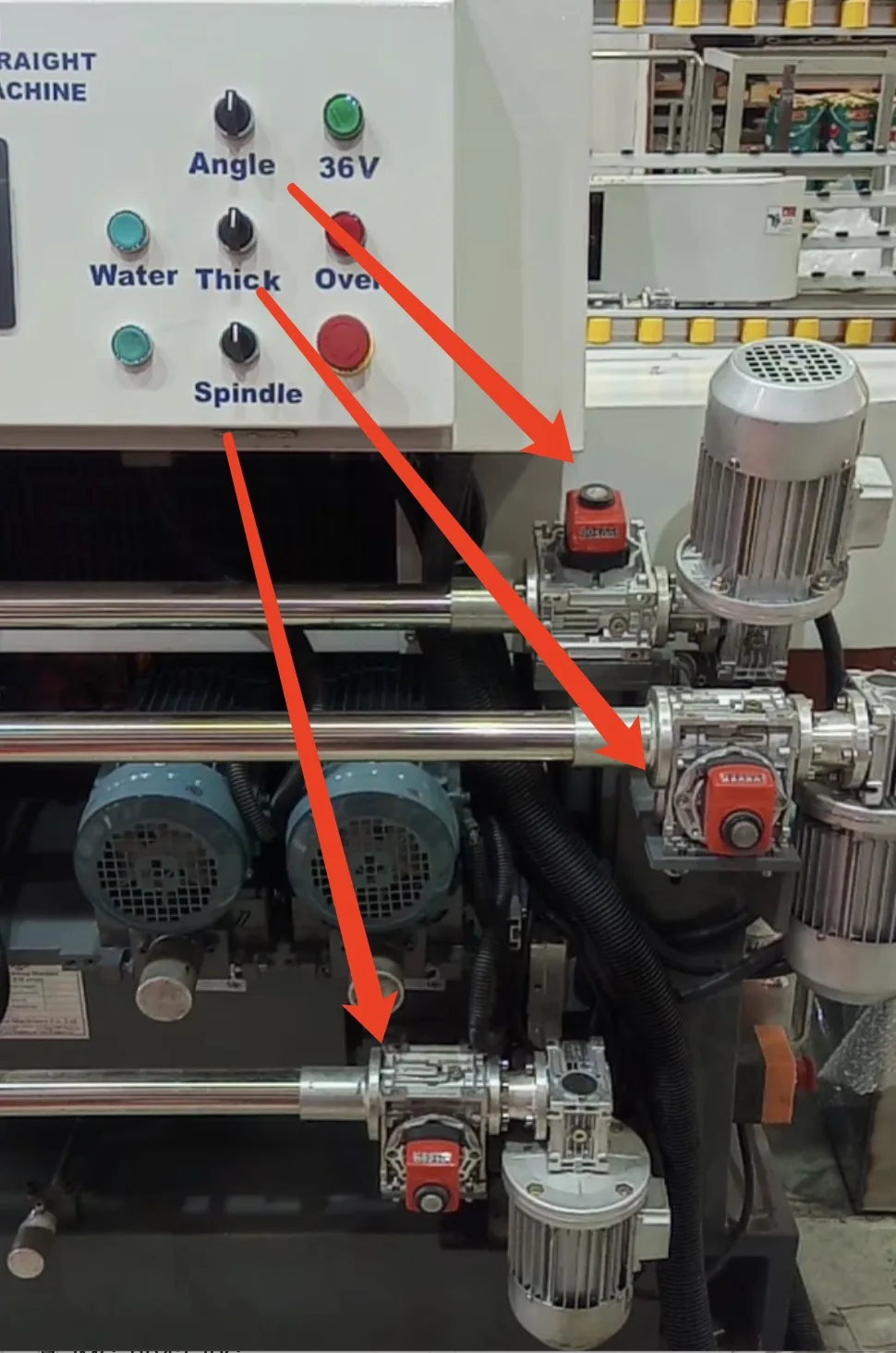

The adjustment of the beveling machine includes adjustment of glass thickness, beveling angle, spindle in/out, speed, wheel position.

The machine use manual key opeartion system, can read the data of glass thickness, angle, spinle in/out position on the orange meter.

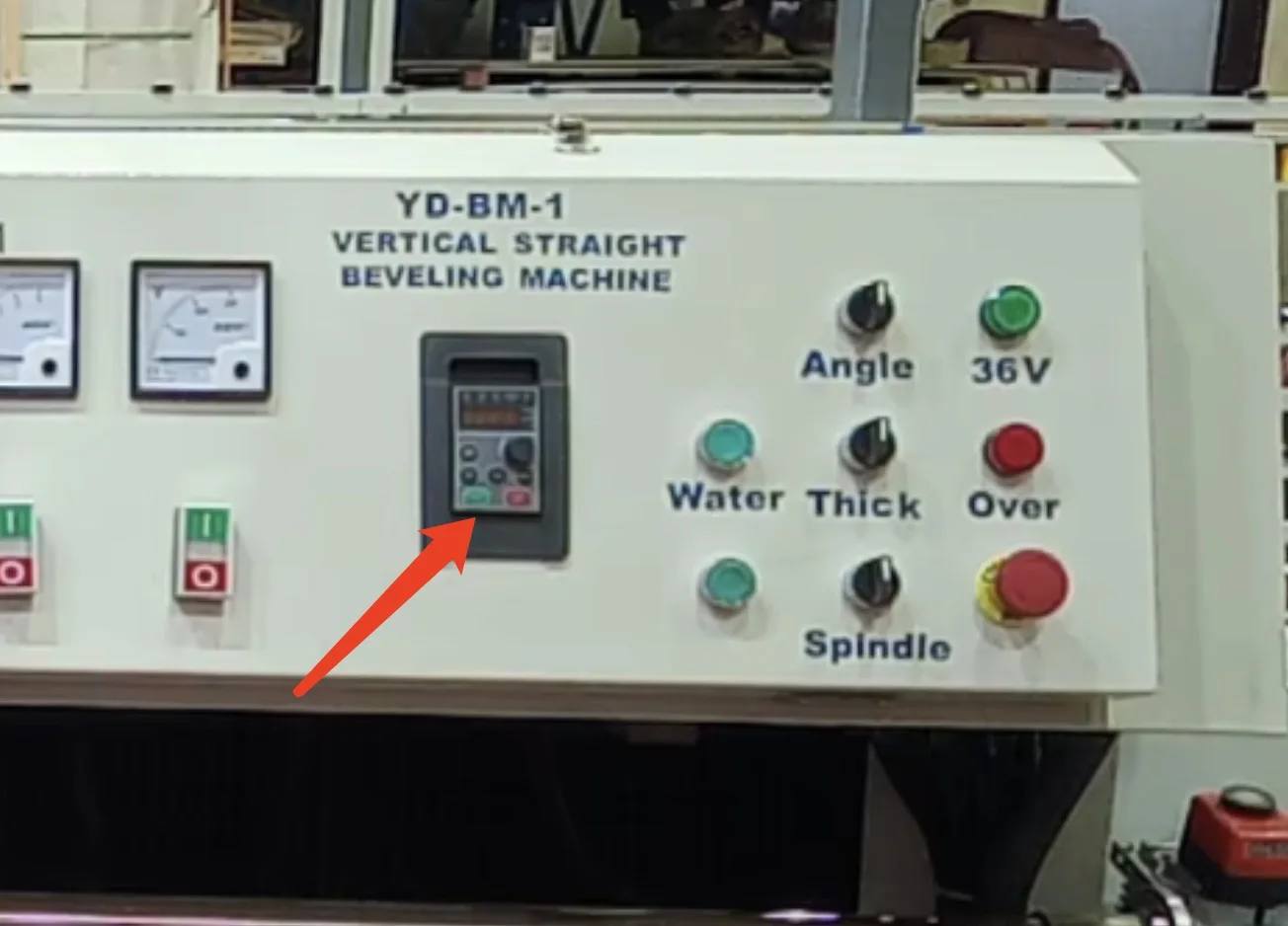

2. Frequency speed adjustment

The adjustment of the conveyor speed is controlled by the converter panel. To acheive good polishing effect, it will need to be adjusted on right suitable speed, based on the beveling width.

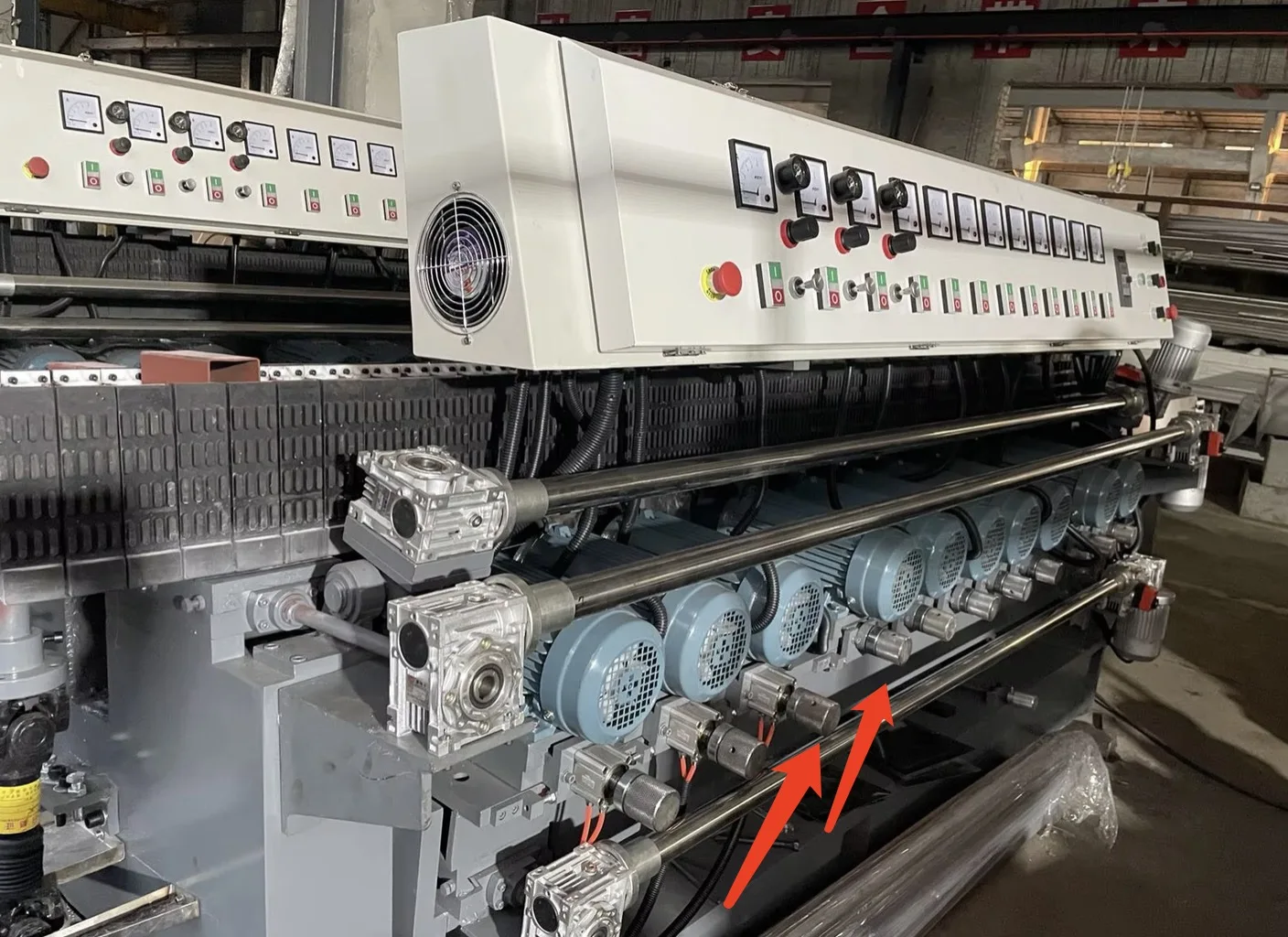

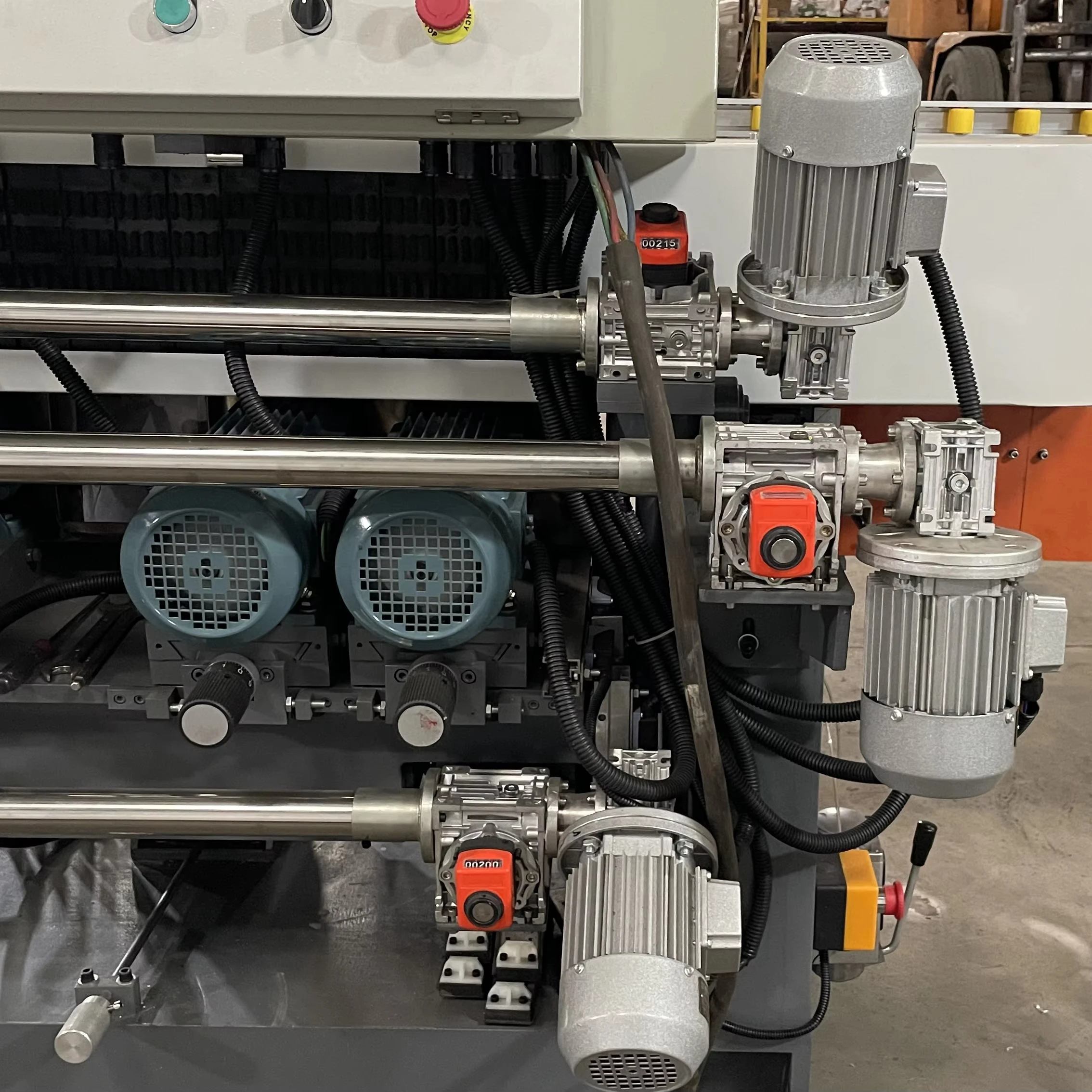

3. Motor adjustment

The motor adjustment is done handle with gauge of each motor.

If the glass was grinded too much, need adjust it back little bit.

It it grind the glass too much, need turn it back little bit.

Machine specifcation:

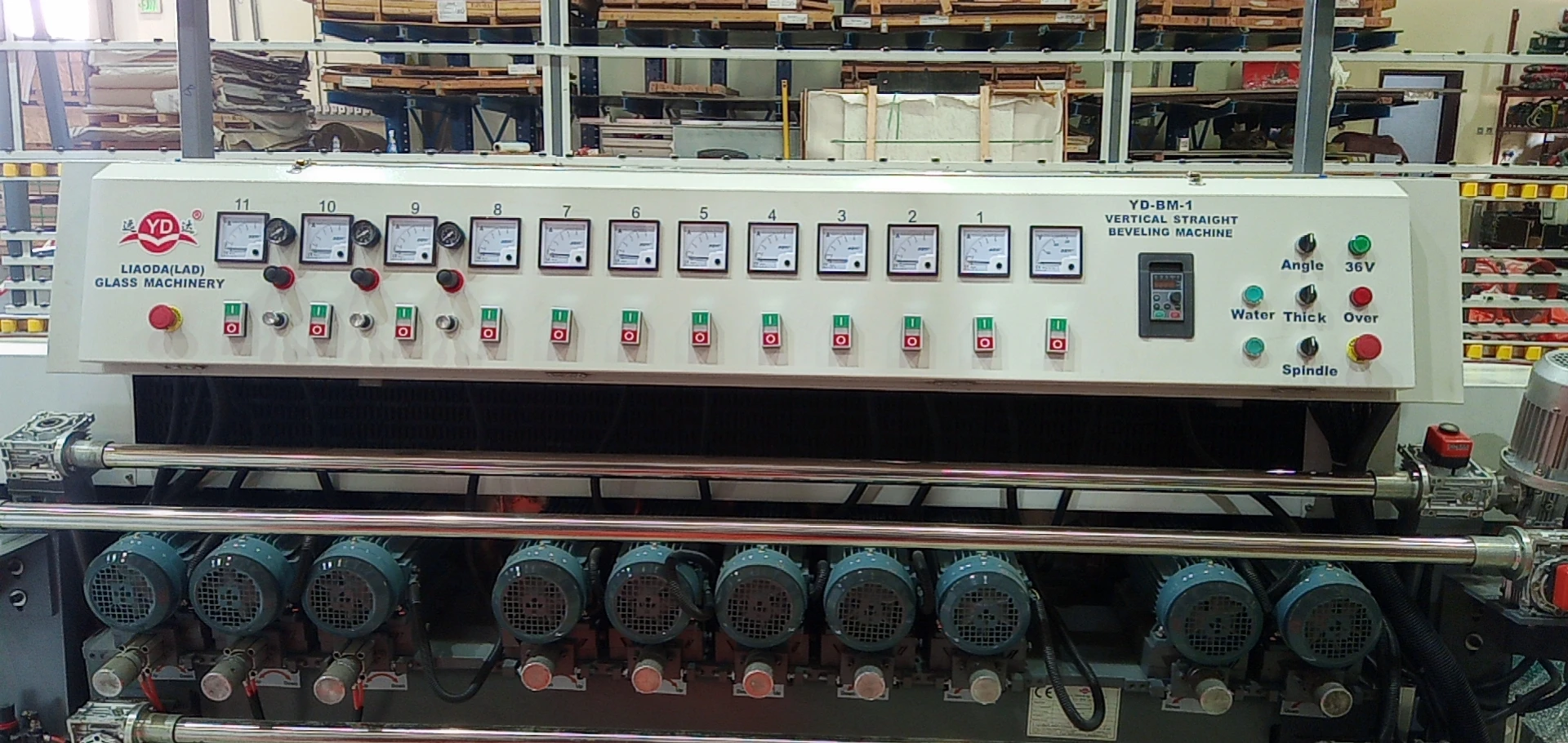

The position of grinding wheels:

Brief introduction of machine:

Stepless speed adjust

Electric control system

Manual thickness, angle adjustment, beveling width adjustment

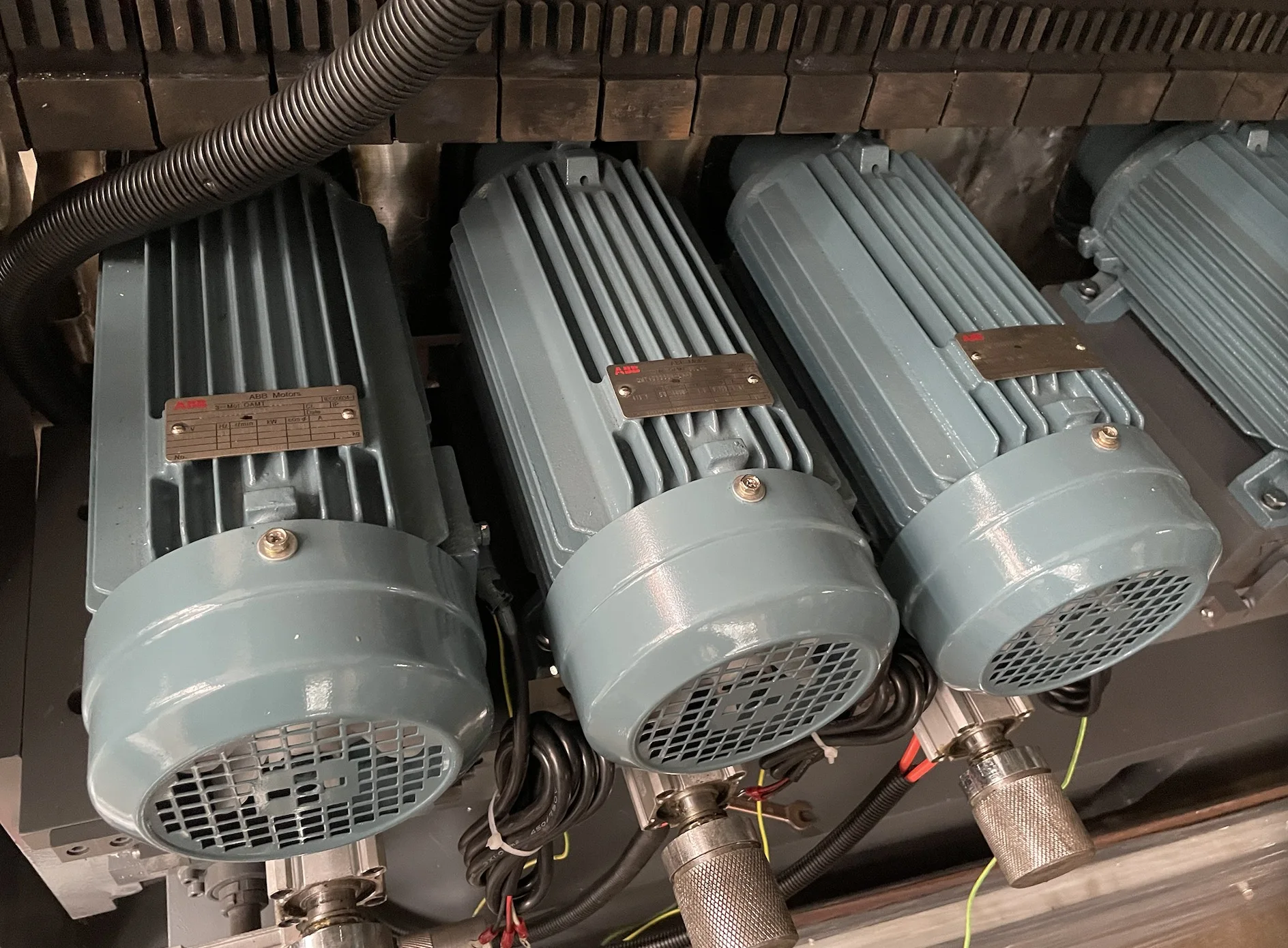

ABB motors

Synchronous belt

Stainless steel water tank

Cast steel machine base

Pneumatic polishing assistant, polishing with felt wheel and cerium oxide

Aluminum or steel glass support for option

 Warranty and Service.

• 1 year warranty for the machine


•  Life time technical support and parts


•  English version machine operation manual, machine operation video and on site service if necessary
