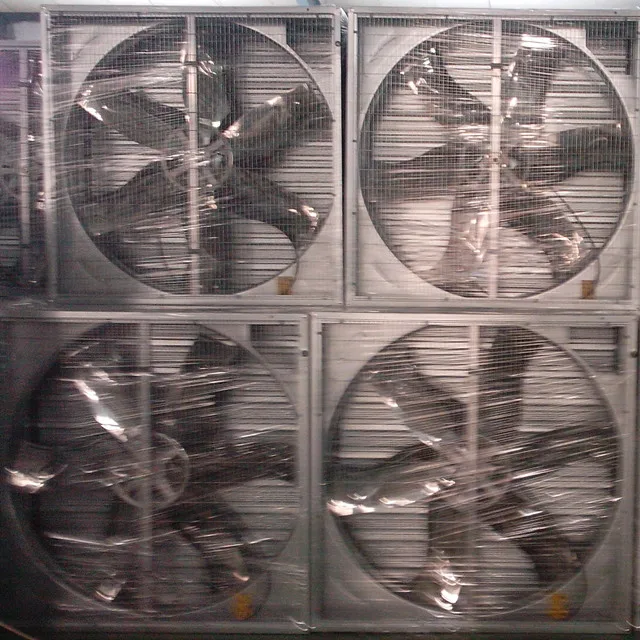

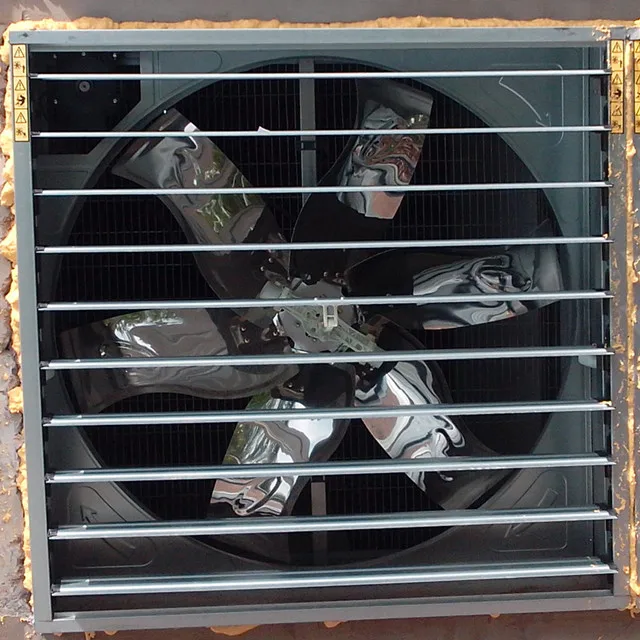

Industrial wall mounted ventilation exhaust fan for cooling

Product Overview

Description

Industrial wall mounted ventilation exhaust fan for cooling



Features

1. Fan frame: it is formed in one step due to the use of advanced automatic processing technique, the thick zinc coating (180g/275g/m2) ensures great corrosion resistance, the bottom outlet design makes fan structure more reasonable.

2. Belt pulley: The V-shaped hub made of aviation aluminum alloy is light, tensile, high-strength, and unlikely to break.

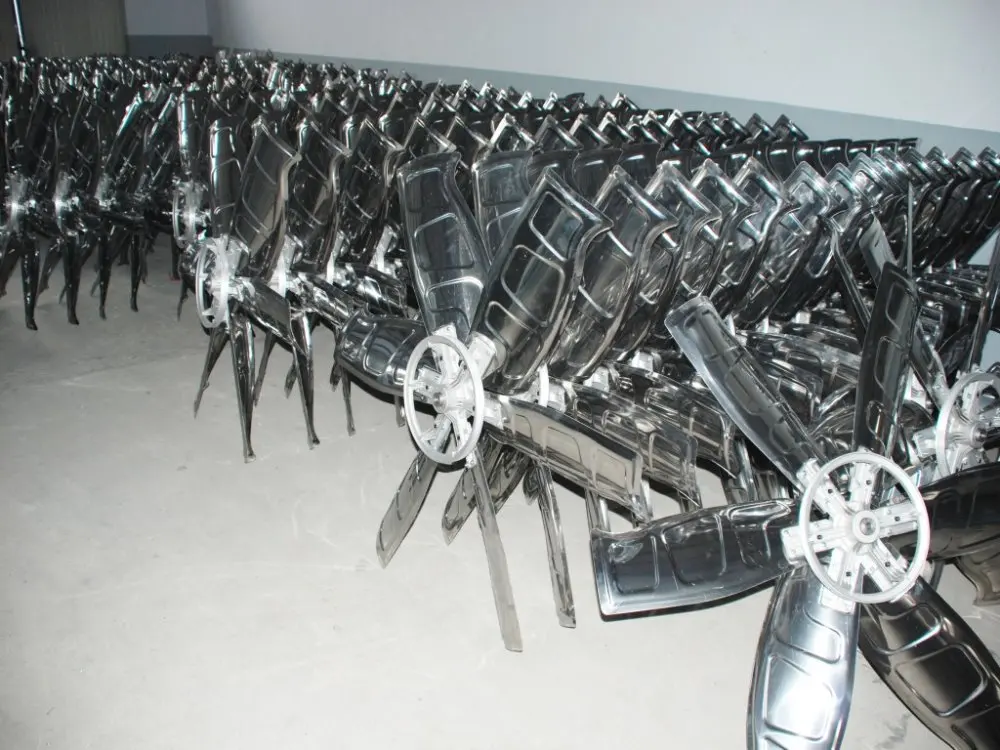

3. Fan blade: six stainless steel blades which are formed in one step are aesthetic, durable and resistant to deformation, the blade passed the dynamic balance test and its reasonable angle ensures maximum air flow and minimum noise.

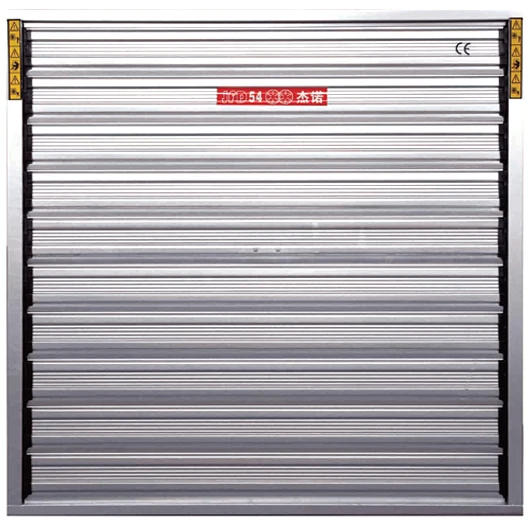

4. Shutter: High strength hot galvanized plate, the automatic opening-closing device makes it possible to open and close louvers completely, maintain a 90-degree opening angle to ensure louvers are windproof, rainproof and dust-proof.

5. Push-pull device: It has high strength and long service life by injection molding of industrial nylon with excellent toughness. The metal bar embedded in the guide rod increases the strength of the guide bar, and enhances the reliability and service life of the opening and closing mechanism.

6. Motor: Double support (E) belt drive, high performance 380V with 3C certified national standard motor, protection grade: IP55, insulation grade: F.

7. Belt: Imported B type belt is long lasting, deformation free, and requires no maintenance.

8. Belt tensioner: Aluminum and magnesium alloy material, mould forming support, no deformation and strong service life, use the inner side of the belt to tighten tightly, so as to avoid the reverse distortion of the belt and ensure the normal service life of the triangle belt.

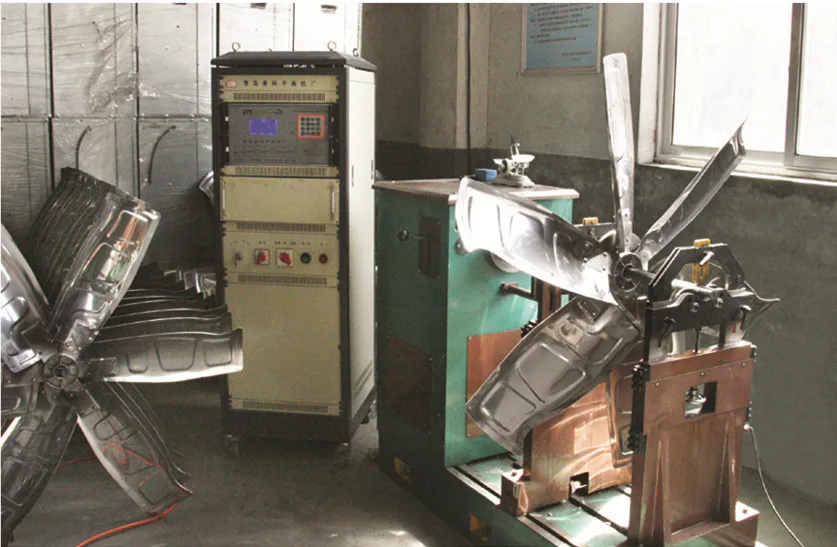

9. Quality tests: JIENUO advanced exhaust fan is subjected to a series of tests, including noise detection, vibration detection, concentric performance testing, fan speed detection, air volume detection and machine efficiency testing.



Parameter

Model	Blade diameter mm	Fan speed r/m	Power kw	Current A	Air volume M3/h	Dimension mm	Weight kg
JFD-600HE	600	1400	0.37	1.1	20000	750*750*400	27
JFD-750HE	750	735	0.55	1.5	26000	900*900*400	38
JFD-900HE	900	560	0.55	1.5	28000	1000*1000*400	43
JFD-1000HE	1000	560	0.75	2	36000	1100*1100*400	47
JFD-1100HE	1100	505	0.75	2	40000	1220*1220*400	53
JFD-1250HE	1250	420	1.1	2.8	46000	1380*1380*400	68
JFD-1400HE	1400	420	1.5	3.6	55000	1530*1530*400	77

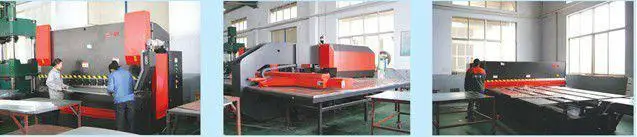

Our workshop









Application





1. Industry: textiles, clothing, glass, rubber, plastic injection, spraying, silk screen, printing, toys, household appliances, footwear, electronics, food processing, bleaching, laundry room factory workshop etc.

2. Civil areas: temperature adjustment of Internet cafes, supermarkets, canteens, exhibition halls, waiting rooms and entertainment venues.

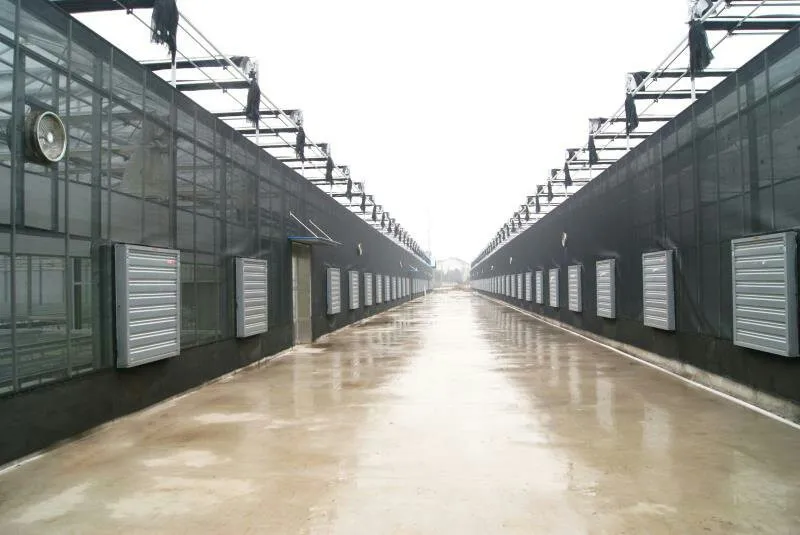

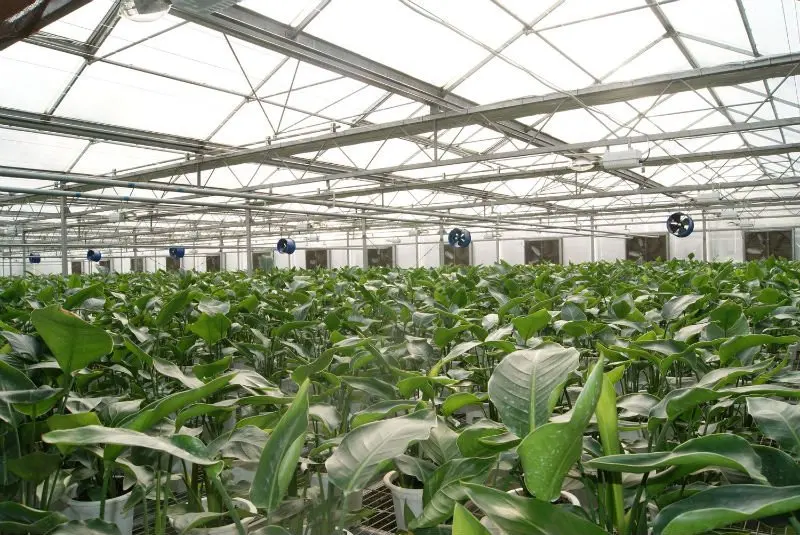

3. Agricultural fields: large farms, greenhouse, greenhouse and livestock farms.



Certifications







FAQ

Q: Why your price more expensive than other China suppliers ?
A: Our material we use is much better than other suppliers, we use zinc coated galvanized frame, stainless steel blades, aluminum alloy hud, all of these are high quality.

Q: What voltages you can do, if you can make special voltages ?
A: Almost all kinds of voltages we all can make, but for special voltages, the delivery time maybe more longer and price will be a little higher. Our normal voltage is 380V, 50HZ/60HZ, 3phase.

Q: I want to use our own brand, is it ok?
A: Of course it's OK, we can make OEM products and also can provide our own brand products, it's all by your request .
