wholesale charger 4.2V 8.4V 12.6V 16.8v DC Li ion Battery Charger
- Category: >>>
- Supplier: Shenzhen Gls Technology Co. Ltd.
Share on (60387804703):
Product Overview
Description
wholesale charger 4.2V 8.4V 12.6V 16.8v DC Li-ion Battery Charger
Product Description
Features: 16.8v Li-ion Battery Charger
a. 16.8v 800ma battery charger, constant voltage / constant current
b. Automated protection for Short circuit / Overload / Over voltage
c. Cooling by free air convection
d. LED indicator for power on
e. 100% full load burn-in test
f. High efficiency, long life and high reliability
Specification:
Model | GLS-4201000WA | GLS-8401000wa | GLS-12601000WA | GLS-16800800WA | |
Output | DC output voltage | 4.2V | 8.4V | 12.6V | 16.8V |
Output voltage tolerance | ±5% | ±5% | ±5% | ±5% | |
Rated output current | 1A | 1A | 1A | 0.8A | |
Output current range | 0~1A | 0~1A | 0~1A | 0~0.8A | |
Output power | 4.2W | 8.4W | 12.6W | 13.44W | |
Ripple and noise | 70mVp-p | 100mVp-p | 100mVp-p | 110mVp-p | |
Line regulation | ±1.0% | ±0.5% | ±0.5% | ±0.5% | |
LED indicator | Green LED ON<150~200mA | ||||
Setup rise hold up time | 500ms,50ms,16ms at full load | ||||
Input | Input voltage range | 100~240VAC 140~350VDC | |||
AC input current | 0.2A/230VAC | ||||
Efficiency | 75% | 78% | 80% | 82% | |
AC inrush current | 3A/230VAC | ||||
Leakage current | <3.5mA | ||||
Frequency range | 47~64Hz | ||||
Protection characteristic | Over load protection | 105%~150%rated output power | |||
Protection mode : FOLDBACK limiting output reset: auto recovery | |||||
Environment | Working temperature | 0°C~+50°C | |||
Working humidity | 20%~90% RH non-considering | ||||
Storage Temp,humidity | -10°C~+60°C | ||||
Temp.coefficient | ±0.03% /°C(0~50°C) | ||||
Vibration | 10 ~ 500Hz, 2G10min / 1 cycle, duration 60 minutes, each axis | ||||
Safety | Withstand voltage | I/P-O/P:3000 VDC | |||
Safety standards | EN60950 | ||||
Insulation resistance | I/P-O/P:100M Ohms/500VDC/25°C/70%RH | ||||
Harmonic current | Compliance to EN55024, EN61000-3-3 | ||||
EMS immunity | Compliance to EN61000-3-3 | ||||
Others | Weight/Packing | 0.09kg/100PCS/11kg | |||
Dimension | 51*23.7*29 MM | ||||

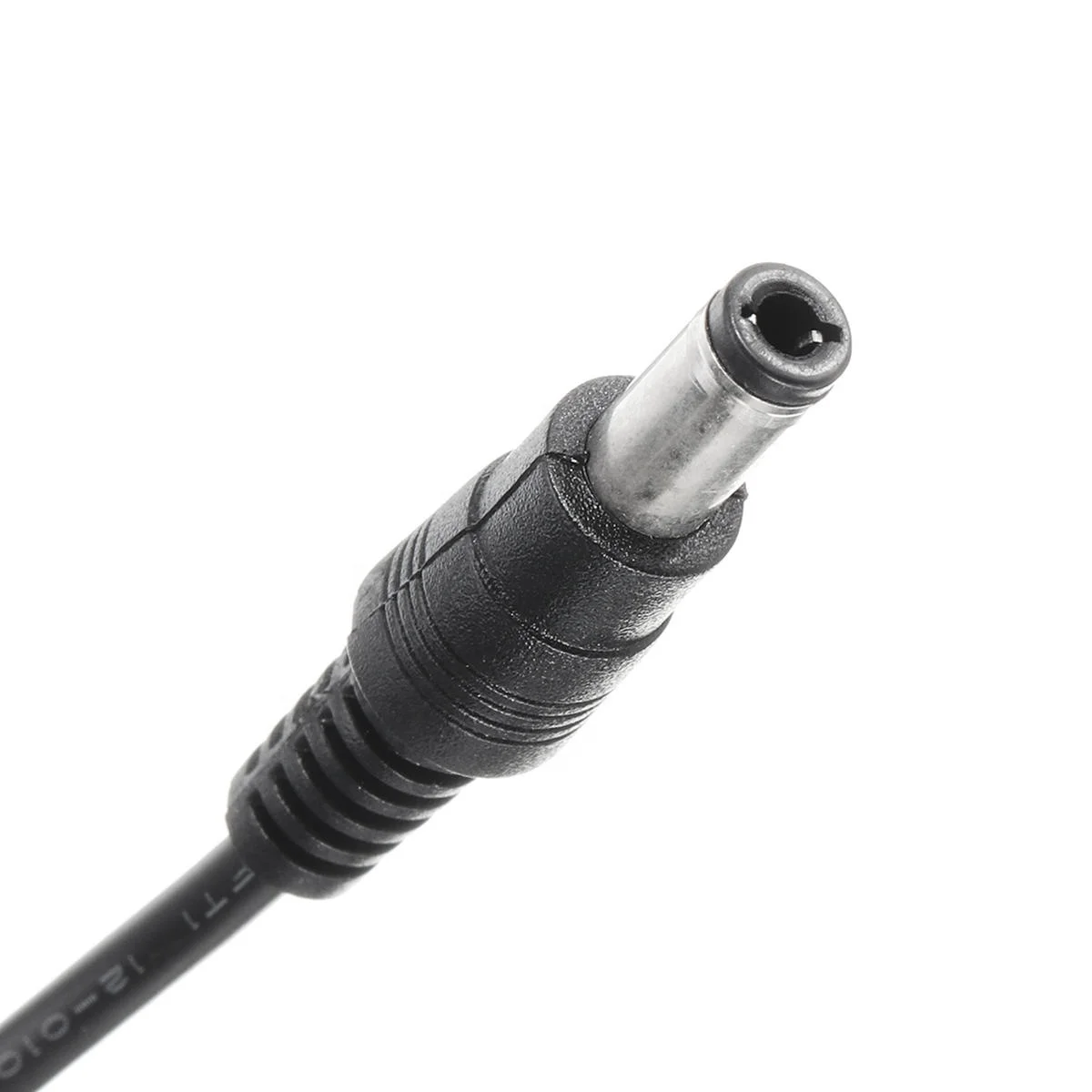

Connector | Plug | 5.5X2.1mm | |||
Cable | 1.2m | ||||
Remark
- All parameters are specified at 230VAC input, rated load, 27°C 70%RH ambient.
- Ripple and noise are measured at 20MHz by using a 12 inch Twisted pair terminated with 0.1u and 47u capacitor.
- Tolerance: includes set up tolerance, line regulation, load regulation.
- DC voltage : the output voltage set at point measure by plug terminal &50% load.
- Line regulation is measured from low line to high line at rated load.
- Load regulation is measured from 20% to 100% rated load.
- The power supply is considered a component which will be installed into a final equipment .The final equipment must be re-confirmed that it stills meets EMC directives.
Production process
Packaging & Shipping
Company Information
- ast response to customer inquiries: reply within 10 hours.
- Provide quality products: select good suppliers for raw material, inspec incoming components, monitor the production process, aging test every single unit before shipment.
- Offer reasonable price 2 years warranty Offer competitive shipping price when required by customer Provide customized products according to different requirement.
- OEM and ODM are available Fast delivery after confirming the order.
- For the models we have stocks,we will ship them within 2 working days.
- For bulk order and customized models,please consult us for the shipping time.
