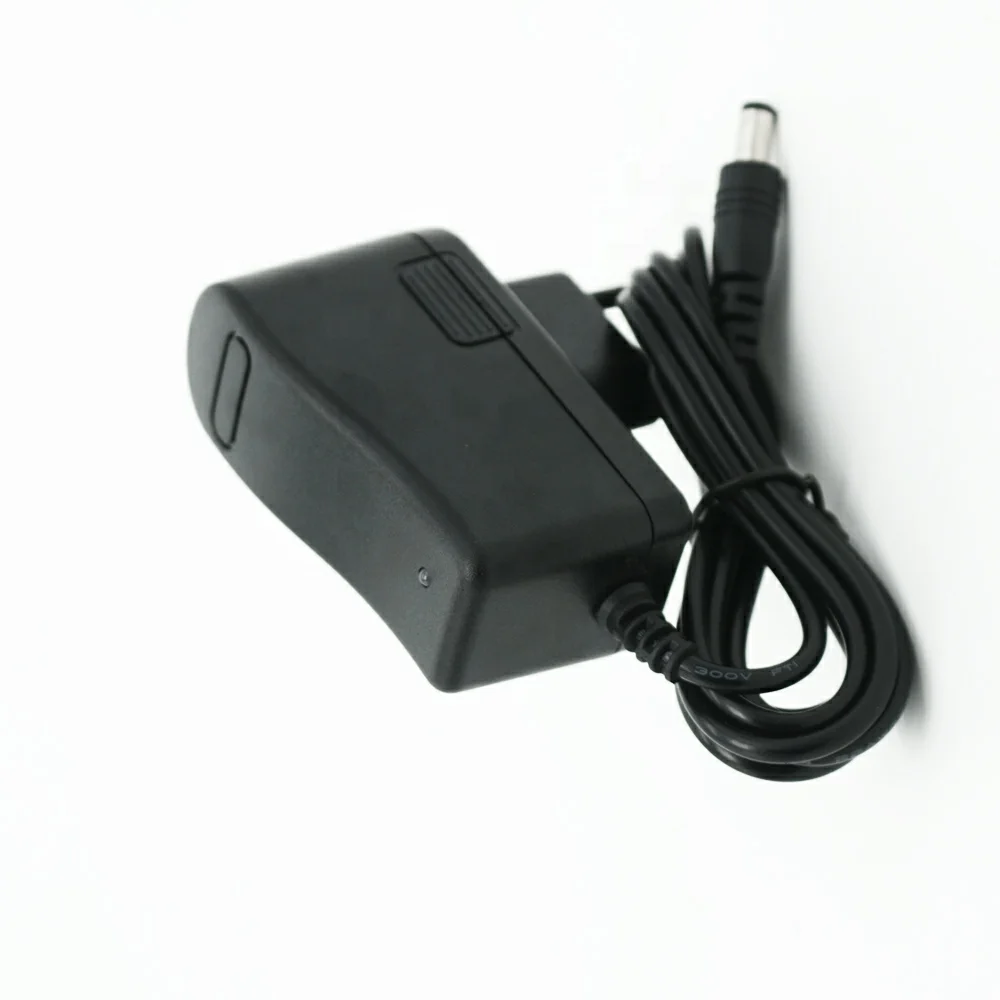

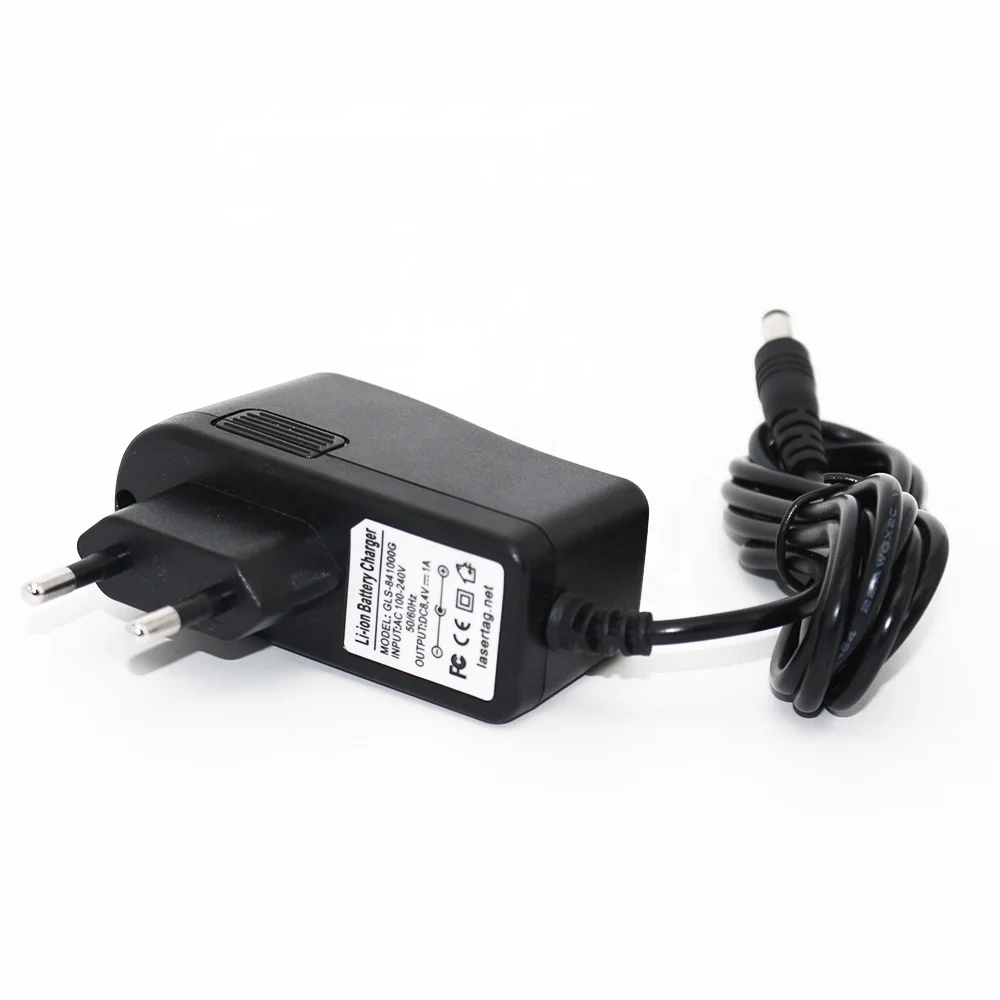

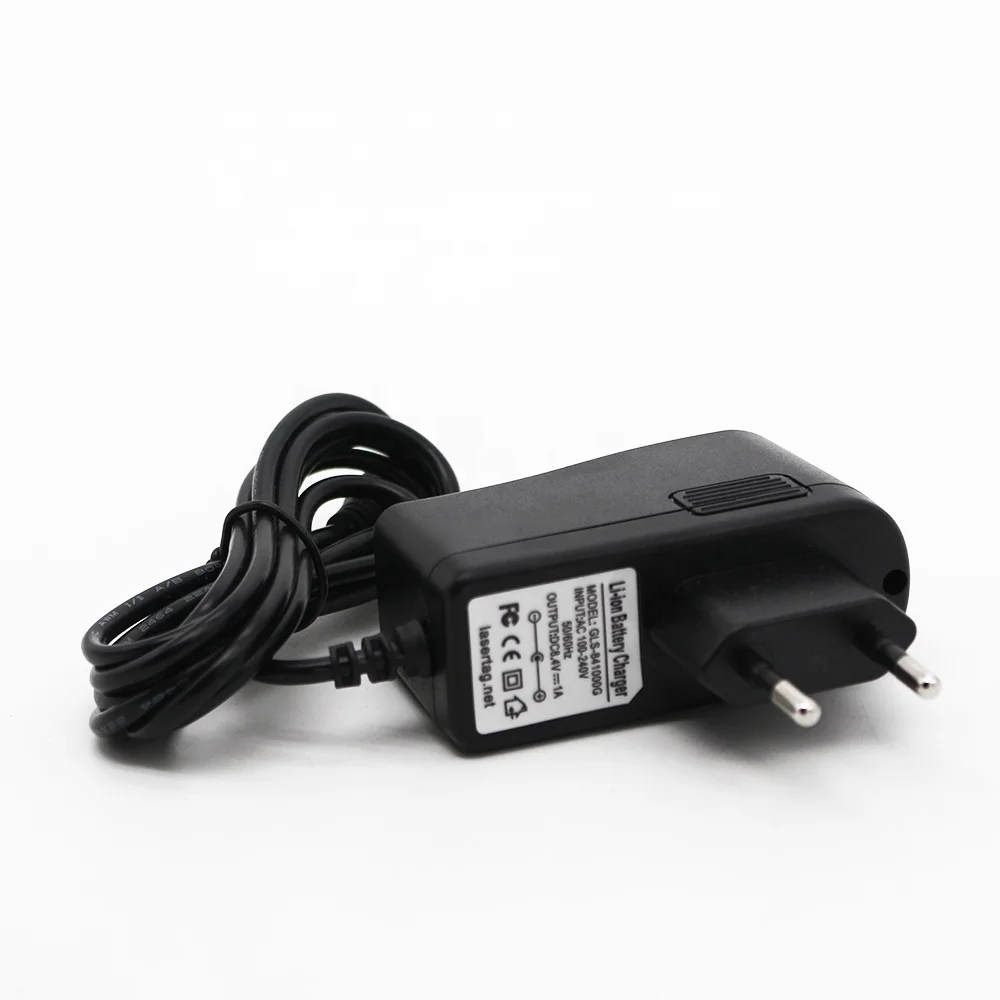

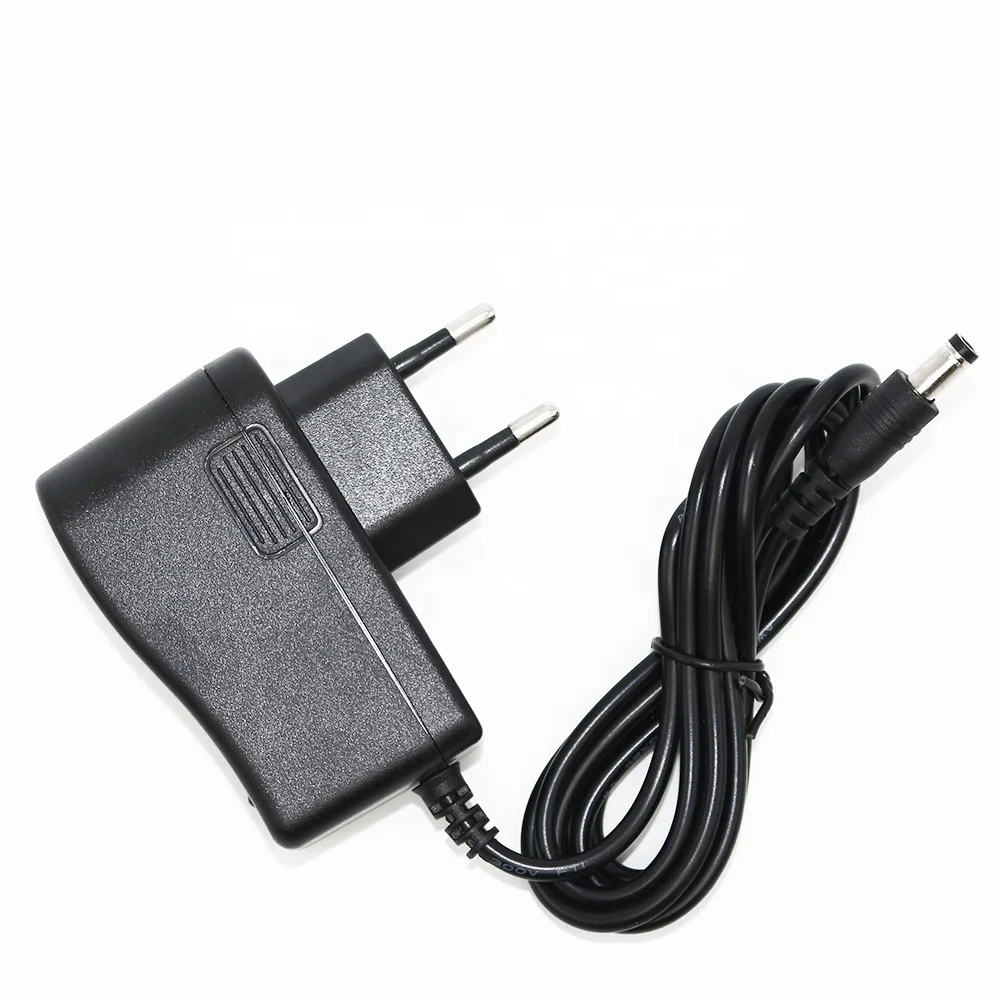

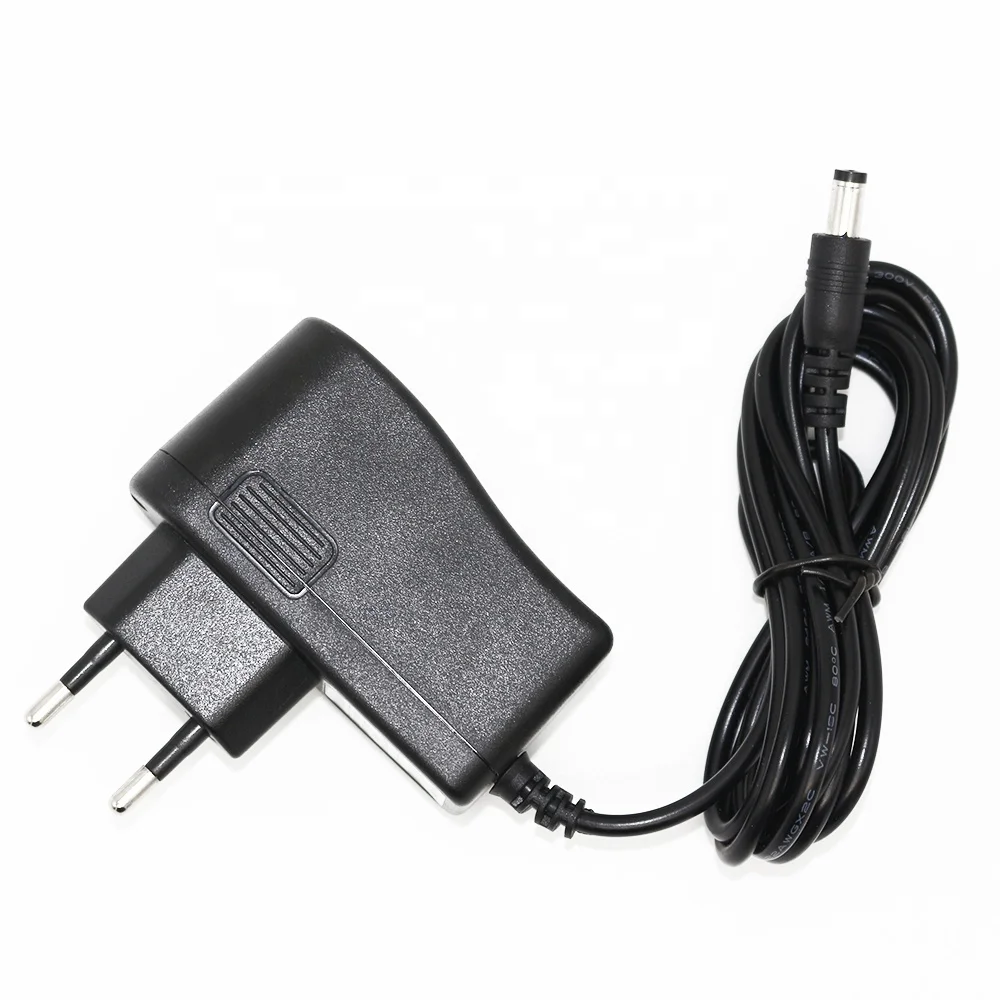

universal li ion battery charger 4.2v 8.4v 12.6v 16.8v 1a 1.2a 1.5a 1.8a 2.0a
- Category: >>>
- Supplier: Shenzhen GLS Technology Co. Ltd.
Share on (60387899787):
Product Overview
Description
universal li-ion battery charger 4.2v 8.4v 12.6v 16.8v 1a 1.2a 1.5a 1.8a 2.0a
Product Description
Features: li-ion battery charger 4.2v
a. 4.2v 2000ma battery charger, constant voltage / constant current
b. Automated protection for Short circuit / Overload / Over voltage
c. Cooling by free air convection
d. LED indicator for power on
e. 100% full load burn-in test
f. High efficiency, long life and high reliability
Specification:
|
Model |
GLS-4202000WA |
GLS-8401000wa |
GLS-12601000WA |
GLS-16800800WA |
|
|
Output |
DC output voltage |
4.2V |
8.4V |
12.6V |
16.8V |
|
Output voltage tolerance |
±5% |
±5% |
±5% |
±5% |
|
|
Rated output current |
2A |
1A |
1A |
0.8A |
|
|
Output current range |
0~2A |
0~1A |
0~1A |
0~0.8A |
|
|
Output power |
8.4W |
8.4W |
12.6W |
13.44W |
|
|
Ripple and noise |
70mVp-p |
100mVp-p |
100mVp-p |
110mVp-p |
|
|
Line regulation |
±1.0% |
±0.5% |
±0.5% |
±0.5% |
|
|
LED indicator |
Green LED ON<150~200mA |
||||
|
Setup rise hold up time |
500ms,50ms,16ms at full load |
||||
|
Input |
Input voltage range |
100~240VAC 140~350VDC |
|||
|
AC input current |
0.2A/230VAC |
||||
|
Efficiency |
75% |
78% |
80% |
82% |
|
|
AC inrush current |
3A/230VAC |
||||
|
Leakage current |
<3.5mA |
||||
|
Frequency range |
47~64Hz |
||||
|
Protection characteristic |
Over load protection |
105%~150%rated output power |
|||
|
Protection mode : FOLDBACK limiting output reset: auto recovery |
|||||
|
Environment |
Working temperature |
0°C~+50°C |
|||
|
Working humidity |
20%~90% RH non-considering |
||||
|
Storage Temp,humidity |
-10°C~+60°C |
||||
|
Temp.coefficient |
±0.03% /°C(0~50°C) |
||||
|
Vibration |
10 ~ 500Hz, 2G10min / 1 cycle, duration 60 minutes, each axis |
||||
|
Safety |
Withstand voltage |
I/P-O/P:3000 VDC |
|||
|
Safety standards |
EN60950 |
||||
|
Insulation resistance |
I/P-O/P:100M Ohms/500VDC/25°C/70%RH |
||||
|
Harmonic current |
Compliance to EN55024, EN61000-3-3 |
||||
|
EMS immunity |
Compliance to EN61000-3-3 |
||||
|
Others |
Weight/Packing |
0.09kg/100PCS/11kg |
|||
|
Dimension |
51*23.7*29 MM |
||||
|
Connector |
Plug |
5.5X2.1mm |
|||
|
Cable |
1.2m |
||||
Remark
- All parameters are specified at 230VAC input, rated load, 27°C 70%RH ambient.
- Ripple and noise are measured at 20MHz by using a 12 inch Twisted pair terminated with 0.1u and 47u capacitor.
- Tolerance: includes set up tolerance, line regulation, load regulation.
- DC voltage : the output voltage set at point measure by plug terminal &50% load.
- Line regulation is measured from low line to high line at rated load.
- Load regulation is measured from 20% to 100% rated load.
- The power supply is considered a component which will be installed into a final equipment .The final equipment must be re-confirmed that it stills meets EMC directives.
