Epoxy polyurethane high pressure injection ports concrete crack repair leak stop

Product Overview

Description

Liquid injector Concrete Hydraulic Pump leak stoppage



Specifications



500pcs/carton

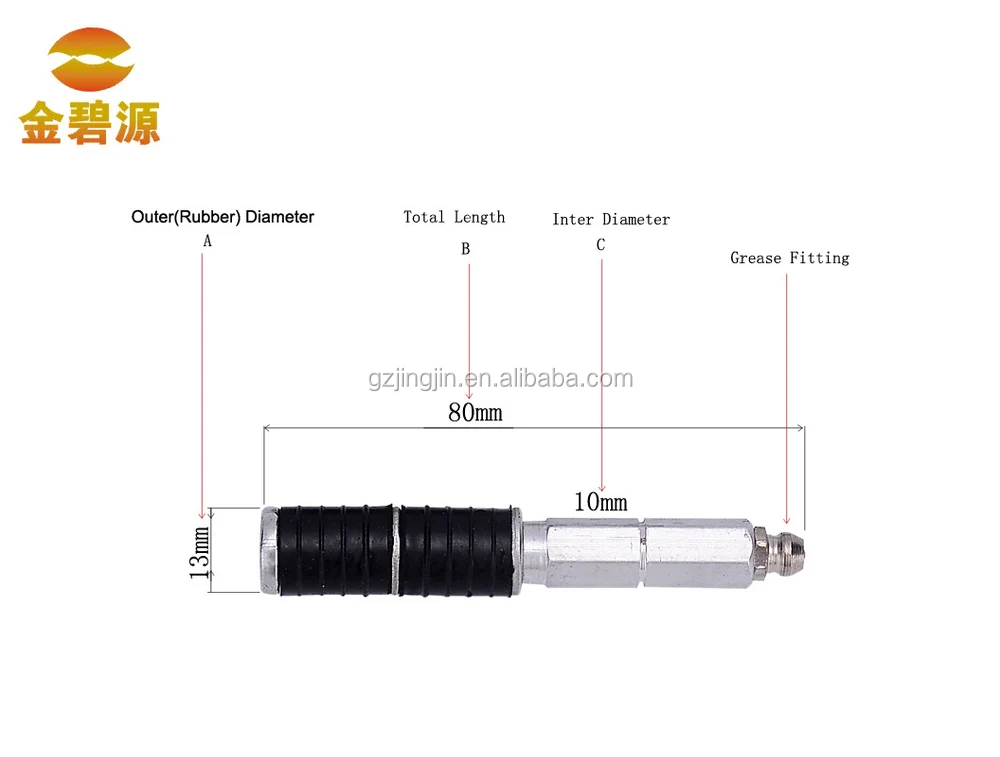

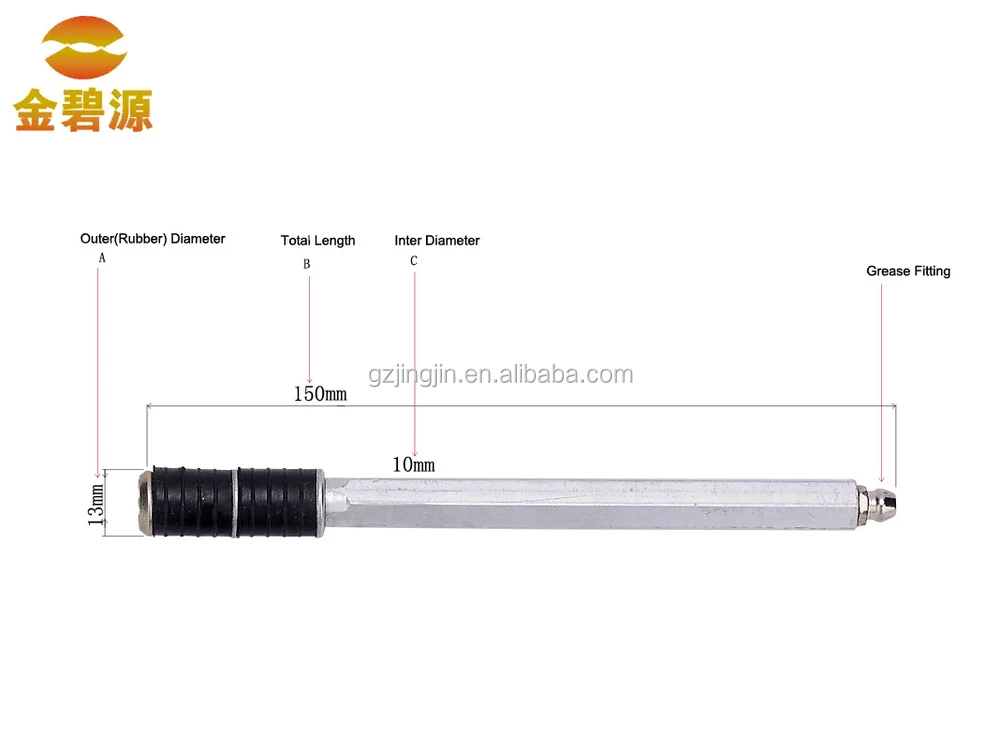

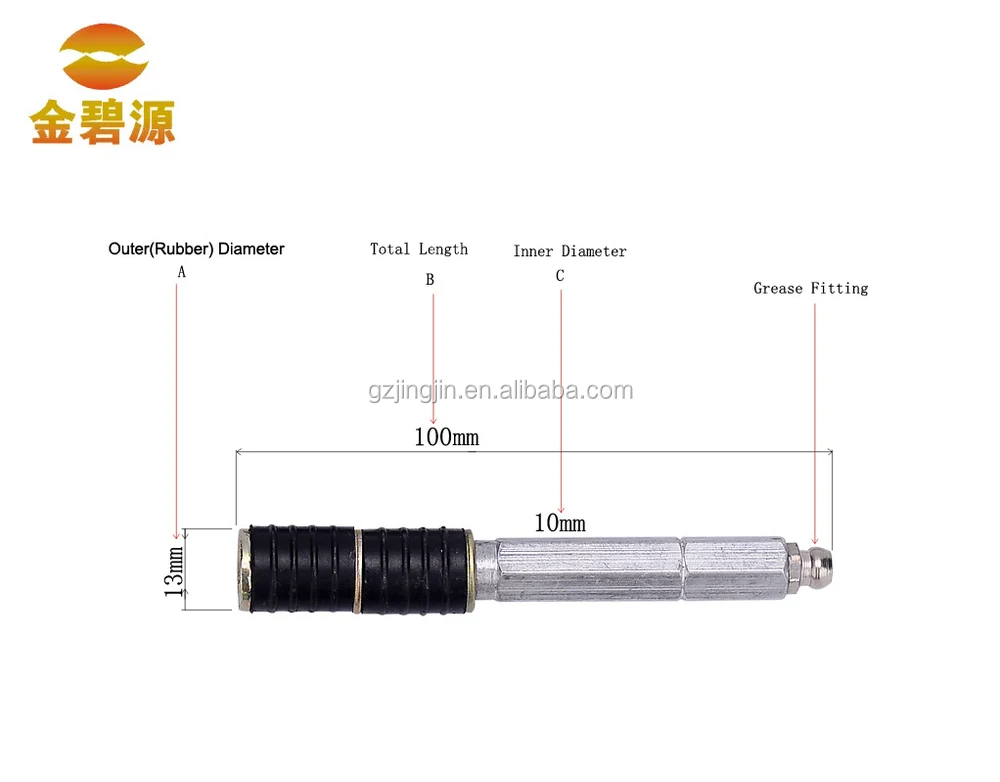

Mode	Diameter(Nipple)	Length	Note
A8	13mm*80mm		Please remark the Mode when placing order, leave massage to us if any question.
A10	13mm*100mm
A15	13mm*150mm
A20	13mm*200mm
B8	10mm*80mm
B10	10mm*100mm

Application range :
1-Subway,tunnel,culvert,activated sludge tank,Concrete crack seepage,leakage stop
under water.
2-Basement,underground garage,underground passage,crevice in concrete slab
3-through-wall pipe,corner,leakage of water;
4-Concrete structures leaking,Board structure cracks;
5-Injection for the PU grout and epoxy resin grout


Advantage:

Endurable in high pressure,  good waterproof effect,         stable quality,  convenient operation

High toughness rubber, not easy to be fragile
High quality aluminum, not easy to be bent





Application Places





Injection Method Statement

1. Identify the crack.

2. Drill the holes 5 to 10 cm away from the crack at 45 toward the crack.

3. Clean the hole properly.

4. Insert the packer.

5. Fix and tight the packer.

6. Connect the pump to the packer and start injecting.

7. After injection material is totally dry remove the packer.





Tips:   When injecting tight cracks, we have found high success rates by drilling straight into the crack to a depth of 2/3 the thickness of the wall (always measure and tape your drill bit for depth). High pressures can be maintained with virtually no spalding blow-outs (as opposed to angle drilling) and excellent grout penetration. Space the packers every 2.5 - 3 inches and a depth of 5 inches for an 8 inch thick residential wall. Use a low viscosity resin such as Leak-Proof polyurethane foam to assure 100% penetration.

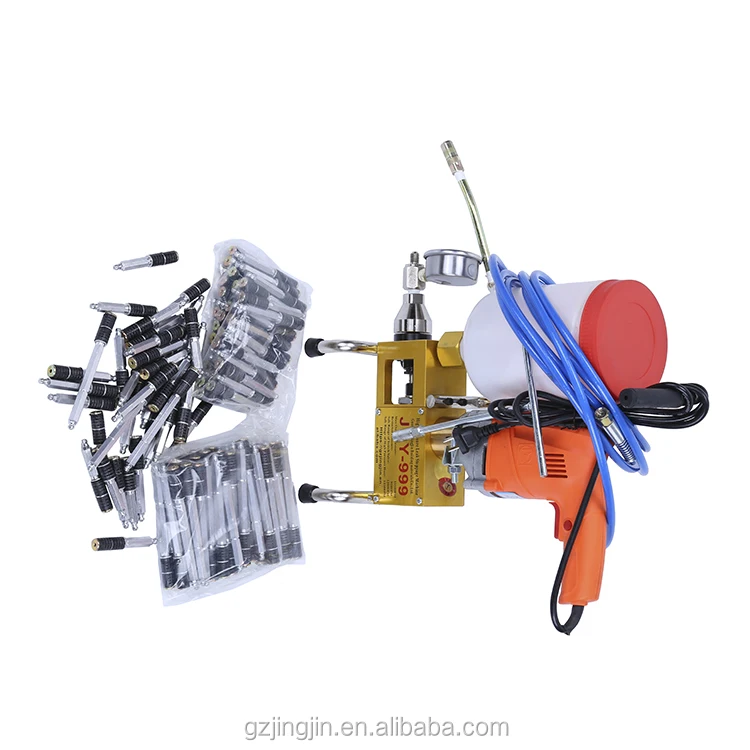

Work with the machine
