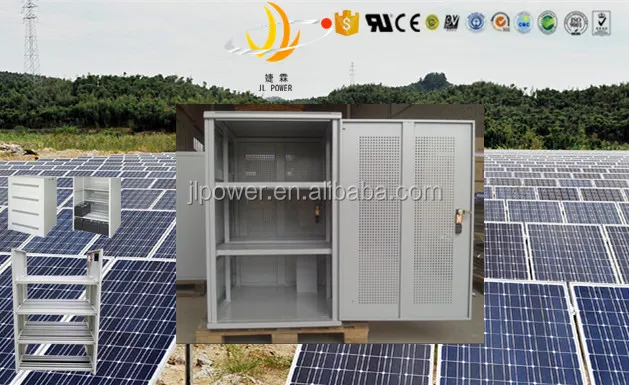

JL battery cabinet is the perfect solution for creating additional space by replacing sealed lead acid battery, or when there is a need for a maintenance free, long lasting, self-sufficient battery back-up solution. The cabinet comes pre-wired from the factory, ready to install. Its modular design permits more than one battery cabinet to be mounted side by side on the same wall. Each module holds up to 32pcs 100Ah lead acid battery, 200AH can be design. Please note, the cabinet is without wheels without notice, but c1-c8 can be designed with wheels.
Technical specification:
Model | Dimensions(W*D*H)(mm) | Battery | Weight(kg) | |
C1B | 280*190*220 | Standard 24AH/17AH | 2/3pcs | 2.5 |
C1 | 435*210*270 | Standard 24AH/38AH Standard 65AH/100AH | 2pcs 1pc | 4
|
C1A | 540*210*230 | Standard 24AH/38AH | 3pcs | 4.5 |
C2 | 470*390*310 | Standard 24AH/38AH Standard 65AH/100AH | 6/4pcs 2pcs | 7.5
|
C3 | 585*450*310 | Standard 24AH/38AH Standard 65AH/100AH | 8/6pcs 3pcs | 9.5 |
C4 | 470*390*600 | Standard 24AH/38AH Standard 65AH/100AH | 8pcs 4pcs | 14 |
C6 | 585*450*610 | Standard 24AH/38AH Standar 65AH/100AH | 12pcs 6pcs | 18 |
C8 | 780*450*610 | Standard 24AH/38AH Standard 65AH/100AH | 20/16pcs 8pcs | 23 |
C10 | 950*450*610 | Standard 24AH/38AH Standard 65AH/100AH | 20pcs 10pcs | 29 |
C12 | 780*470*910 | Standard 24AH/38AH Standar 65AH/100AH | 24pcs 12pcs | 32 |
C16 | 780*470*1190 | Standard 24AH/38AH Standard 65AH/100AH | 32pcs 16pcs | 45 |
C20 | 950*470*1190 | Standard 24AH/38AH Standard 65AH/100AH | 40pcs 20pcs | 55 |
C24 | 1150*470*1190 | Standard 65AH/100AH | 24pcs | 58 |
C32 | 800*880*1190 | Standard 65AH/100AH | 32pcs | 70 |




JL is a leading manufacturer and exporter of Battery and Battery Cabinet. Our advanced and professional technology, complete production lines, experienced staff and strict corporate system ensure our products quality. We pride ourselves on quality products, service and pricing, and believe that the three aspects are equally important to ensure the long-term success of overseas purchasing program.
