diamond polishing HRA90 tungsten carbide wire guide nozzles
- Category: >>>
- Supplier: Dongguan Kim Chen Hardware Electronic Products Factory
Share on (60388217893):
Product Overview
Description

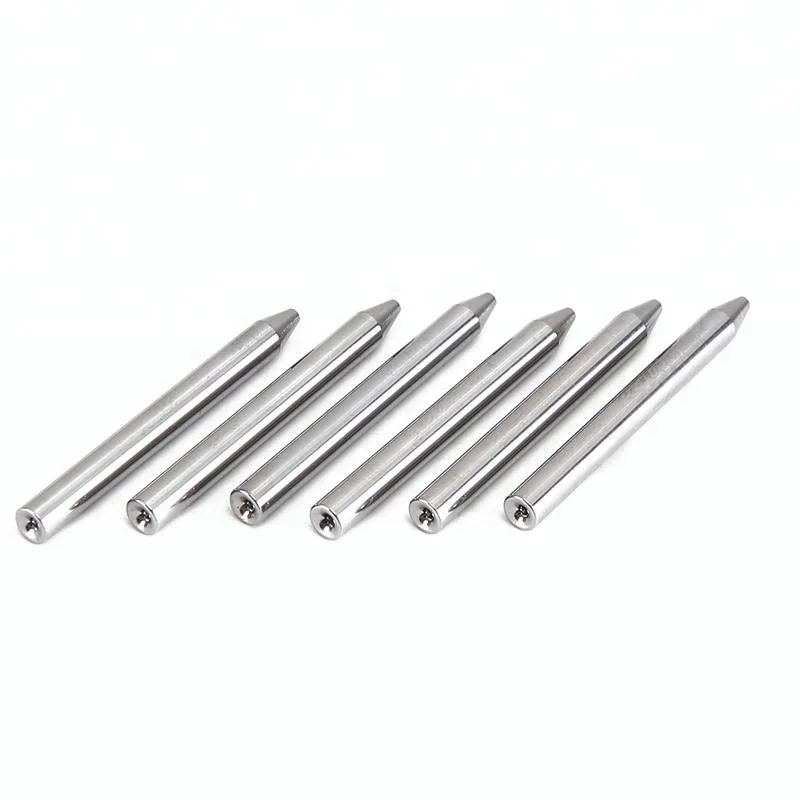

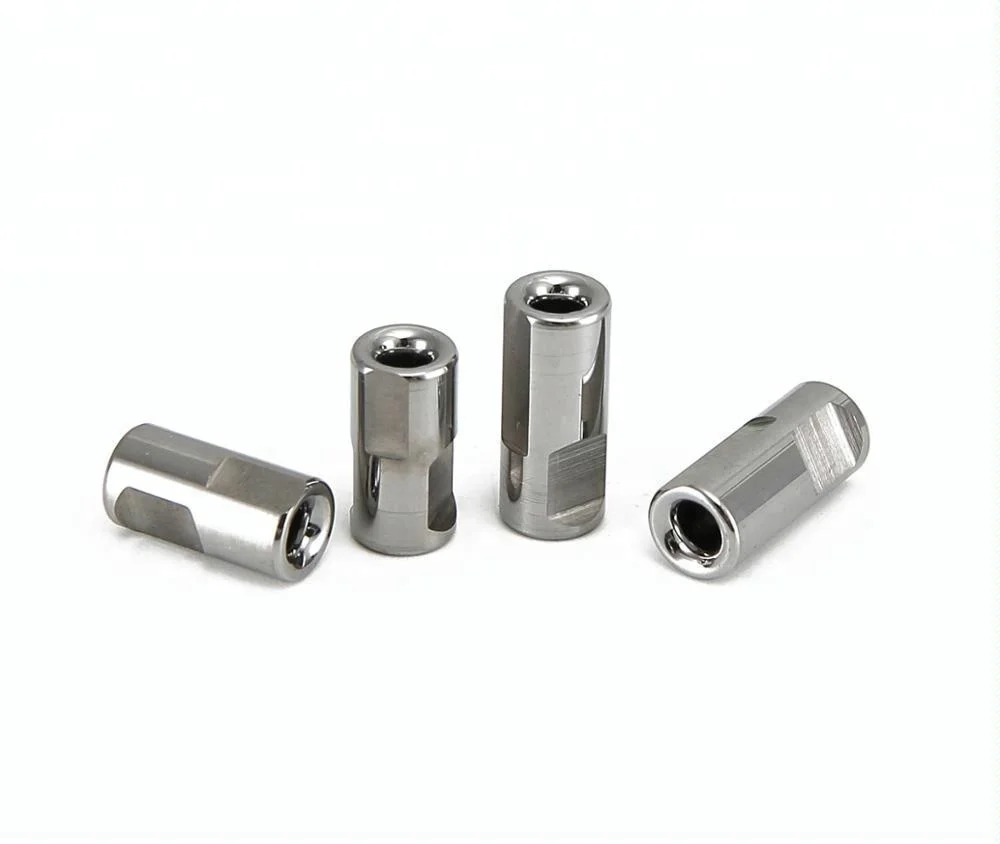

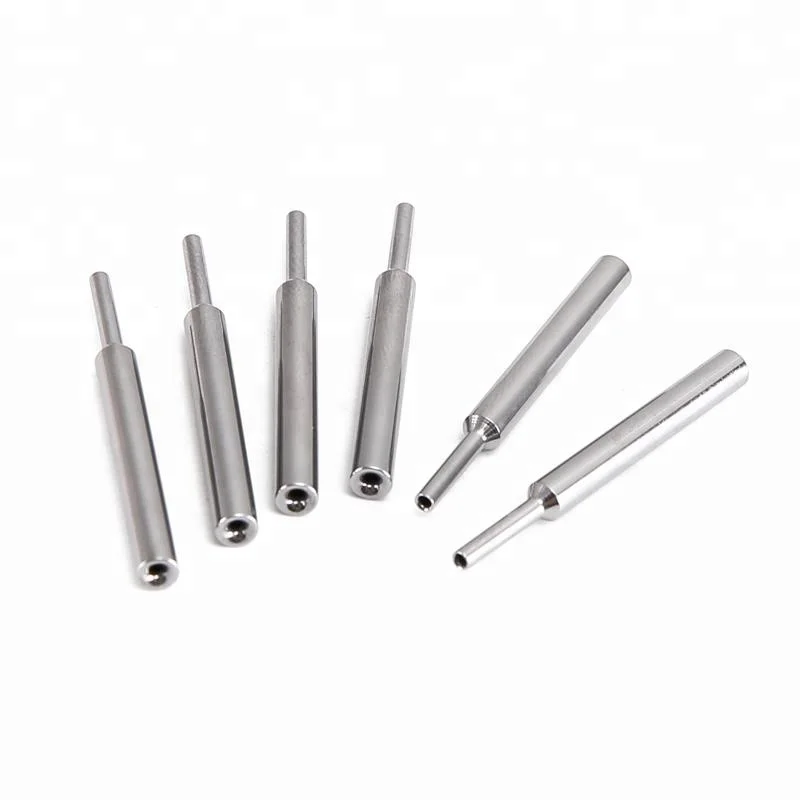

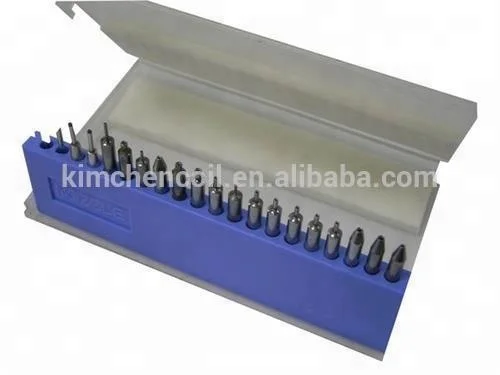

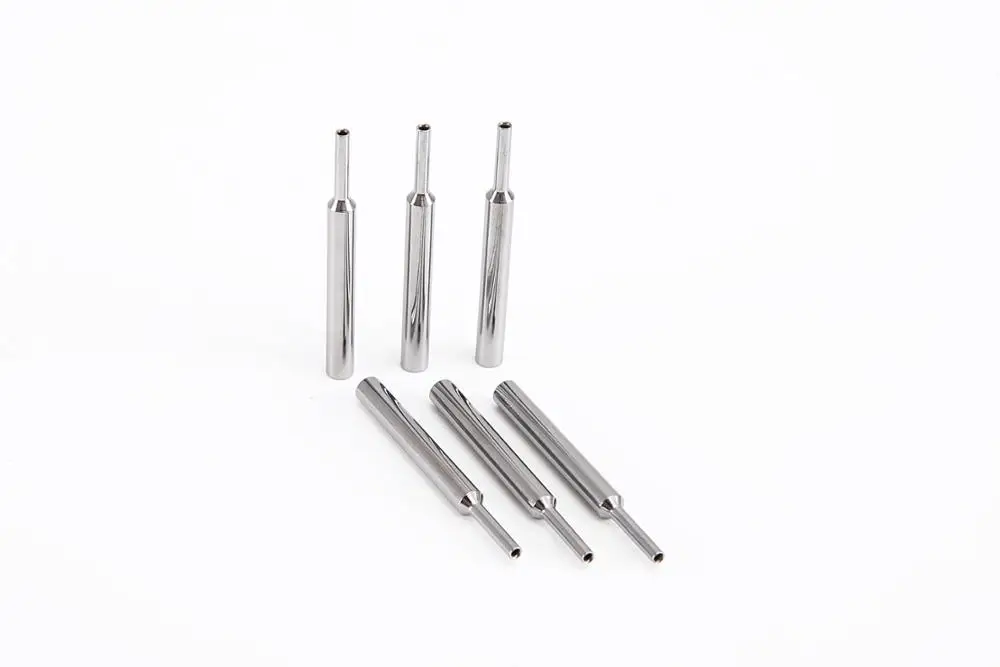

Tungsten carbide nozzle
Product Description

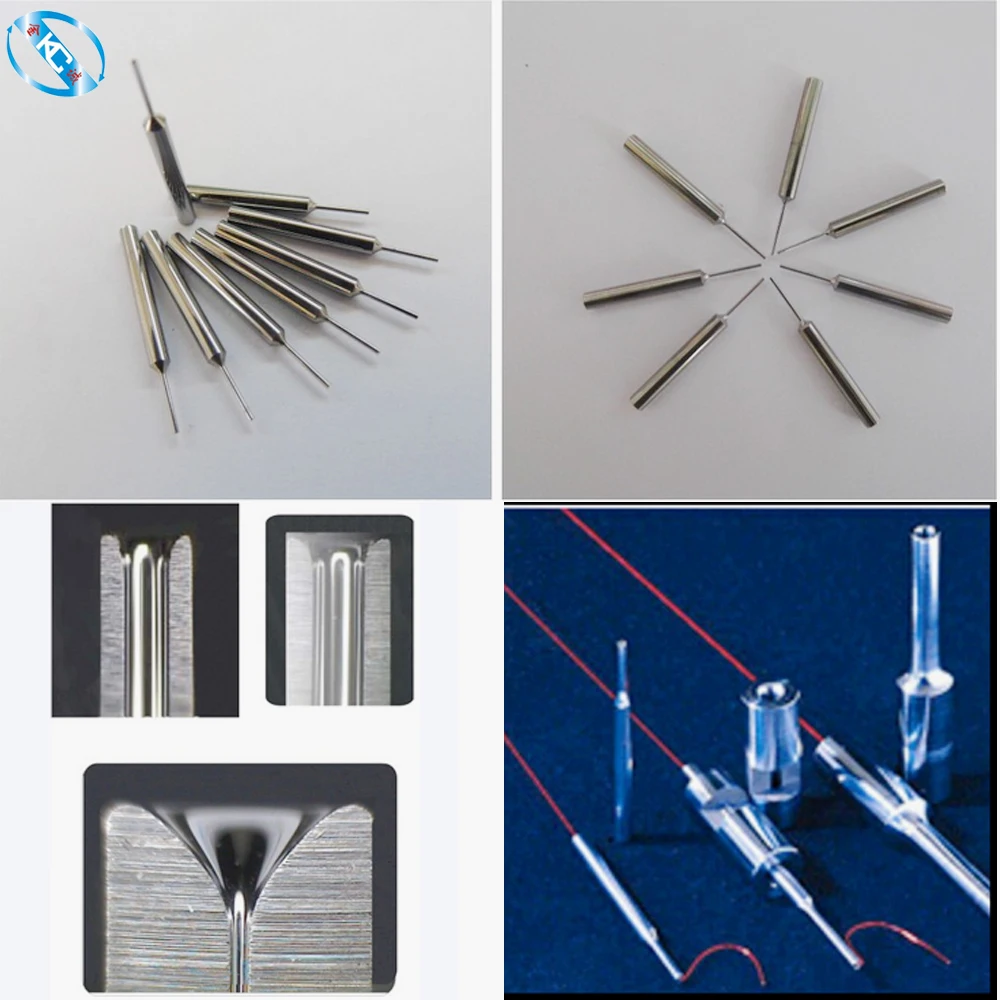

Tungsten Carbide Nozzle is made by the precision machining with the tungsten carbide materials (super hard alloy). The hardness reached over HRA90 degree while the antibending degree reached over 2300N/mm. We do the precision grinding and surface treatment to achieve Ra0.1 of the bore roughness and the Ra0.025 of the R place of both ends. There is a scientific curvature radius design in the both entrance. This design can ensure a smooth transit of the thread. Due to the overall materials processing, and no elevation in the bore, the phenomenon of easy-bending and plugging has been improved comparing with the ruby nozzle.
This product is assembled by the stainless steel main part and the processed stones.

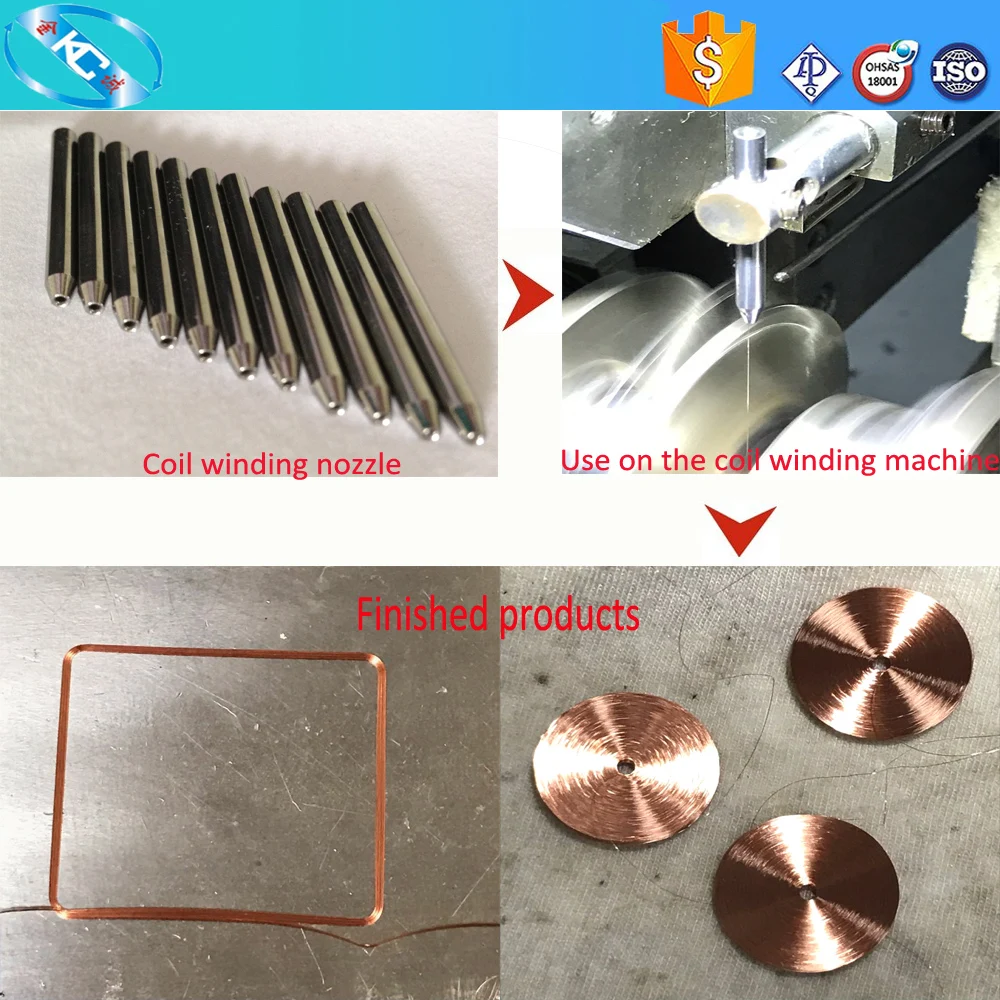

It has been widely used in various types of CNC automatic winding machine.
The nozzle is installed at the end of the mechanical hand of the winding machine, the enameled
wire will go through it and do the winding job under the guidance of its processing.
It is not only the indispensable component of the winding machine, but also the key components
which are used for ensure the quality of processed products. The main function of the
nozzle is the protection of the enameled wire insulation layer.

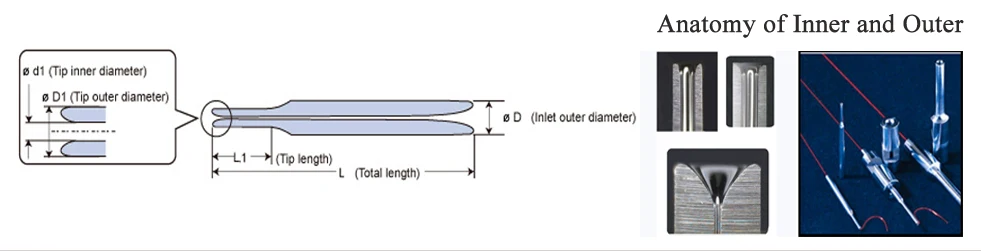

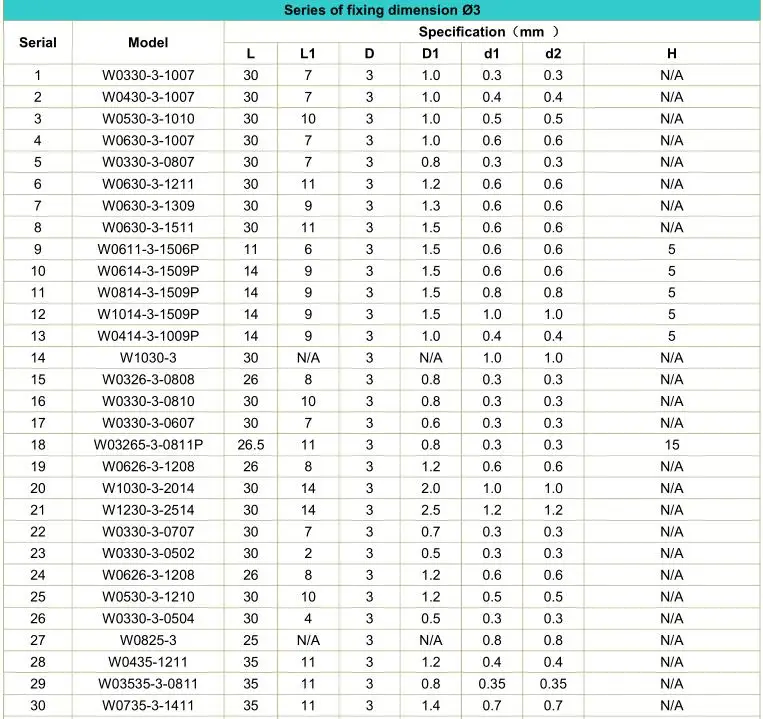

(Products of other specification and technical requirement can be tailored according to the drawing provided by clients . Work limit :d1≥0.2mm D1 ≥0.6mm )
Packaging & Shipping
Our Services
Company Information
KIM CHEN INDUSTRY INTL LIMITED was founded in 2001, the factory is located in Dongguang city. Guangdong provice.
We specialized in the manufacture and RD of the component which is used in coil of wire and tension systems. textile machinery and electrical industry precision ceramics. Such as: coil winding nozzle, coil winding tensioner, tension meter, ceramic eyelets, ceramic coating pulley. etc.
We produce high quality coil winding nozzle which include tungsten carbide nozzle, ruby nozzle and ceramic nozzle. We adopt the excellent raw material and technology to ensure best quality which exceed our customer's expection. Our main customer Mitsubishi, ABB, SVM, YKK. etc, We expect long term relationship with you!
FAQ
| 24 hours online service, welcome to contact us. | |
| Inquiry note | To quote best price for your inquiry, please inform us your type or drawing with dimension and tolerance, quantity etc. |
| MOQ | MOQ could be 20 pieces. |
| But the price will be better as more quantity. | |
| Sample | 1. Samples are available upon customers request ; |
| 2. Sample time is 7 days | |
| 3. Sample sent by DHL,UPS,FEDEX, EMS, etc | |
| Delivery time | For standard types, the delivery time is normally 10 days. |
| For nonstandard type or further processed type, the delivery time is 15 days. | |
| For urgent needs, delivery time may be pushed by negotiation. | |
| Payment method | 1.T/T 100% in advance. |
| 2. Other payment methods such as Paypal, West Union, L/C are negotiable. | |

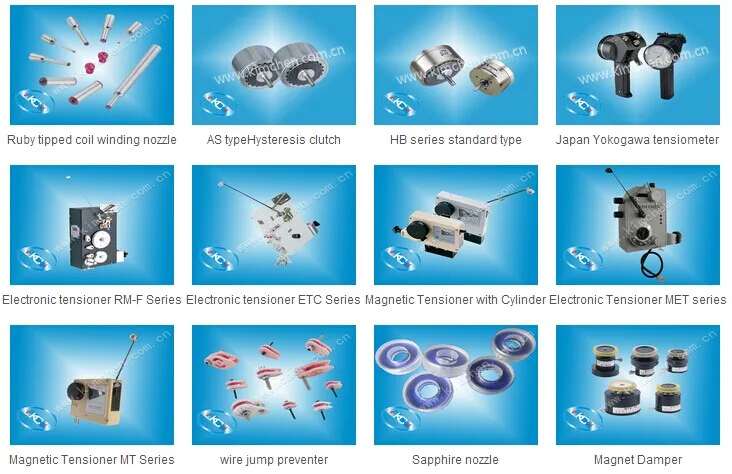

We also provide other relative precision parts
Please fell free contact me for any questions or related demands
Contact: Sunny.Zeng
Tel:+86 769 86018114
Fax:+86 769 86015646
Mobile Phone: +86 13713367842
Or you can send your inquiry here:" Send Now"!!!
