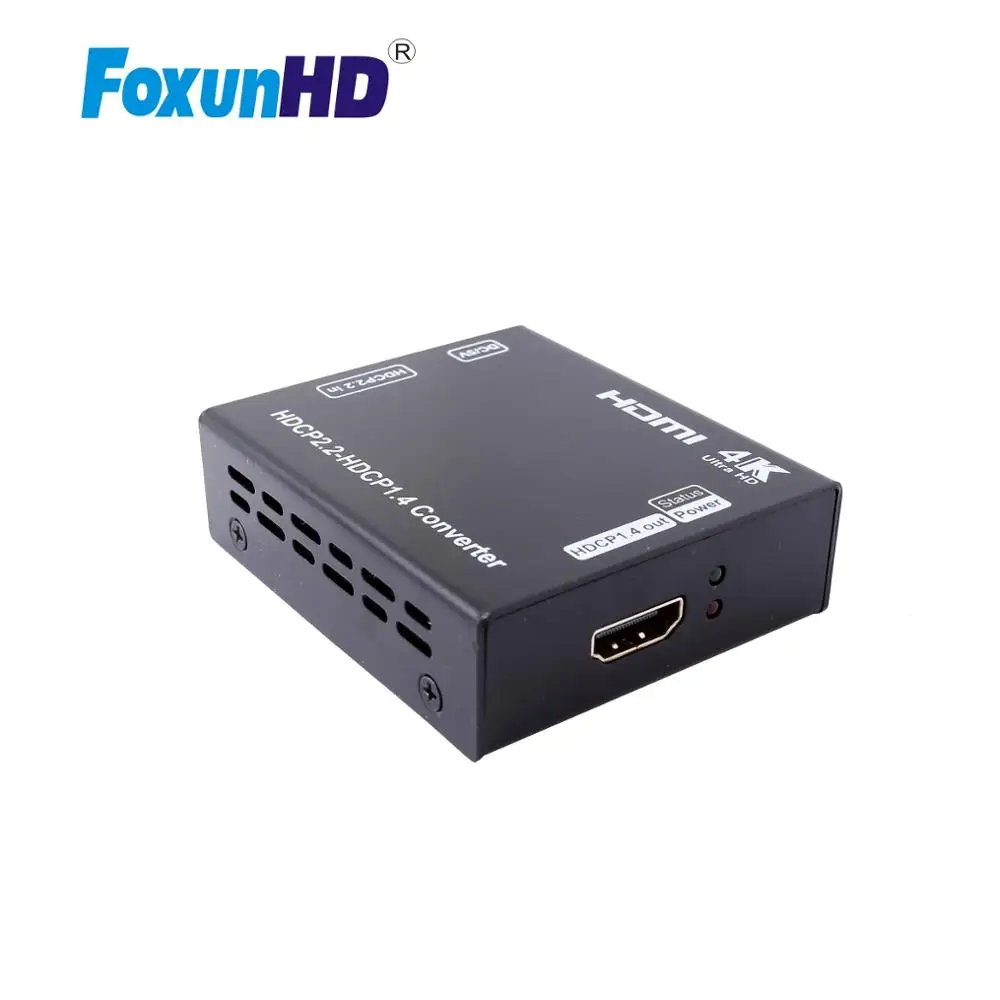

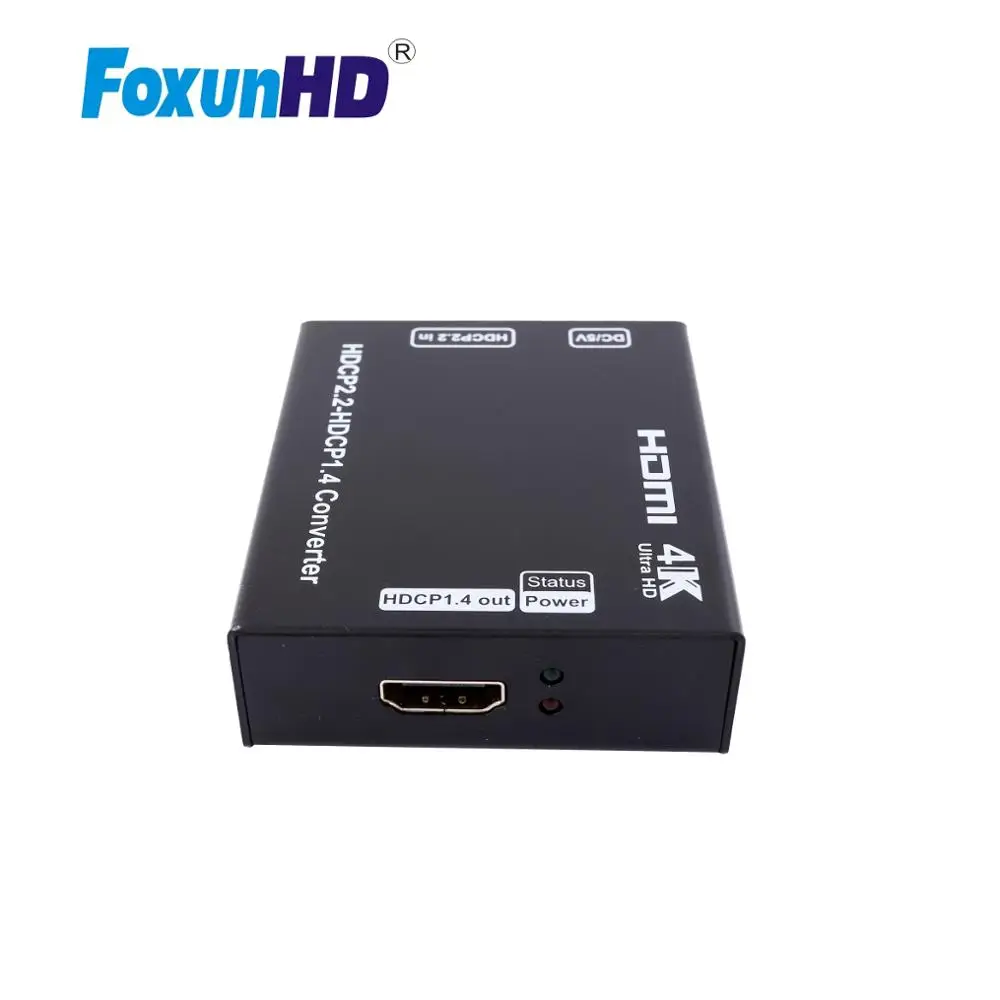

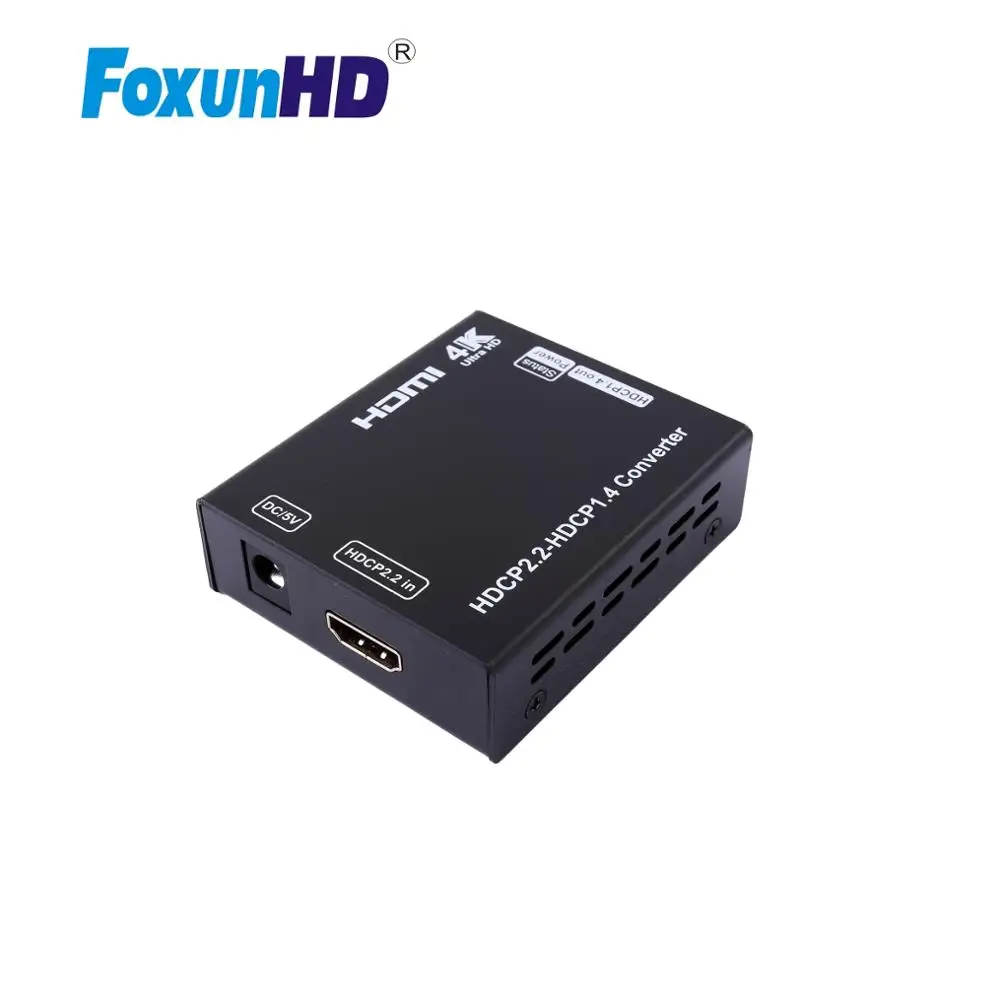

HDCP Stripper, support HDCP 2.2 V in and HDCP 1.4 V out HDMI Converter
- Category: >>>
- Supplier: Shenzhen Shunxun Electronics Co. Ltd.
Share on (60388879749):
Product Overview
Description
Product Description
Product name | HDMI Converter |
Model No | SX-HDCP01 |
Function | Convert HDCP 2.2 to HDCP 1.4 |
Resolution | Up to 4kx2k @60hz ,YCBCR 4:2:0 |
Warranty | 2 years, all of our products have tested before shippment to ensure 99% is good products |

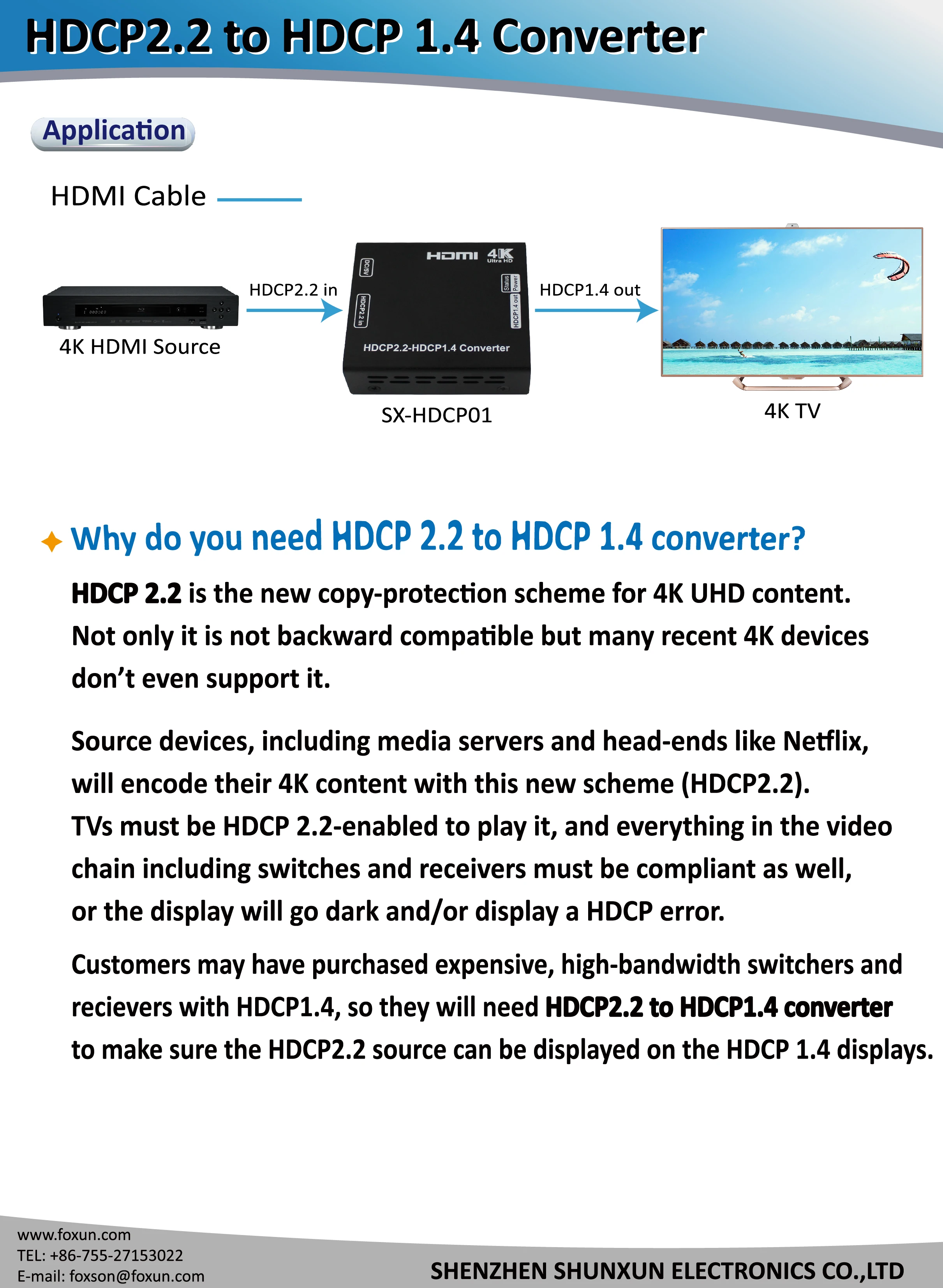

HDCP2.2 to HDCP1.4 Converter
1) HDMI IN, HDMI OUT, compliant HDMI 1.4B. 2) Converter HDCP 2.2 to HDCP1.4.
3) Support 4Kx2K@60HZ, YUV 4:2:0.
4) Support audio format Dolby, DTS, LPCM.
5) Support 3D, CEC.
6) Support 5V 1A.
3) Support 4Kx2K@60HZ, YUV 4:2:0.
4) Support audio format Dolby, DTS, LPCM.
5) Support 3D, CEC.
6) Support 5V 1A.
PACKING CONTENTS
1)Main Unit: HDCP Converter
2)DC 5V 1A x1PCS
3)Operating Instructions
2)DC 5V 1A x1PCS
3)Operating Instructions
Product Paramenters
Operating Temperature Range | -5 to +35℃(+23 to +95℉) |
Operating Humidity Range | 5 to 90%RH (No Condensation) |
HDMI input | HDCP2.2 |
HDMI output | HDCP1.4 |
Video Format Supported | DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P/4Kx2K 3D video support |
Maximum video Format | 4Kx2K@60Hz, YUV 4:2:0 |
HDMI input | 1xHDMI (Standard Type A connector) |
HDMI output | 1xHDMI (Standard Type A connector) |
Support Video Color Format | xv-YCC/deep color 36bit |
Support Audio Format | DTS-HD Master Audio, Dolby true-HD. LPCM |
Power consumption | 1.5 watts(Maximum) |
Dimension (L×W×H) | 70.2*60.2*21.1mm |
Net Weight | 120g(pcs) |

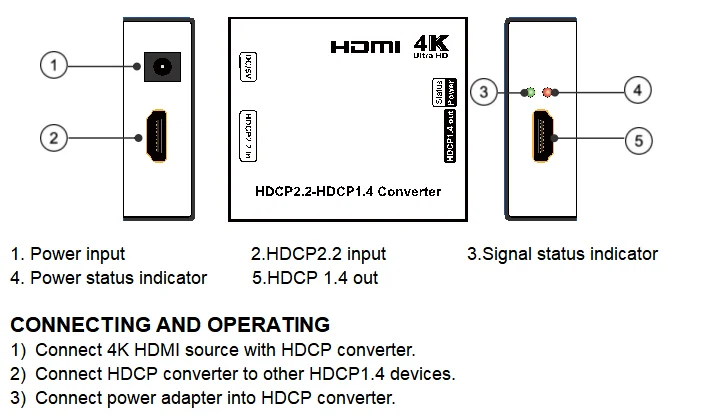

Hardware Description

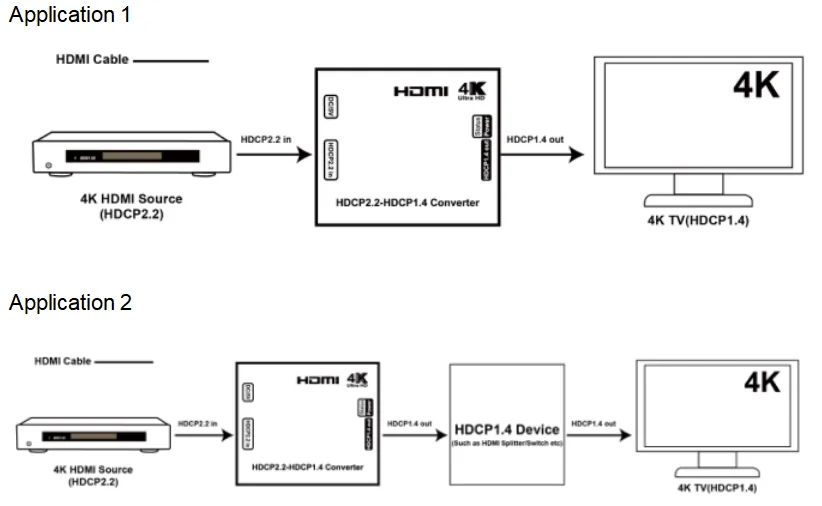

Connection Diagram
