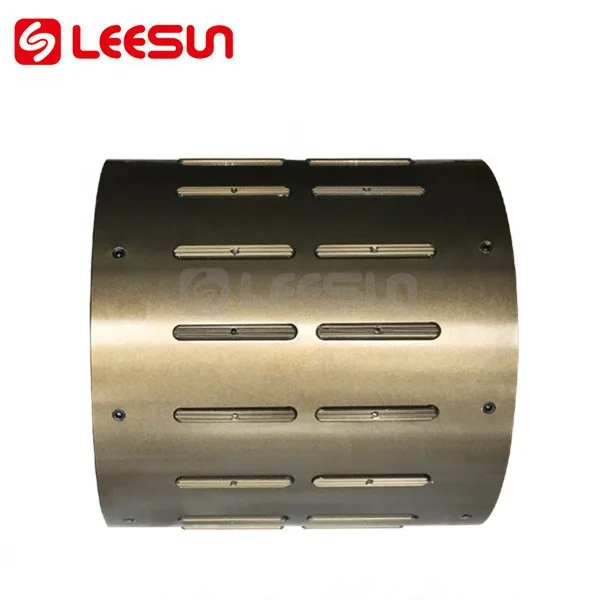

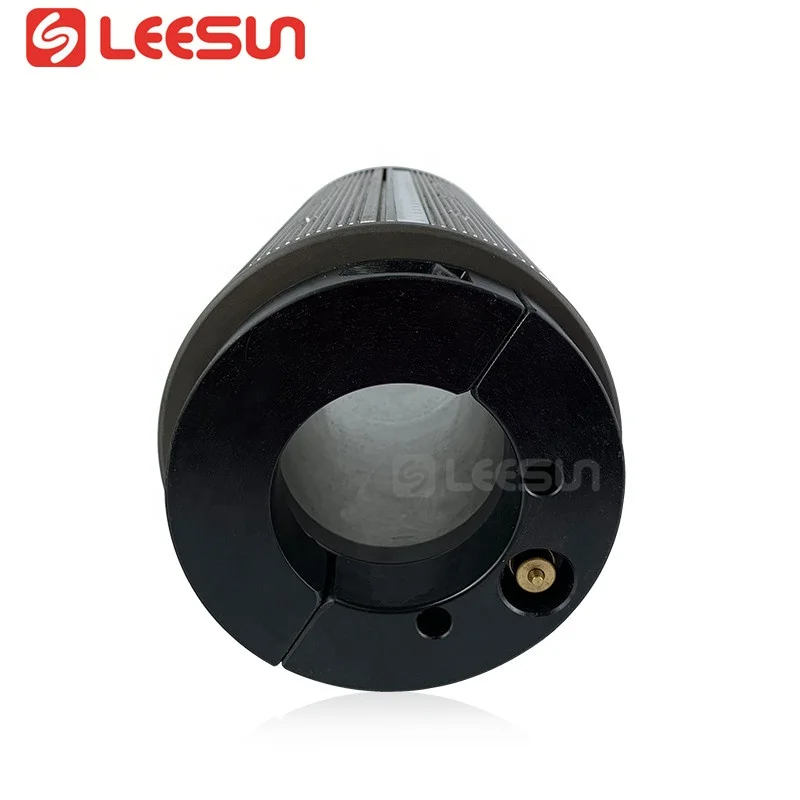

LEESUN PC 001 01 Air расширяющиеся барабаны/Воздушный вал/пневматический вал 3

Product Overview

Description

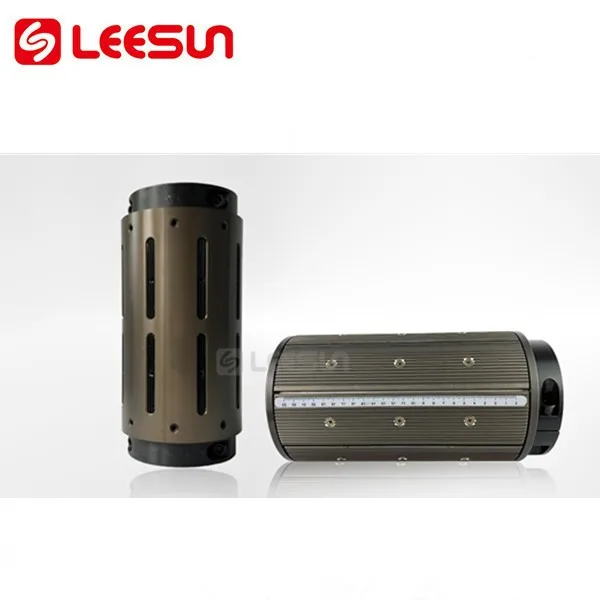

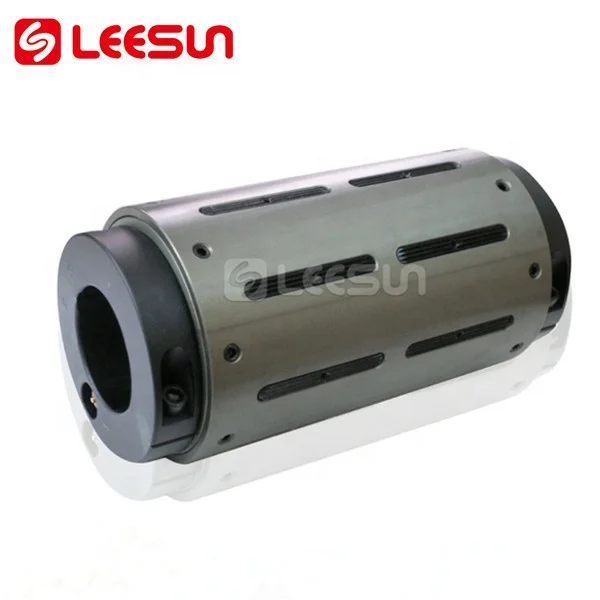

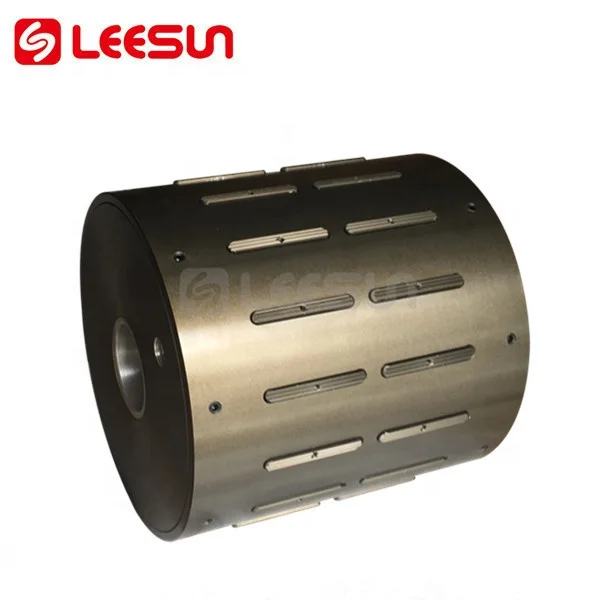

Pneumatic chuck  features:

A. Air cover has key type and drum type, drum type air cover also called air drum.

B. Usage: Set outside the 3 inches air shaft, can achieve the six inches efficient.
C. Inner bore Ø 76mm, outside diameter is 150mm, the length is according to the customers' request.
D. Adopt the high quality aluminum alloy hard oxidize, the surface color is tawny, use convenient.

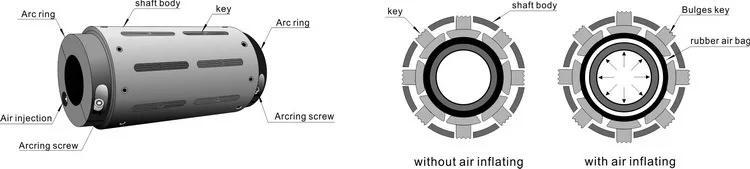

E. After gassing it is equal to 6 inches air shaft, outside diameter can reach 155-158mm
F. The surface of key bar length is 100mm, width is 8mm
G. The outside of air drum surface, which part bulge ia made by rubber, having been produced with the design being finalized, we have stock. Total length ID 190mm.
Note: The length of the air cover is determined by the customers' needs.

Note: The length can be customized according to your requirements.



Pneumatic chuck Purpose

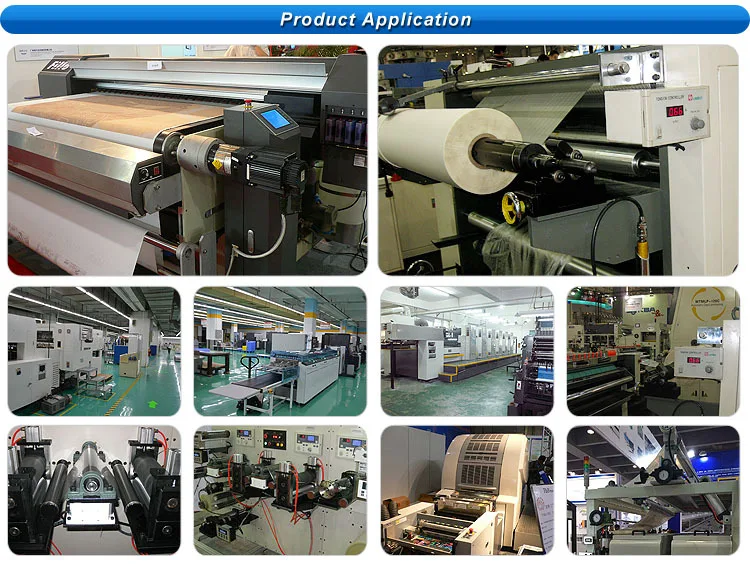

It is applicable to winding,unwindingshaftoftherelatedmachineincoating,cutting,printing,compounding,paper making,

bag makeing,plastic items and it can improve the working effciency effectively.

 Pneumatic chuck  Peculiarity

• Main body of the shaft utilize the hard chromiun plating steel pipe;


• It has aluminum sharps with flexible scalability;


• Deploying high quality rubber bladder ;


• Rapid aerating ;


• Exhausting gas nozzle with good sealing effect;


• Long service life;


• It ihas removable shaft with simple maintenance.







Specification	3" vs 6"	3" vs 8"	3" vs 10"	3" vs 12"
External dia. w/o air inflating ( Φ mm)	148	200	200	208
External dia. with air inflating ( Φ mm)	156	208	262	310
Apply to reel pipe with internal diamter ( Φmm)	149~153	201~205	252~256	302~305
Weight calculation (kg)	appx. 9.5	For special calculating

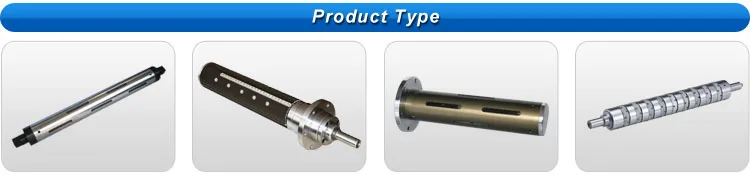

 Maybe you will interested in  air expanding shaft?

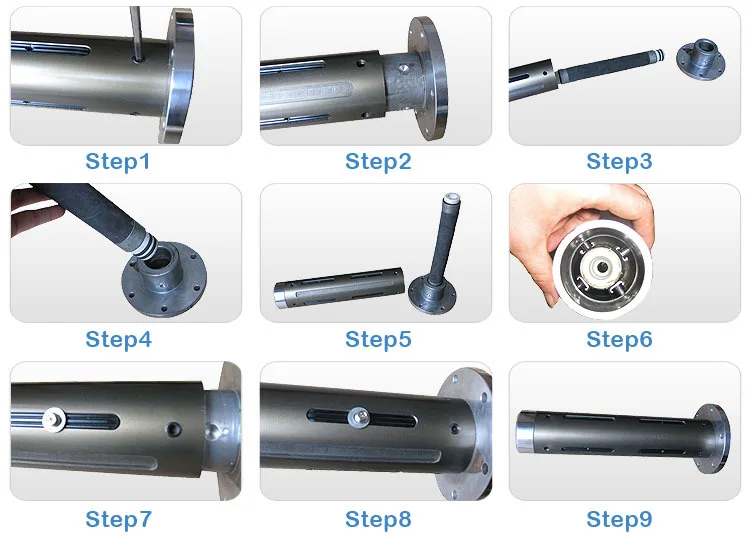

Key Type air expanding shaft   mounting steps
