Top Quality API Shale Shaker Of Oilfield For Sale

Product Overview

Description

1,The main parameters:

Model	GNZS752E-DM	GNZS703E-HB	GNZS703E-DZ	GNZS594E-HB	GNZS594HGE-LD
Vibration Mode	Linear Motion
Capacity	45m3/h(200GPM)	120m3/h(528GPM)		140m3/h(616GPM)
Vibration Motor	2×0.75Kw	2×1.72Kw			2×1.94Kw
Screen Qty	2pcs	3pcs		4pcs
Screen Size: L×W	750×900mm	700×1250mm		585×1165mm
Screen Area	1.35m2	2.63m2		2.73m2
Adjustable G Force	≤7.1G	≤7.5G			≤8.0G
Vibration Amplitude	3.92~5.62mm	4.14~5.96mm			4.4~6.34mm
Deck Angle Range	+2°	-1°~+5° (Adjustable)
Feeding Type	Box Feeder	Weir Feeder	Box Feeder	Weir Feeder	Hopper Feeder
Weir Height	710mm	895mm	1042mm	895mm
EX Standard	ExdIIBt4 / IEC EX/ ATEX
Weight (Kg)	893	1675	1742	1722	1638
Dimension: L×W×H(mm)	1676×1689×1062	2717×1998×1428	2419×2055×1474	2937×1998×1428	2761×1998×1428
Remarks:	Low Weir Feeding Shale Shaker GNZS703E-LW weir height 500mm is available for option



2, Company information:

Dongying Xincheng Petroleum Technology Co., Ltd. was established in 2003 and located at the second oilfield

of China —Shengli Oilfield. We have the specialized technicians, senior engineers and peofessional marking team. The company is  committed to develop, manufacture and supply a variety array of  oilfield equipments, the main products include : Petroleum  equipments & tools such as drilling equipments, production equipment,tubular goods, Wellhead quipments, downhole equipments, well control equipments, cementing tools etc.;Petrochemicals.

We have established a complete quality control system,  all products& equipments manufactured as  per international standard and API standard.

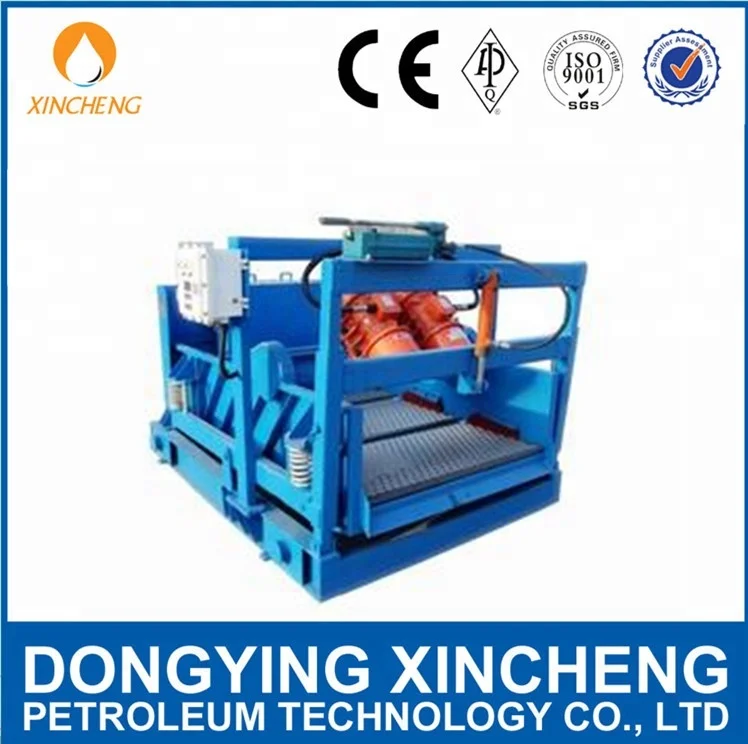

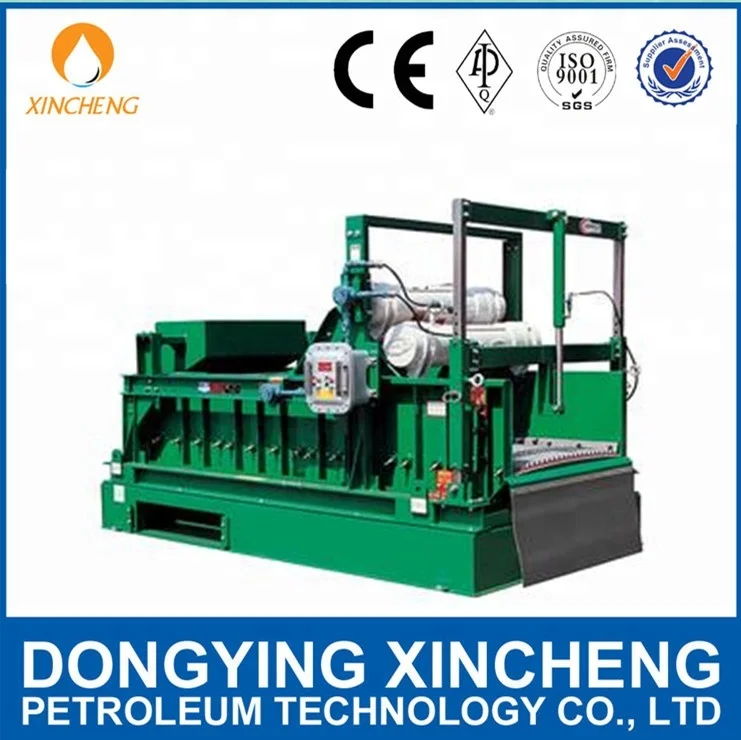

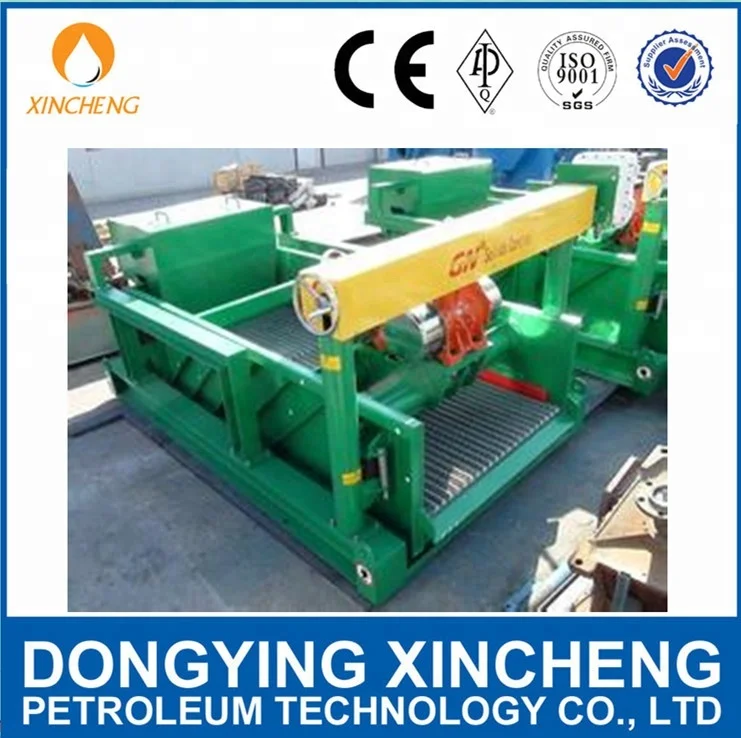

3,Pictures:
