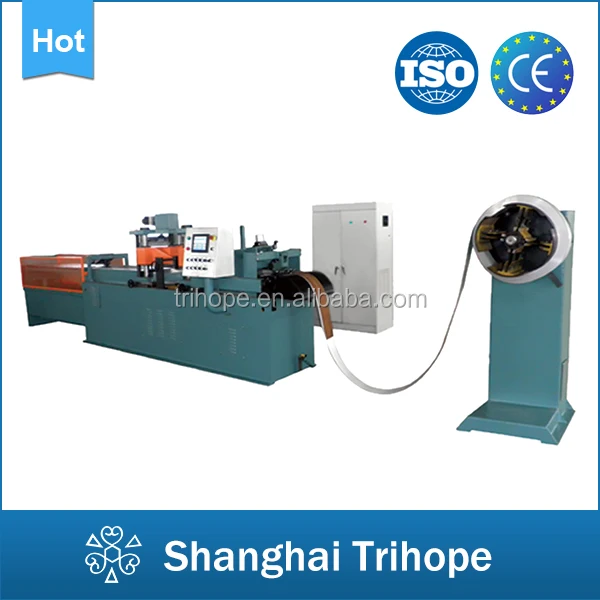

1)Be specialized equipment for production of the core of transformer.
2)Easy to operate automatically and fine accuracy with AC servo motor, PLC, and touch screen.
3)The feeding device utilizes servo system to make sheets width and positioning automatically.4)Stacking utilize servo system positioning to increase the stacking accuracy.It makes the sheets stack automatically with magnetic belt powered by servo motor. It has the features of easy maintenance, less floor space and etc.
4)The capacity of production per year is 600MVA for distribution transformer in 2 shifts.
2.Main Parameters
1.Processing range:
Core steel thickness
0.23—0.35 mm
Core steel width
40—400 mm
Length of cut
350—2200 mm
2.Processing tolerance:
Cutting length tolerance
± 0.10mm when L ≤ 1000, ± 0.15mm when L ≥ 1000.
Angle
± 0.025 °
Maximum burr
≤ 0.02mm
3.Productivity:
Feeding line speed
5—200m/min
Cutting speed
Max 50 pieces/min (Combination of yoke and side leg, W=120, L=1000 on condition of stepless, no punching)
4.Required working condition:
Rated Power
P = 19 kw
Power source
three-phase AC 380V 50HZ ± 10%
5. Overall dimension:
L 13000mm * W 2050mm * H 1800mm
6.Single mandrel working parameter:
Maximum load capacity:
1500Kg
Coil Inside diameter
500mm
Coil Outside diameter
≤ 1000mm
Coil Width
40—400mm
Decoiler line speed:
0— 200 M / min Stepless Speed
The mandrel diameter variation:
450 — 520mm
7. Feeder
Servo motor
2 kw
Encoder
5000line
Feeding speed
0~190 M/min
Feeding roller diameter
120 mm
Feeding roller width
450 mm
8. Punching station
Punching fine adjust range
up to 220 mm
Punch stroke
10~15mm
9. Notching station
Notching depth
max 200mm
Notching angular
90-degree angle
Notching stroke
10~15mm
10.The source of main parts is as following:
Touch-screen
Mitsubishi
Encoder
Hedss
Servo driver
Mitsubishi
Servo motor
Mitsubishi
PLC
Mitsubishi
Frequency control devices
Mitsubishi
Electrical element
Schneider
Line guide
TBI Taiwan
Ball screw
TBI Taiwan
