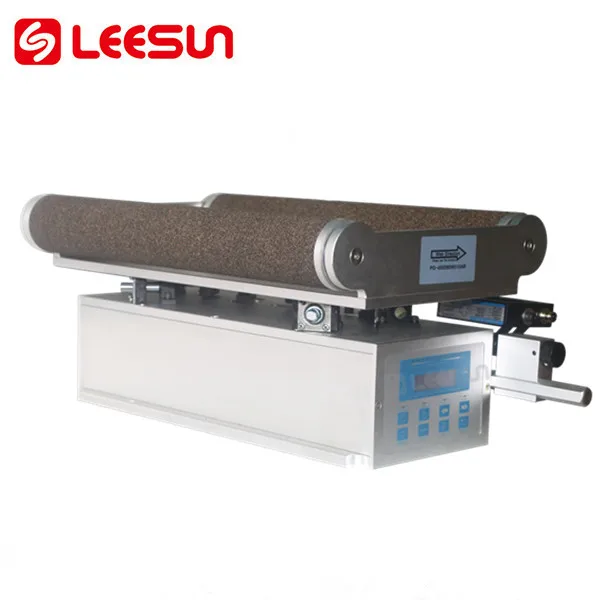

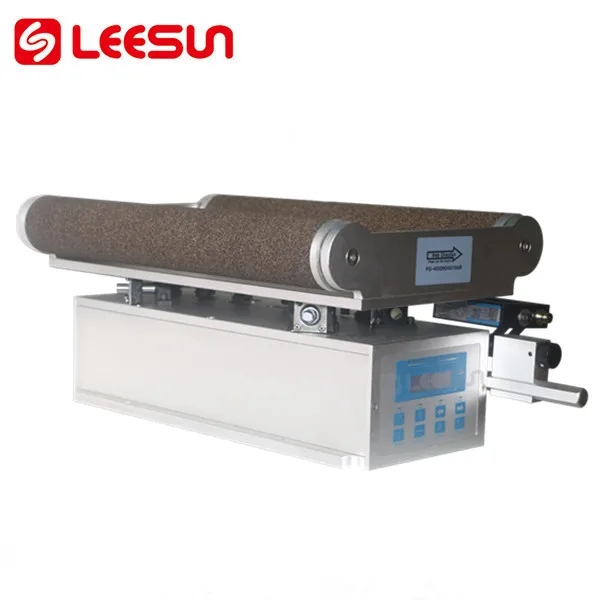

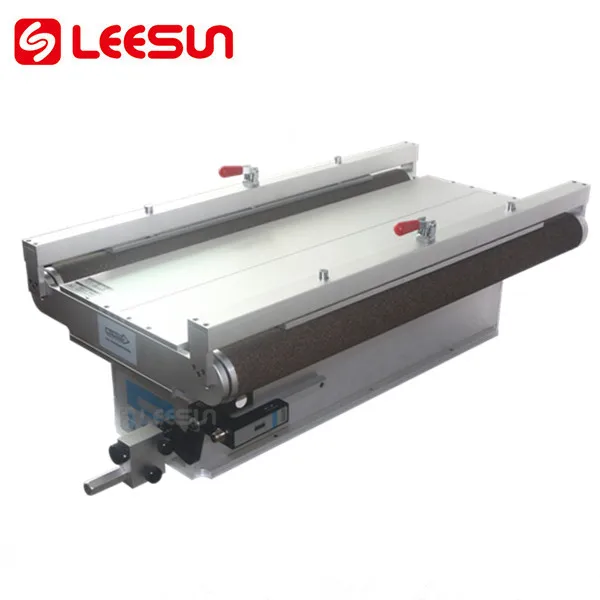

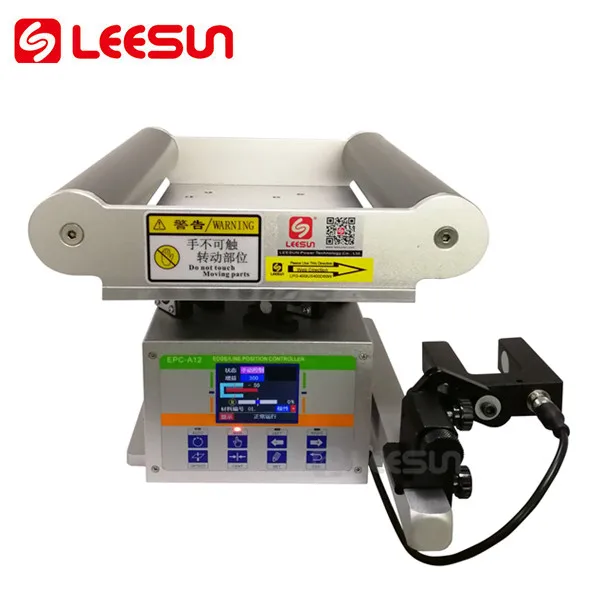

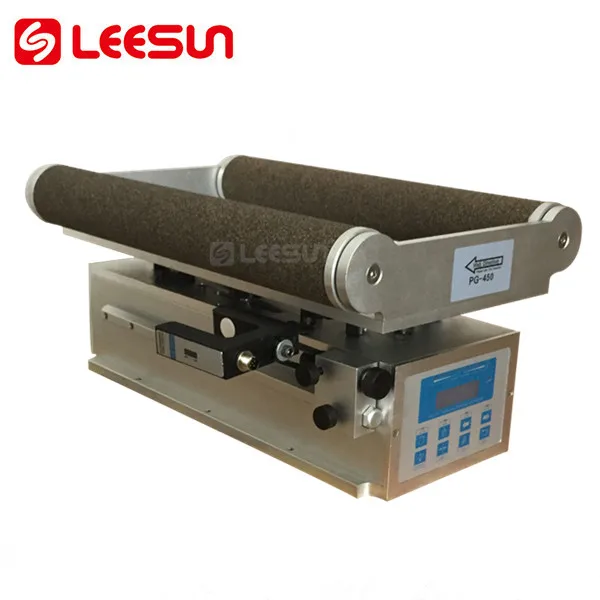

LEESUN ALL- In-One electric automatic web guiding control system
The complete set of Web guide system Product Overview:
Our Newly developed all-in-one web guide controller is applied to accurate correct the narrow range of materials. Especially for label printing, packaging and non-woven industries. All-in-one web guiding controller is with compact design, easy installation and saving space. Controller, driver and detector are integrated which help user to increase high efficiency during installation and debugging.
Models are based on different roller length,and the roller length can be customized:
Guide Rollers Diameter:40mm,60mm,80mm,120mm,etc.
| Model No. | Roller Length L (mm) | Roller Dia. D(mm) | Roller Width C (mm) | Slide Block Height B (mm) | Base Length Y (mm) | Web Guide range (degree°) | Max. Tension (N) |
| PG-200A | 200 | 50 | 230 | 25 | 260 | ±17 | 300 |
| PG-250A | 250 | 50 | 230 | 25 | 260 | ±17 | 300 |
| PG-300A | 300 | 60 | 260 | 25 | 310 | ±17 | 300 |
| PG-350A | 350 | 60 | 260 | 25 | 360 | ±17 | 300 |
| PG-400A | 400 | 60 | 310 | 35 | 410 | ±17 | 500 |
| PG-450A | 450 | 60 | 310 | 35 | 460 | ±17 | 500 |
| PG-500A | 500 | 60 | 310 | 35 | 510 | ±17 | 500 |
| PG-600A | 600 | 60 | 310 | 35 | 610 | ±17 | 500 |
Web guide system Product Features:
1:Brushless servo motor drive, maintenance-free
2:Precision ball screws, positioning accuracy
3:Large travel guide
4:Can be customized guide rollers length and span
5:Guide rollers is optional on hard anodized coating, rubber layer, cork leather
6:Cutting console can be selected with manual / pneumatic clamp.
Web guide system Specification:
| Power supply | AC220V /80W |
| Roller diameter | 50mm / custom made |

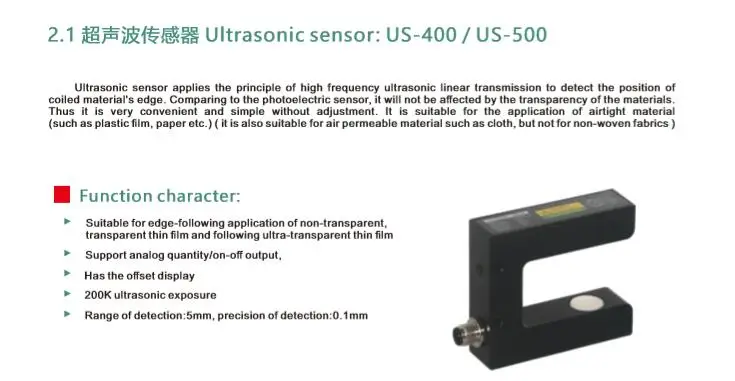

| Support the sensor type | Ultrasonic sensors,photo sensor,CCD sensor |
| Roller width | 230mm / custom make |
| Max. driving speed | 40mm/S |
| Environment temperature | -10~60°C, below RH90% |
How to get your suitable machine or parts ?
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Skype) and let us know your enquiry.
• Discussion:Let us know the model number,like Web guide system PG-280A, specify the items you desire, confirm specification; OEM/ODM consultation.
• Place order as per contract or discussion.
• Perform invoice( sales contract ) In duplicate confirmed and kept by both sides.
• Payment settled.
• Order completed under our arrangement.
• Goods shipped as per contracted term.
• Goods arrive at local port or warehouse, depending on contracted term.
• Support & re-ordering.
Any question about Printing Machinery Parts ,contact with us please,sincere service for you and welcome to LEESUN power!
