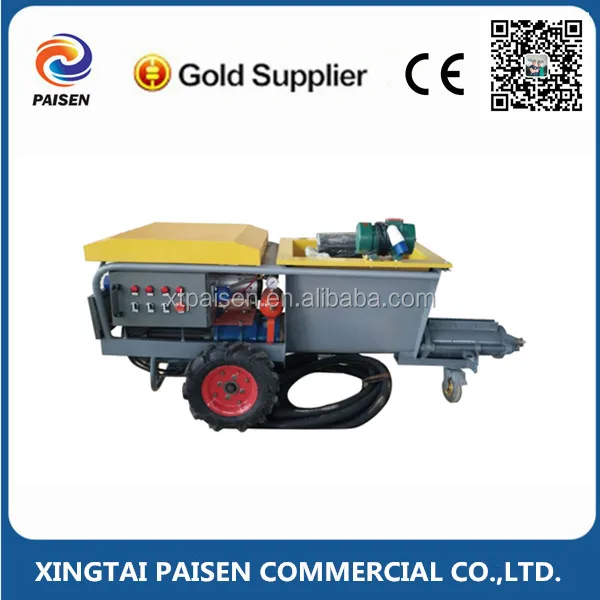

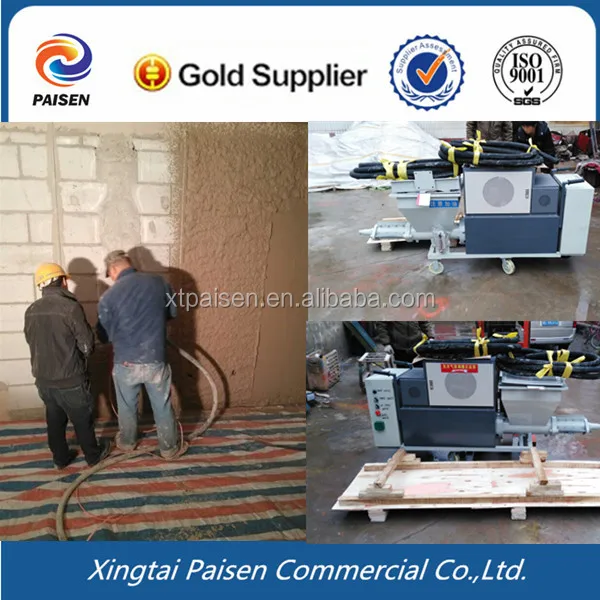

220v single phase/diesel motor cement mortar plaster machine/gypsum putty spraying pump machine for wall

Product Overview

Description

220v/380v/440v screw type cement mortar plaster machine /gypsum putty spraying pump machine for wall

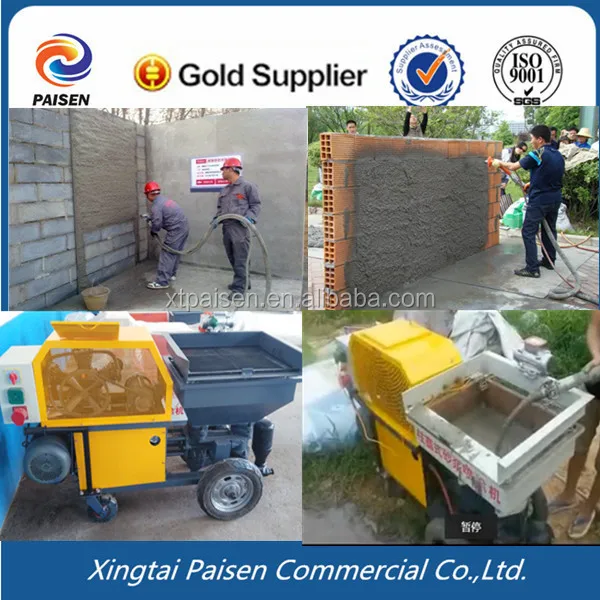

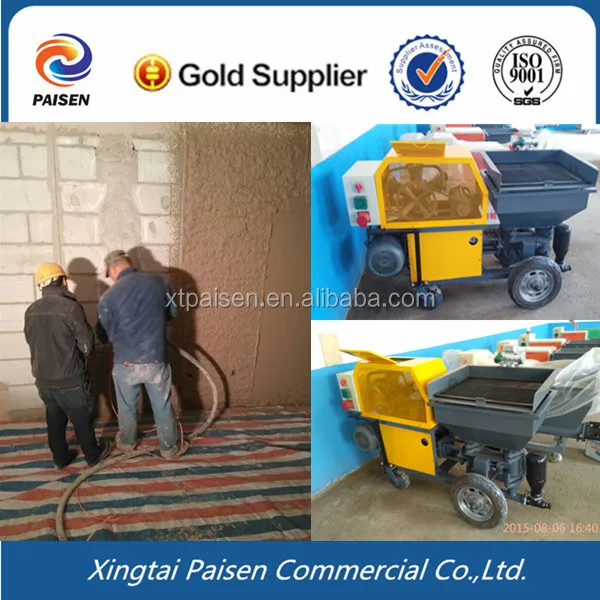

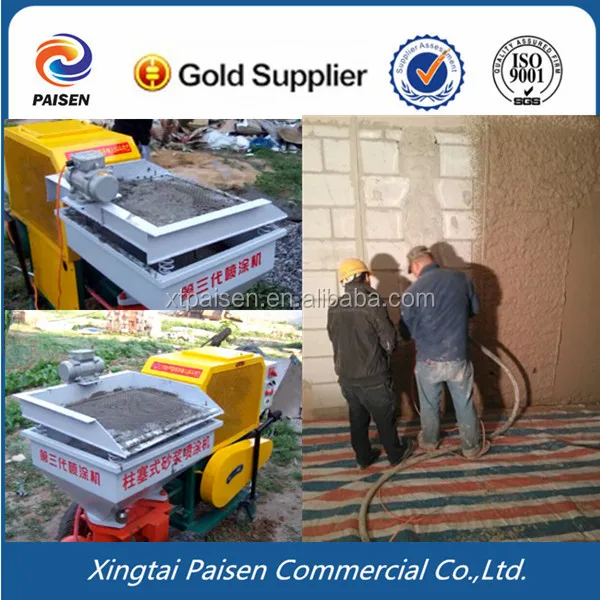

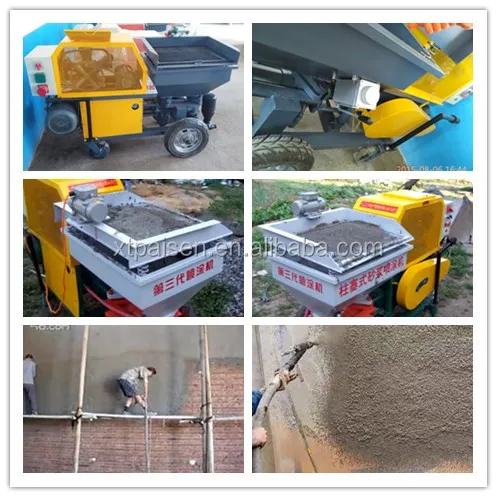

    The cement spraying machine is mainly used in the building construction industry, both inside and outside wall for plastering and spraying mortar, gypsum putty and external wall insulation mortar spraying, the materials can be mortar roughcast, refractory coating, large building spraying fire materials, waterproofing coating and so on.

    It is a new type of energy-saving and environmentally-friendly construction machinery developed by our company and enhanced on the basis of Germany advanced technologies. It’s completely applicable to all types of spraying constructions. it can reach good rigidity and good adhesion, no hollowing and crack.



Application of the mortar spraying machine



1, In the construction engineering industry, the machine is used for horizontal and vertical transferring and spraying mortar or cement.

2. In the chemical and paper industry, delivering the raw pulp material and waste materials.

3. In coal-fired power plants , the machine is used to deliver the fine coal mortar.

4. In the mining tunnel construction industry, the machine is used to grout and protect slope.

5. In the highway pavement maintenance, it used for road surface collapse pressure mud filling.

6. In Prestressing structure construction, the machine is used for cement road surface collapse pressure mud filling.

7. In water conservancy engineering, it is used for reinforcing the dam.

8. In metallurgy, steel and other industry, the machine is used to maintain the blast furnace and slurry infusion of the other equipments.





Lubrication and operation attention



    Keep regular lubrication in the gear box. The lubrication oil should use gear oil, and examine the eccentric gear and bearing parts on time.

1, must keep the machine in a stable position.

2, must keep the gear box always having oil.

3,examine each hose and pump, keep it unblock.

4,must keep the hopper having materials when spraying.

5, before using, put 5L water into the hopper, start the machine to pump the water ,so as to wet the hose, hopper and pump.

6, after using , discharge the rest of cement, and put water to pump, so as to clean the hopper, hose, spraying gun in case of blocking the machine.





technical data of the cement mortar spraying machine



Type	PS-311	PS-511
Production Capacity	3.5m³/h	4m³/h
Working Pressure	3MPa	5MPa
Rate of Applicable Materials	Water:Mortar:Sand=(0.7-1):1:3	Water:Mortar:Sand=(0.7-1):1:3
Horizontal Delivery Distance	40m	50m
Vertical delivery distance	20m	30m
Inner diameter of air hose	10mm	10mm
Maximum Aggregate Size	≤6mm	≤6mm
Hopper volume	80L	80L

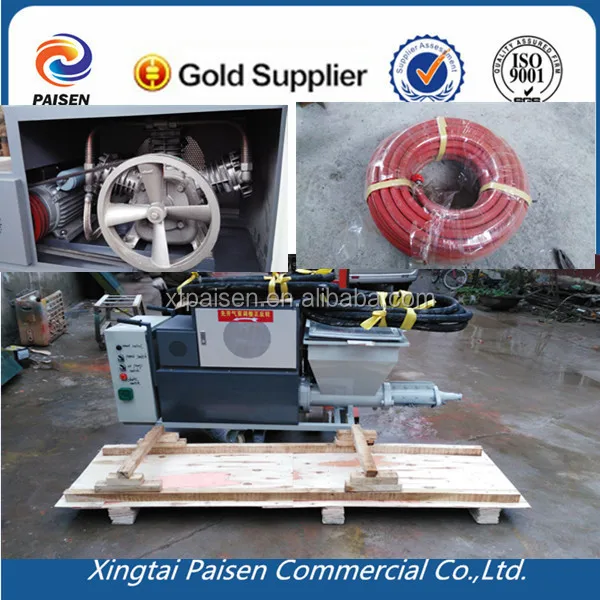

Air Compressor	0.25m³/h	0.4m³/h
Motor Power	7.5KW	7.5KW
Voltage	220V/380V	220V/380V
Dimension	1800x420x1100mm	2000x480x1100mm
Net Weight	270KG	320KG





Forbid copy pictures!

Attention for the customers:

Make sure find original honest PAISEN factory!

Insurance quality/service guaranteed.

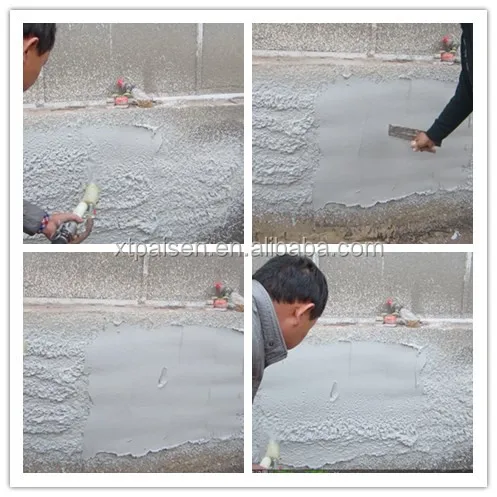

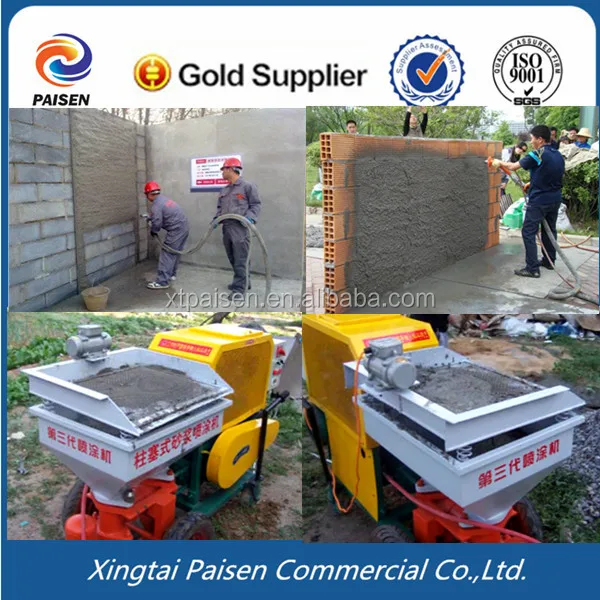

 spray gypsum putty effect

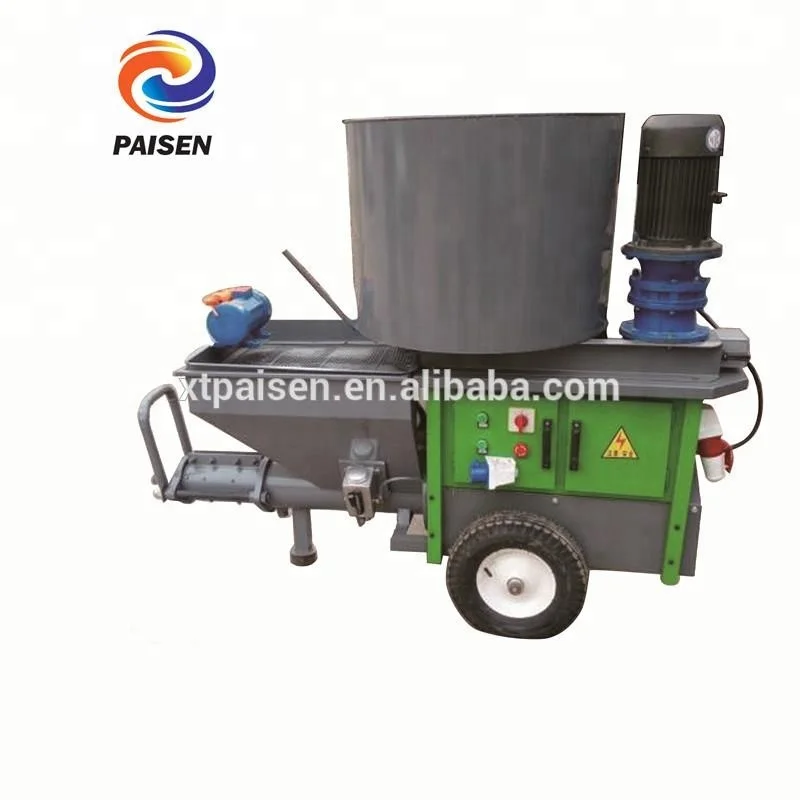

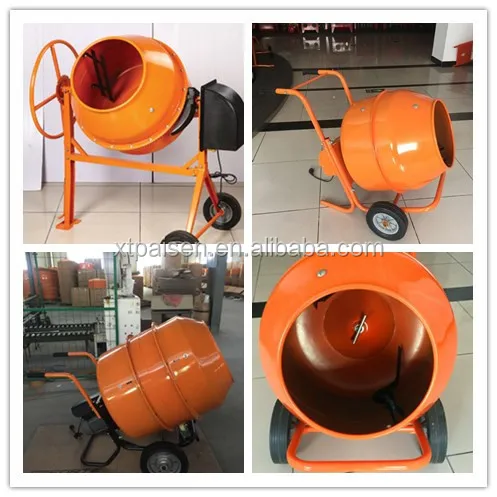

the cement mortar mixer:

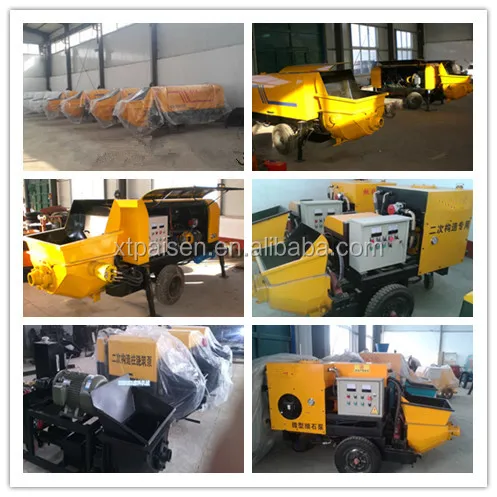

we also have concrete pump, please click here:
