hot dip galvanized ground screw anchor for solar panel mounting system
- Category: >>>
- Supplier: Huanghua Guanghui Hardware Products Co. Ltd.
Share on (60389653287):
Product Overview
Description
hot dip galvanized ground screw anchor for solar panel mounting system
1.Hot-dipped galvanized steel
2.Advanced spiral thread
3.Suitable for all kinds of soild
4.Firm Welding
Product Description

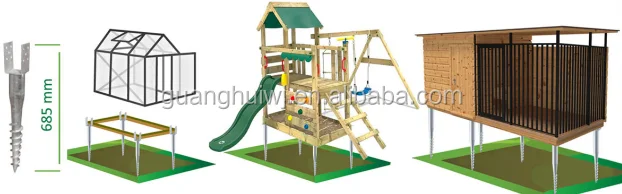

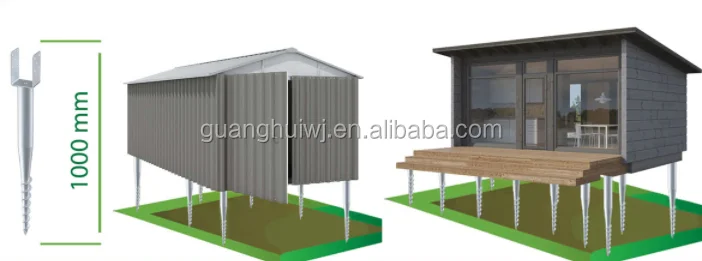

Widely used in construction to fasten and install the fence post, shaky board room, metal wire mesh, Flag poles, Traffic signs ,Bill board,sheds,tent and so on.
detail pictures

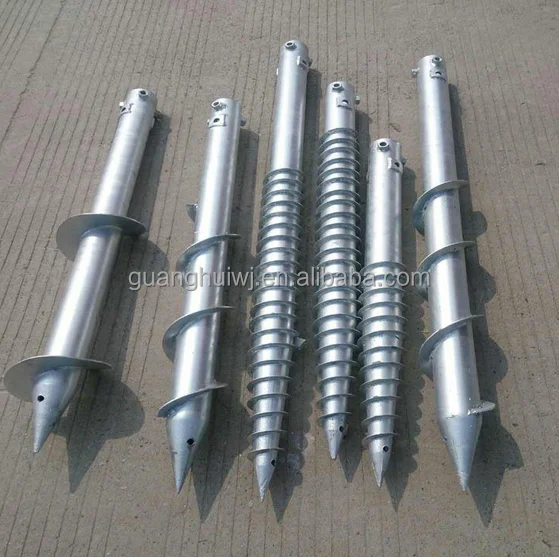

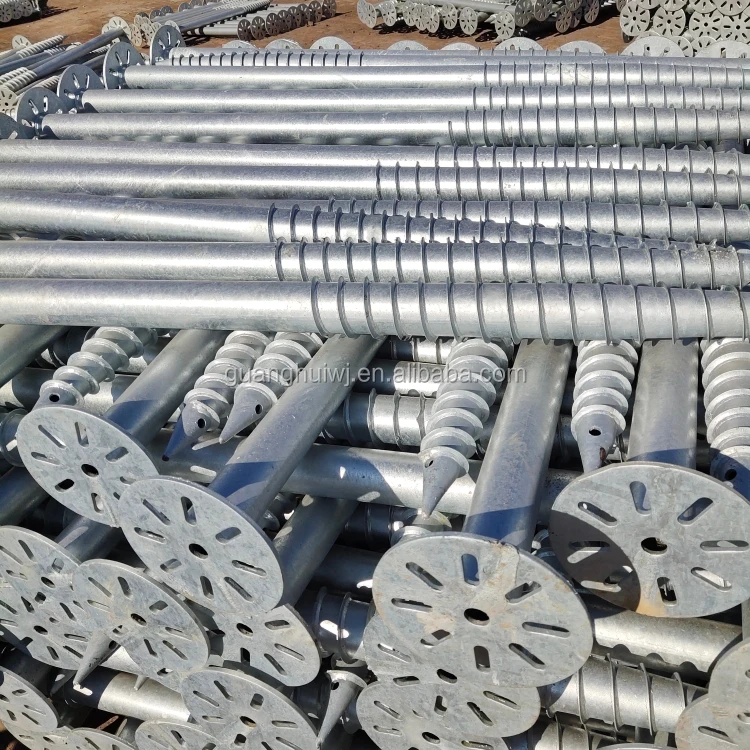

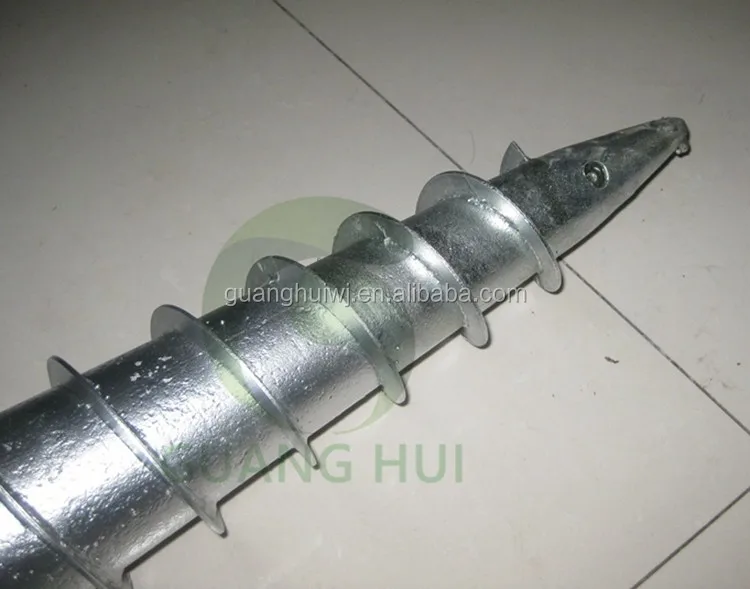

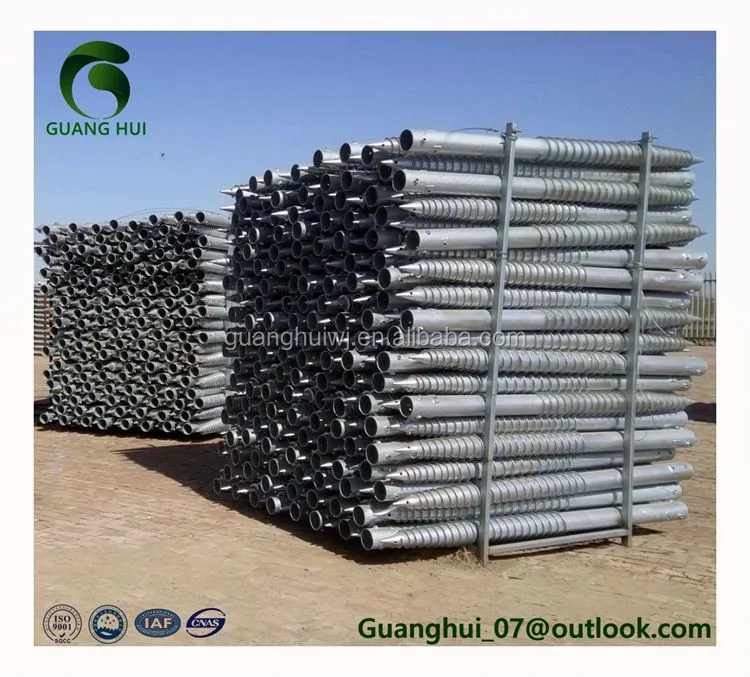

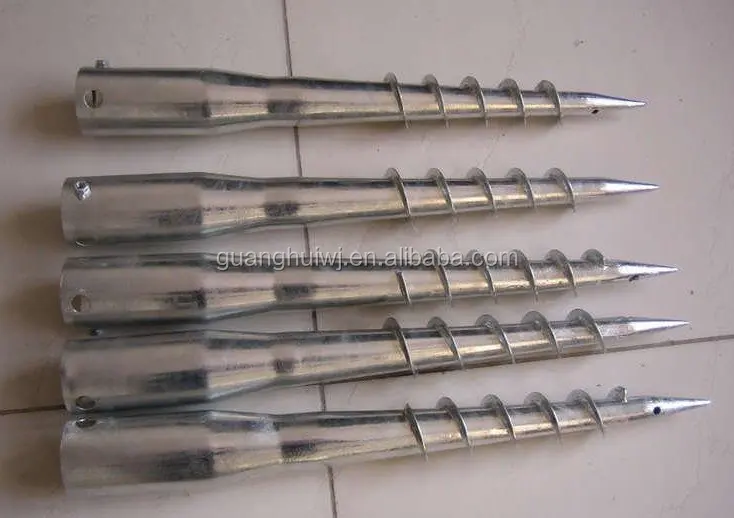

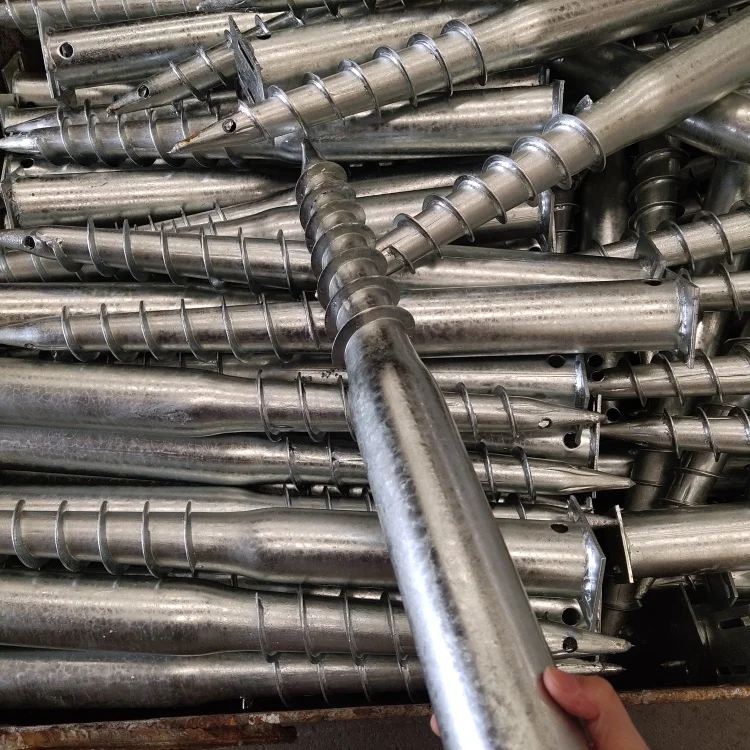

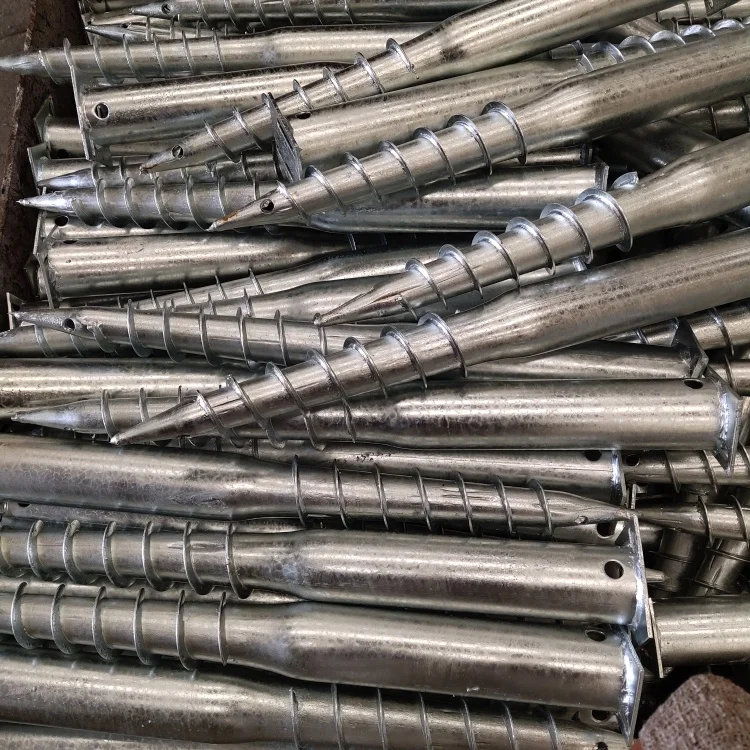

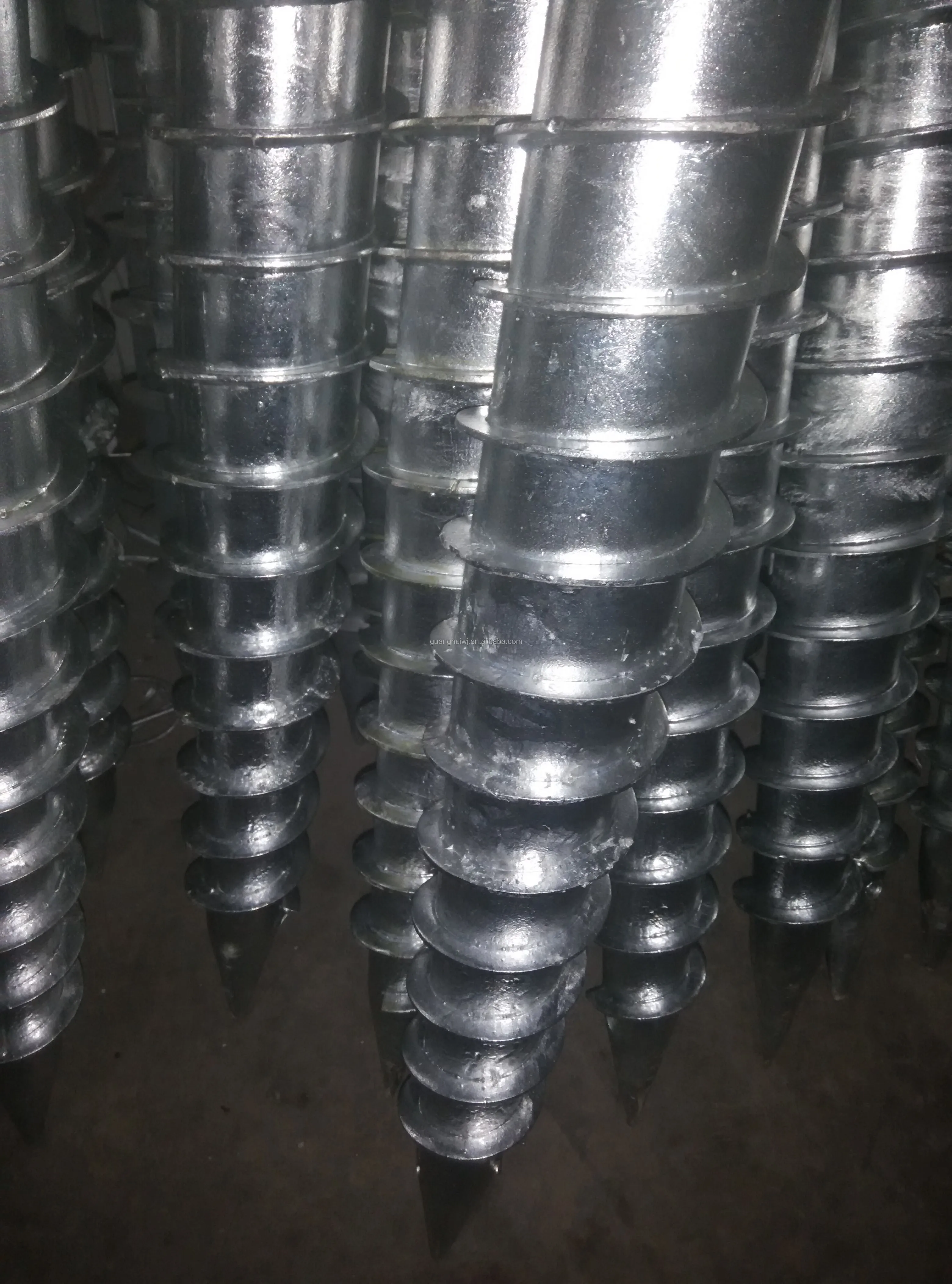

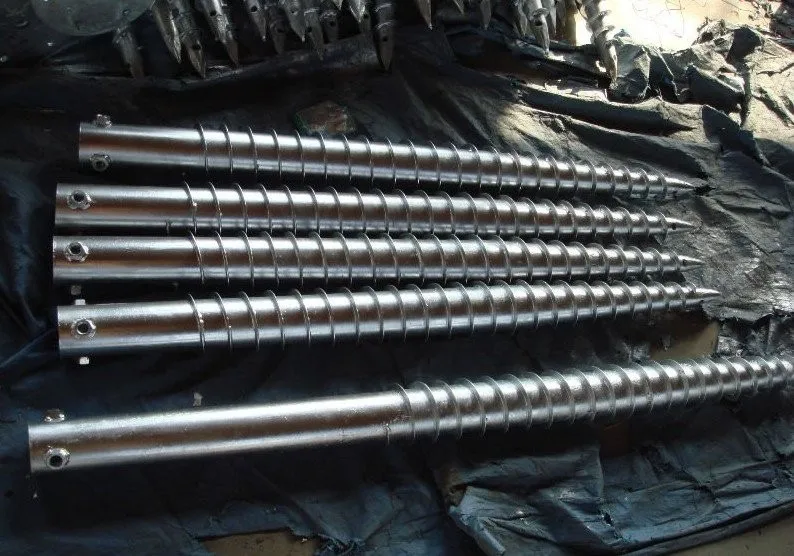

Picture of ground screw anchor
 |  |
 |  |
 |  |
 |  |
 |  |
size information

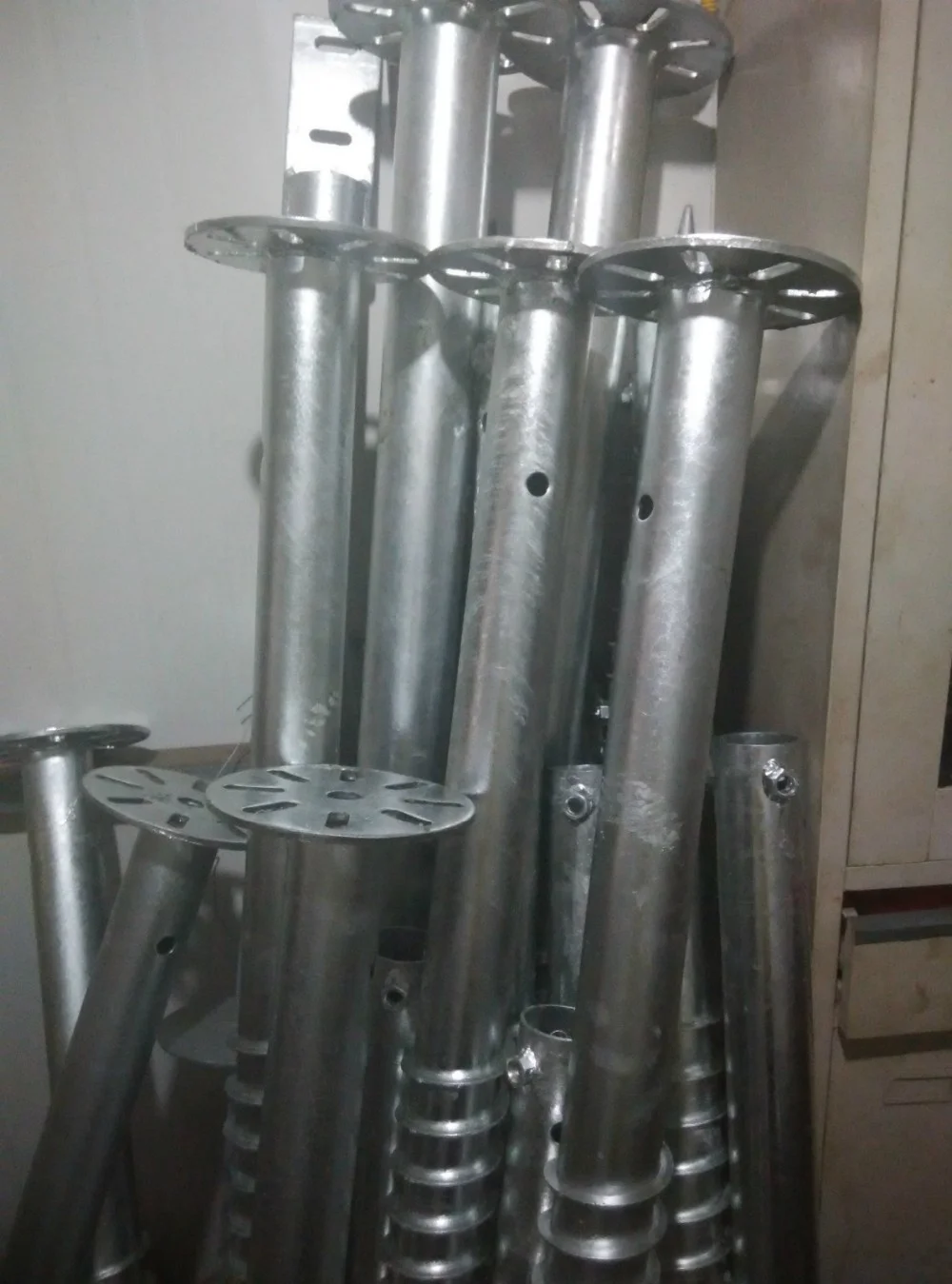

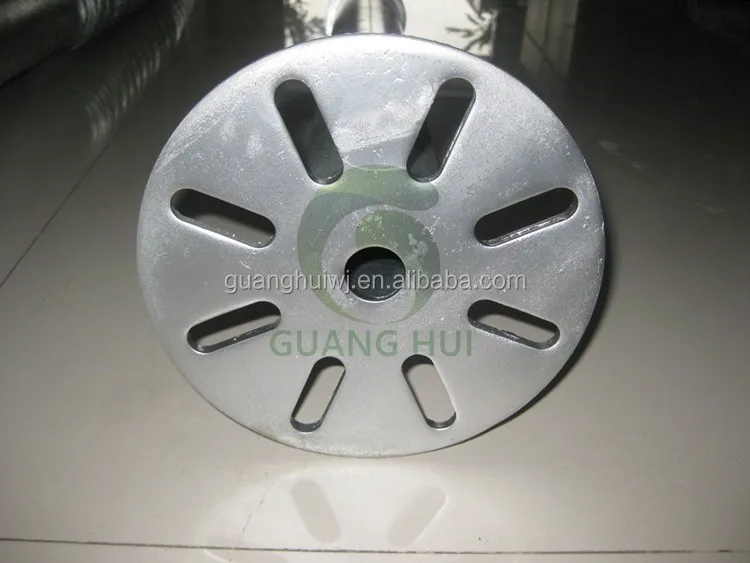

WITH FLANGE
| Specification | Pipe Dia mm | Length mm | Flange Size mm | Pipe thickness mm | Weight(m,kg) |
| GH76X1200-200 | 76MM | 1200 | 220X8 | 3/4 | 9.4 |
| GH76X1600-220 | 1600 | 220X8 | 11.8 | ||
| GH76X1800-220 | 1800 | 220X8 | 15.98 | ||
| GH76X2000-220 | 2000 | 220X8 | 16.4 | ||
| GH76X2500-220 | 2500 | 220X8 | 19.9 | ||
| GH76X3000-220 | 3000 | 220X8 | 23.3 | ||
| GH88.9X1200-220 | 88.9MM | 1200 | 220X8 | 12 | |
| GH88.9X1600-220 | 1600 | 220X8 | 15 | ||
| GH88.9X2000-220 | 2000 | 220X8 | 17.9 | ||
| GH88.9X2500-220 | 2500 | 220X8 | 21.6 | ||
| GH88.9X3000-220 | 3000 | 220X8 | 25.3 | ||
| GH114X1200-220 | 114MM | 1200 | 220X8 | 13.1 | |
| GH114X1600-220 | 1600 | 220X8 | 16.84 | ||
| GH114X1800-220 | 1800 | 220X8 | 18.48 | ||
| GH114X2000-220 | 2000 | 220X8 | 20.33 |
WITHOUT FLANGE
| Specification | Pipe Dia mm | Dia mm(outer) | weight kg |
| 76x1200-T3 | 3 | 76 | 7.60 |
| 76X1600-T3 | 9.75 | ||
| 76X1800-T3 | 10.80 | ||
| 76X2000-T3 | 11.90 | ||
| 76x1000-T3.5 | 3.5 | 7.20 | |
| 76X1200-T3.5 | 7.60 | ||
| 76X1600-T3.5 | 11.10 | ||
| 76X1800-T3.5 | 12.30 | ||
| 76X2000-T3.5 | 13.60 | ||
| 89x1200-T3 | 3 | 89 | 9.00 |
| 89X1600-T3 | 11.40 | ||
| 89X1800-T3 | 12.75 | ||
| 89X2000-T3 | 14.00 | ||
| 89X1200-T3.5 | 3.5 | 10.10 | |
| 89X1600-T3.5 | 13.10 | ||
| 89X1800-T3.5 | 14.50 | ||
| 89X2000-3.5 | 16.00 |
Packaging & Shipping

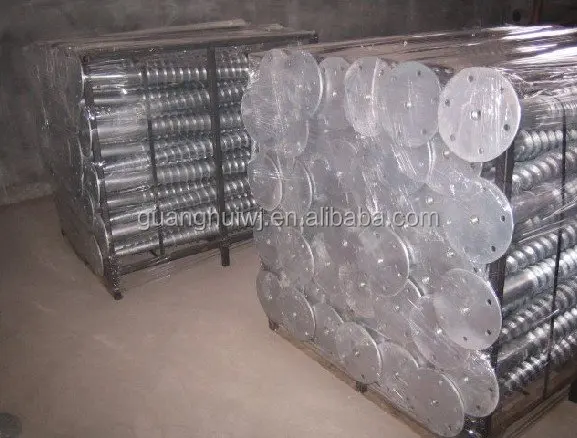

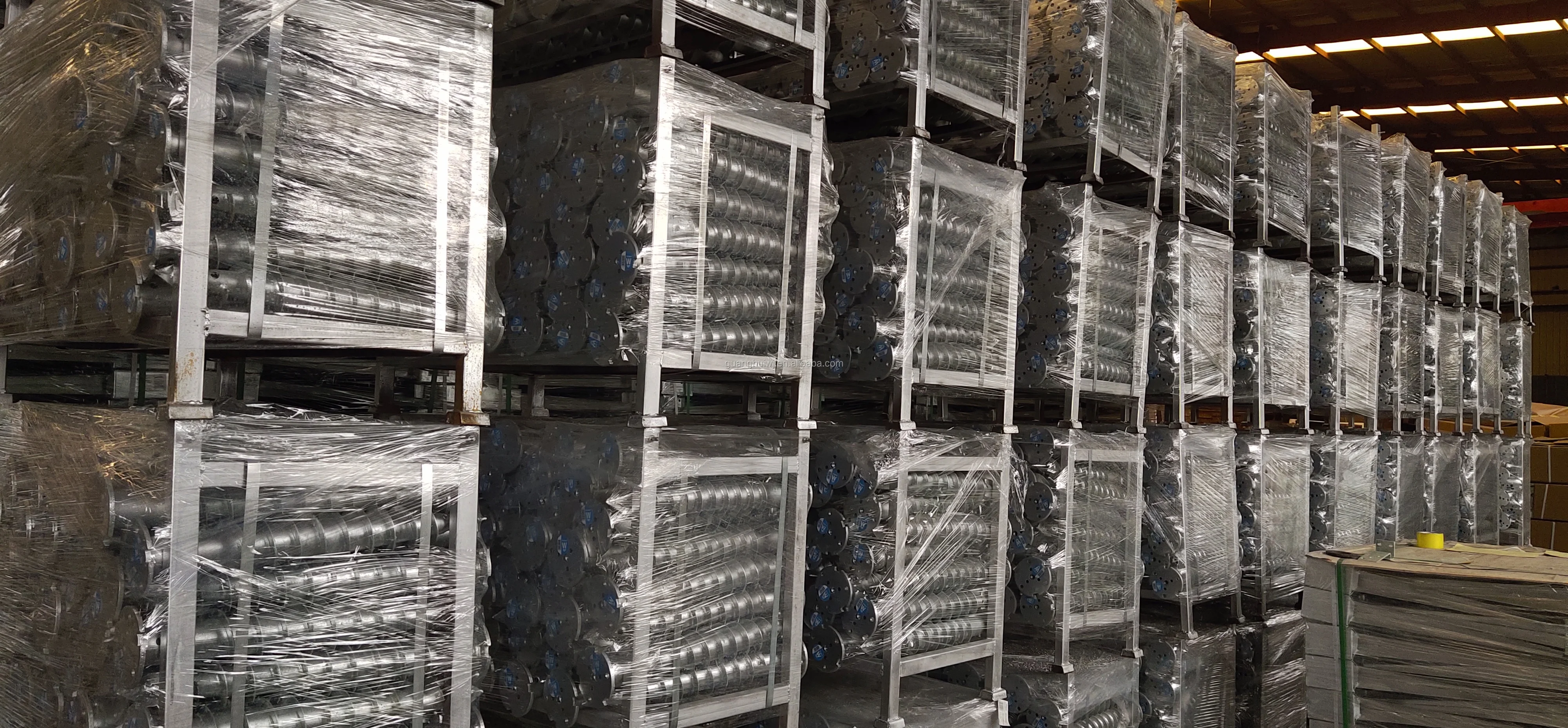

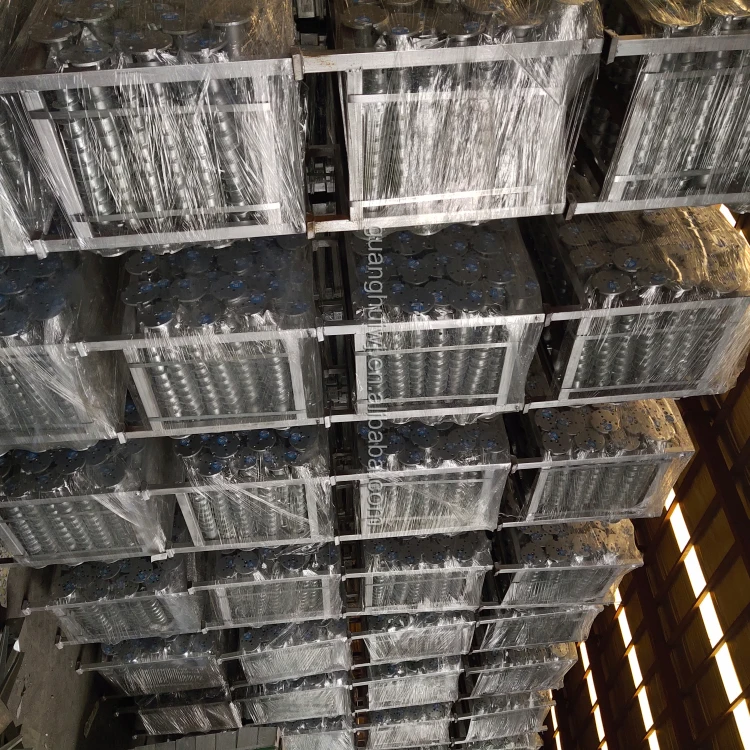

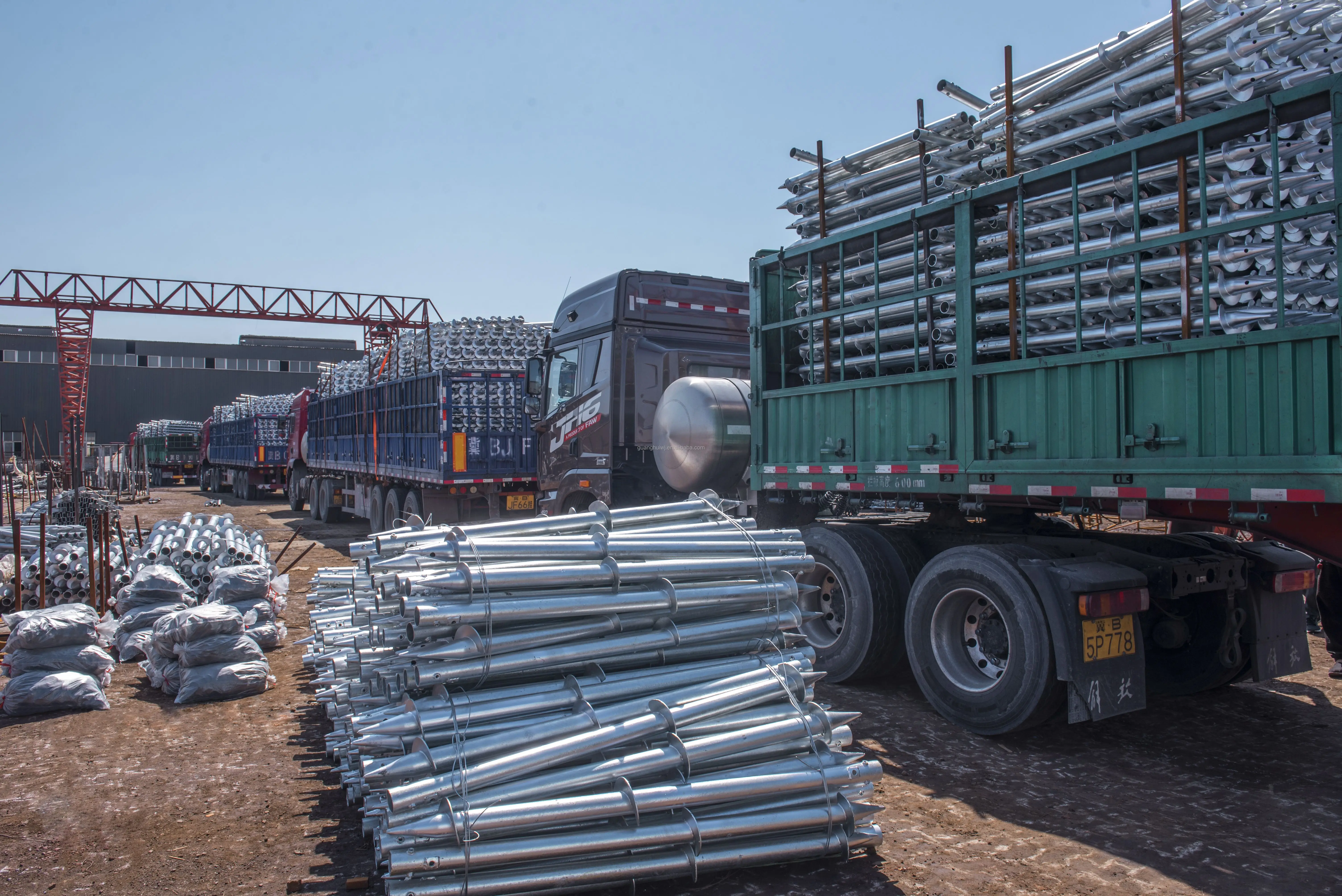

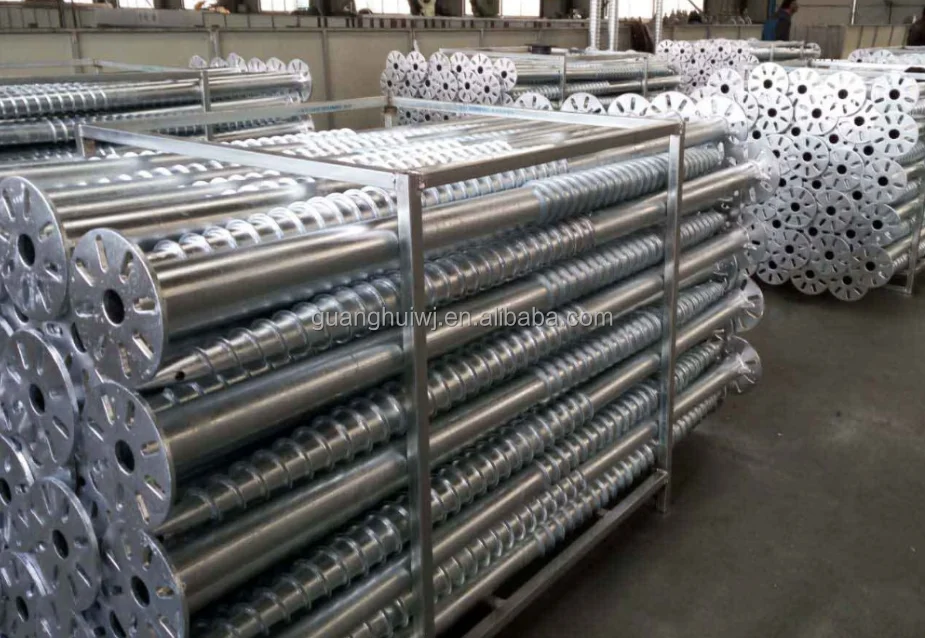

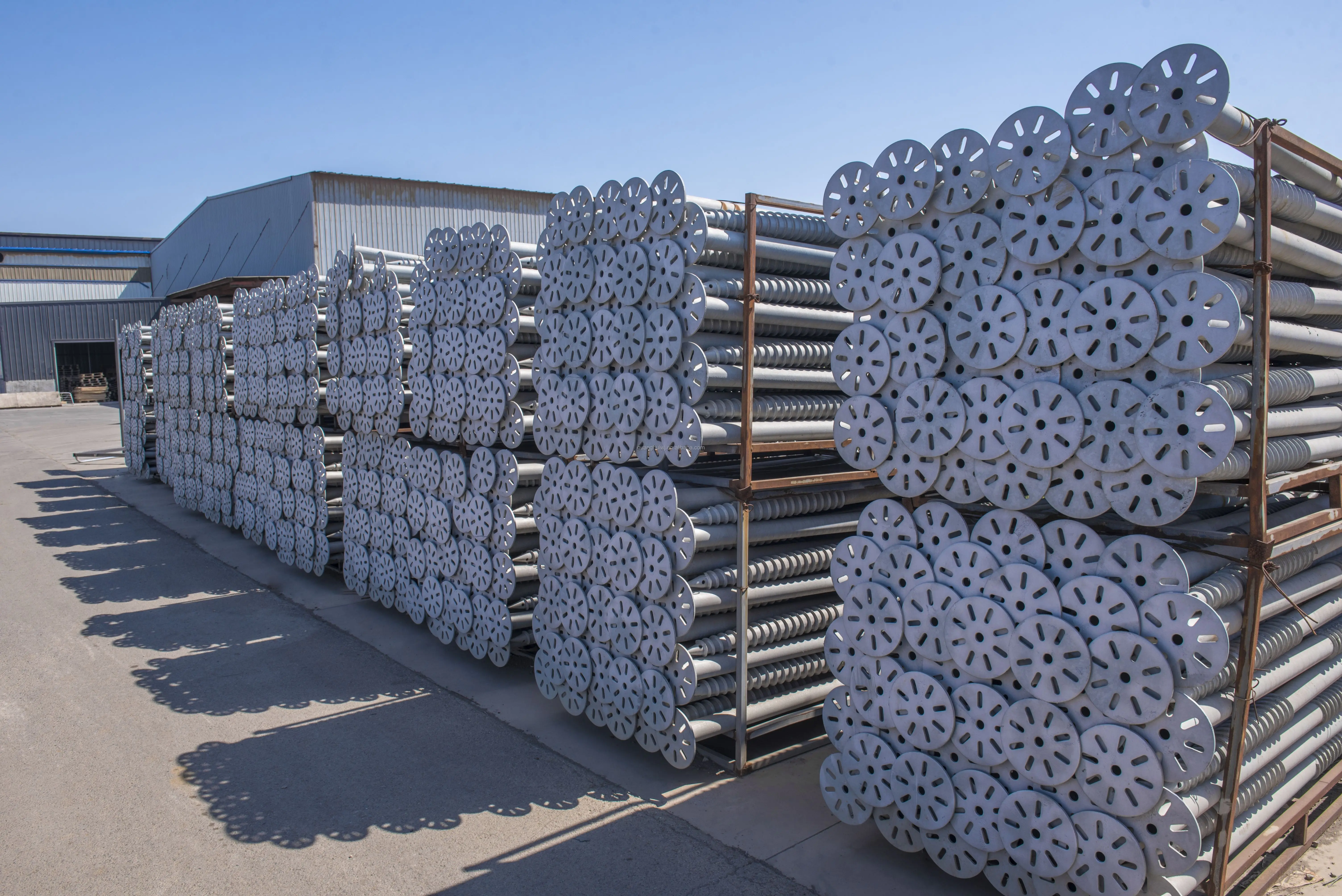

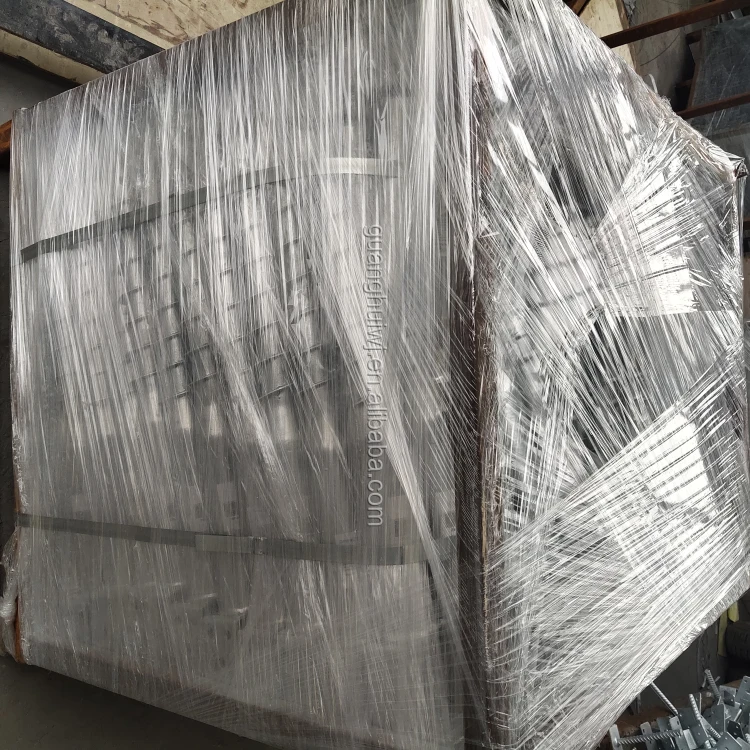

packing for ground screw anchor
 |  |
 |  |
 |  |

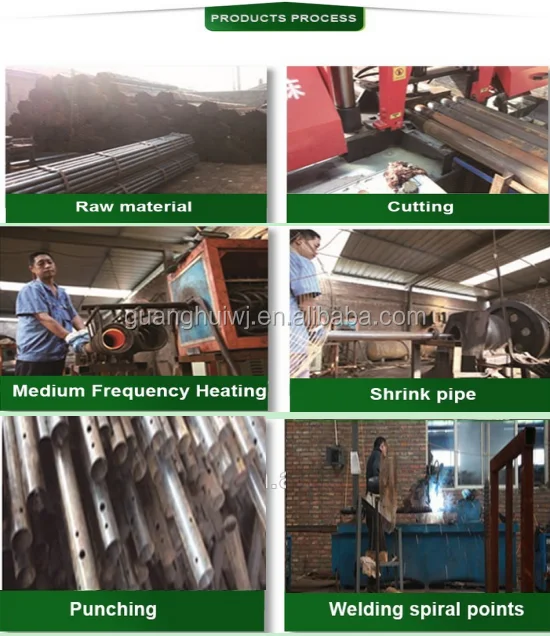

product process
Process Step 1:
Cutting the material of hollow pipe as client’s length requirement.
Process Step 2:
drilling holes on the upper end.
Process Step 3:
Sealing edge--- Make the pipe heated and softened in tail end with heating machine.
Put the heat pipe into the pipe-shrinking machine promptly to make the tail end into cone-shape.
Process Step 4:
Welding screw spiral--.Use the automatic welding machine to welding the screw spiral for spiral surround the whole pipe automatically and most effectively.
Process Step 5;
Testing the welding condition.
Process Step 6:
Galvanizing---Hot-dip Galvanization--put the welding well ground screw to the galvanizing Zinc.
Process Step 7:
Testing the galvanizing condition.
Process Step 8:

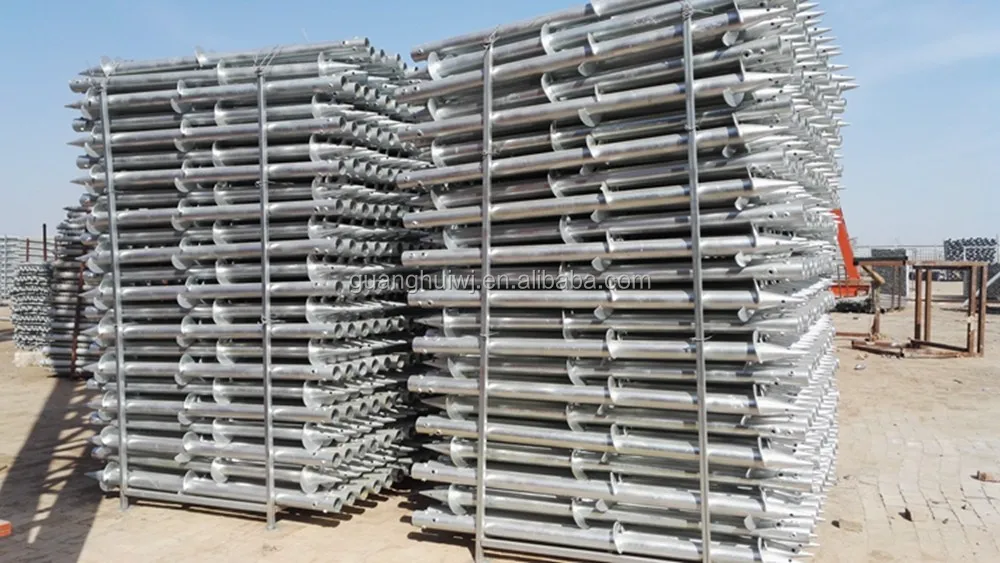

Packing on steel pallet for shipping .

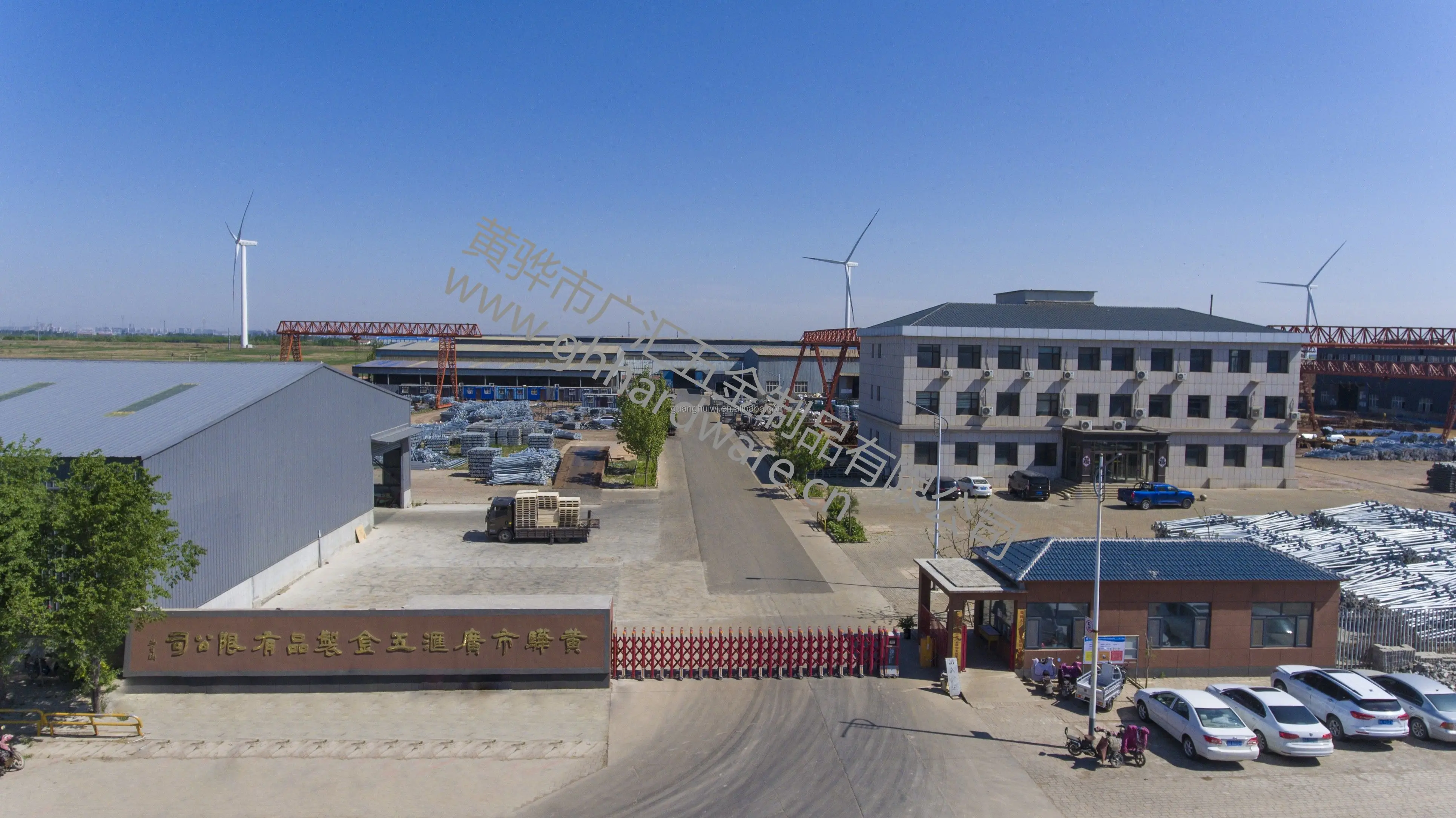

Company Information
Huannghua Guanghui Hardware Products Co.,Ltd are professional supplier of garden hardware. All our products are exported to overseas which are mainly exported to European market ,USA market and other countries with good quality and competitive prices. We specialize in the production of various types of rigging hardware , stainless steel products, accessories of outdoor activities and piece of metal stamping parts in various fields.
