high quality Access Panel / Drywall Trapdoor/drywall accessories

Product Overview

Description

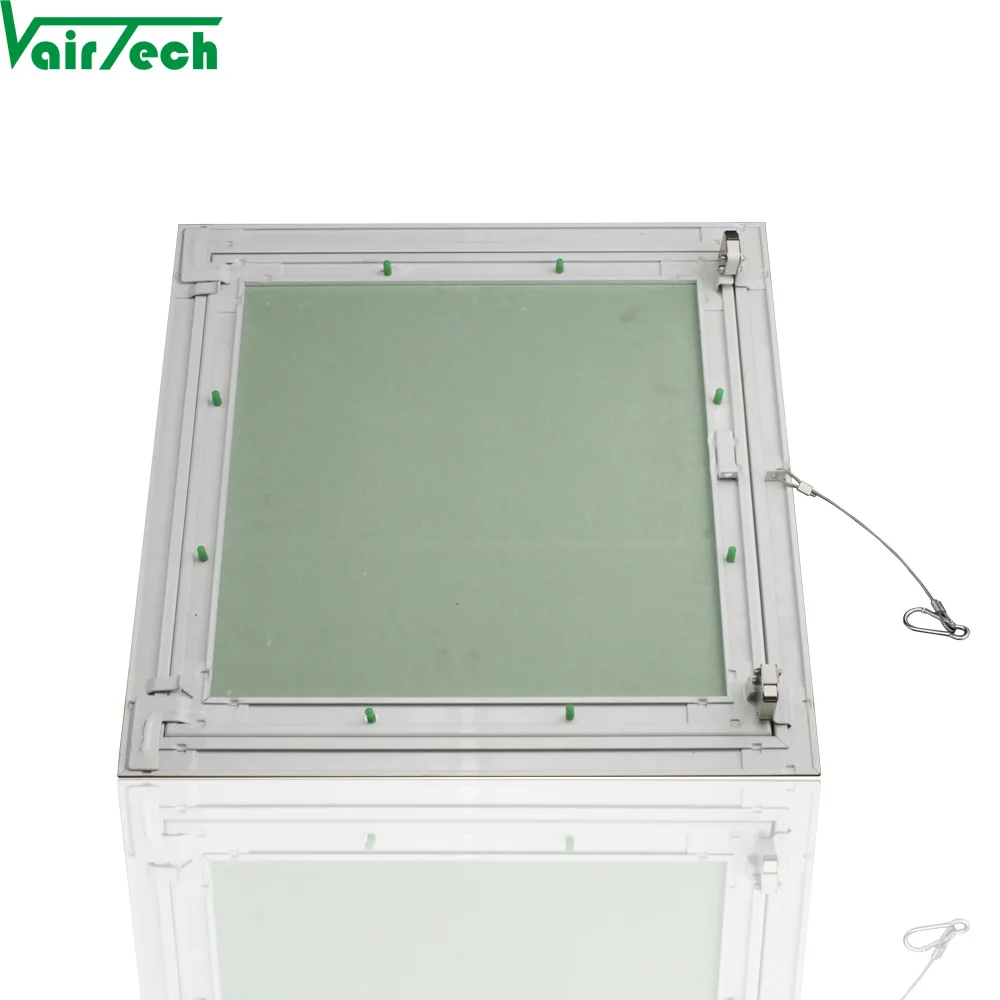

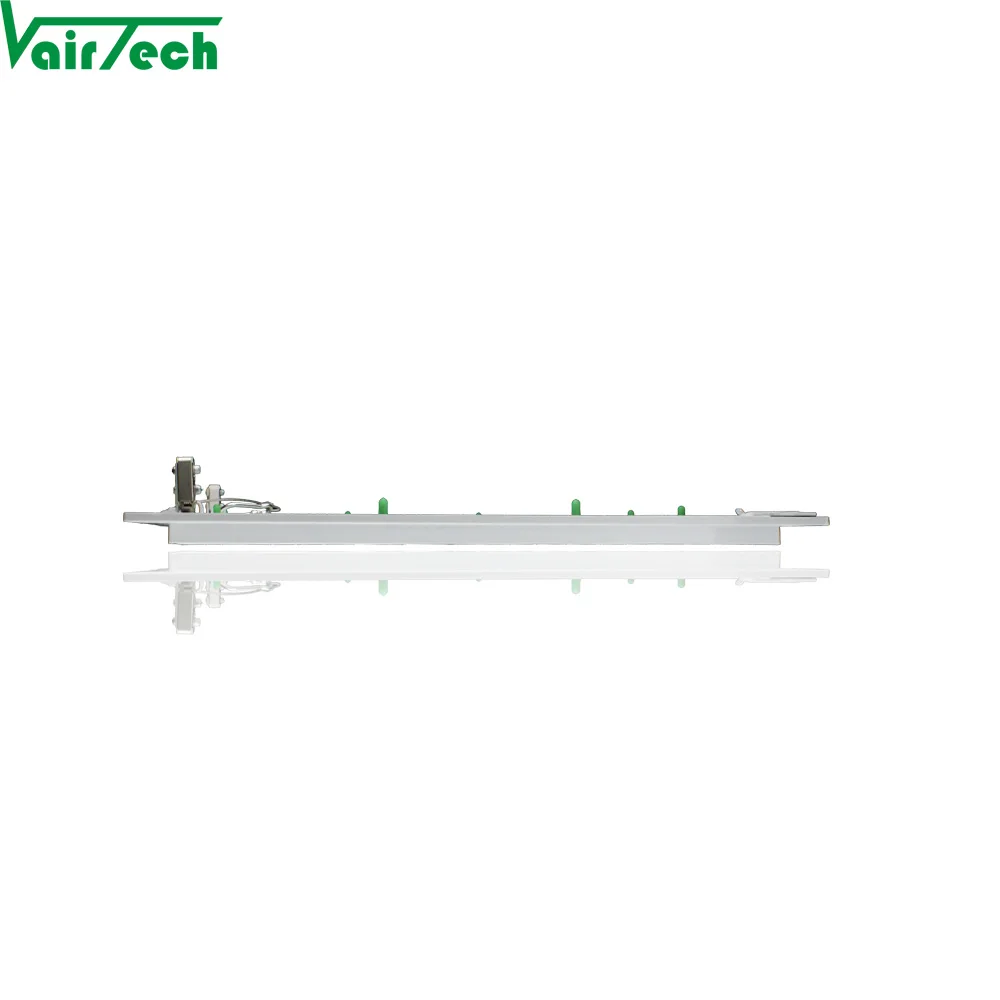

 Real shot







Materials	Extruded aluminum alloy (A6063)
Panel	Aluminum alloy
Out frame	High quality extruded aluminum alloy(A6063) profile with 50mm flange
Surface Finish	Powder coated or anodized
Color of       Powder Coated	Standard - RAL 9016

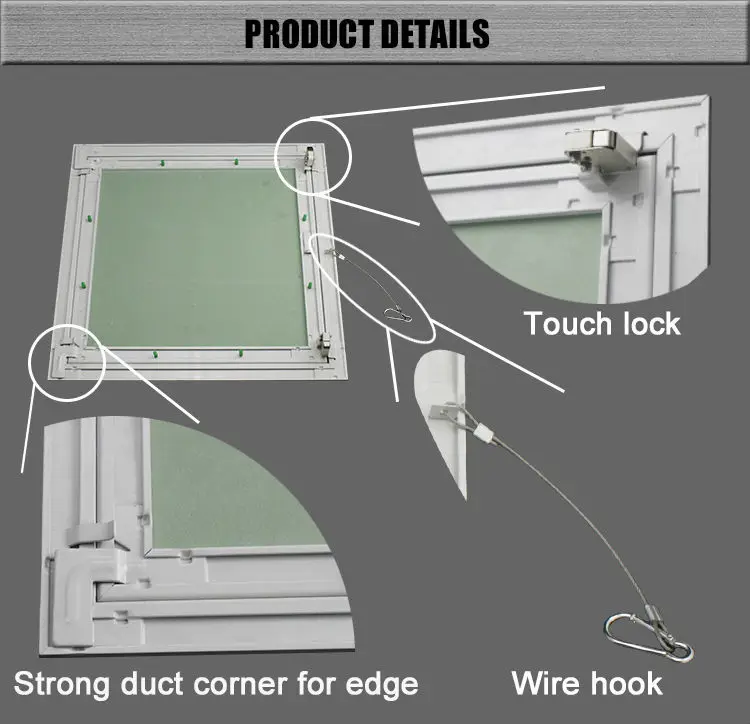

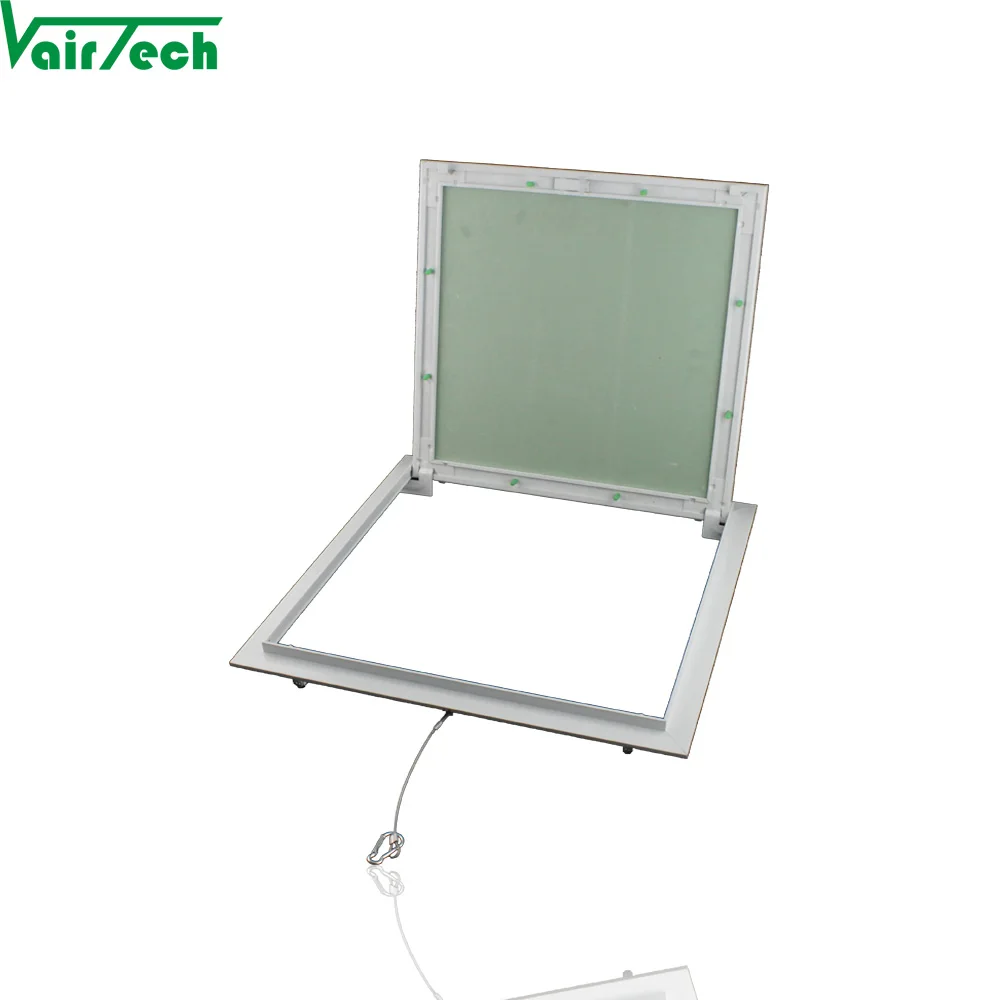

Description	1. The frame is high quality extruded aluminum sheet with advantages of corrosion resistance and rigidity. 2.  It consists out frame and inner pannel. The inner pannel is fixed to the out-frame by fastener one side and steel spring pins in the other side. 3.  The pannel can be easily open to allow for maximum flexibility in the installation, maintenance.





They are mainly used for studios, hospitals, theaters, classrooms, concert halls, libraries, recreation hall, theater lounge, general offices, shops, hotels, restaurants and gymnasium, and so on.





Size of ventilation access door aluminum louver frame :

• Any size available

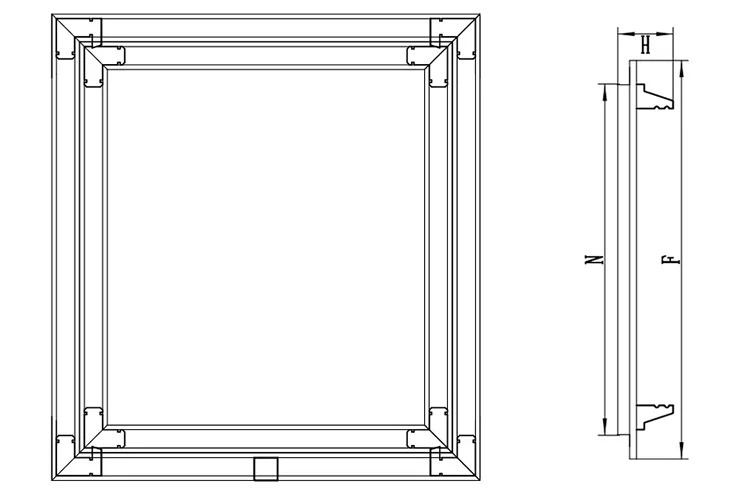

• Overall face size = Neck size +50mm



Standard Size:



Item Code		Neck size(mm)		Face size(mm)
AD-FC-200		200x200		250x250
AD-FC-300		300x300		350x350
AD-FC-400		400x400		450x450
AD-FC-450		450x450		500x500
AD-FC-600		600x600		650x650
