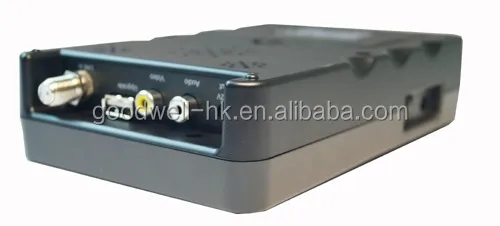

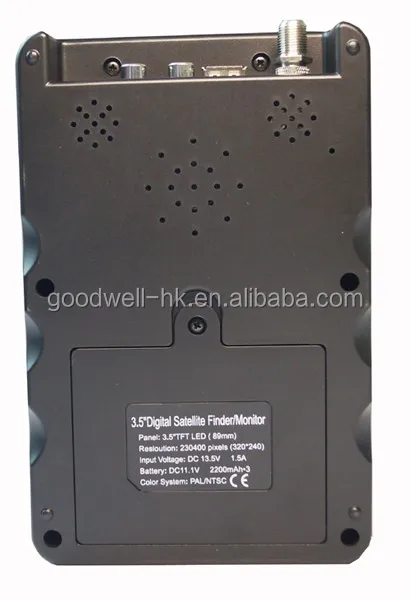

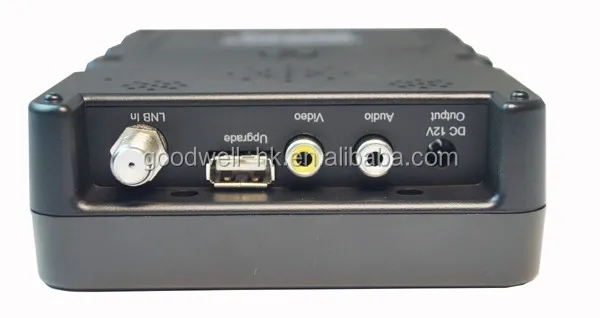

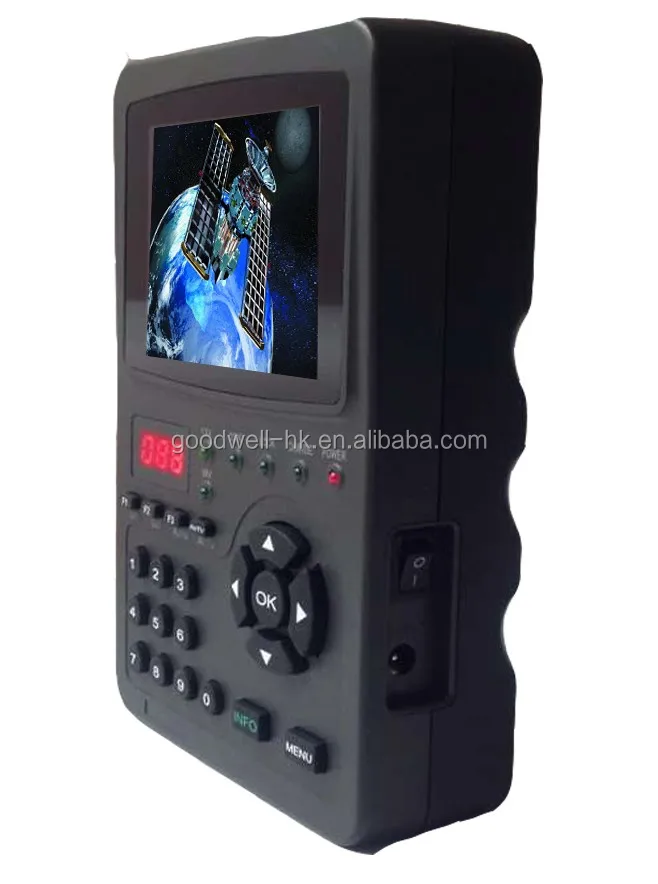

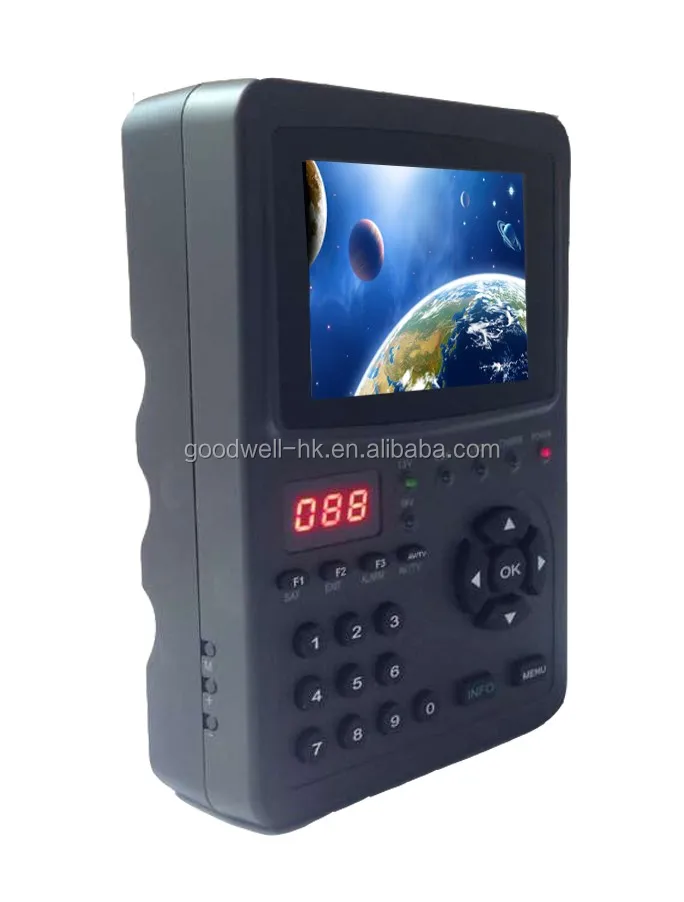

LNB Short Circuit Protect 3.5 Inch Finder Satellite with glass surface protecting from Broken and Dust

Product Overview

Description



      LNB Short-Circuit Protect 3.5 Inch Finder Satellite with Glass Surface protecting from Broken and Dust













Main Features:



 Fast satellite signals identification

 Supports DVB-S protocol, DiSEqC 1.2 protocol

 Satellite parameters editable

Glass surface protection for broken and Dust



 LED Signal Quality Display:



 Satellite guidance, azimuth and elevation calculation

 Blind scans and shows channel list

 High-resolution back light LCD easy read

 Play channels on the LCD, AV Input/output

 Signal locked prompt audio tone

 13/18 volts/22KHz indicating light

 Signal lock indicating light

 LNB short-circuit protection

 USB-RS232 interface for software upgrade

 High capacity lithium battery for 4hours operation



Features:





Model Number	358G
Screen Size	3.5"
Dot Pixels	Dots pixels:320x 240(230400Pixes)
Video Decoding	DVB-S
Signal Test	DVB-S/S2,MPEG-4,ABS-S,signal alarm & signal test
Menu Languages	Chinese/English /French /Arabic/Turkey/Russian
LNG Connector	F type male puly: 75 Ω (F)
Frequency Range	950MHz-2150MHz
Singal Level	-65dBm~-25dBm
LNB Input	13/18V.max400mA
LNB Switch Control	22KHz
DiSEqC	1.0, 1.2edition
Threshold	4.5dB
Symbol Rate	2Mbps-45Mbps
Processor	32bit processor(200MHz)
SDRAM	16Mbyte
Flash	8Myte
EEPROM	8Kbyte
Sampling Rates	32.44.1&48KHz
Lithium  Battery	11.1V/2200mAh
Power Supply Charger	In : AC100-220V Charge 13.5V/1.5A Out  :DC12V/1.5A
Unit Size	110*170*41mm
Unit Weight	470g (including battery pack)
PCS/CTN	10PCS
Carton Size	45x 39x 27.5cm
N.W. per carton	10  KG
G.W. per carton	10.6KG





 Accessories :



1. 13.5 V DC Adaptor : 1 piece

2. Bag :1 piece

3.LNB fast connection(F fast line) : 1piece

4. Car Power :1 piece

5.DC Line :1piece

6.Instruction Manual:1 piece
