GLTV3 10 32Vdc standard 5 holes mounting Float Level measuring instruments
- Category: Level Measuring Instruments >>>
- Supplier: Xi'an,Gavin,Electronic,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Related Product
Products Description
•GLTV3level sensor is widely used in fuel, water, kerosene, chemical tanks and suitable for truck, generators/gen set, bus andmarine field.

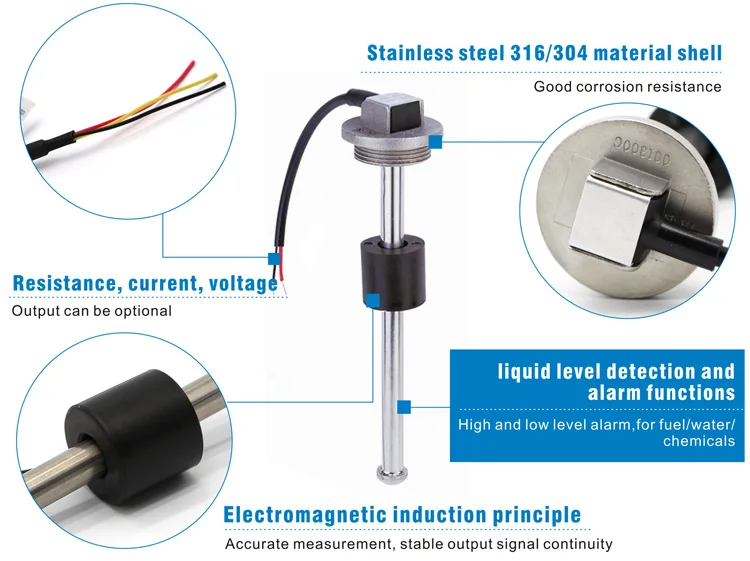

•With the electromagnetic induction principle, it can output signal stably and continuously.
•With the electromagnetic induction principle, it can output signal stably and continuously.
Product Parameter
Level range | 100~2000mm(OEM can be optional) |
Resolution range | 10~40mm |
Medium | Gasoline, Diesel fuel, Water, Polluted water, Drinking water, Alcohol, Chemicals, etc |
Power supply | 10-32v |
Rated power | 125mW |
Rated current for alarm switch | 500mA |
Operating temp. range | -40~+85℃ |
Wire | PVC material(PA corrugated pipe cover is optional) |
Probe material | Stainless steel 304 Stainless steel 316L |
Floats material | Plastic(for oil medium) Stainless steel 304(For drinking water, chemicals, etc.) Stainless steel 316L(For sewage) |

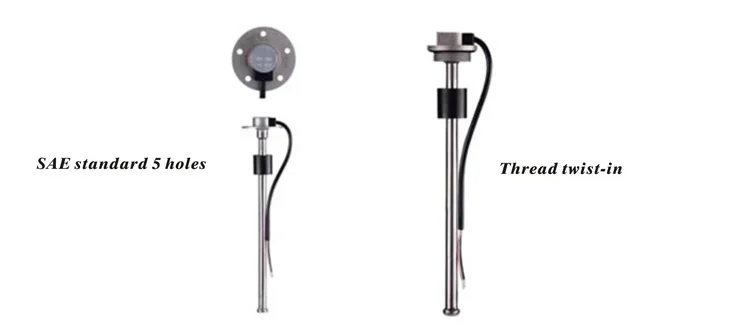

Mounting | BSP 1 1/2",BSP1 1/4" thread twist-in;NPT thread twist-in. flanges :38*2.6mm O-ring /43*3.5mm O-ring.(OEM) |

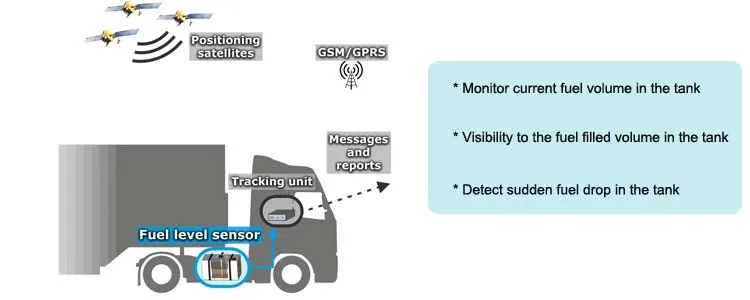

Application

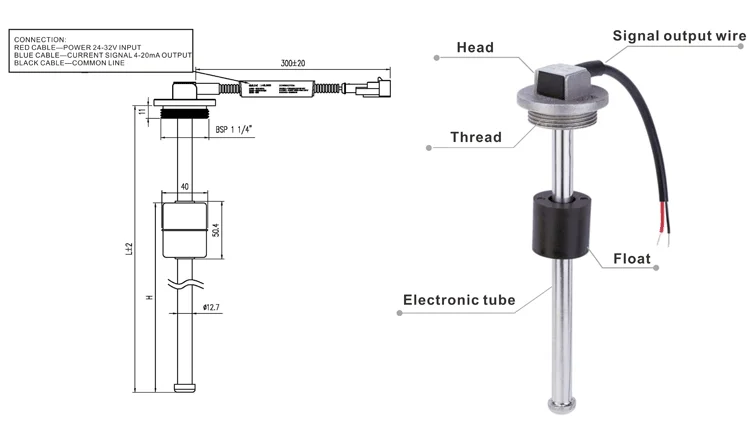

Dimension

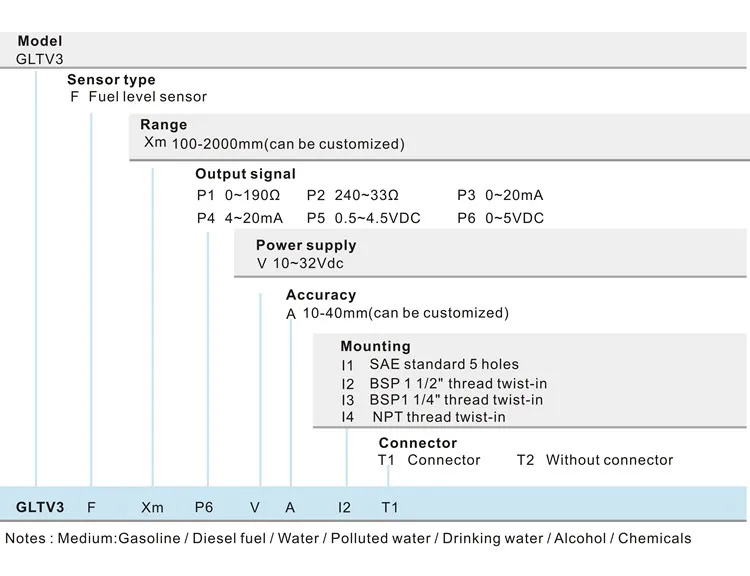

Ordering guidance
