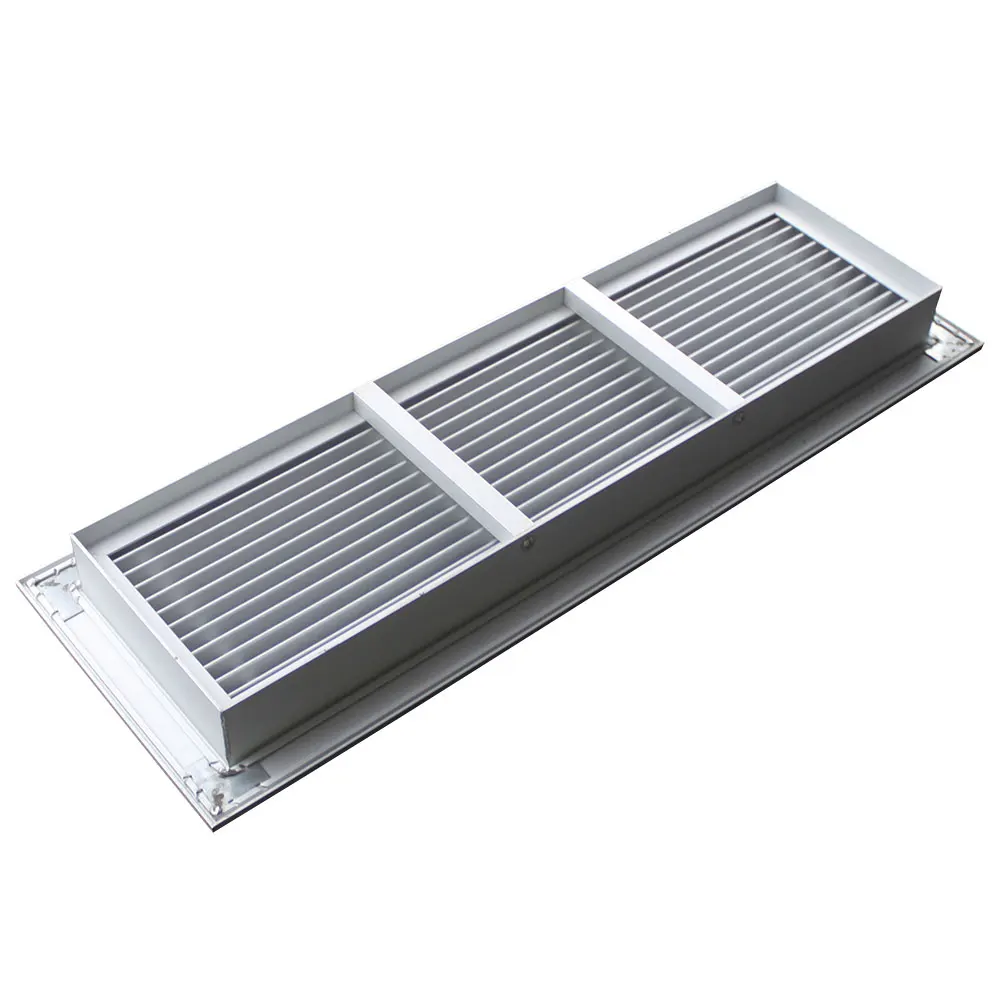

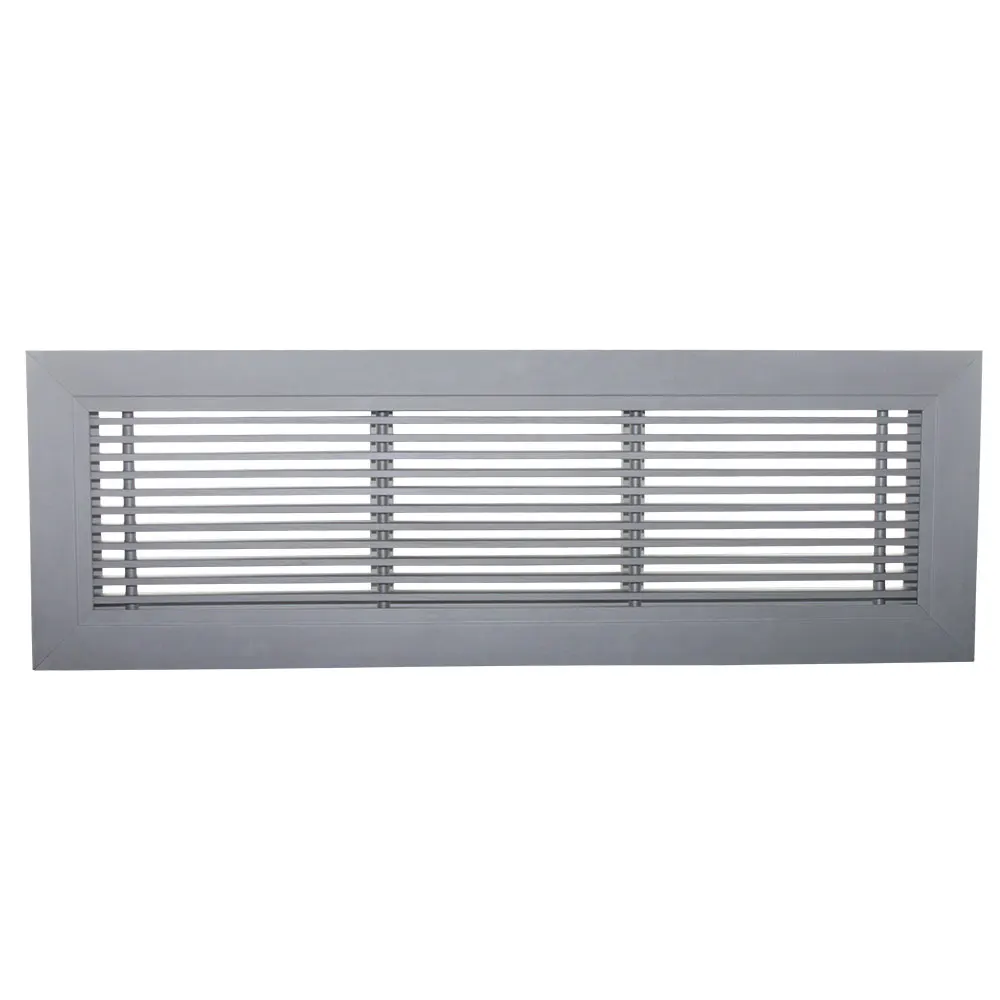

aluminum ventilation grille air return floor grille



Construction:
l Frame and blades: High quality extruded aluminum alloy(A6063) sheet..
Description:
l Screw holes are visible from the face of the grille and are required when mounting for sidewall and ceiling application.

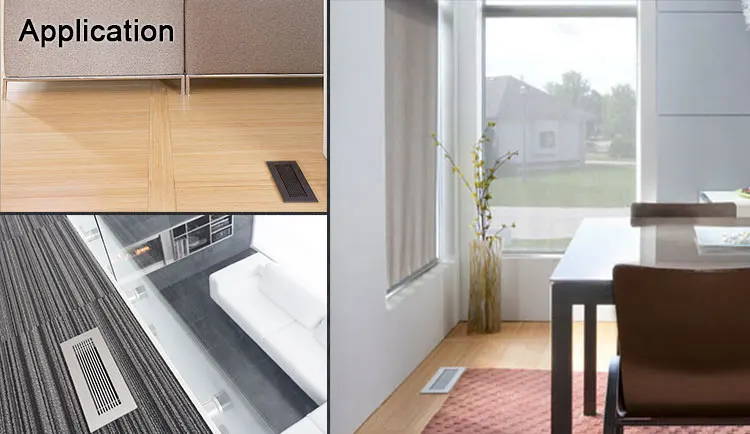

l It is applied to installation vertically in steps or in floors which don't carry foot traffic.
Surface Finish:
l Anodized
Standard Size (UOM: inch):
10x3 | 14x2.5 | 24x4 |
10x4 | 14x4 | 24x6 |
12x2.5 | 14x6 | 24x8 |
12x6 | 14x8 | 30x4 |
30x6 | 30x8 |
|

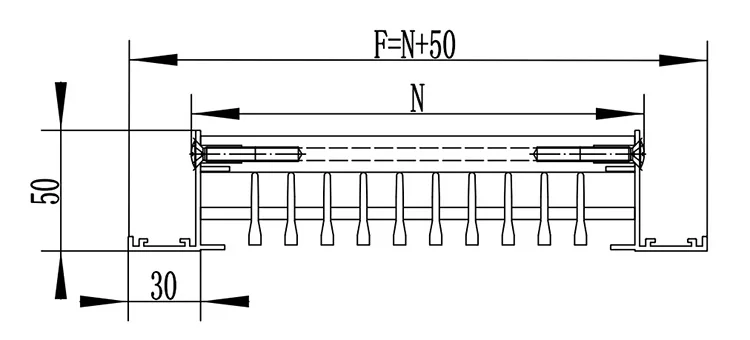

Technical Drawing:



Foshan Vairtech Ventilation Co., Ltd is a professional manufacturer for supplying full range of ventilation products with about 15 years' experience, which is located in the Aluminum Hometown of China - Foshan City. We enjoy transportation & raw material convenience.
"Customer first, quality first" ---We are sincerely welcome you to contact us for business.
