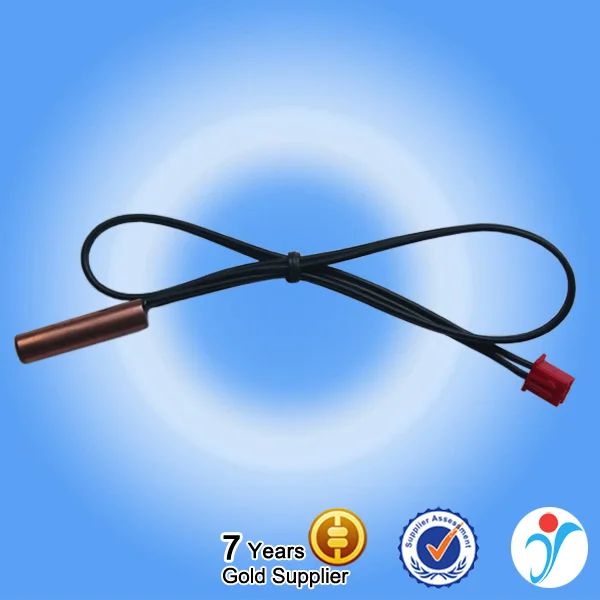

Red connector brass probe temperature sensor ntc thermistor 30k ohm

Product Overview

Description

Company profile :

Guangzhou Jianyuan Electronic Co.,Ltd was established in 2004 , ,engage in NTC Thermistor ,temperature and humidity sensors . Factory has nearly 2.000 square meters .Our company possesses not only the advanced manufacturing equipments, completed testing facilities and 90% experienced high-quality managers ,15 engineers and technicians , but also an independent and completed system, integrating researching ,developing ,manufacturing and selling .Nowadays our good reputation has been shaped in the international market .



Features:



• 1. Wide operating temperature range, good stability and reliability.


• 2. Easy to installation and manipulation as the sealing can be done according to environment and conditions there it is applied by customer.


• 3. Accurate testing can reflect temperature change precisely.


• 4. Insulating resistance(MΩ): over 100MΩ at DC500 V


• 5. Working temperature range(°C): -20-- +180


• 6. Dissipation factor(mw/°C): 1-2 (in still air)


• 7. Thermal time constant(s): within 10-25 sec (in air)


• 8.small and compact ;easy to assemble,and be miniaturized



   Parameters:



• R@25°c : 1k-100kΩ.


• R@25°c precision value: ±1%, ±2%, ±3%, ±5%, ±10%.



B@25°c/50°c: 3270, 3380, 3470, 3550, 3700, 3950,3977, 3990, 4100,4200K etc





Application:



• Wide variety of applications.Household appliances such as refrigerator, frozen cabinet, air conditioner


• PVC leads are applied to a precision,high-reliability NTC thermistor


• Insulation with heat conductive water resistant materials and potted into any of a wide variety of probe bodies.

 Drawing:



4	Connector	Red 2P-XH
3	Cable	2651 24# black pvc cable, Φ1.4*1.4
2	Probe	CuΦ6*25
1	Ic	R25℃:30KΩ±1%

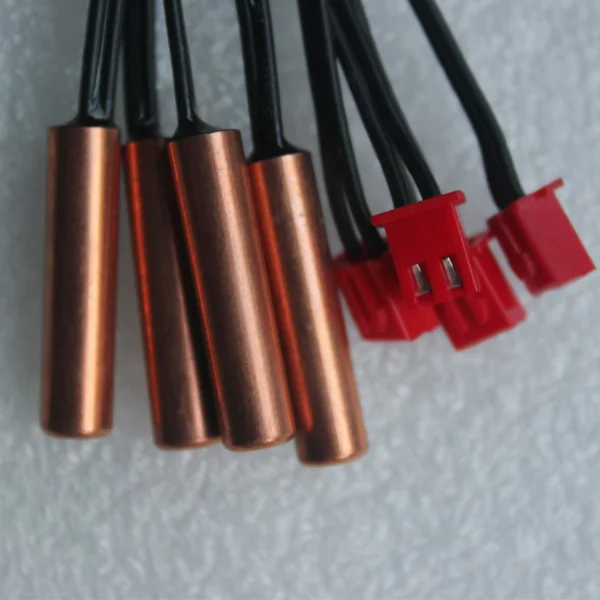

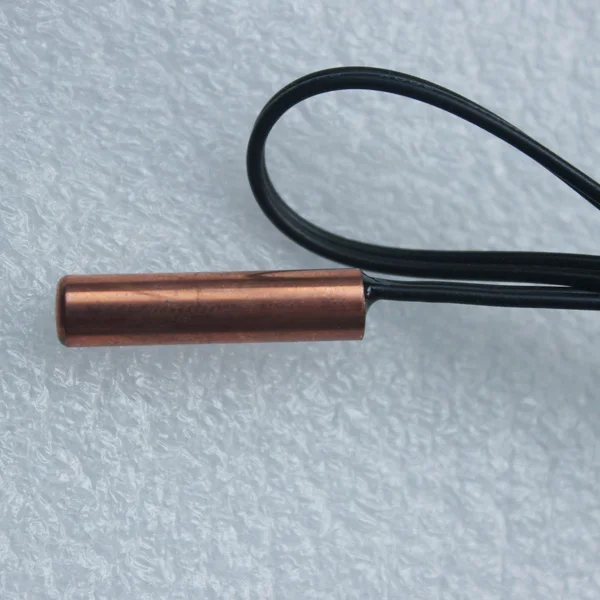

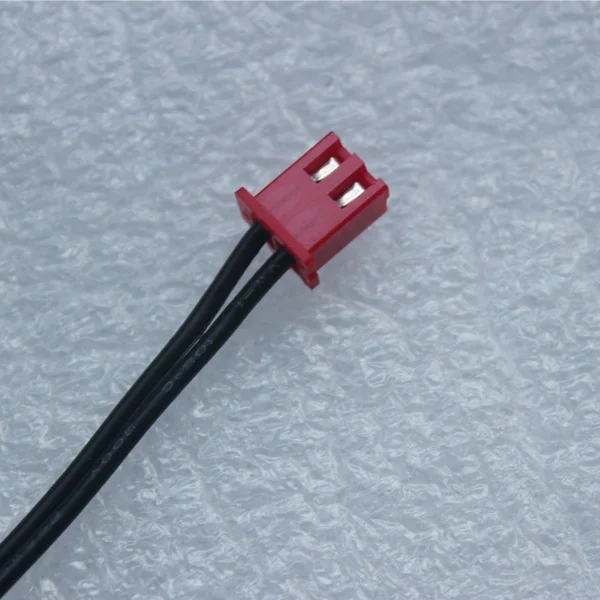

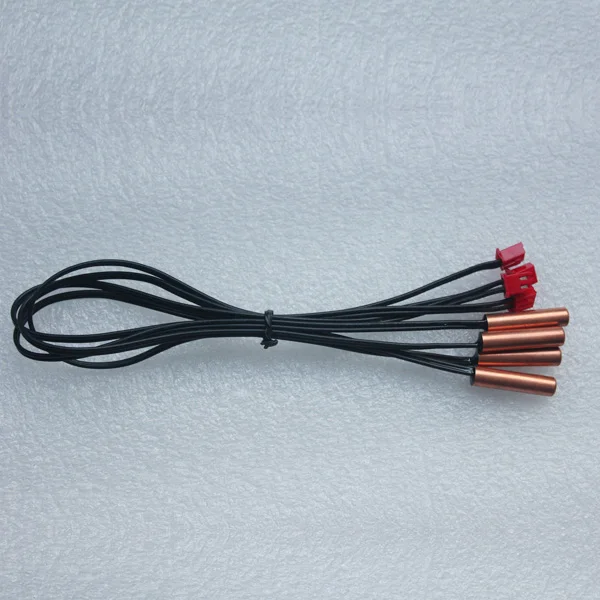

 Picture:

















Smiliar product:









Packaging Details:



Packed in Strong Poly bags, Several bags packed in Standard high press-resistance carton. Due to the small size of the sensor, we normally use international Express: DHL, TNT, UPS, FEDEX, EMS etc.

Logistic suggestion



** 1-50KG,by courier

** 50-100KG,by air

** Above 100KG,by sea





How to Order :

In order to help you get the exact model, please offer the following necessary info.:



1, The application of the ds18b20 sensor:__________

2, Working environment of ds18b20 sensor:________

3, The range of operation temperature:___°c to ___°c

4, The dimension and the drawing of the sensor- cable length___,probe material ___, probe diameter___ and probe length__.

5, Connetor model



Certificate:







More information, please contact us and we will send you the detailed specification.
