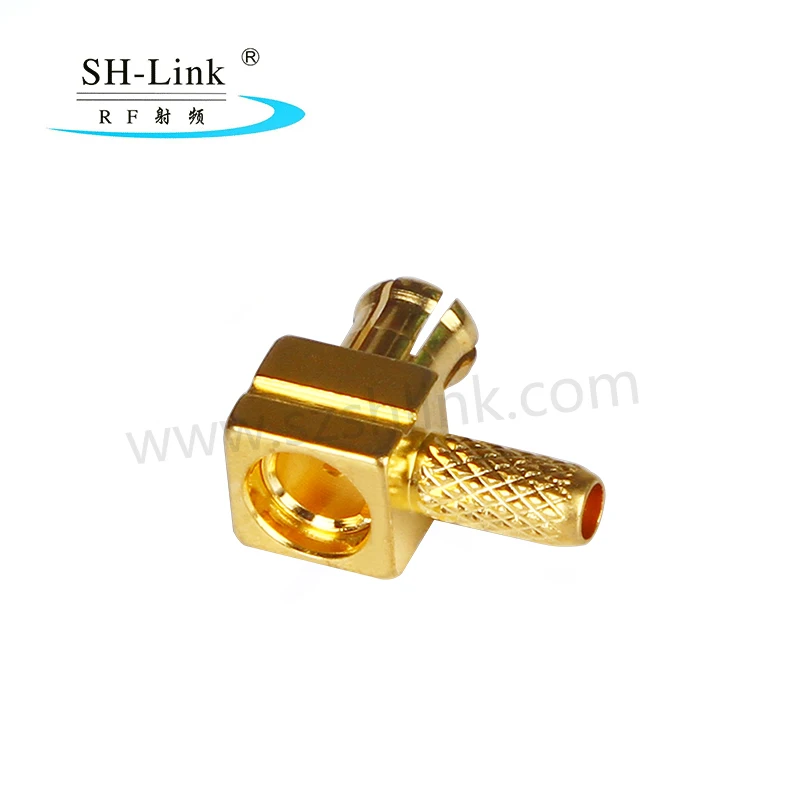

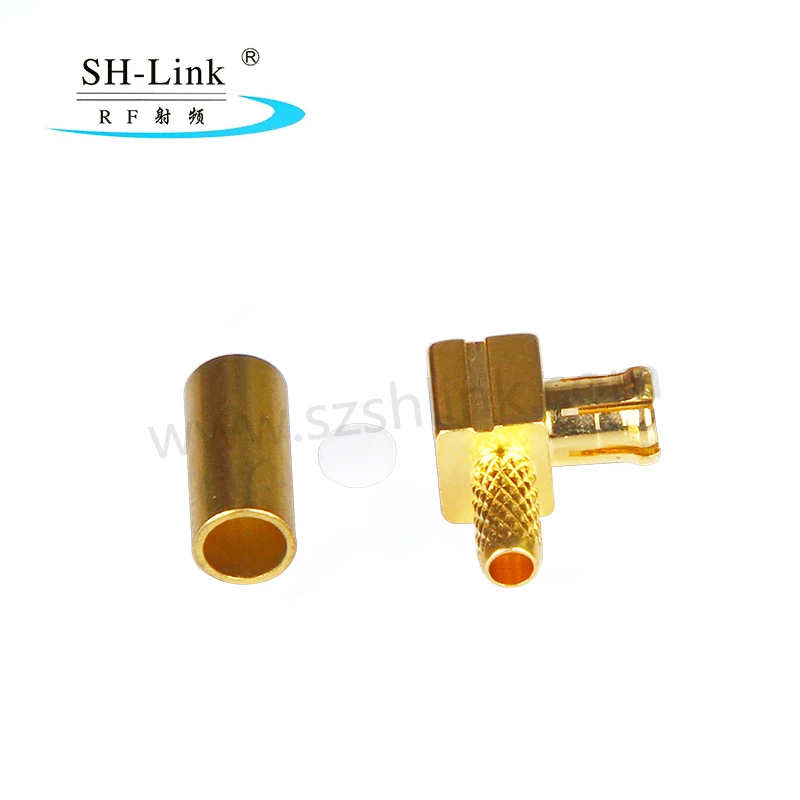

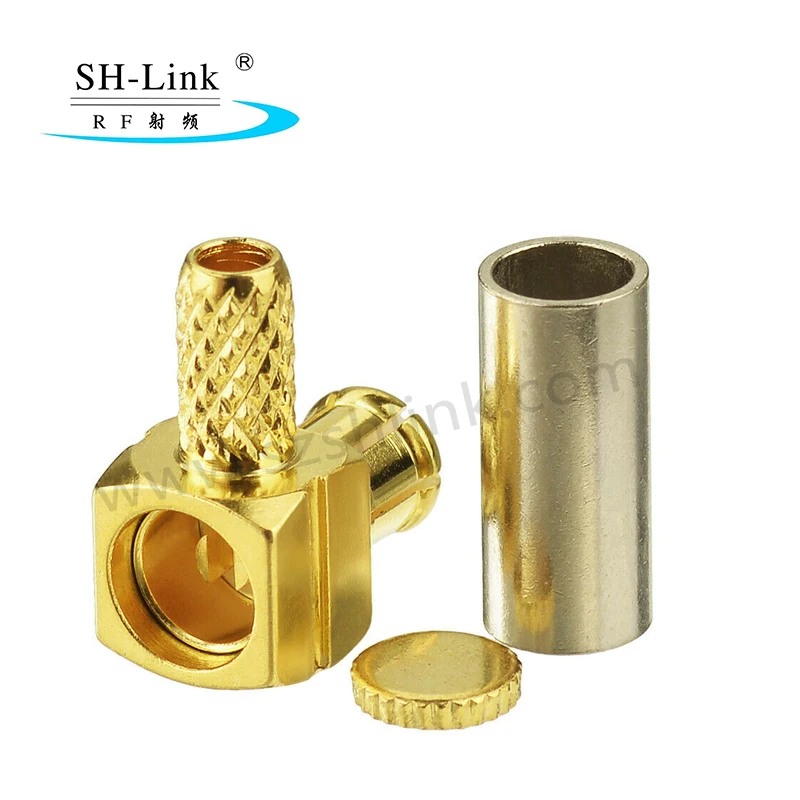

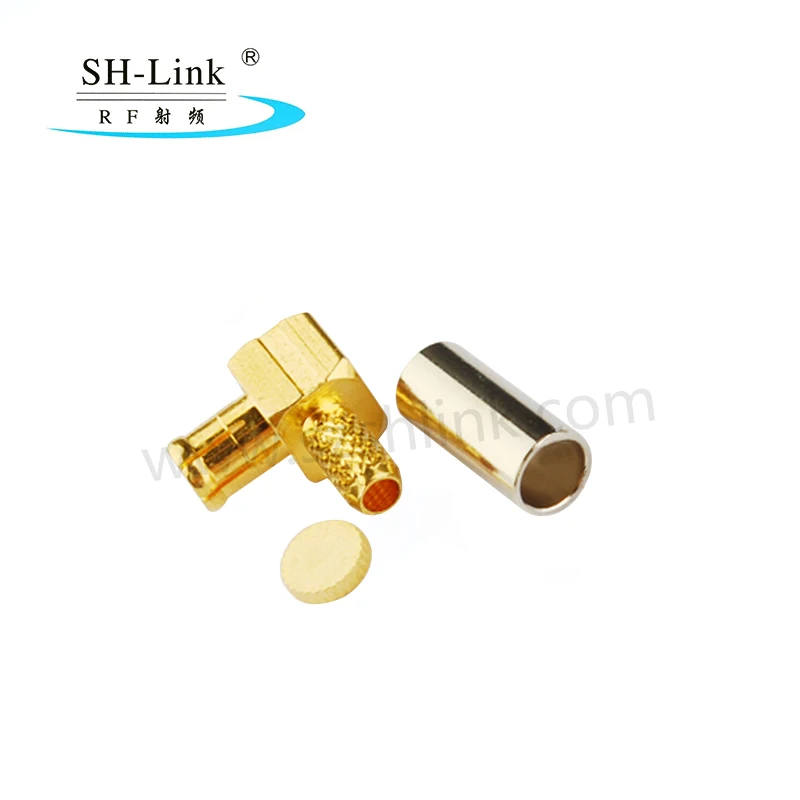

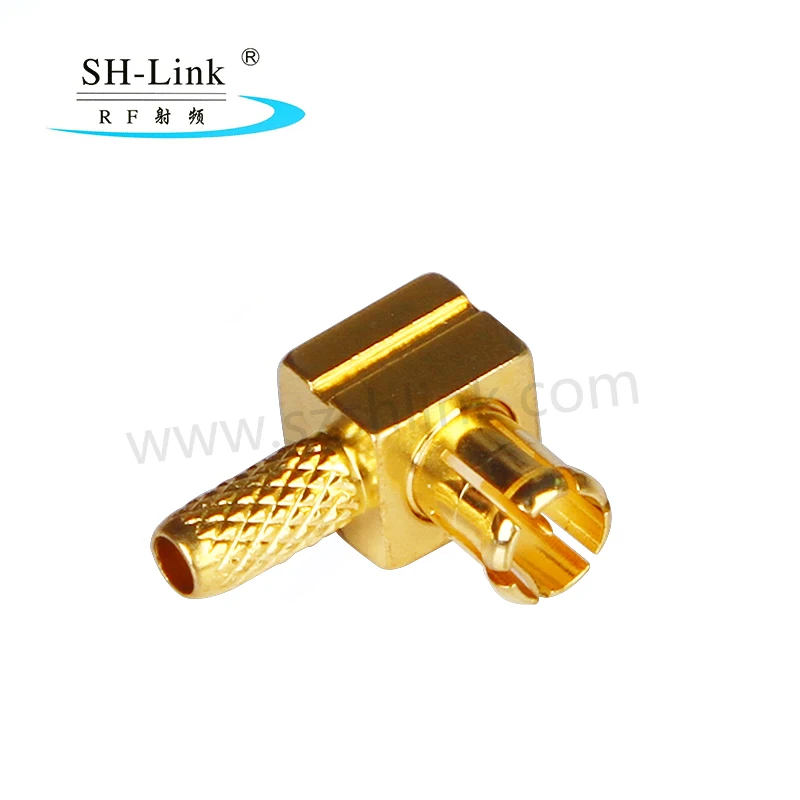

MCX male plug right angle crimp for RG316 RG174 RG188 RF Coax Connector Adapter

Product Overview

Description

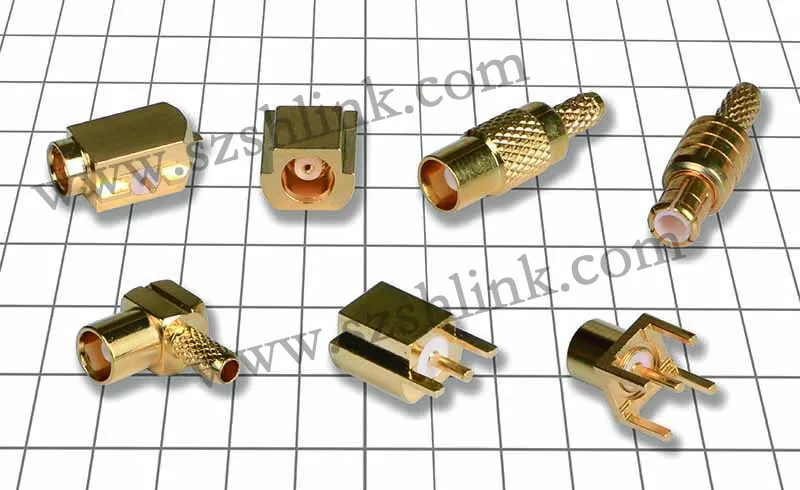

MCX series are snap-lock coupling micro-miniature coaxial connectors which can operate at impedances of 50 ohms and 75 ohms. With small size, less weight, compact structure and easy fit, they are used in small sized communication equipment, PNC, GPS, WLAN, radio instruments and other miniaturized electrical equipment. MCX connectors, particularly for PCB connection, are 30% smaller in size than SMB connectors.



MAJOR TECHNICAL CHARACTERISTICS
Temperature range	-55—+155℃(PE Cable -40—+85℃)
Impedance	50Ω,75Ω
Frequency range	DC-6GHz
Working voltage	250V(50Ω) 170V(75Ω) at sea level
Withstanding voltage	250V(50Ω) 170V(75Ω) at sea level
Contact resistance
Center contact	≤5mΩ
Outer contact	≤2.5mΩ
Insulation resistance	≥1000MΩ
Center conductor retention force	≥0.28N
Insertion loss	0.18dB/1GHz
Engagement force	≤20N
Disengagement force	≥8N
Voltage Standing Wave Ratio
Straight	≤1.20/1GHz
Right angle	≤1.45/1GHz
Durability(mating)	≥500(Cycles)
Material & Plating
body	brass	gold plated
pin contact	tin bronze	gold plated
socket contact	beryllium-copper	gold plated
resilient contact	beryllium-copper	gold plated
insulator	PTFE
crimp ferrule	copper alloy	nickel or gold plated
O-ring sealing	6146 silicone rubber
Applicable standard	CECC 22220
	IEC 61169-36
