DQF2 6A 3 12V 3 way 12V solenoid valve for medical care, household appliances

Product Overview

Description

3 way 12V solenoid valve for medical care, household  appliances



Are you looking for 3 way mini air solenoid valve?

Our method is unique. We don't have an off-the-shelf, take-it-or-leave-it attitude. We know that your ideas are outstanding, and the pump or valve should not be the same. That's why you have as many as 30,000 choices from us.

We'll offer you samples so you can test it for your application. And if it doesn't work, we'll help you with another configuration, until you find the one which meets your exact specifications.

This is a very popular model Mini air solenoid valve.

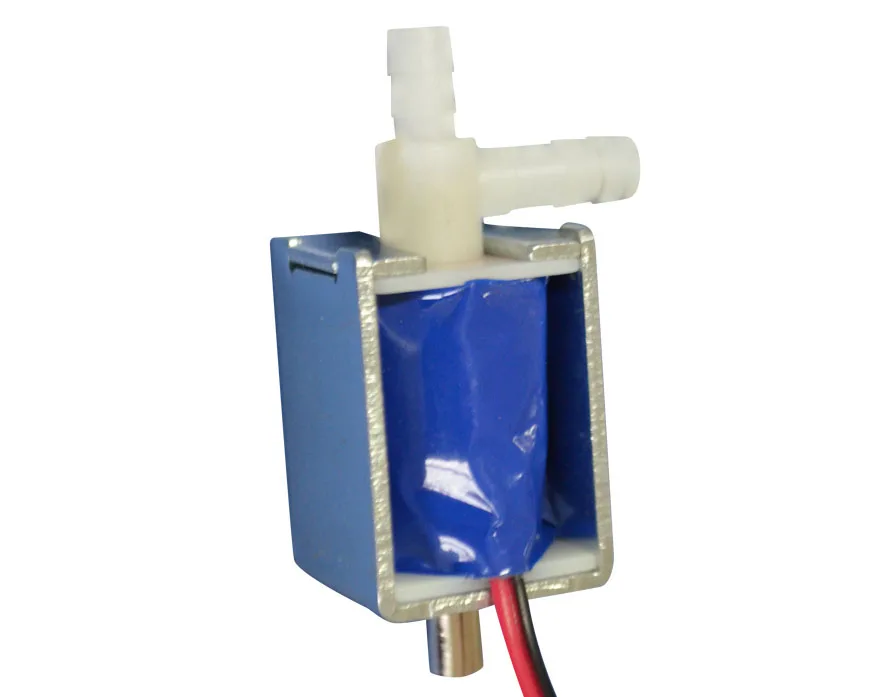

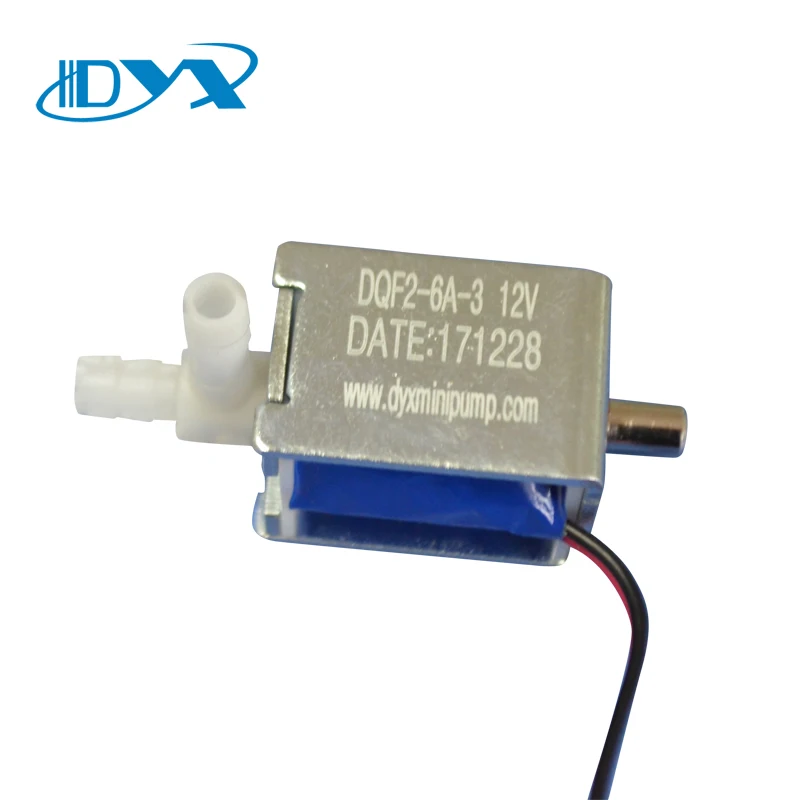

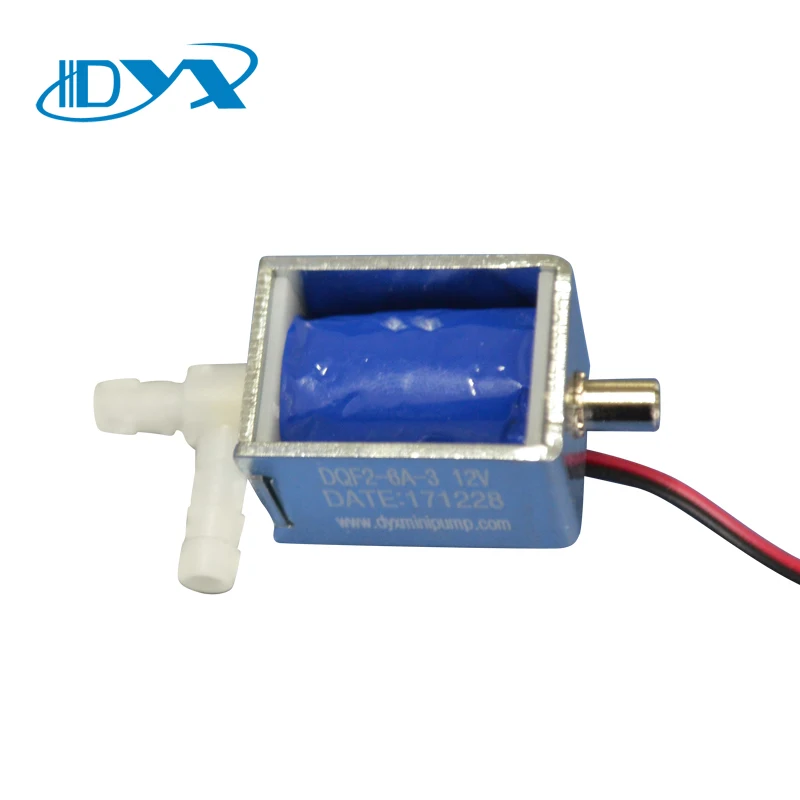

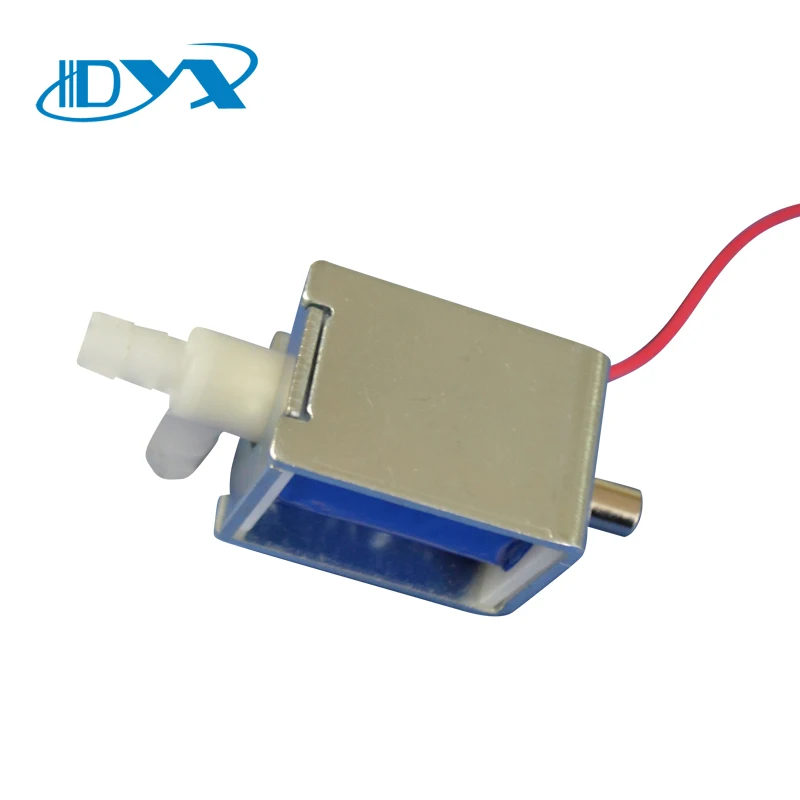

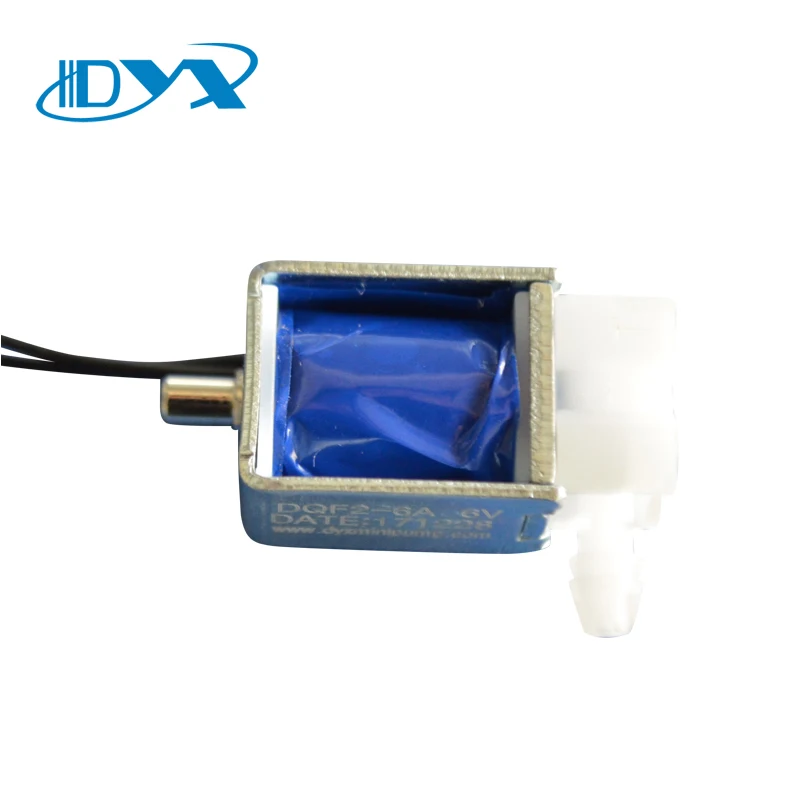

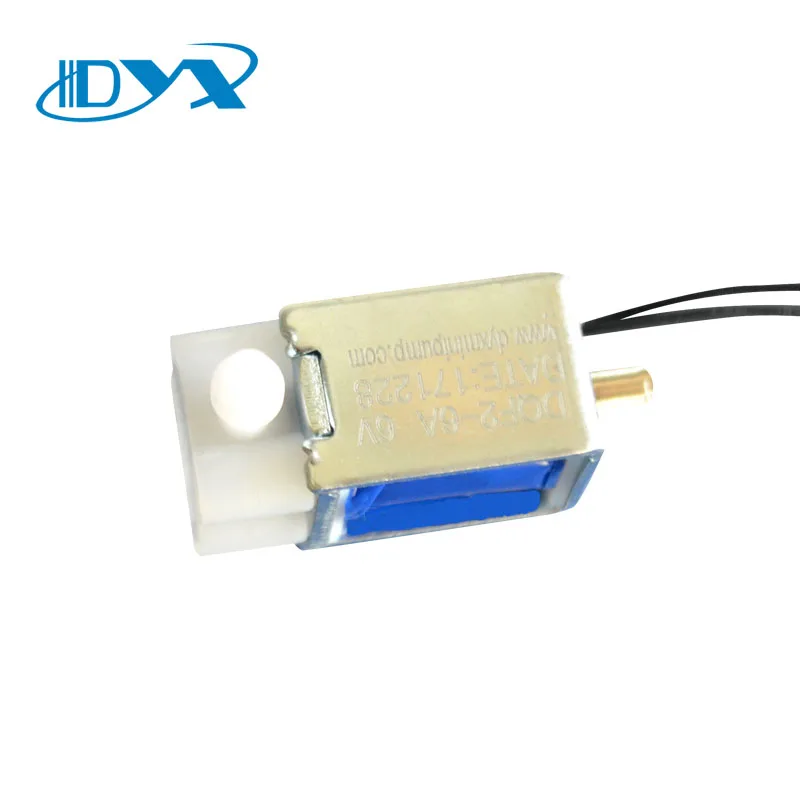

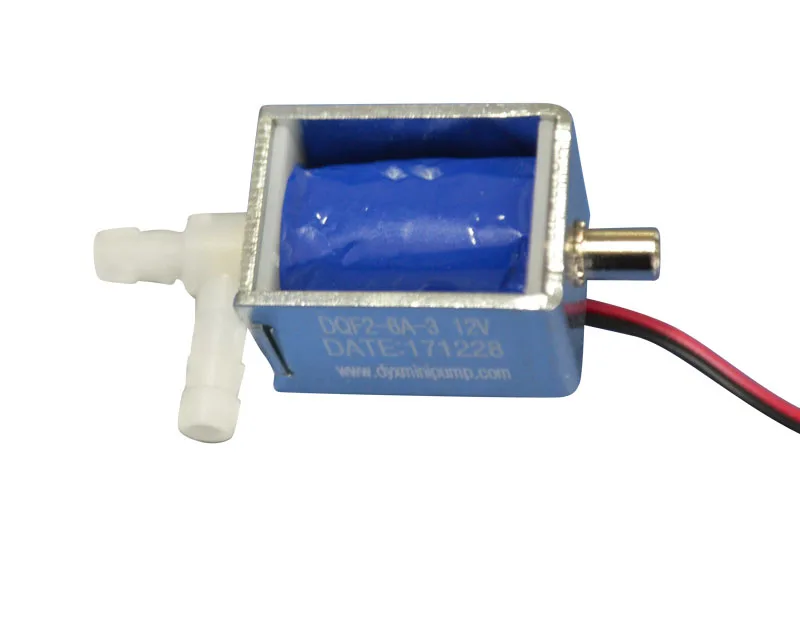

Product Photo:

Technical data:



Model: DQF2-6A-3-12V



Related voltage	DC12.0V
Max. current	<180mA
Power consumption	2.0-3.0W
Pressure	0-400mmHg
Exhaust time	<2s (From 300mmHg to 15mmHg at 500cc tank)
Pressure drop	<9mmHg/min from 300mmHg at 500cc tank
Usage	Air
Duty cycle	Tested to >200,000 operating cycles in 500cc tank.
Temperature range	0-55℃
Weight	30g
Remark	When power off, #1 and #3 is connected, #2 is blocked. When power on, #1 is blocked, and #2 and #3 is connected.

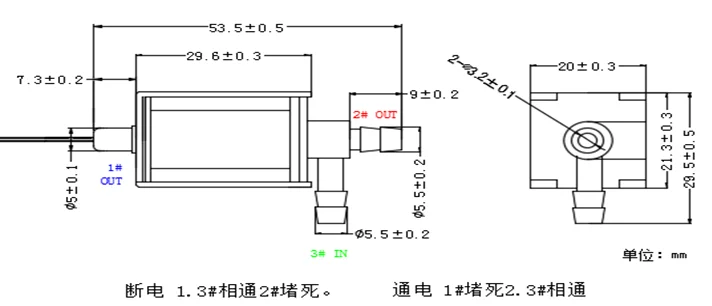

Demension:





Material:

• Shell: SPCC;


• Shaft: POM.
